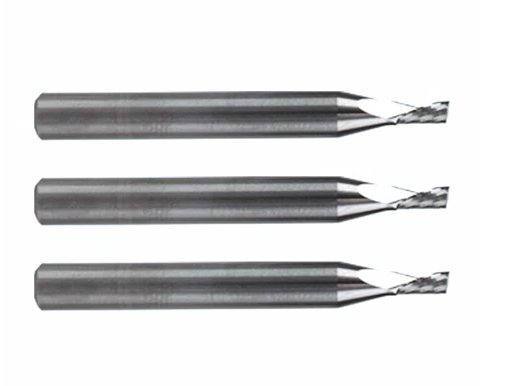

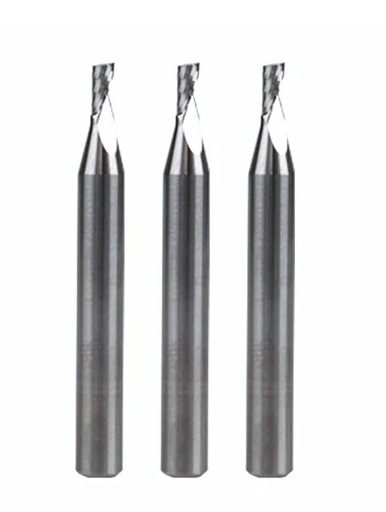

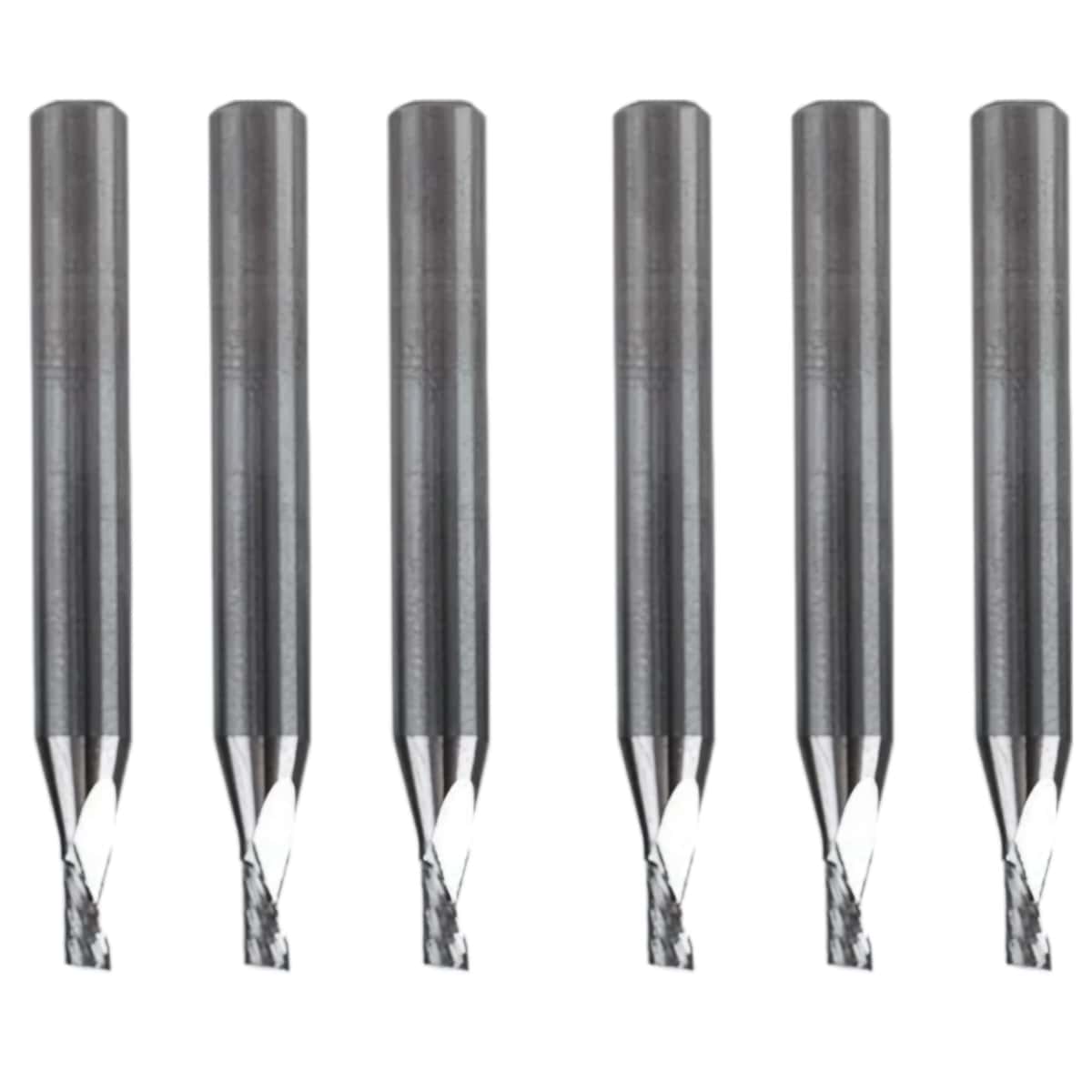

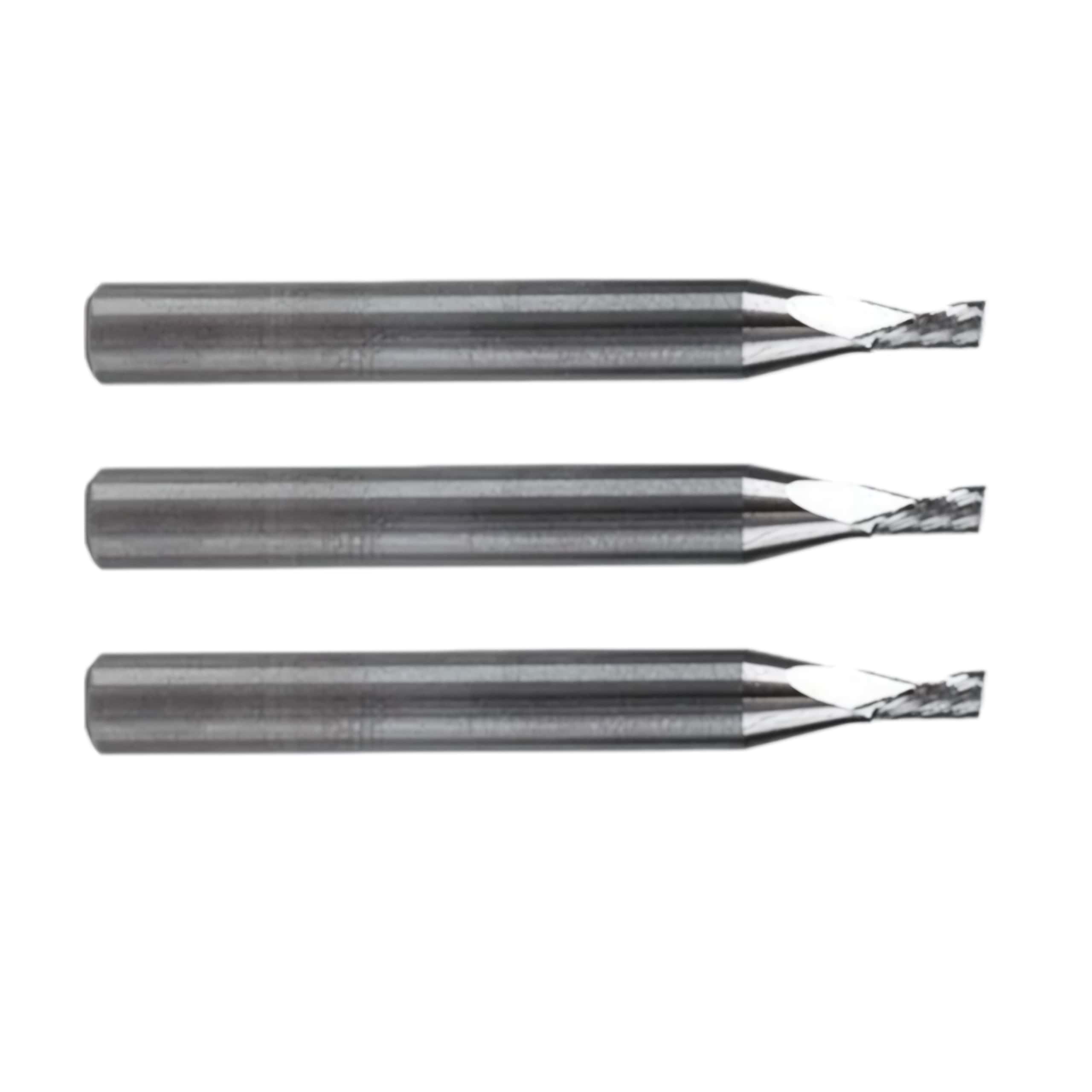

Summa 500-9883 Router Bit for Acrylics, D6/3 L50/6 1FL UC A Compatible Summa Routing System

Summa 500-9883 is a genuine, high-precision router bit engineered for intricate, high-detail cuts in thin acrylics on Summa F Series Flatbed Cutters.
Enquire now

Description

Summa Router Bit for Acrylics, D6/3 L50/6 1FL UC A, 500-9883 Compatible Router Summa Routing System

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 3 mm
Tool Length 50 mm
Max. Routing Depth 6 mm
Flutes 1

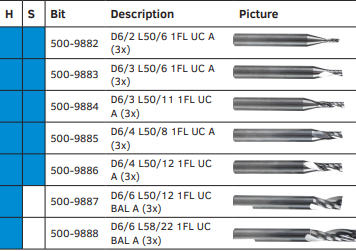

Key Differences from 500-9884, 500-9885, & 500-9886

Shallowest Cut Depth: Features a 6 mm maximum routing depth, the shortest in this 6 mm shank series.
Maximum Rigidity: The ultra-short 6 mm flute minimizes tool flexing, yielding the smoothest possible edge finish on thin sheets.
Tight Clearances: The 3 mm cutting diameter allows for tight inside corners and intricate geometric cutouts.

Performance Characteristics

Anti-Melt Geometry: The single O-flute maximizes chip clearance and reduces heat buildup, preventing acrylic from welding back to the sheet.
Up-Cut Action: Rapidly evacuates debris upward out of the routing channel to ensure a clean path for the tool.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
