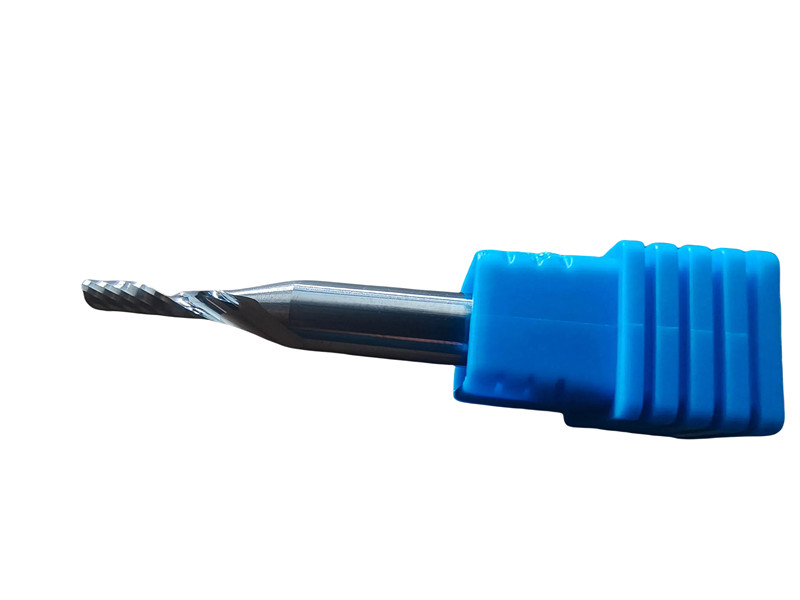

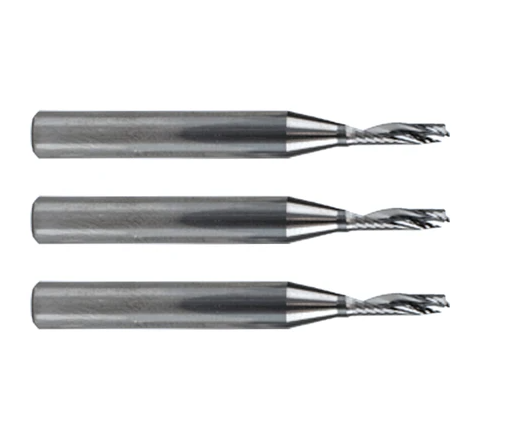

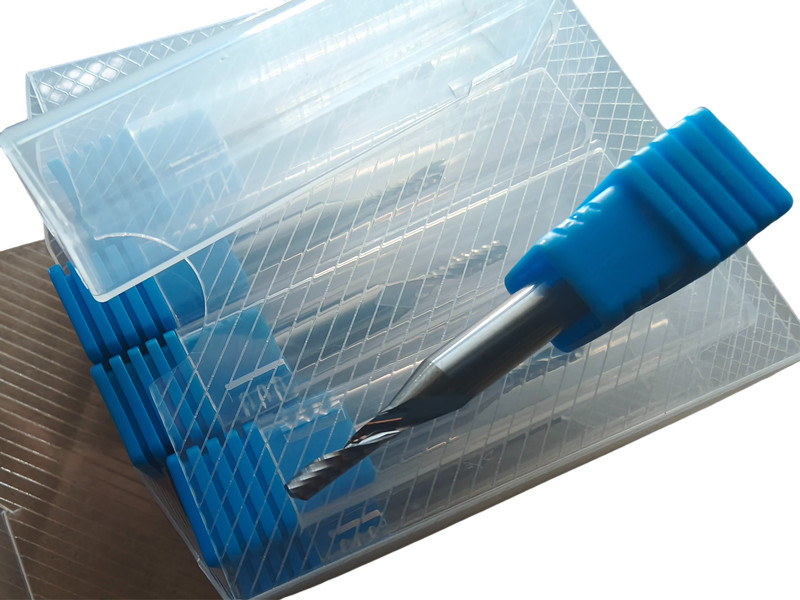

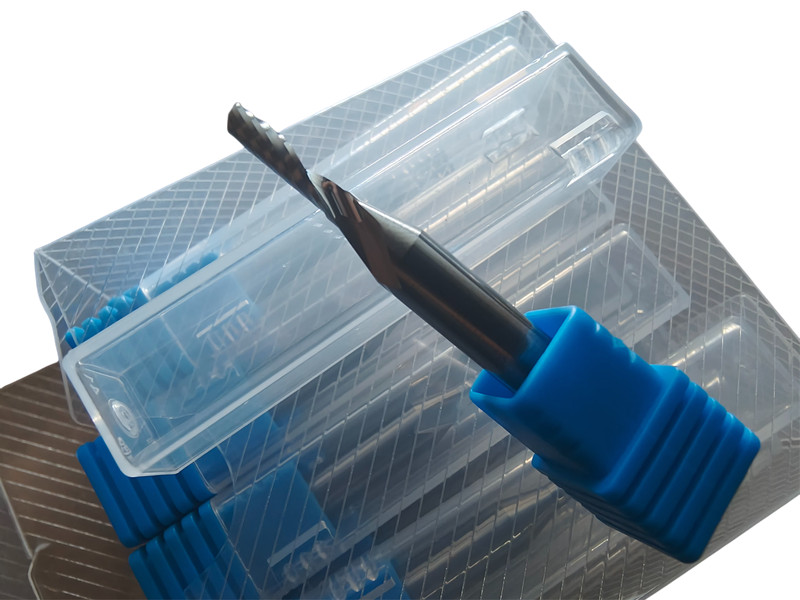

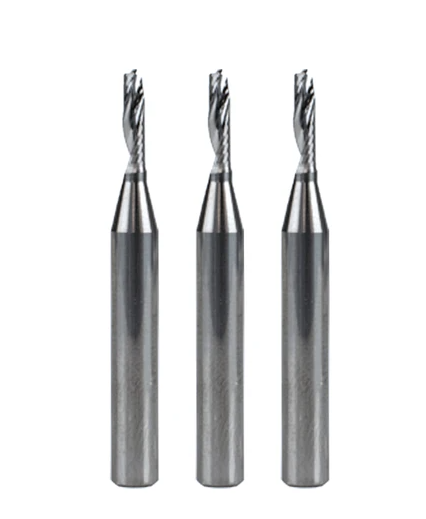

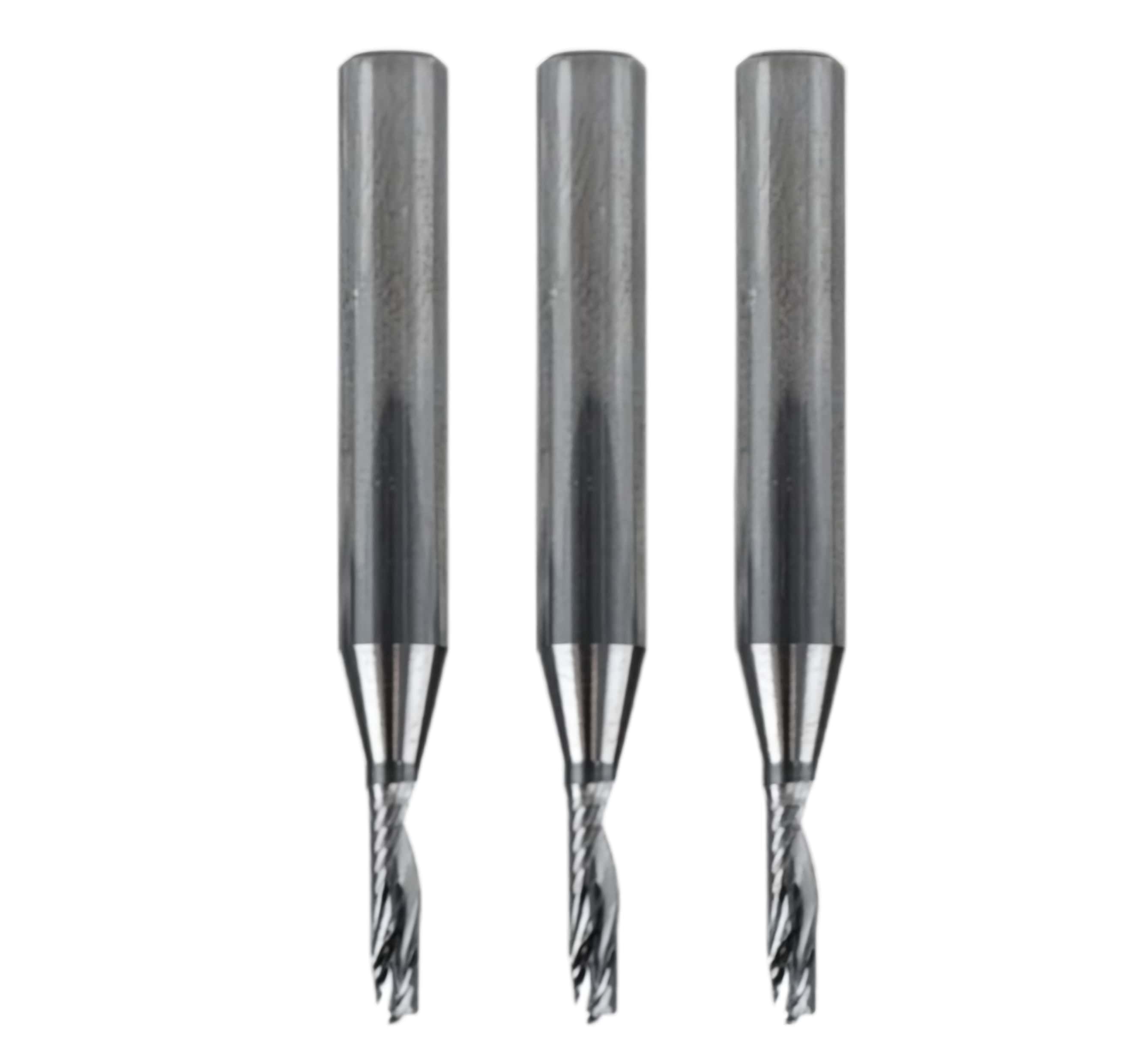

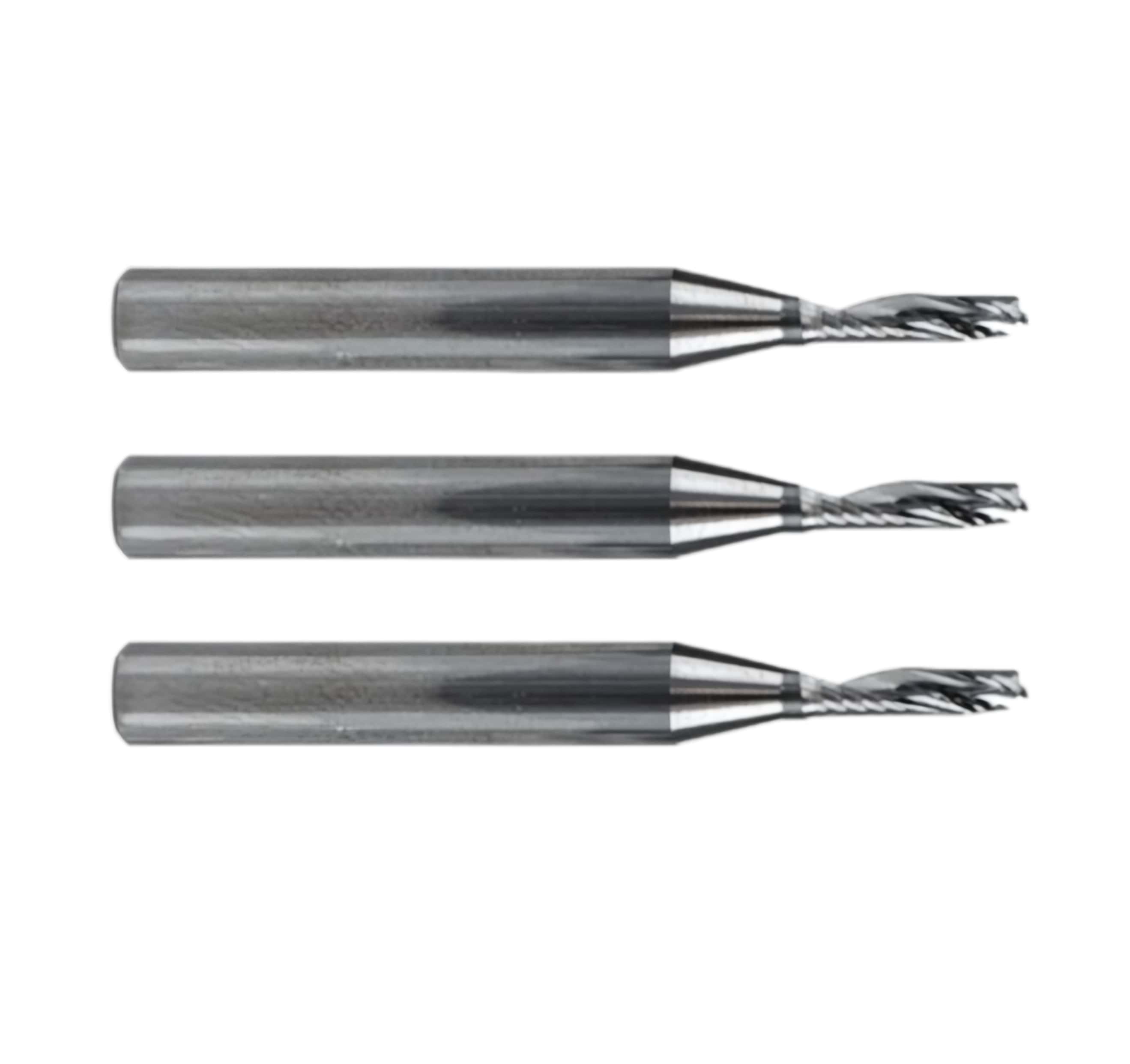

Summa 500-9876 Multipurpose Router Bit D6/3 L50/11 1FL UC MP For Summa F Series Flatbed Cutter

Summa 500-9876 is an authentic, high-quality, single-edged router bit meticulously designed to serve as a versatile tool for various applications. It has been specifically engineered to ensure optimal performance when paired with Summa F Series Flatbed Cutters, making it an essential component for a… Enquire now

Description

Summa Multipurpose Router Bit D6/3 L50/11 1FL UC MP,500-9876 For Summa F Series Flatbed Cutter

Technical Specifications

Shank Diameter (D): 6 mm
Cutting/Routing Diameter: 3 mm
Total Tool Length (L): 50 mm
Maximum Routing Depth: 11 mm (Allows for deeper passes compared to the 6mm depth on the 500-9877)
Flute Count: 1 Flute (1FL)
Geometry: Up Cut (UC) spiral
Material: Uncoated solid tungsten carbide

Nomenclature Breakdown

The industrial identifier for this part is D6/3 L50/11 1FL UC MP, which translates to:

D6/3: 6 mm mounting shank stepped down to a 3 mm precision cutting profile
L50/11: 50 mm structural length with an 11 mm usable cutting depth
1FL UC: Single flute up-cut geometry, ideal for pulling plastic, wood, and metal shavings upward out of the cut track to keep the substrate cool
MP: Multi-Purpose designation, built for handling everyday shop substrates without needing to change bits frequently

Target Applications & Hardware Compatibility

This tool is used in both the standard Summa F Series Routing System and the High-Frequency (HF) Routing System. from specialized industry distributors like Shenzhen Oyea. Its primary materials include:
