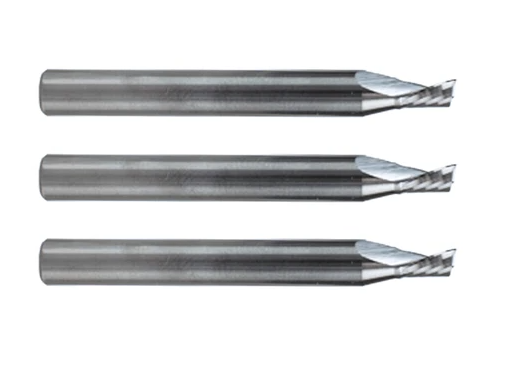

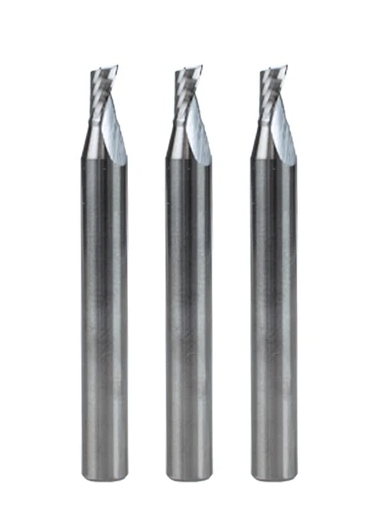

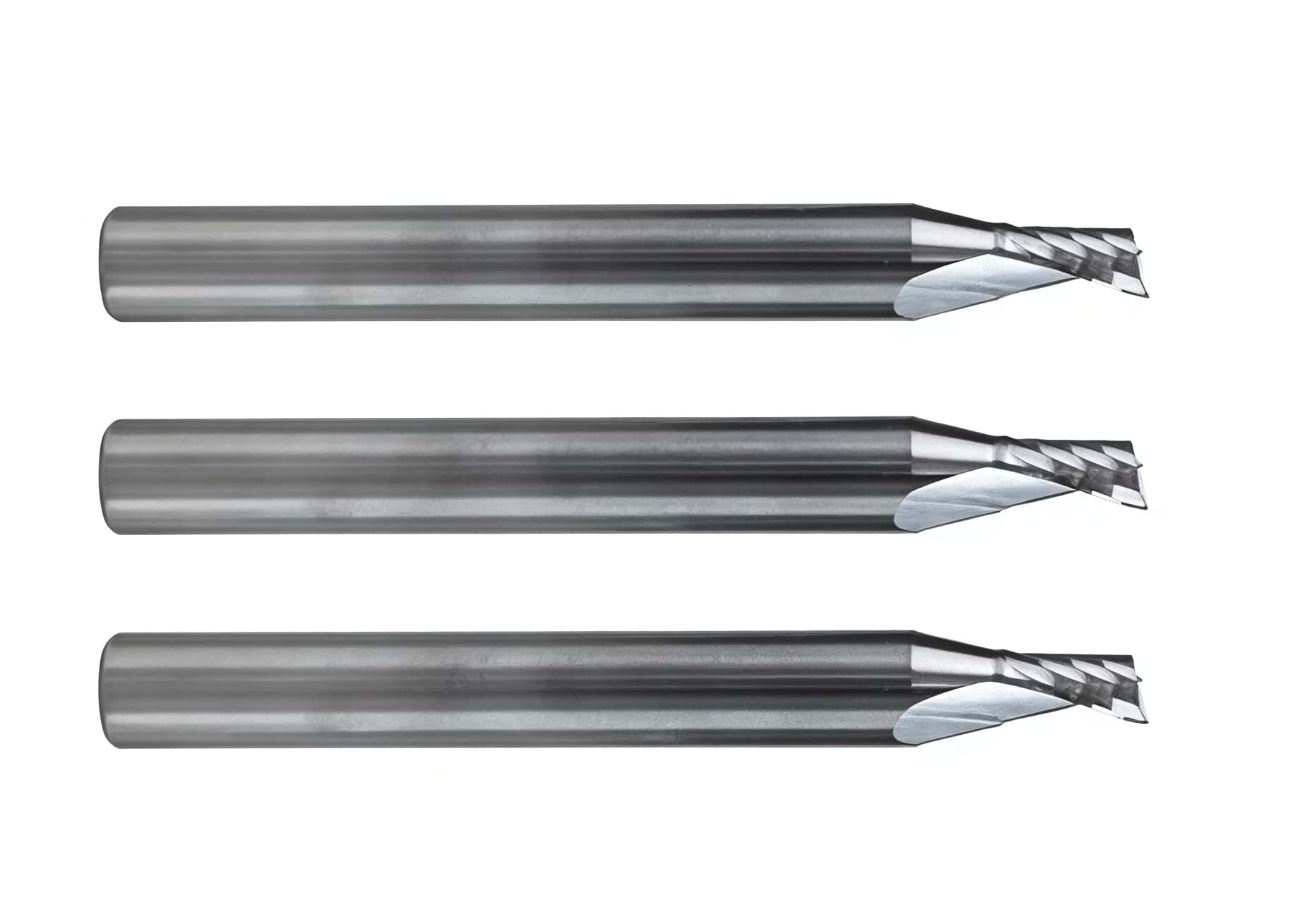

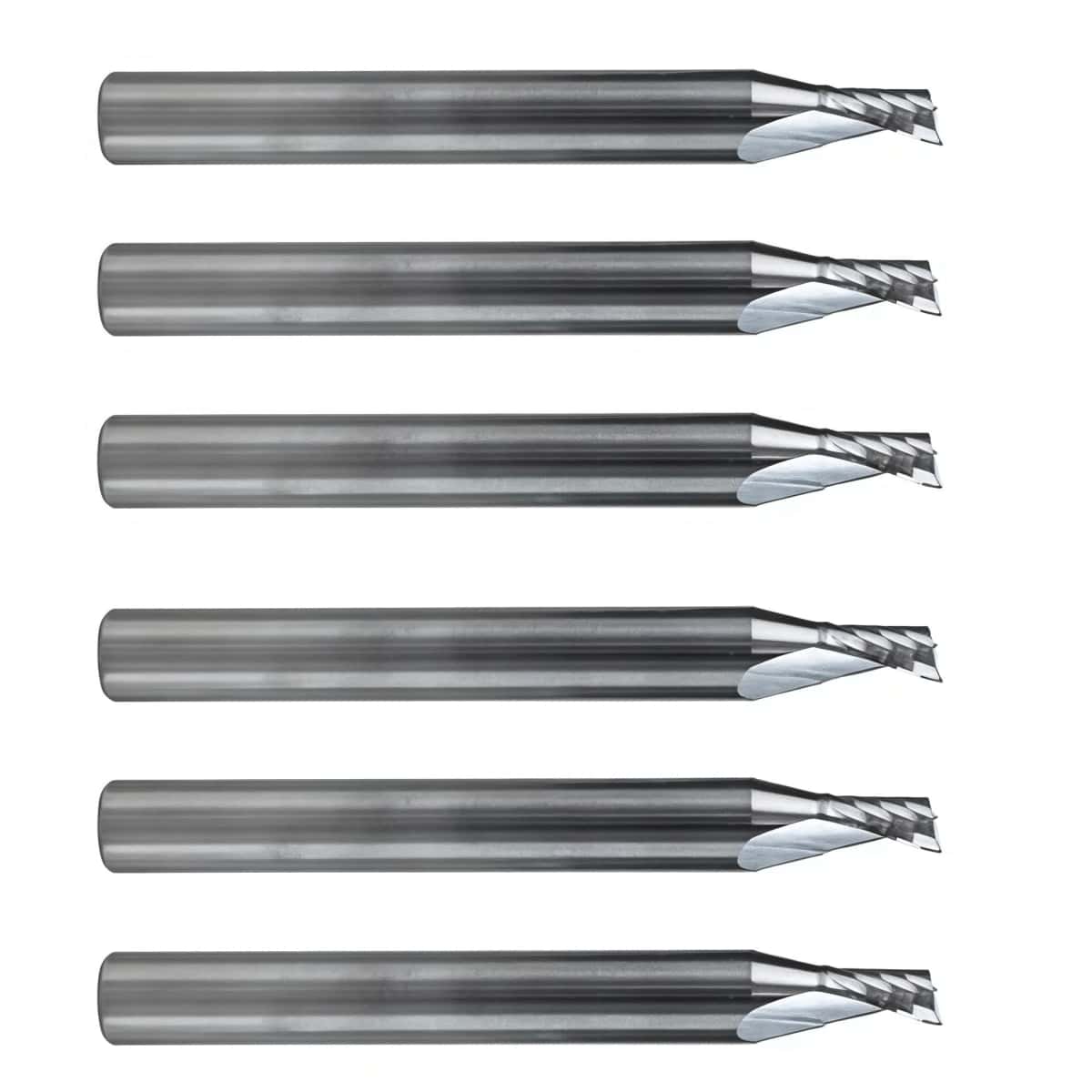

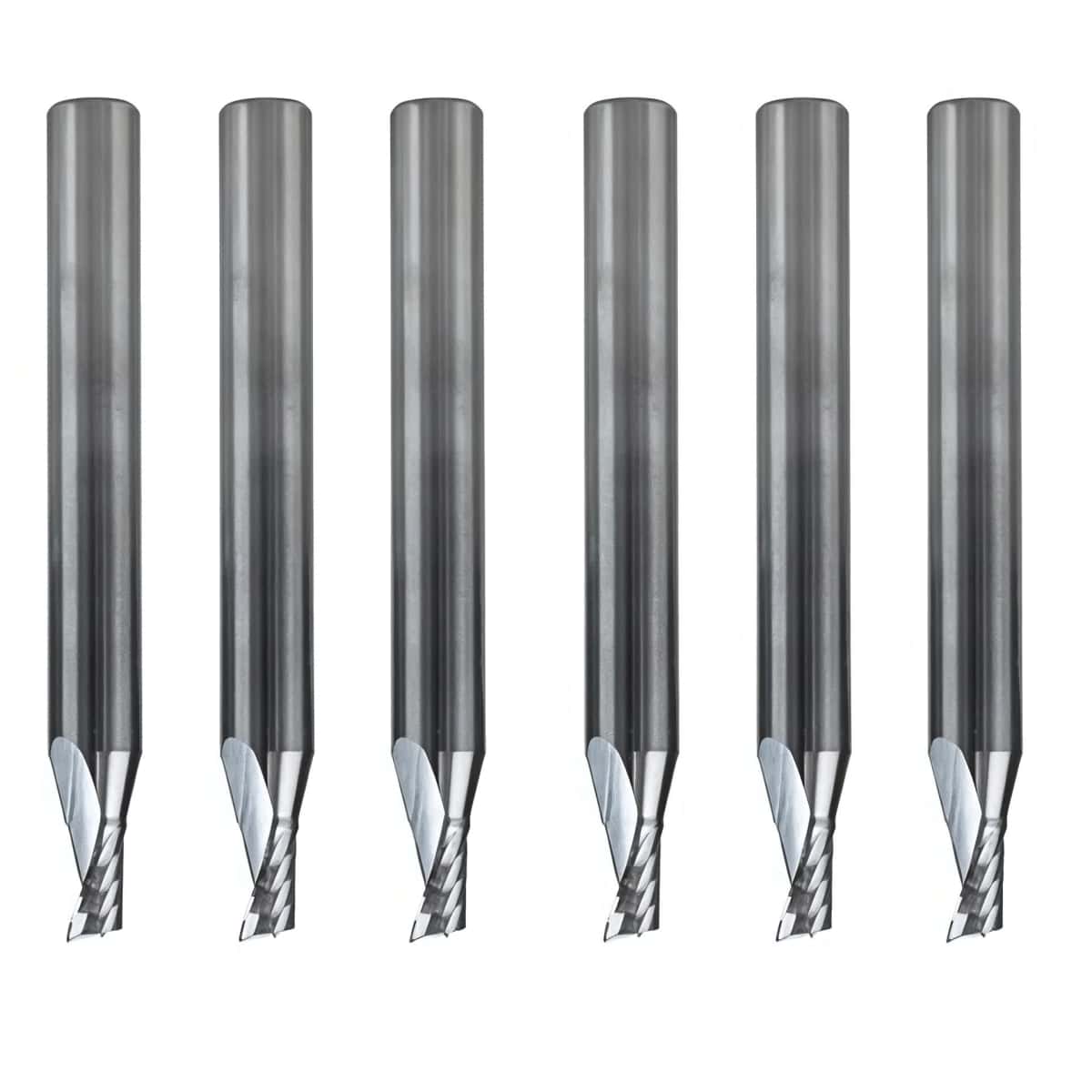

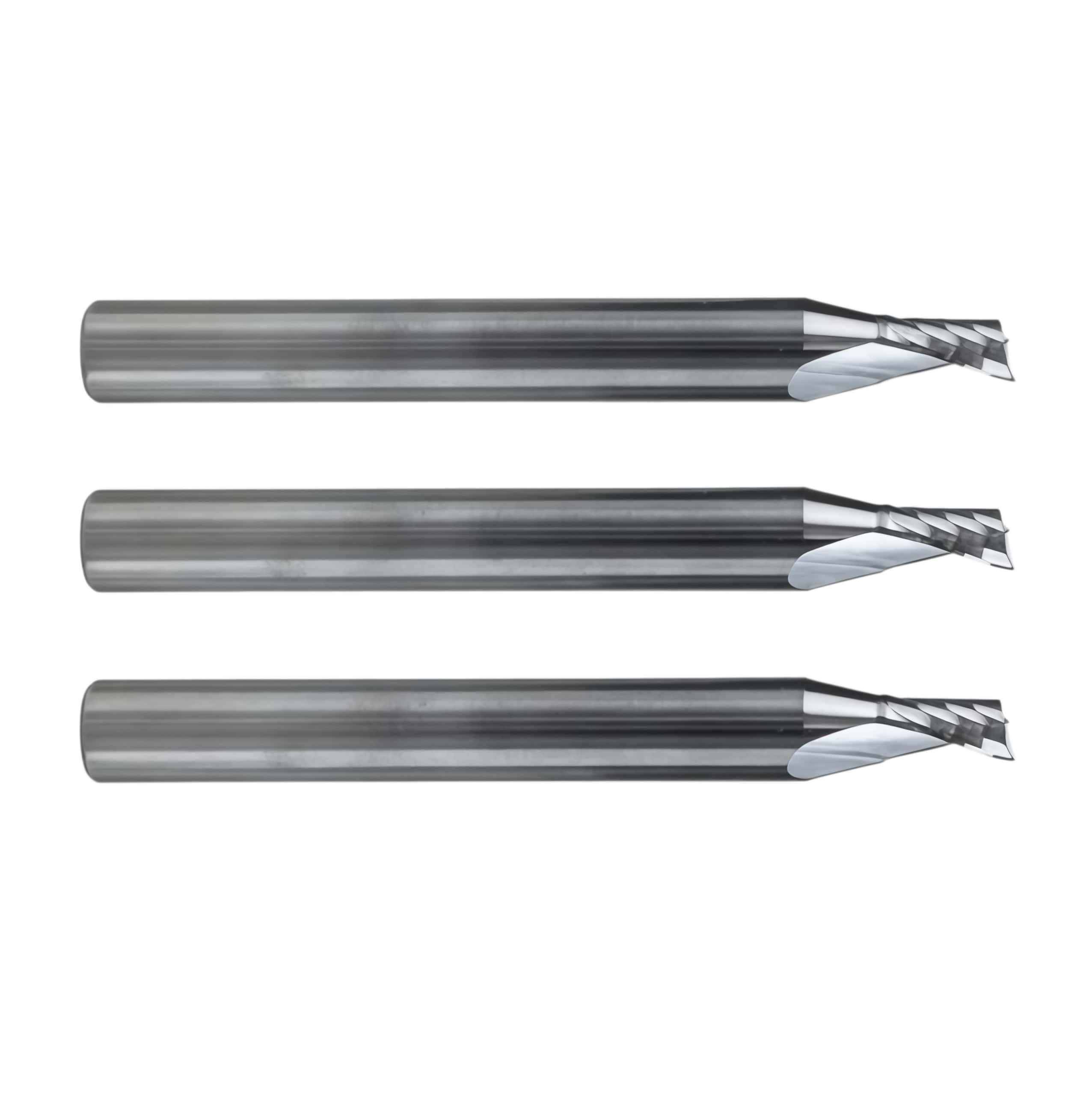

Summa 500-9877 F Series Flatbed Cutting Systems Carbide End Mill (Router Bit)

Summa 500-9877 is a high-performance, professional-grade carbide end mill/router bit specifically designed for the Summa F Series Flatbed Cutters milling module. Enquire now

Description

Summa 500-9877 F Series Flatbed Cutting Systems Carbide End Mill (Router Bit)

Summa 500-9877 (often formatted as D6/4 L50/6 1FL UC MP) is a solid carbide end mill router bit designed for Summa F Series Flatbed Cutting Systems using standard or high-frequency routing modules

Technical Specifications

Shank Diameter (D): 6 mm
Cutting/Routing Diameter: 4 mm
Total Tool Length (L): 50 mm
Maximum Routing Depth: 6 mm
Flute Count: 1 Flute (1FL)
Geometry: Up Cut (UC) — pulls chips and debris upward away from the substrate
Material: Uncoated solid tungsten carbide

Nomenclature Breakdown

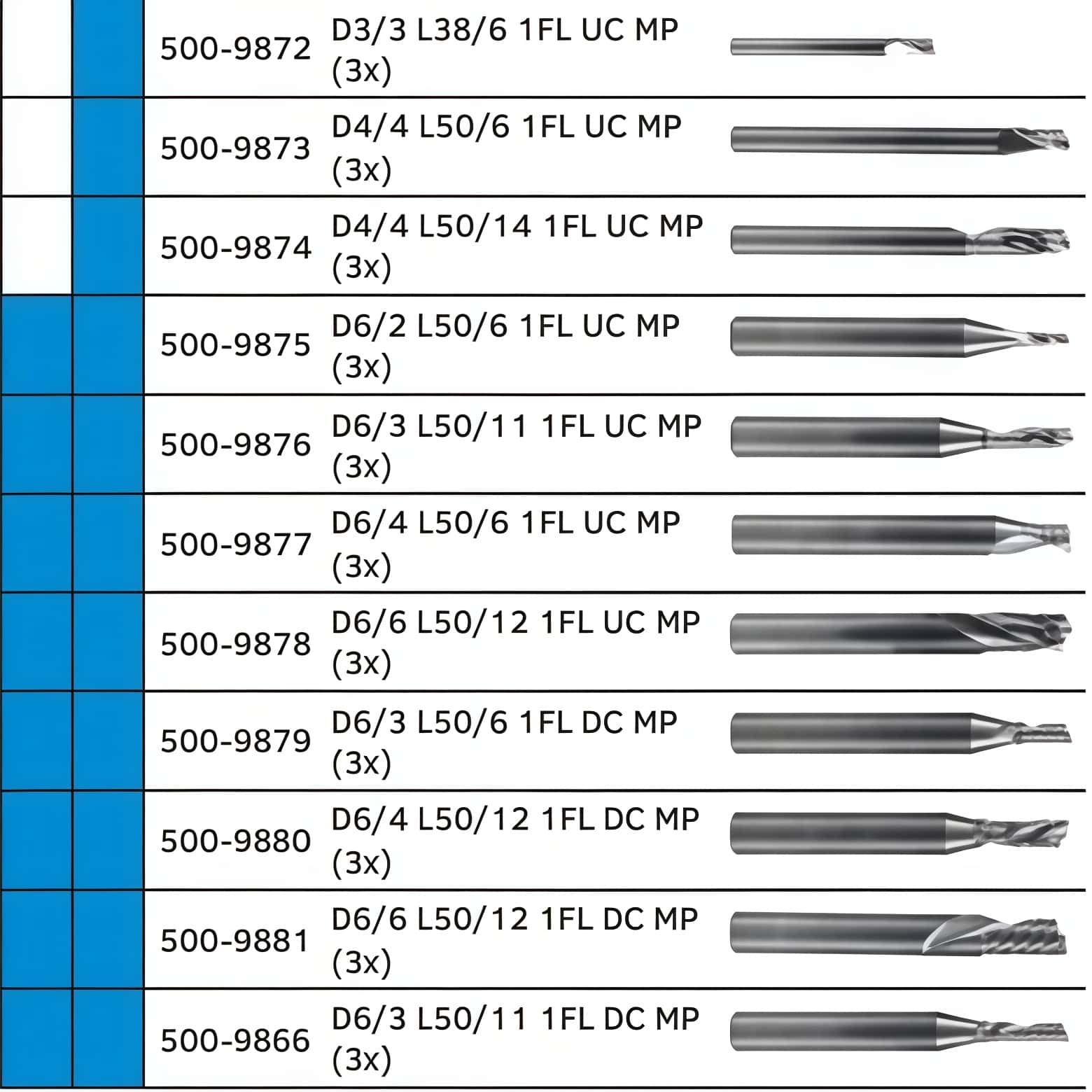

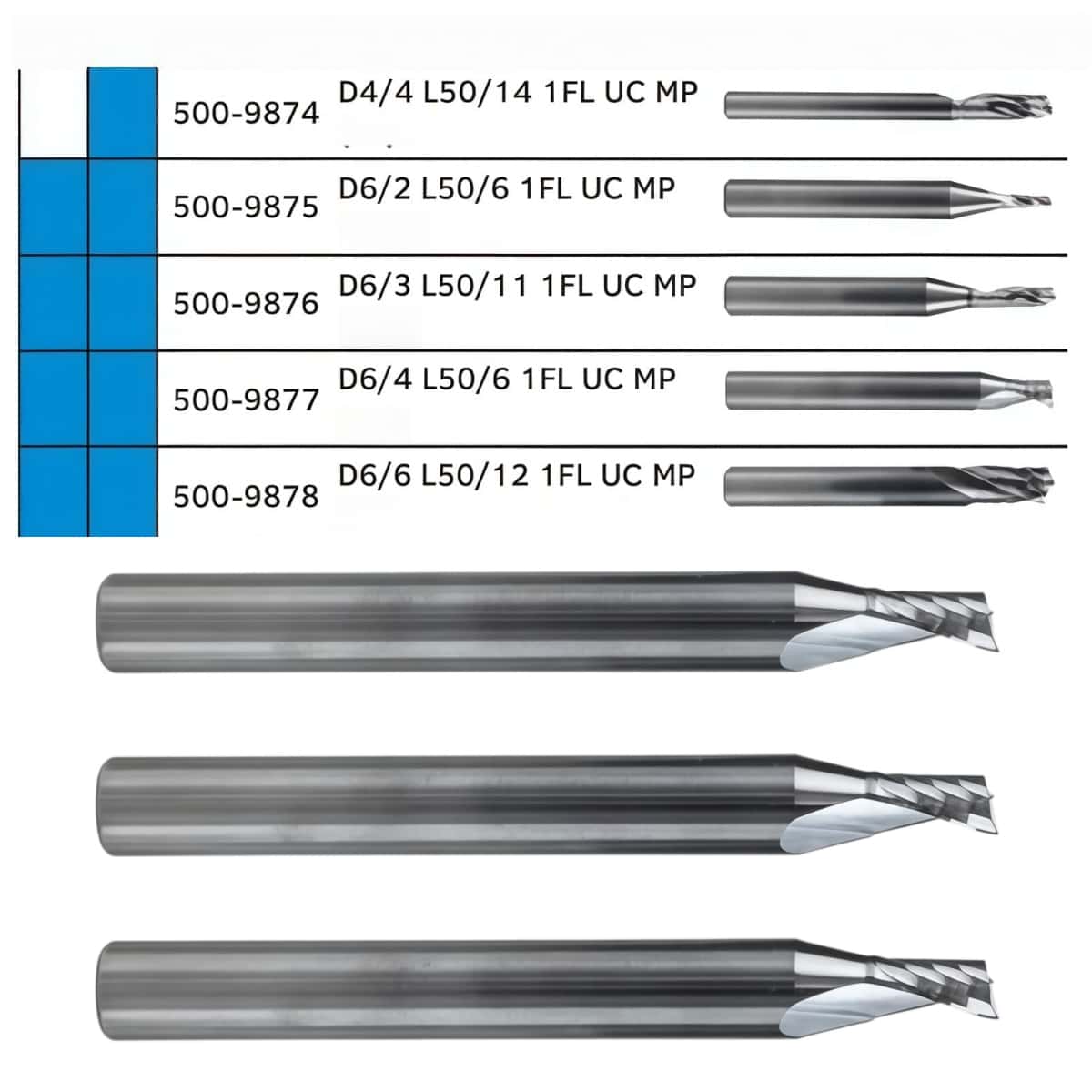

The code D6/4 L50/6 1FL UC MP represents its foundational geometry:

D6/4: 6 mm shaft diameter with a necked-down 4 mm cutting tip
L50/6: 50 mm total physical length with a 6 mm maximum cutting depth
1FL UC: Single flute up-cut spiral for optimal heat dissipation and chip clearout
MP: Multi-Purpose series optimized for versatile shop environments
