Summa 500-9866 Multipurpose F Series Router Bit,D6/3 L50/11 1FL DC MP-Replacement Compatible

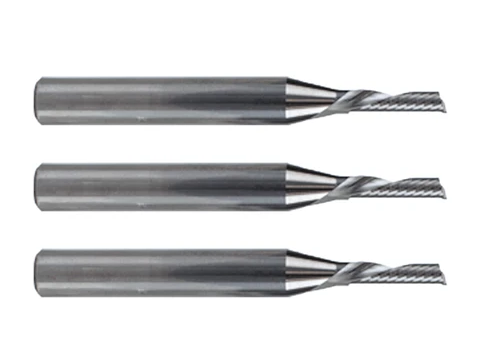

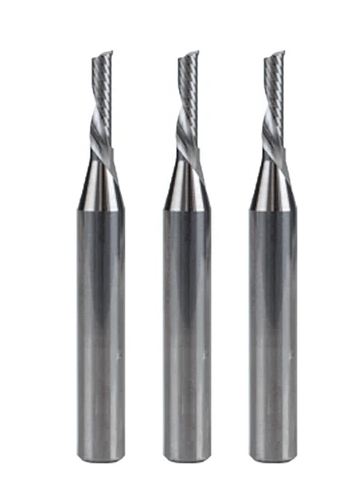

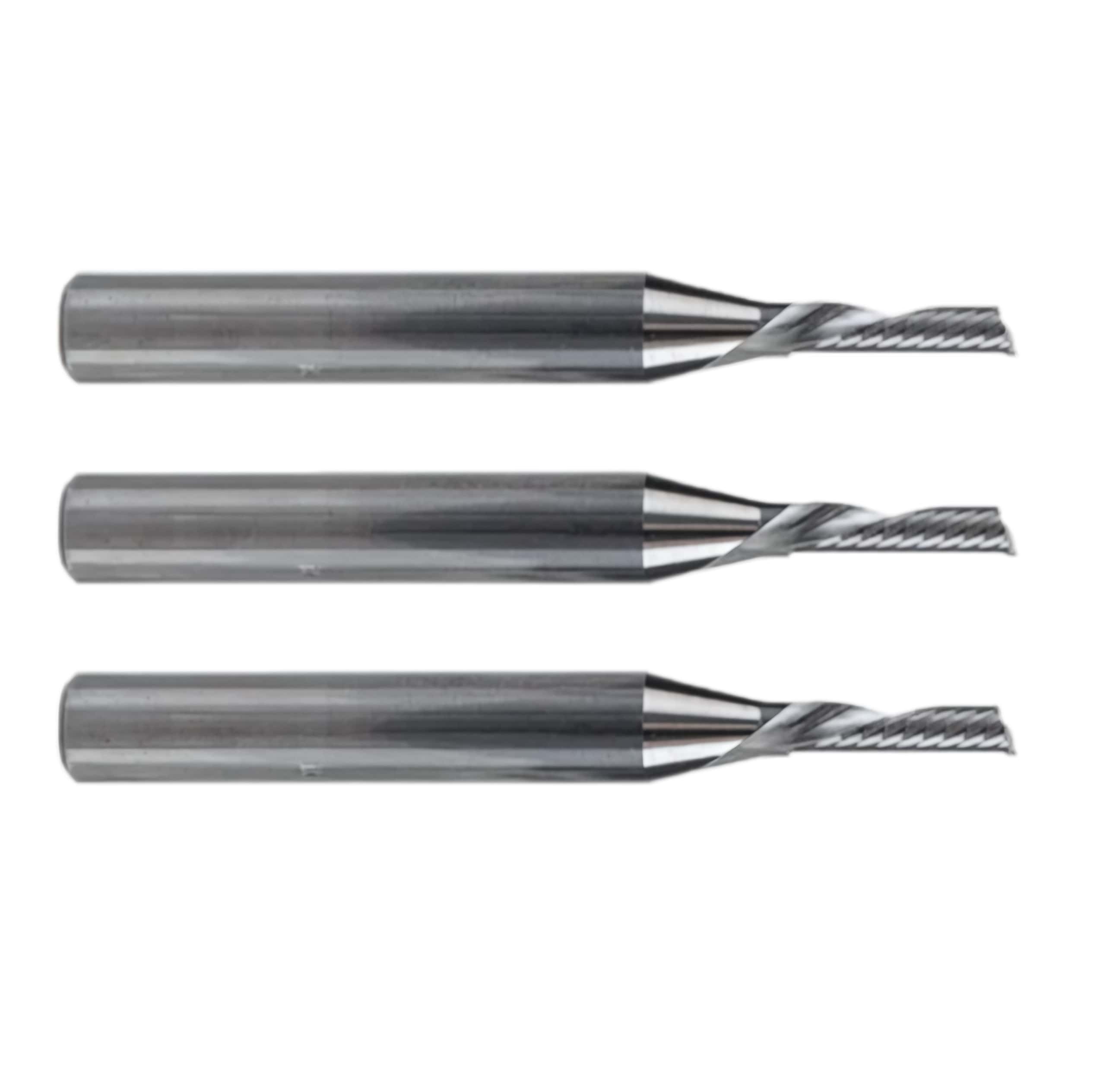

CHINA Summa 500-9866 is a down-cut multipurpose carbide router bit designed specifically for Summa F Series Flatbed Cutters Enquire now

Description

Summa 500-9866 Multipurpose F Series Router Bit,D6/3 L50/11 1FL DC MP-Replacement Compatible

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency
Routing System.
Details
Shank Diameter 6 mm
Routing Diameter 3 mm
Tool Length 50 mm
Max. Routing Depth 11 mm
Flutes 1
Down Cut Debris moves down with the blade rotation

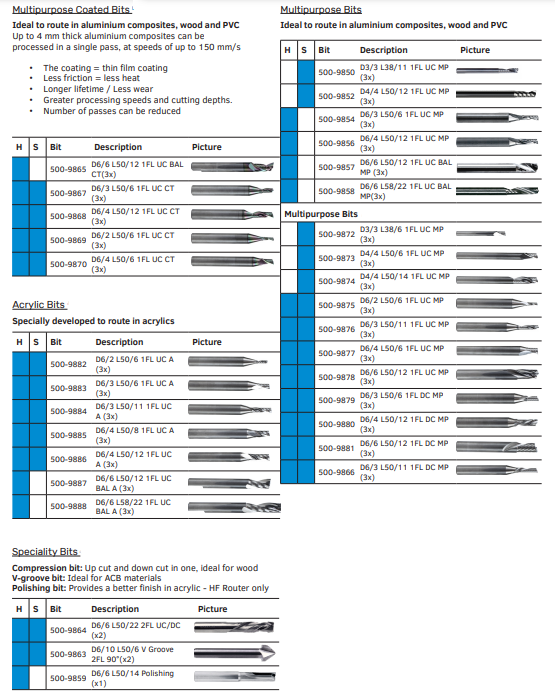

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes
Summa Router Bit, D6/3 L50/11 1FL DC MP

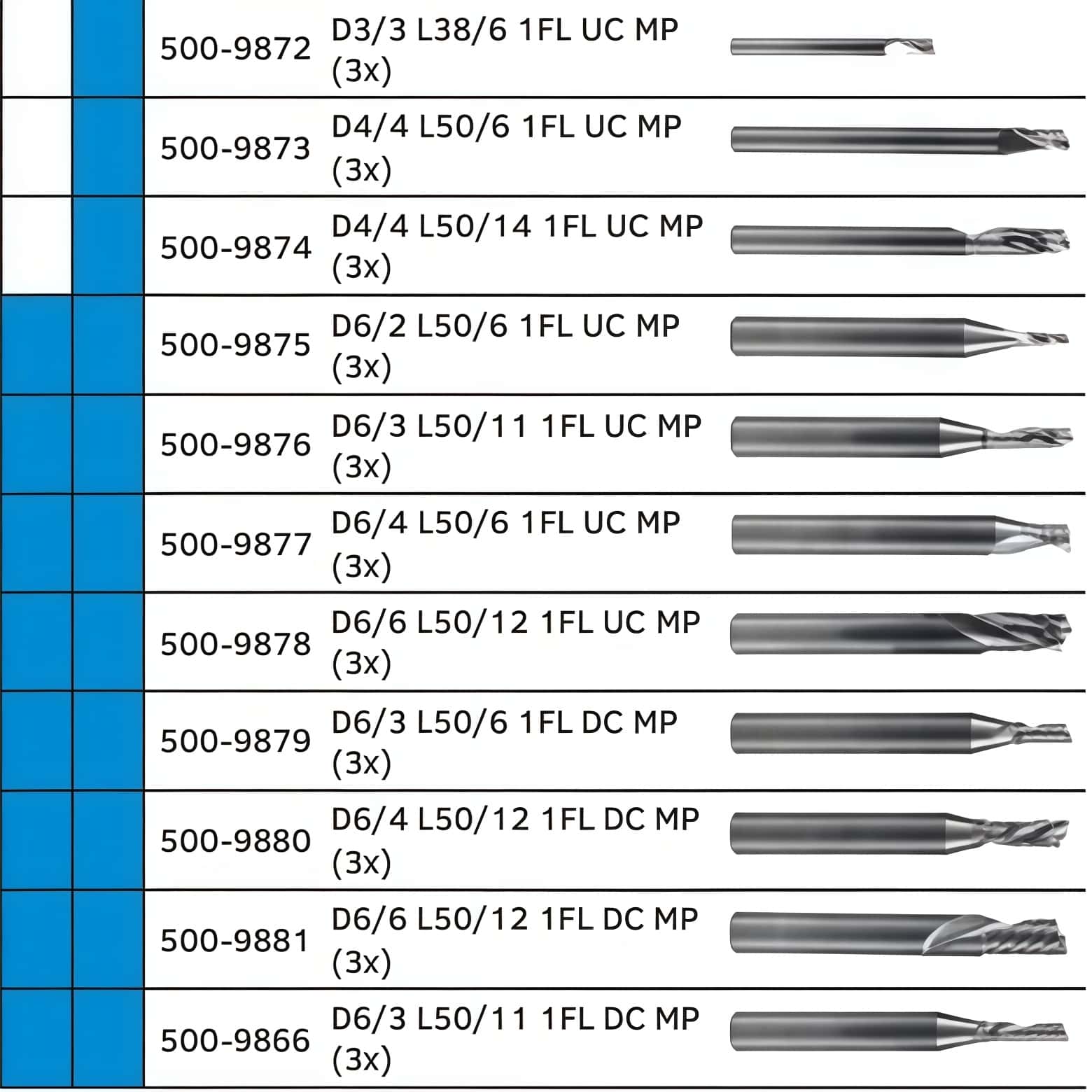

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System

The core purpose and application scenarios of downcutting blades

In Summa's process guidelines,500-9866 This type of chip-removing fine cutter has an extremely irreplaceable and special purpose:

To prevent the surface layer of the material from tearing (chipping) :
- Pain point : When ordinary top-mounted chip cutters (UC) are cutting wood or composite boards with surface lamination, paint, veneer, or film coating, the upward pulling force is extremely easy to tear the surface, resulting in uneven edges.
- Objective :500-9866The cutting edge cuts into the material from above, pressing down to ensure that the upper surface edge of the workpiece is perfectly smooth and burr-free .
Processing wood veneers and grooves (mortise and tenon joints) :
- It is ideal for processing dovetail joints, finger joints, and shallow surface carvings for medium fiberboard (MDF), solid wood boards, and various laminated boards.
To prevent thin, easily loosened boards from warping :
- When processing softer, thinner PVC or sheet materials, the vacuum suction base sometimes cannot completely lock small areas of material. The downward thrust applied by the lower chip ejector blade keeps the workpiece close to the felt table, preventing displacement and deformation of the sheet material due to upward suction.

Process and Operation Suggestions

Waste removal : Since the debris is pressed downward into the cutting groove, it is recommended to use the powerful vacuum dust collection system built into the equipment after processing, or manually clean the dust remaining in the narrow groove of the plate with an air gun.
Depth of cut per pass : Although its cutting length reaches 11mm, because the cutting diameter is only 3mm and it is a bottom chip removal (high chip removal pressure in the groove), when setting parameters in Summa GoProduce software , it is recommended to use multiple passes and control the depth of cut per pass to about 1 times the cutting diameter (3mm) to extend tool life
