Cnc Pattern Tables And Cad Garment Cutter Knife Blades

CHINA AOKE, JWei, RuiZhou, HuaYao, RUK, Saga, AOL, iEcho, Newbull, and HANBOND—share highly standardized tooling formats for automated CNC pattern tables and CAD garment cutters. Enquire now

Description

AOKE JWei RuiZhou HuaYao RUK Saga AOL iEcho Newbull HANBOND Cnc Pattern Tables And Cad Garment Cutter Knife Blades

AOKE, JWei, RuiZhou, HuaYao, RUK, Saga, AOL, iEcho, Newbull, and HANBOND—share highly standardized tooling formats for automated CNC pattern tables and CAD garment cutters. These heavy-duty industrial blades are typically manufactured from ultra-durable tungsten carbide (such as YG8X or YG10X grades) to withstand continuous friction during high-speed production runs.

Depending on your specific cutter head attachment, these replacement blades fall into two primary structural categories:

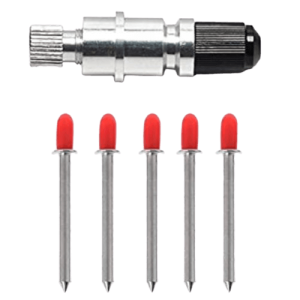

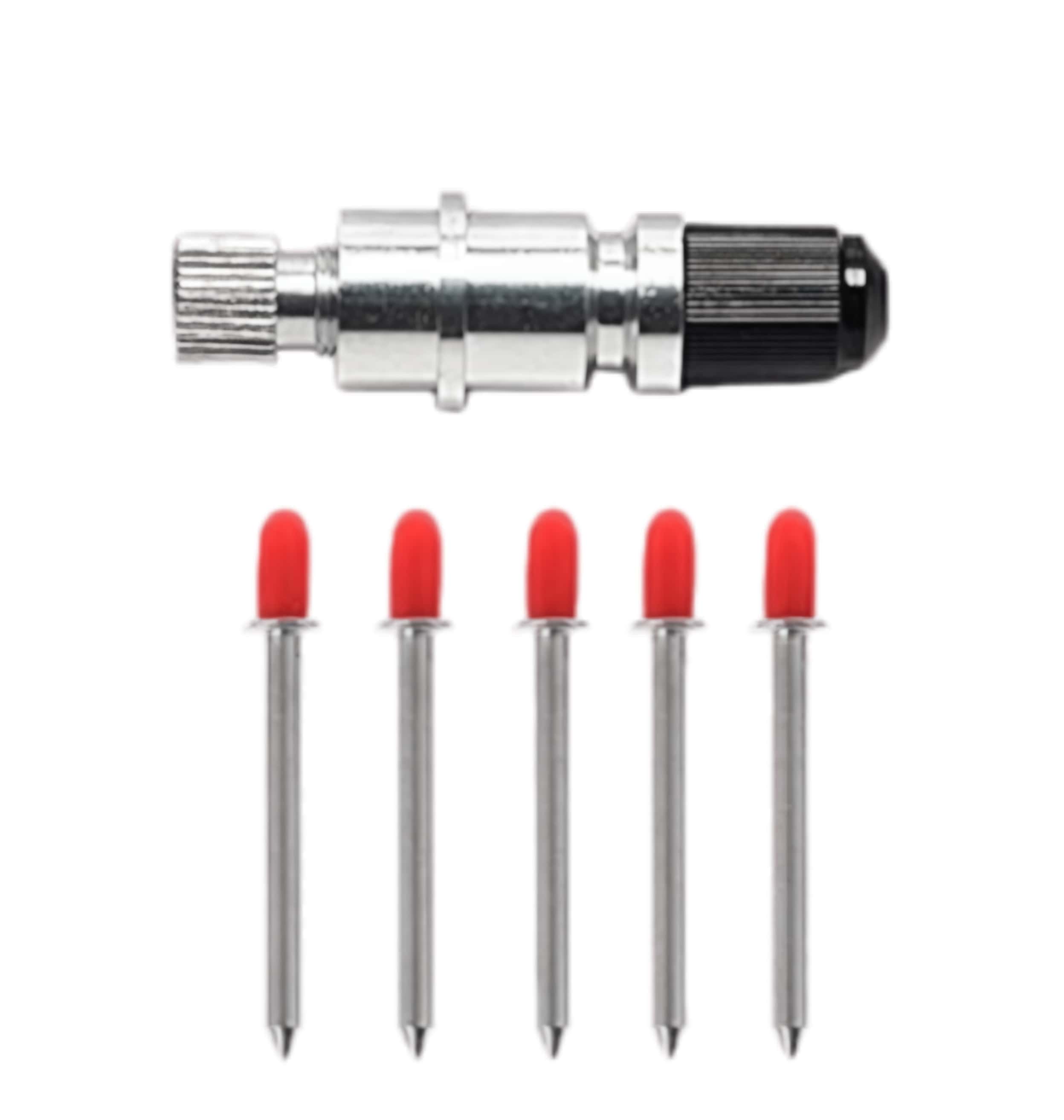

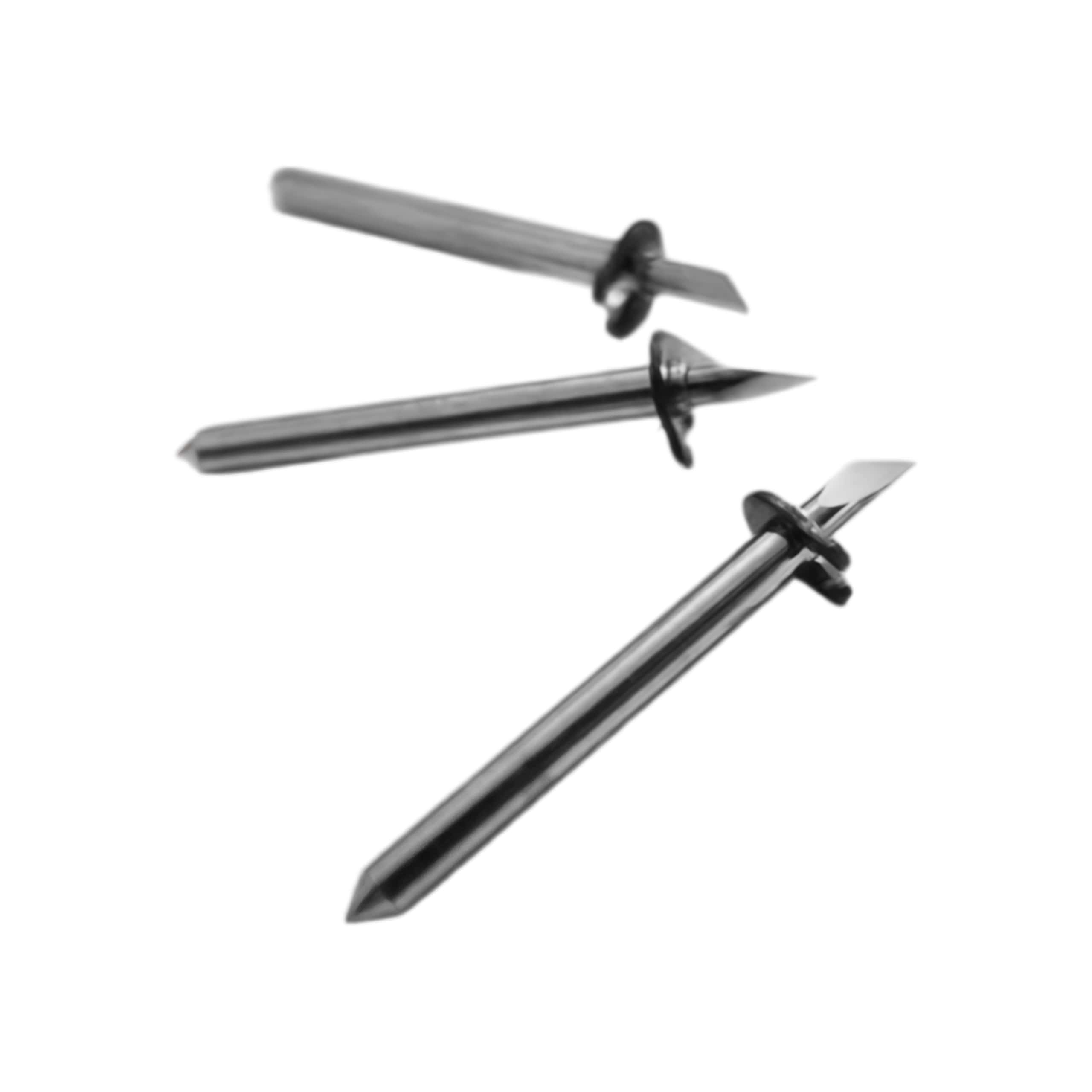

1. Roland-Style Drag & Plotter Blades (with Fixed Snap Rings)

Many CAD pattern plotters across these specific brands utilize a universal 2mm shank diameter, often modified with an integrated stabilization component.

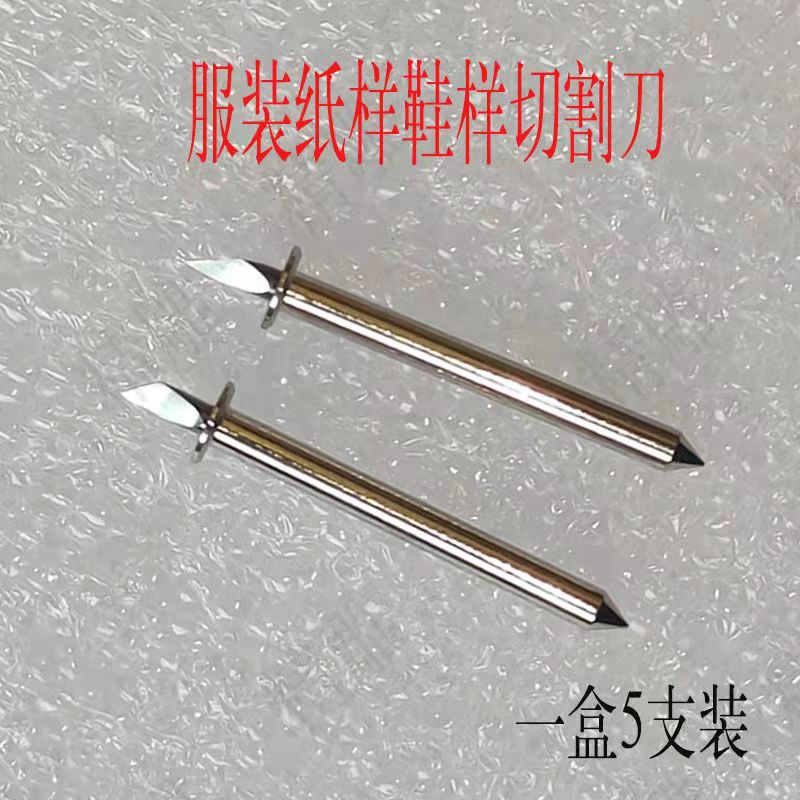

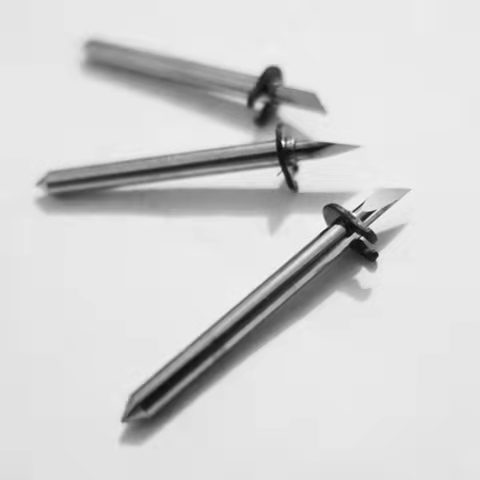

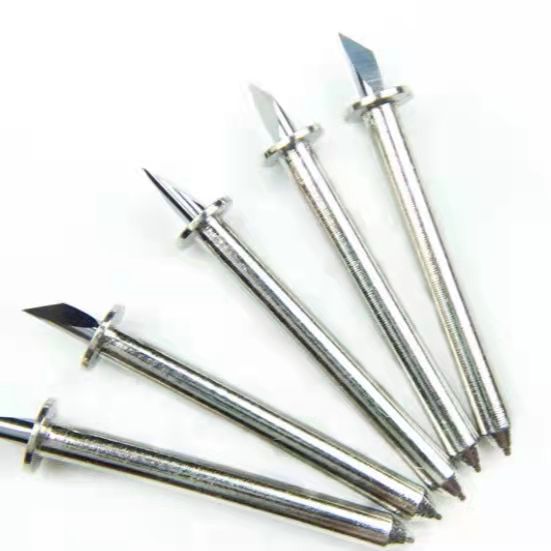

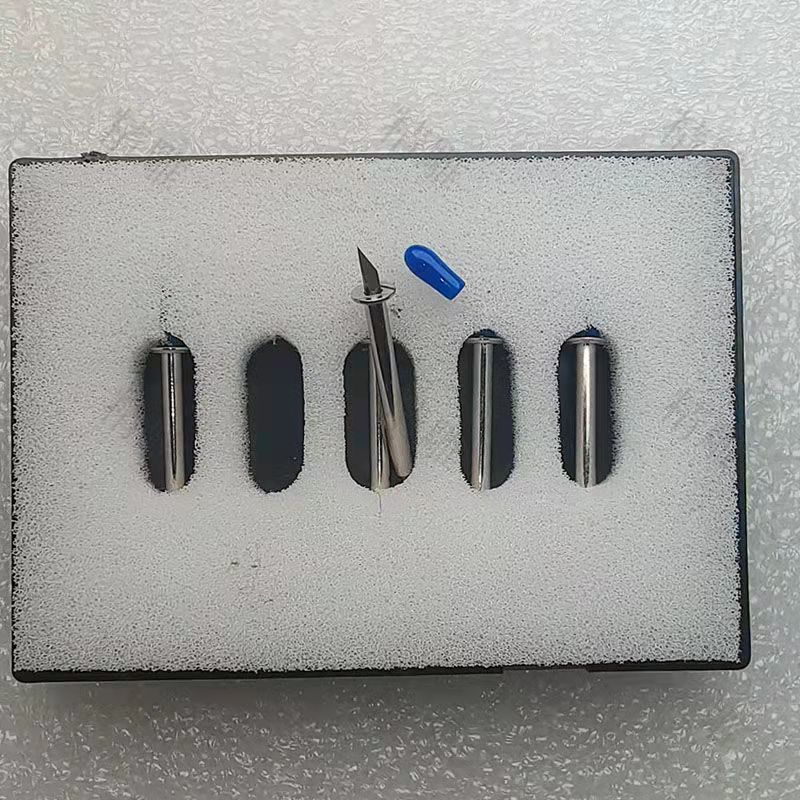

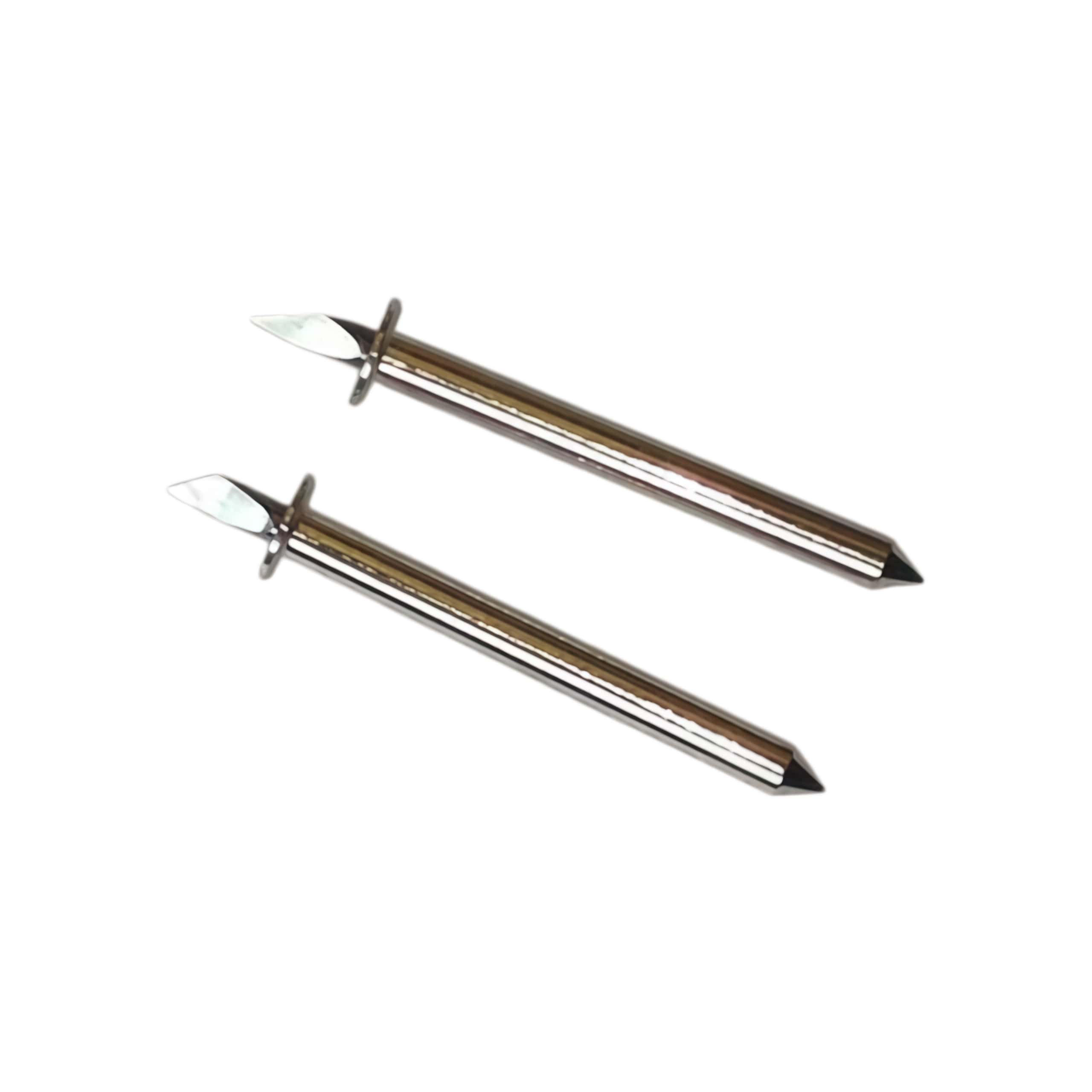

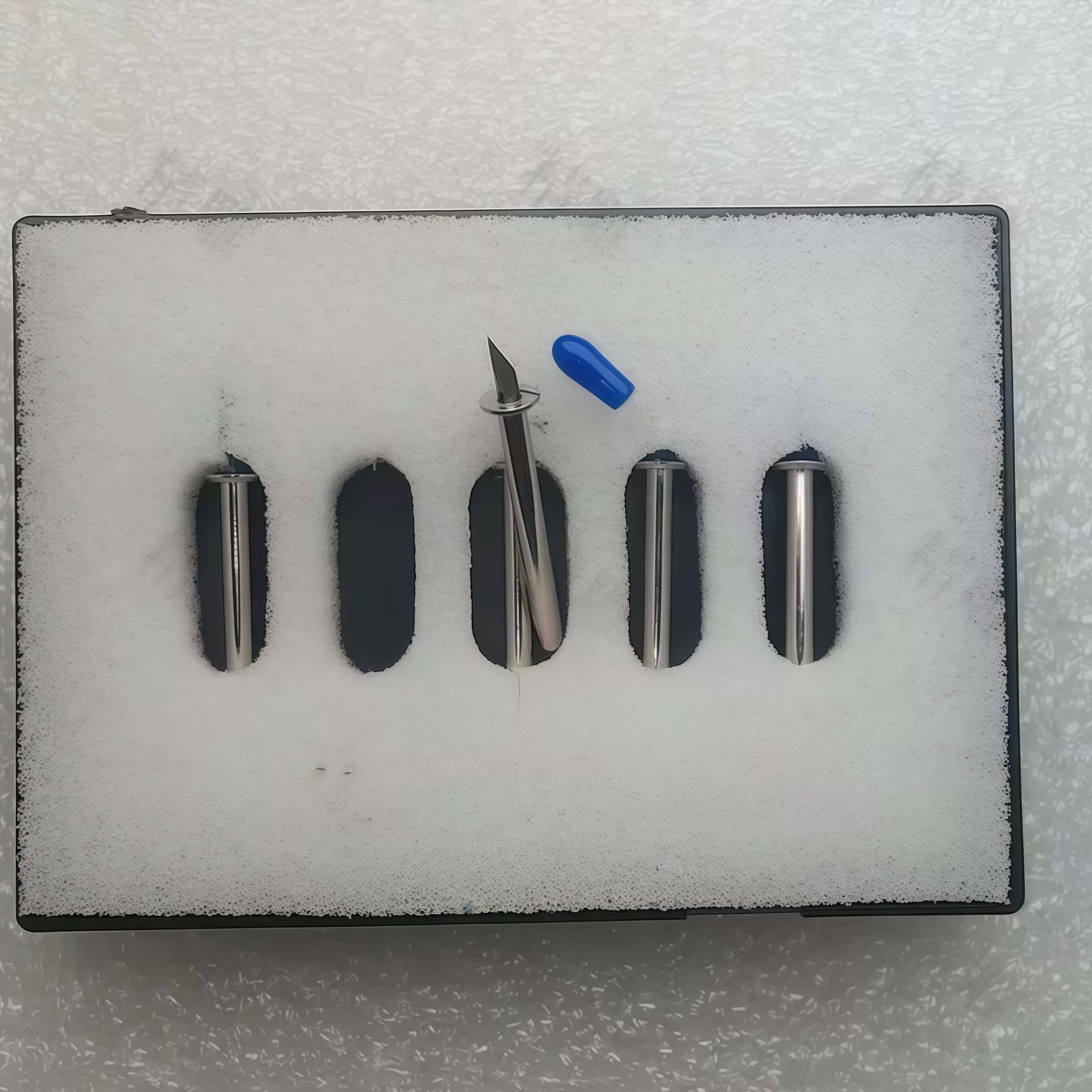

Fixed Pressure Ring Setup: These blades are physically characterized by a fixed, non-removable snap ring near the top. They must be paired with specialized tool holders matching your machine's brand.
Extended Length: These specialized pattern-cutting versions measure 24.5mm in length (unlike standard 23.5mm Roland plotter blades) to achieve proper depth tracking.
Common Geometries: Available in standard 30°, 45°, and 60° cutting angles with a 0.25mm offset to handle thin cardboard, garment paper, vinyl, and films.

2. Flat Shank Oscillating & Vibrating Blades

For heavy-duty cutting heads (such as those on iEcho, JWei, or RuiZhou flatbed tables), high-frequency reciprocating blades are used to plow through dense materials.

Physical Profile: These feature flat, rectangular shanks (typically 0.63mm, 1.0mm, or 1.5mm thick) designed to drop and lock directly into pneumatic or electric oscillating knife tools.
Varying Blade Heights: Blade heights span anywhere from 25mm up to 68mm, providing maximum cutting depths of up to 53mm for layered corrugated board, honeycomb, leather, and EVA foam
