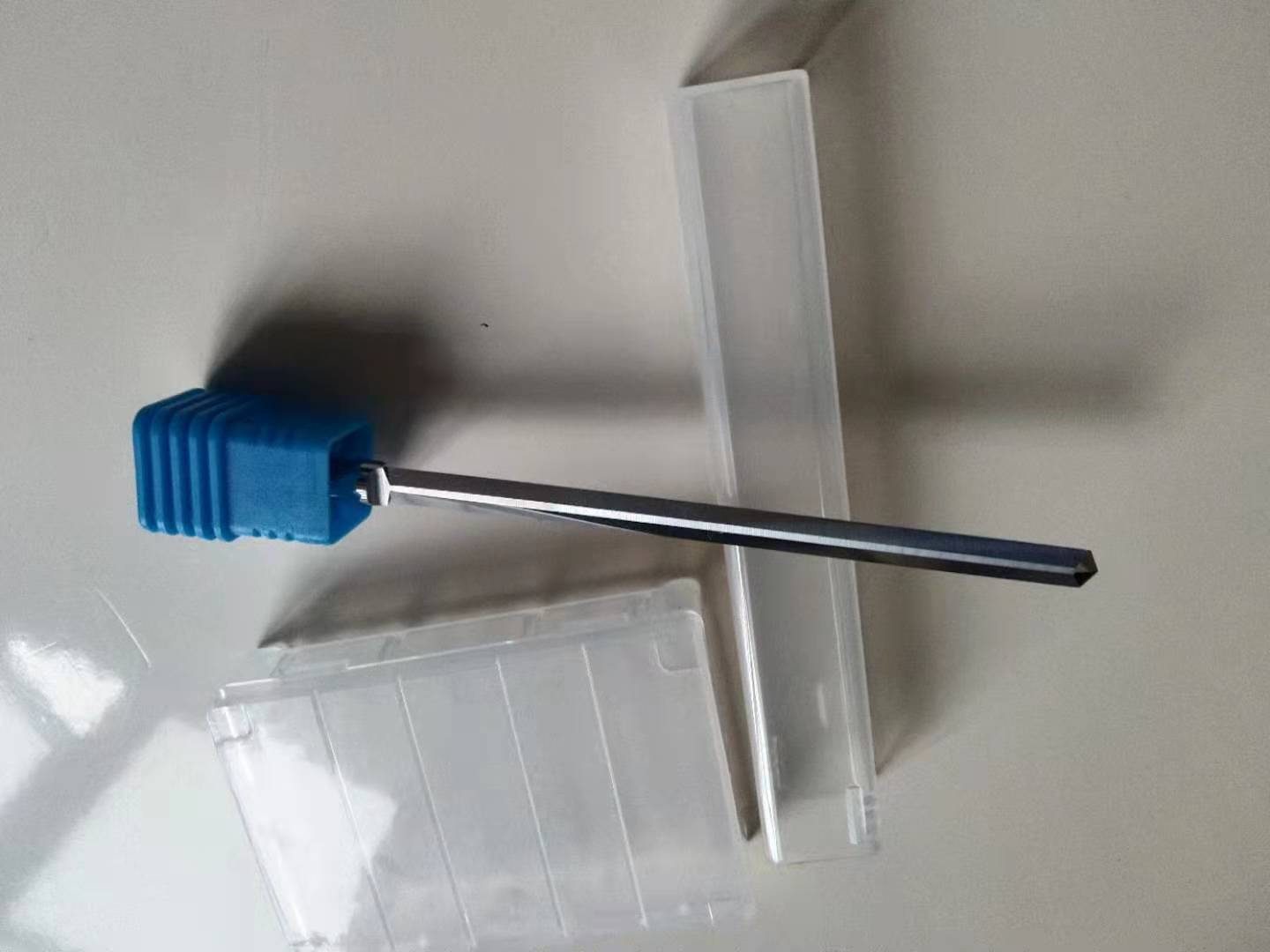

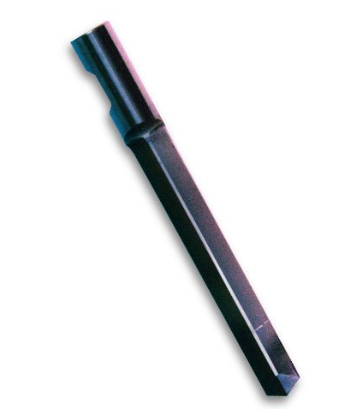

The MultiCam BT-562090 (Part Number: 84-00193-BT-562090 ) is a heavy-duty, solid tungsten carbide double-edged oscillating knife blade designed for CNC cutting tables and digital flatbed cutters.

Key Technical Specifications

• Blade Type: Oscillating / Weldon-compatible round shank blade

• Edge Style: Double-edge, flat point

• Cutting Edge Length (Max Depth): 90.0 mm (~3.54 in)

• Overall Length: 106.0 mm

• Shank Diameter: 6.0mm round shank

• Cutting Angle: 2 *30°

Material Compatibility

This blade is engineered for deep/thick cuts in flexible and medium-density materials:

• Foam & Insulation: Expanded/extruded polystyrene, polyurethane foam, acoustic insulation

• Textiles & Technical Fabrics: Canvas, felt, heavy carpet, aramid & carbon fibers

• Packaging & Signage: Corrugated cardboard, honeycomb board, foam board, rubber, soft PVC

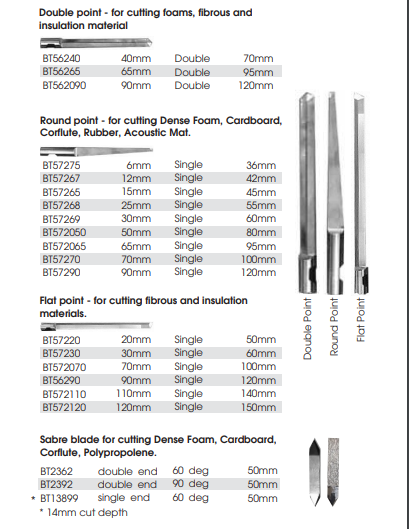

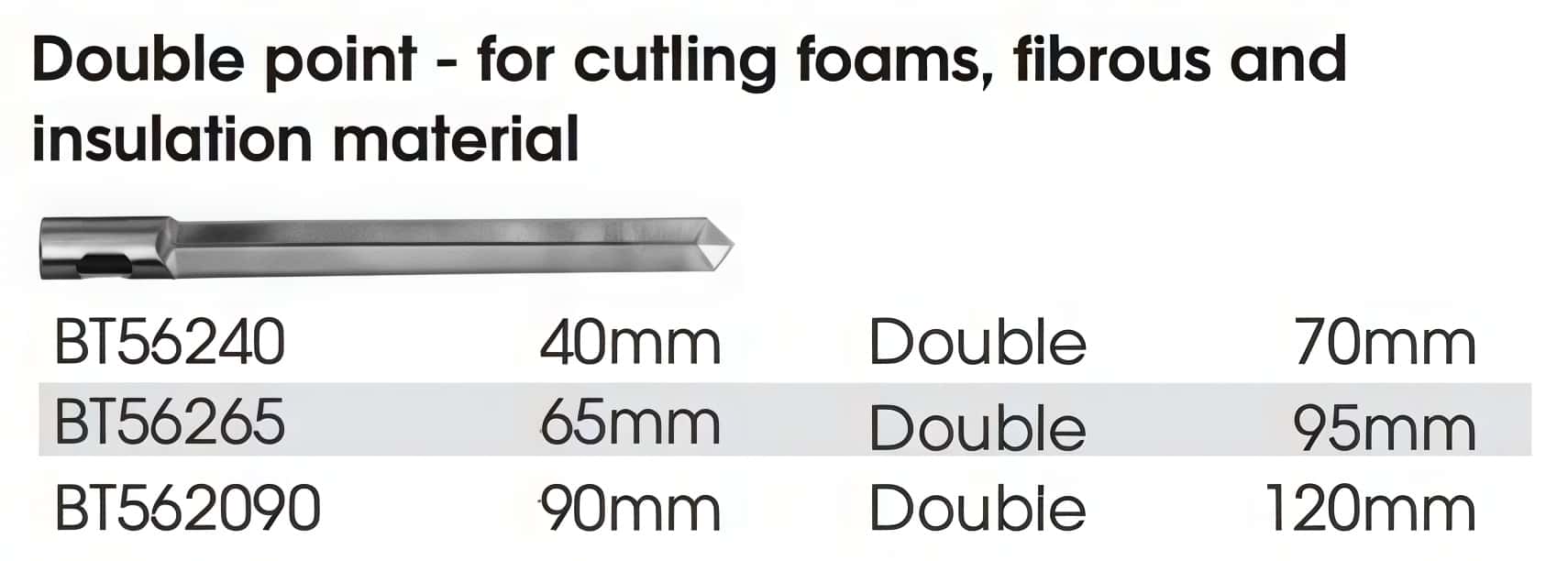

Equivalent/Cross-Reference Part Numbers
