As a leading global brand of CNC engraving and digital cutting all-in-one machines (such as the renowned AXYZ Trident 3-in-1 system and Infinite series), AXYZ boasts a vast ecosystem of original and compatible accessories.

Below is a complete official and industry-standard catalog guide for AXYZ blades, everyday consumables, and core spare parts :

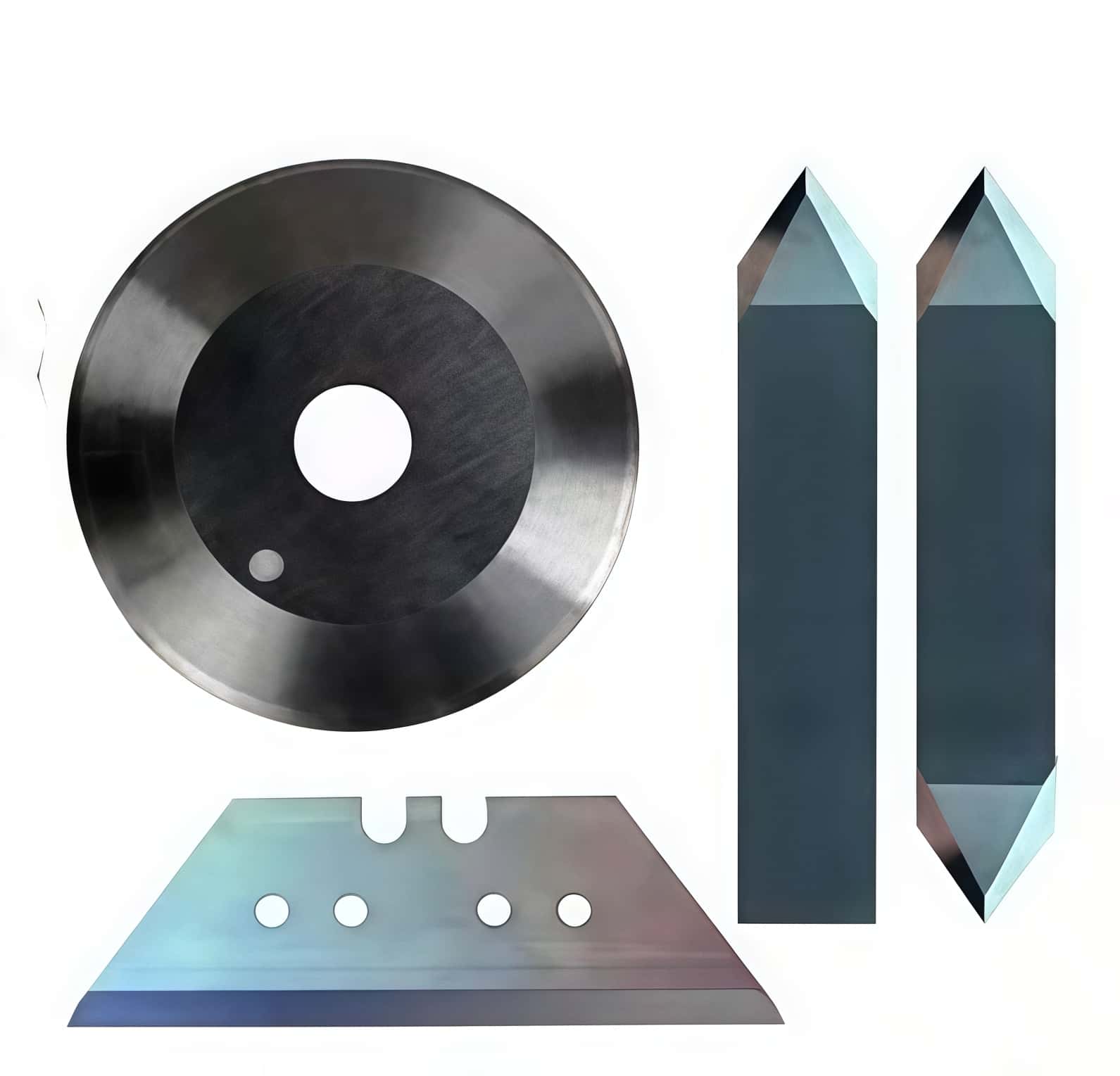

I. Core Cutter Blade Catalog (AXYZ Cutter Blades Catalog)

AXYZ's tool head system is mainly divided into oscillating , tangential , and drag-knife types . Its official coding system typically corresponds to the industry-standard coding system (B series).

1. 6mm round shank oscillating blades

Used for high-frequency vibrating cutter heads, mainly for corrugated paper, foam materials, rubber gaskets, honeycomb panels, etc.

B1041L Series (Round Point) :

B1041L-10(BT-57267): Cutting depth 10mm.

B1041L-15(BT-57265 /MC7265): Cutting depth 15mm, the most common specification in the industry.

B1041L-25(BT-57268): Cutting depth 25mm.

B1041L-50/ B1041L-70/ B1041L-115: Extra-long blades used for ultra-thick foam and thermal insulation materials.

B1031L Series (Single-blade Flat Point) :

B1031L-15(BT-57215) / B1031L-35(BT-57235): The flat-tipped blade effectively reduces resistance and is suitable for cutting heavy fibers, felt and hard rubber.

B2031L Series (Double Edge Flat) :

B2031L-40/ B2031L-90/ B2031L-160: Double-edged, supporting high-efficiency bidirectional cutting.

2. Tangential & Special Blades

Powerful tangential cutting head for heavy-duty cardboard, PVC, composite materials, etc.

BT1051L-7(B1051L-7): 60° single-edged saber-type blade, designed for hard and wear-resistant materials.

XZ0013 AXYZ: Universal tangential blade, suitable for cardboard and vinyl.

70025/ 77042：AXYZ's dedicated V-Cutter Blade Inserts are commonly used in the bending and grooving process of aluminum composite panels (ACM).

028036(BT1041X-2): 4-inch heavy-duty gravity roller blade (Pizza Wheel Knife Blade) for rapid cutting of fiberglass and carbon fiber fabric.

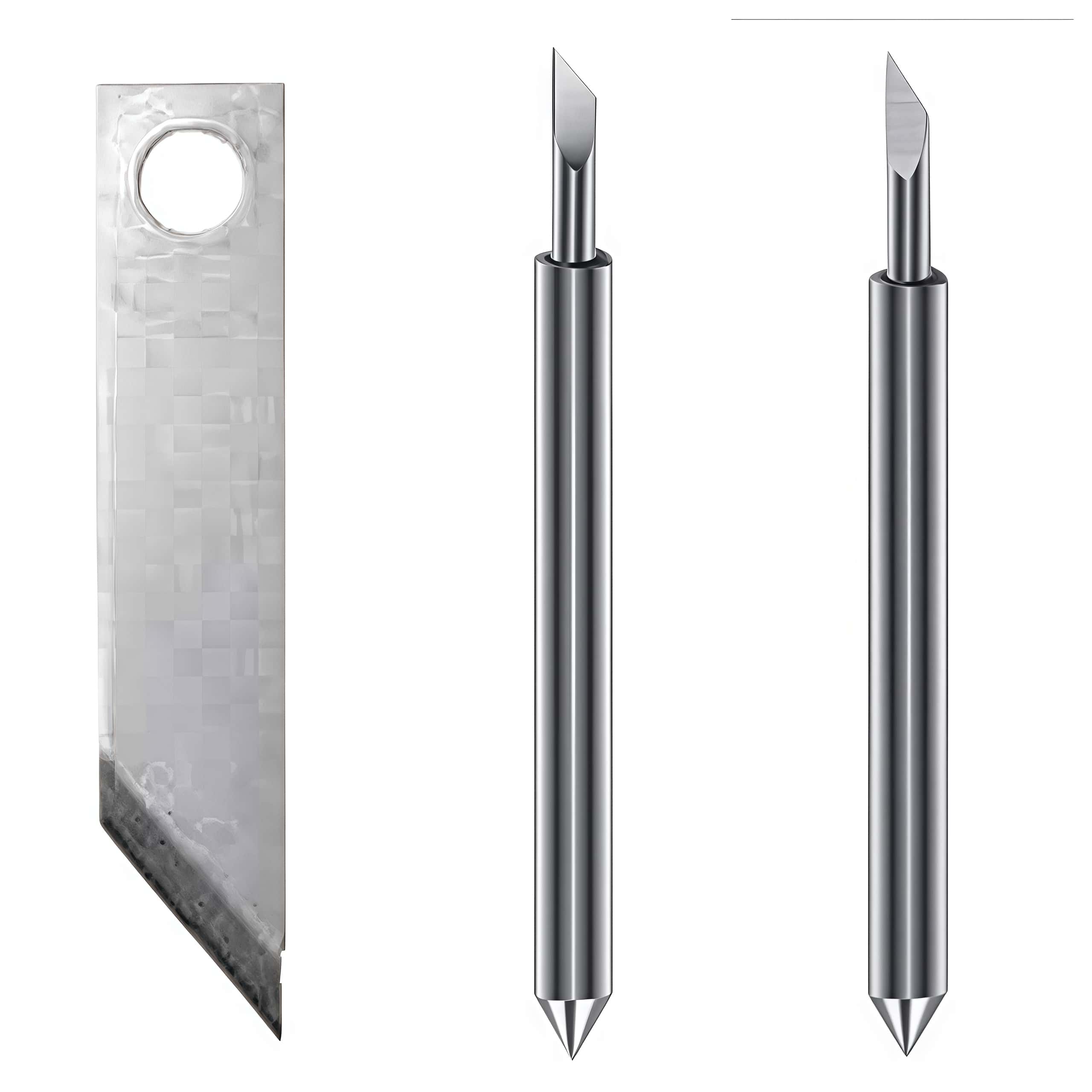

3. Drag Knife Blades

Vinyl Knife is a precision dragging knife system for signs, self-adhesive labels, and films.

20314 45° Roland Blade, for use with regular thin vinyl stickers.

22872 60° Roland-type drag blade, for use with thicker reflective film or magnetic stickers.

II. Core Consumables

In daily processing, in addition to blades, the following consumables need to be replaced regularly to maintain cutting accuracy:

· Cutting Underlay/Felt Mat : Protects the aluminum alloy work surface when the cutter penetrates the surface, has good air permeability, and ensures vacuum adsorption.

· ER type spring collets : used for holding milling cutters for spindle motors, usually in ER32 or ER25 specifications. After long-term use, the clamping force will decrease and they need to be replaced to prevent tool breakage.

· Cutter Brushes (Dust Extraction Brushes) : Black stiff bristles that surround the machining head to confine debris within the suction duct.

· Specialty lubricants and greases : High-grade greases (such as lithium-based greases) specifically for THK guideways and ball screws to prevent guideway wear.

III. Common Core Spare Parts Catalog

In the event of hardware failure or wear and tear, the following components are among the most common mechanical and electrical spare parts to replace on the AXYZ platform:

Supply Chain and Procurement Strategy

If you need to build up inventory for your factory, we recommend:

1. Check the model series :
AXYZ has Trident (3-in-1), Trident/ISM tool holder and Flashcut system. The tool holders used by different systems may be different (such as 28887tool holder kits).

2.Compare prices through multiple channels :
while for commonly used tungsten steel vibrating blades such as B1041L , there are many high-quality third parties in the industry (such as  Oyea-Blades) that provide cost-effective bulk
