Multicam Bt-562090 Bt-56240 Bt-56265 Knife Blade Specifications And Dimensions Application

Multicam Bt-562090 Bt-56240 Bt-56265 Double Edge Oscillating Knife Blade Specifications And Dimensions Application

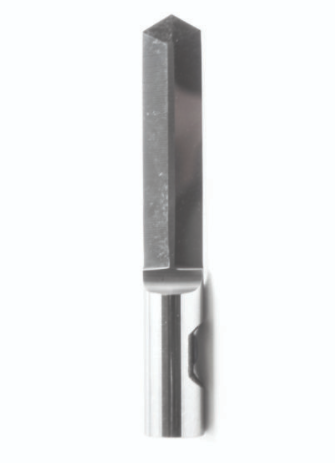

The items BT-562090, BT-56240, and BT-56265 are all Multicam branded oscillating knife blades designed for cutting various materials such as fibrous and insulation materials, foam, cardboard, and textiles. Here are their detailed specifications and characteristics:

BT-562090

· Type: Double edge flat point knife blade, oscillating and Weldon compatible.

· Blade Height / Overall Length: 106 mm.

· Cutting Length / Max Cutting Depth: 90 mm.

· Cutting Angle: 2×30°.

· Shank Diameter: 6 mm round shank.

· Materials Suitable For: Aramid fibers, canvas, carbon fibers, cardboard, cork, corrugated cardboard, foam board, felt, PVC, rubber, textiles, and many more.

· Equivalent Model: MultiCam 84-00193-BT-562090, A XYZ B2031L-90

· Usage: Suitable for cutting foams, fibrous and insulation materials, and a wide range of other materials.

BT-56240

· Type: Flat point, double edge oscillating knife blade.

· Cut Length: 25 mm.

· Overall Length: 41 mm.

· Shank Diameter: 6 mm round shank.

· Cutting Angle: Flat point.

· Notes: Stable, long-life carbide blade.

· Usage: Used with MultiCam oscillating holders, suitable for cutting corrugated, sandwich board, foamboard, foam, carpet, and similar materials.

· Equivalent Model: MultiCam 84-00193-BT-56240, AXYZ B2031L-40, MultiCam K92.

· Shank Style: Round.

BT-56265

· Type: Double edge flat point oscillating knife blade.

· Cut Length: 65 mm.

· Overall Length: 81 mm.

· Point Type: Flat.

· Edge: Double edge.

· Usage: Primarily for cutting fibrous and insulation materials.

· Knife Type: Oscillating.

Summary Table

Model	Cut Length	Overall Length	Shank Diameter	Cutting Angle/Point	Edge Type	Usage	Equivalent Model(s)
BT-562090	90 mm	106 mm	6 mm round	2×30° double edge	Double edge	Foams, fibrous, insulation, textiles, etc.	MultiCam 84-00193-BT-562090, A XYZ B2031L-90
BT-56240	25 mm	41 mm	6 mm round	Flat point	Double edge	Corrugated, foamboard, carpet, etc.	MultiCam 84-00193-BT-56240, AXYZ B2031L-40, K92
BT-56265	65 mm	81 mm	Not specified	Flat point	Double edge	Fibrous and insulation materials	MultiCam 84-00193-BT-56265, AXYZ B2031L-65

All three blades are designed for use in oscillating cutting machines and are compatible with MultiCam holders. They are made from carbide for durability and long life, suitable for a variety of industrial cutting applications including textiles, packaging materials, foam, and composites.
