Axyz Bt-56240 B2031l-40 Kf2-40 Double Edge Round Shank Flat Point Knife Blades

Axyz BT-56240, B2031L-40, and KF2-40 all refer to the exact same industrial carbide knife blade . Unlike the single-edge BT-572xx series, this is a double-edge pointed blade with a 40 mm maximum cut length capacity. Enquire now

Description

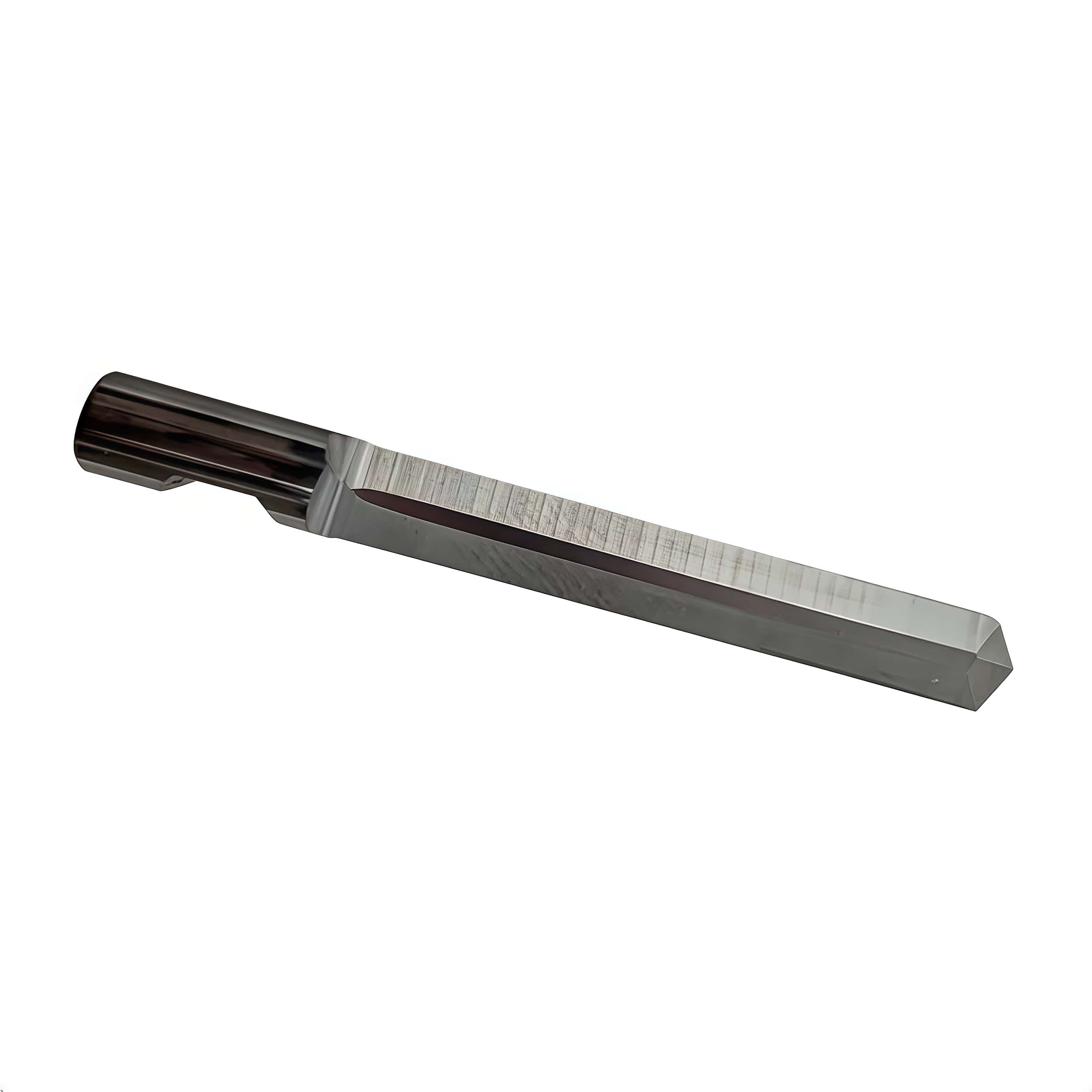

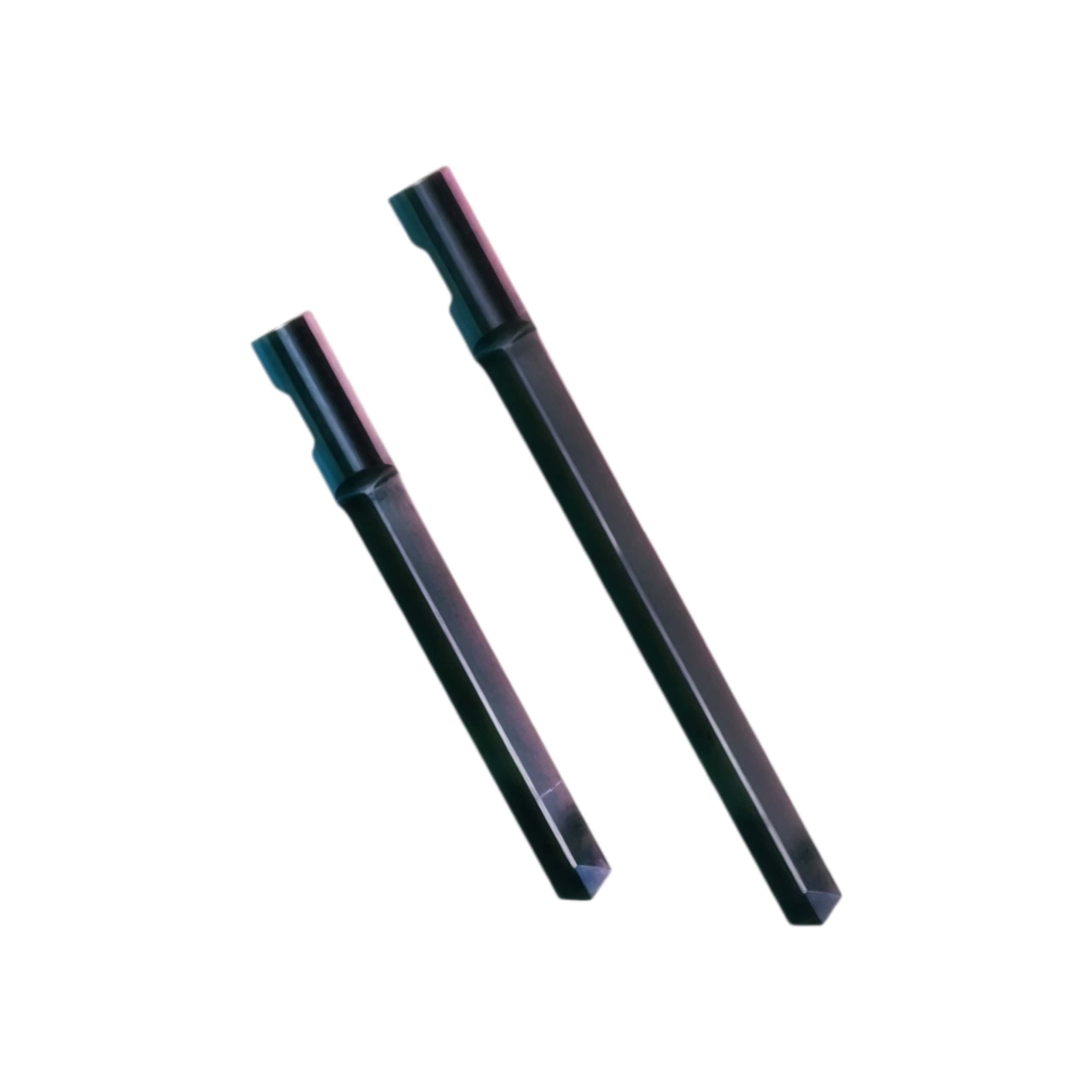

Axyz Bt-56240 B2031l-40 Kf2-40 Double Edge Round Shank Flat Point vibrating Knife Blades

Axyz BT-56240 / B2031L-40 / KF2-40 is a highly durable, 40mm double-edge industrial oscillating knife blade engineered for high-frequency digital flatbed CNC cutting systems. Crafted from premium tungsten carbide (solid carbide), this blade is built to maintain long-lasting sharpness while enduring heavy vibratory stress.

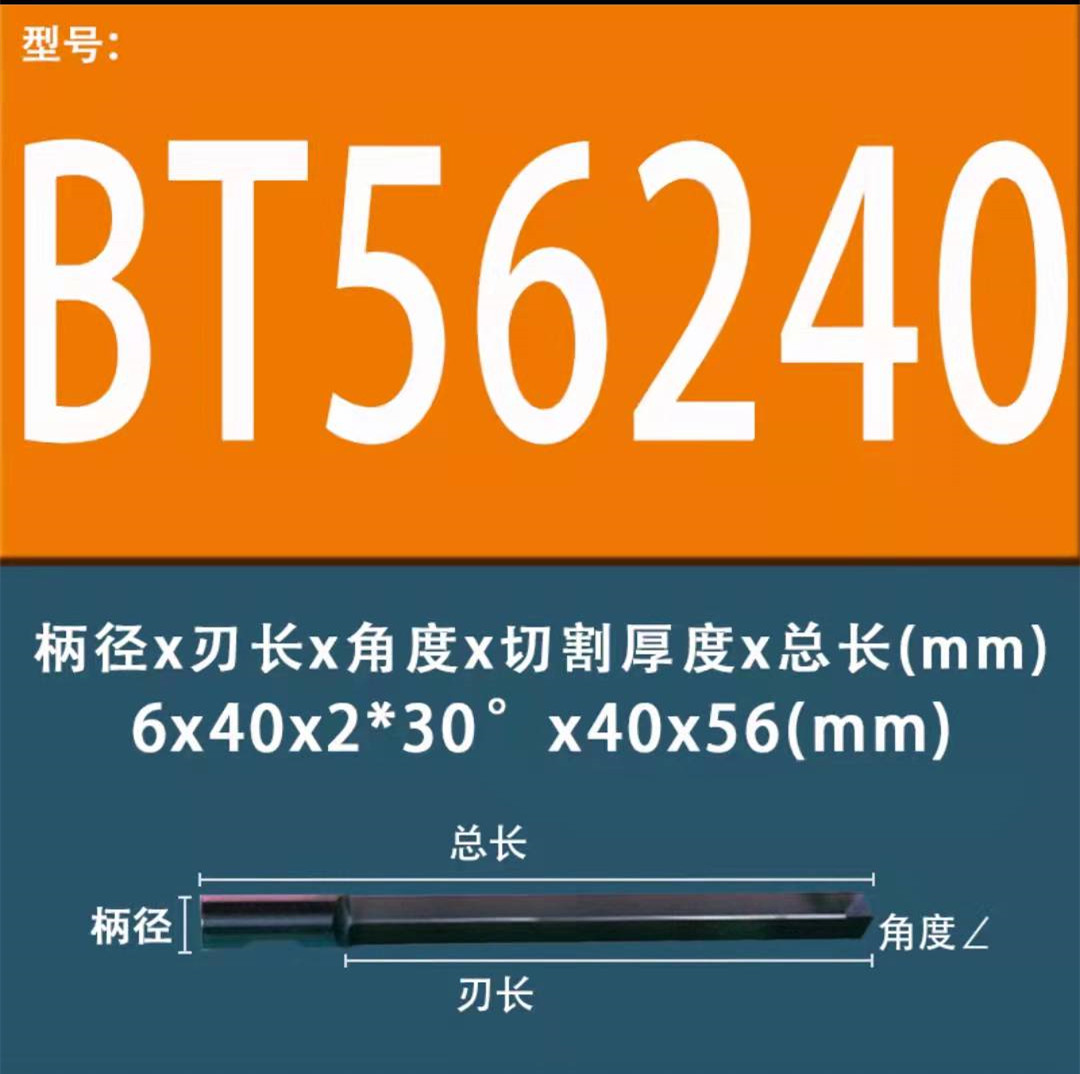

Diameter of the holder: 6 mm
Knife hight: 56 mm
Max. cutting depth: 40 mm
Knife type: Oscillating
Angle: 2 x 30°
equivalent to: MultiCam 84-00193-BT-56240, AXYZ B2031L-40

Core Applications

Because it features dual sharpened edges and a pointed center tip, the BT-56240 excel in applications where detail and directional versatility are required:

Complex Geometries: Intricate curves, sharp angles, and fine-detail cutouts where single-edge blades struggle to turn smoothly.
Soft-to-Medium Foams: Polyurethane foam, polyethylene foam, and acoustic panels up to 40 mm thick.
Corrugated Boards: Heavy-duty corrugated paperboard, honeycomb board, and twin-wall plastic sheets.
Gaskets & Packaging: Neoprene rubber, expanded foam packaging inserts, and soft felt sheets.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

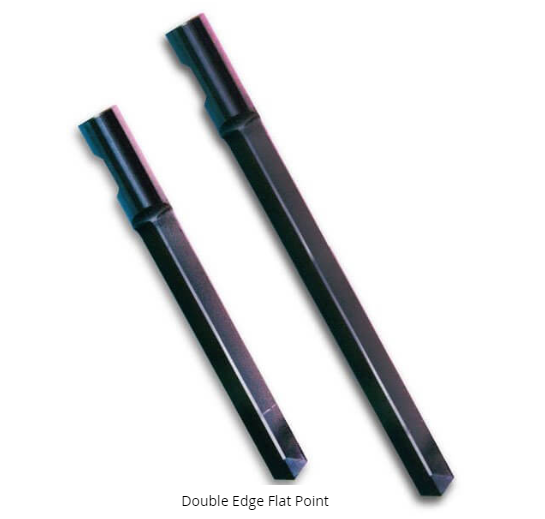

Axyz Bt-56240 BT-56265 BT-56270 BT-562090 Double Edge Flat Point Carbide Knife Blades Overview

Part Number	Cut Depth	Shank Diameter	Primary Applications
BT-56240	40 mm	6 mm Round	Acoustic felt, rubber gaskets, corrugated plastics
BT-56265	65 mm	6 mm Round	High-density packaging foam, soundproofing panels
BT-56270	70 mm	6 mm Round	Deep foam inserts, thick insulation mats
BT-562090	90 mm	6 mm Round	Expanded Polystyrene (EPS), bulk foam conversion

Core Operational Advantages

Bidirectional Toolpaths: Dual cutting edges reduce the need for 180° tangential rotation lifts on small directional changes, saving cycle time.
Balanced Penetration Force: The double-bevel geometry distributes cutting force evenly across both sides of the blade body, reducing blade deflection when piercing thick media.
Flat-Point Geometry: Prevents the sharp tip from snagging or dragging bottom layers of soft, compressible, or fibrous materials.

Practical Operating Rules

Oscillation Speed: Maintain high oscillation rates (10,000–12,000 RPM) to keep cutting forces low on the single stroke.
Cornering & Turns: On sharp 90-degree corners with thick media (over 30 mm), program a lift-and-turn move to prevent lateral shear force from snapping the solid carbide shaft.
Spoilboard Clearance: Set bottom dead center (BDC) so the flat tip barely grazes the cutting mat to avoid premature chipping.
