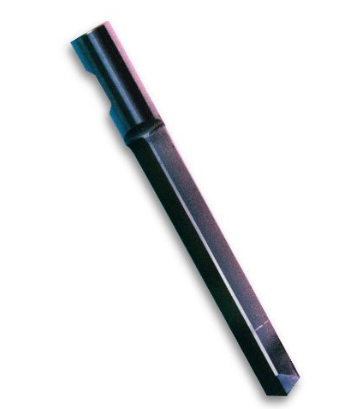

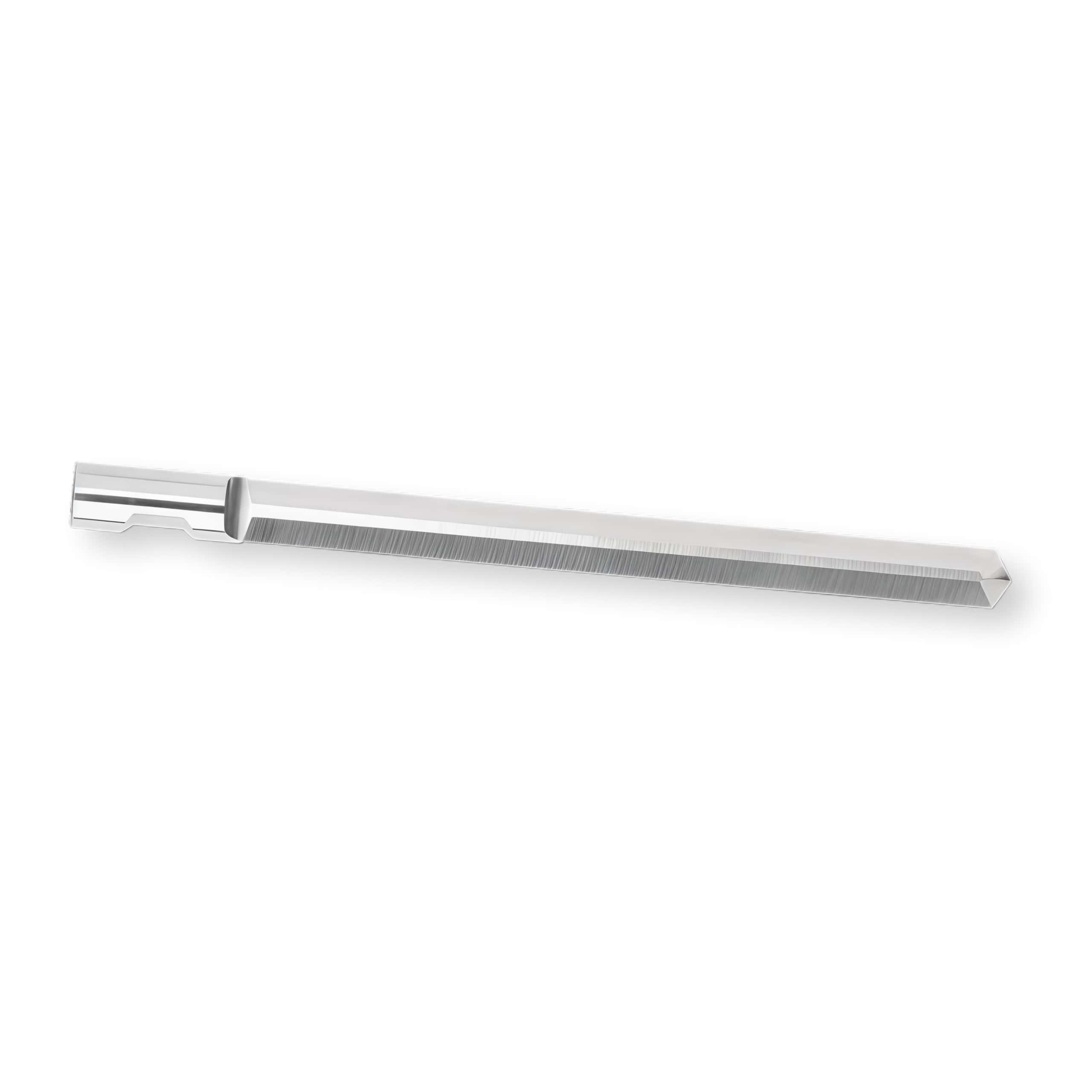

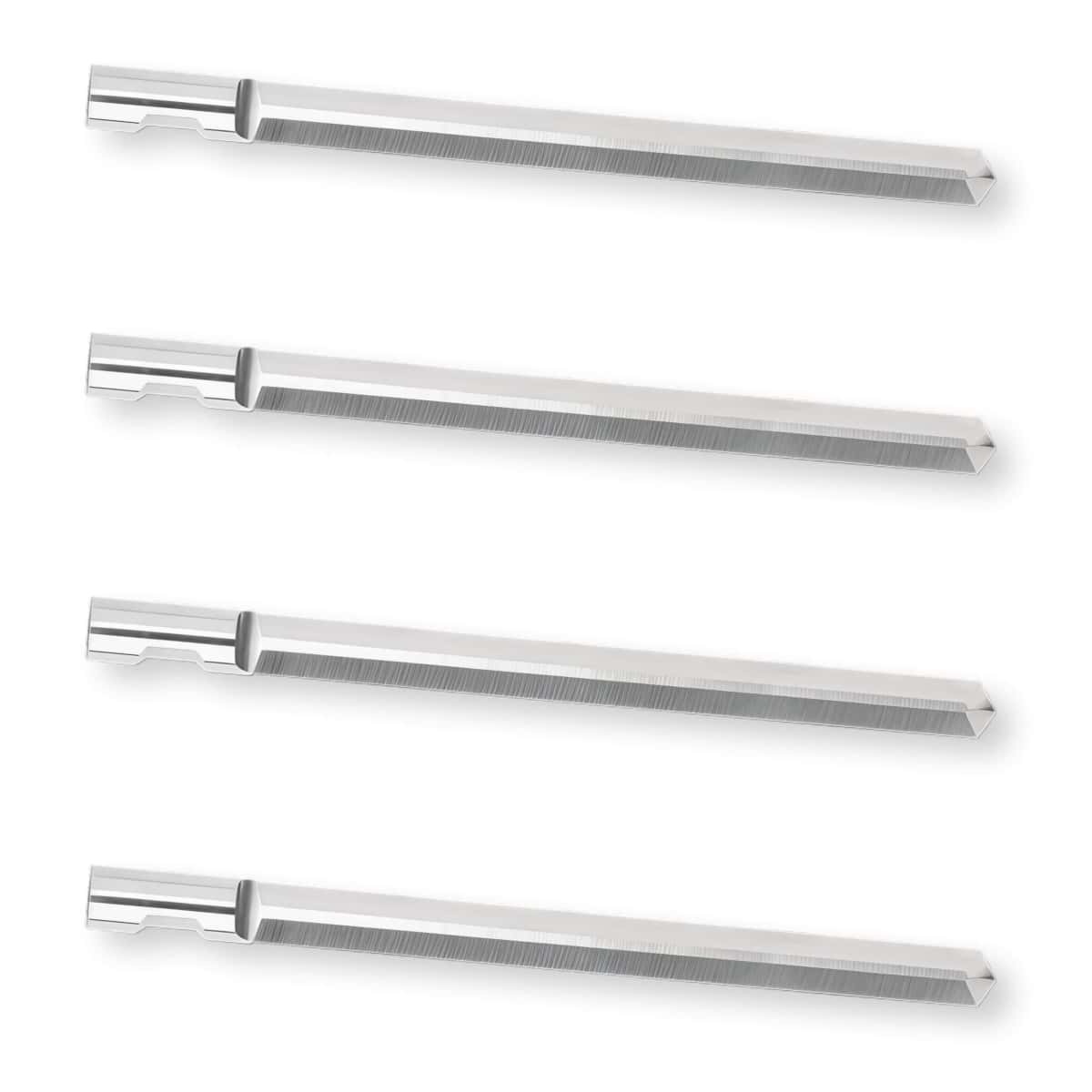

Axyz Bt-56270 B2031l-70 Kf2-70 Tungsten Carbide Flat-Point Oscillating Knife Blades

Axyz BT-56270 / B2031L-70(Also known in the industry as KF2-70)This is a high-end solid carbide (tungsten steel) double-edged flat-head vibrating insert specifically designed for CNC cutting machines. Enquire now

Description

Axyz Bt-56270 B2031l-70 Kf2-70 Tungsten Carbide Flat-Point Oscillating Knife Blades

Axyz BT-56270 / B2031L-70, also widely recognized within the industry under the designation KF2-70, represents a top-tier solid carbide solution, intricately fashioned from tungsten steel. This advanced double-edged flat-head vibrating insert is engineered specifically to enhance the performance of CNC cutting machines. By integrating the distinguished KF2 geometry, characterized by its double-edged flat or sword-tip shape, this model achieves a superior maximum cutting depth of 70mm. Such precision-engineering allows for highly effective bidirectional cutting, facilitated by a high-frequency up-and-down vibrating cutter head. As a result, it adeptly strikes the optimal balance between maintaining the desired cutting thickness and ensuring exceptional smoothness along the cut edge.

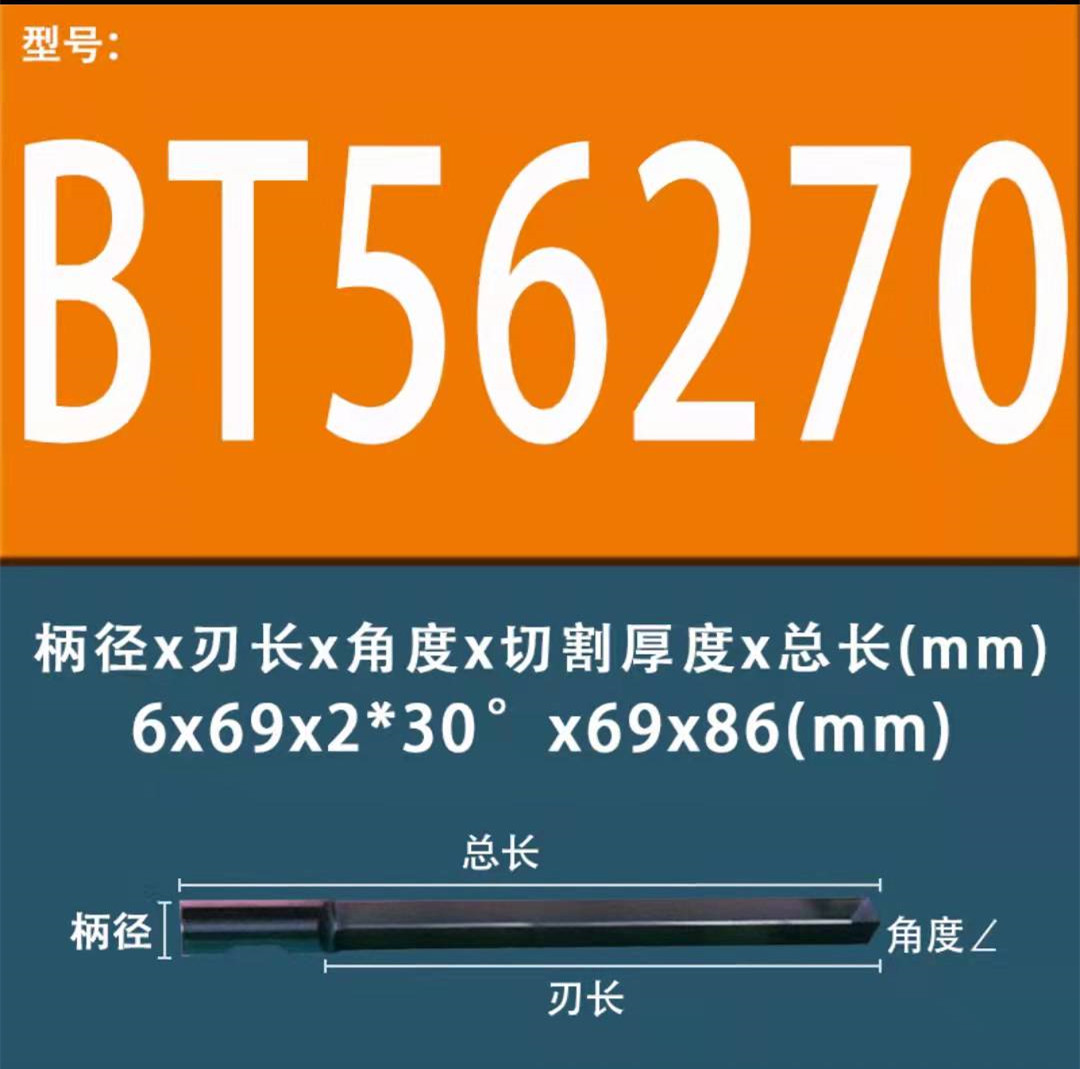

Diameter of the holder: 6 mm
Knife hight: 86 mm
Max. cutting depth: 69 mm
Knife type: Oscillating
Angle: 2 x 30°

Key Applications
The double-edged design allows the blade to cut in both directions, which is particularly effective for thick substrates where a "sawing" action is required to maintain clean edges.

It is ideal for:Insulation Materials: Fiberglass, rock wool, and thick insulation foam.
Fibrous Goods: Heavy carpets and thick felt.
Soft & Packaging Foams: Honeycomb board, corrugated plastic, and Gatorfoam.
Gaskets: Heavy-duty gasket materials used in industrial seals.

Equivalent Models: Cross-referenced with aftermarket manufacturers like China-Oyea

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

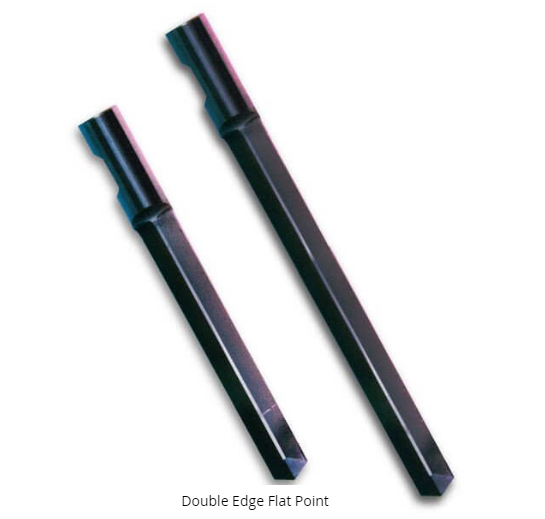

Axyz BT-56240 BT-56265 BT-56270 BT-562090 Double Edge Flat Point Carbide Knife Blades Specifications and Compatibility

Part Number	System Code (B2031L)	Cutting Depth / Reach	Overall Length (OAL)	Shank Diameter	Geometry / Edge Type
BT-56240	B2031L-40	40 mm (~1.57 in)	56 mm	6.0 mm Round	Double-Edge, Flat Point
BT-56265	B2031L-65 / KF2-65	65 mm (~2.56 in)	81 mm	6.0 mm Round	Double-Edge, Flat Point
BT-56270	B2031L-70 / KF2-70	70 mm (~2.75 in)	86 mm	6.0 mm Round	Double-Edge, Flat Point
BT-562090	B2031L-90	90 mm (~3.54 in)	106 mm	6.0 mm Round	Double-Edge, Flat Point

Machine and Tooling Compatibility

These blades are designed with standard 6.0 mm round shanks, ensuring they work seamlessly across a variety of industrial flatbed CNC knife systems:

1. Primary Native Toolheads
- Axyz Oscillating Knife Tool (OKT): Fully compatible with all standard Axyz knife head setups.
- Axyz Tangential Knife Tool (TKT): Designed to fit 6 mm tangential toolholding collets and sleeves.

2. Cross-Brand Compatibility
Thanks to the industry-standard 6 mm shank size, these blades are directly compatible with:
- MultiCam Flatbed Cutters & Routers: Identified under part numbers 84-00193-BT-56240, 84-00193-BT-56265, and 84-00193-BT-562090 for MultiCam K92 / K116 series.
- Summa Digital Cutters: Suitable for Power Oscillating Tool (POT) heads that use 6 mm round shank tooling.
- Esko: Fits any secondary heavy-duty 6 mm oscillating knife unit equipped with standard set-screw or clamping sleeve holders.
