Axyz Bt-56265 B2031l-65 Kf2-65 Double Edge Flat Point Carbide Knife Blades

Axyz BT-56265 B2031L-65 Double Edge Flat Point Knife blades for the Axyz Oscillating Knife Tool (OKT) system and compatible heavy-duty 6 mm toolheads (such as Summa POT or MultiCam) Enquire now

Description

Axyz Bt-56265 B2031l-65 Kf2-65 Double Edge Flat Point Carbide Knife Blades

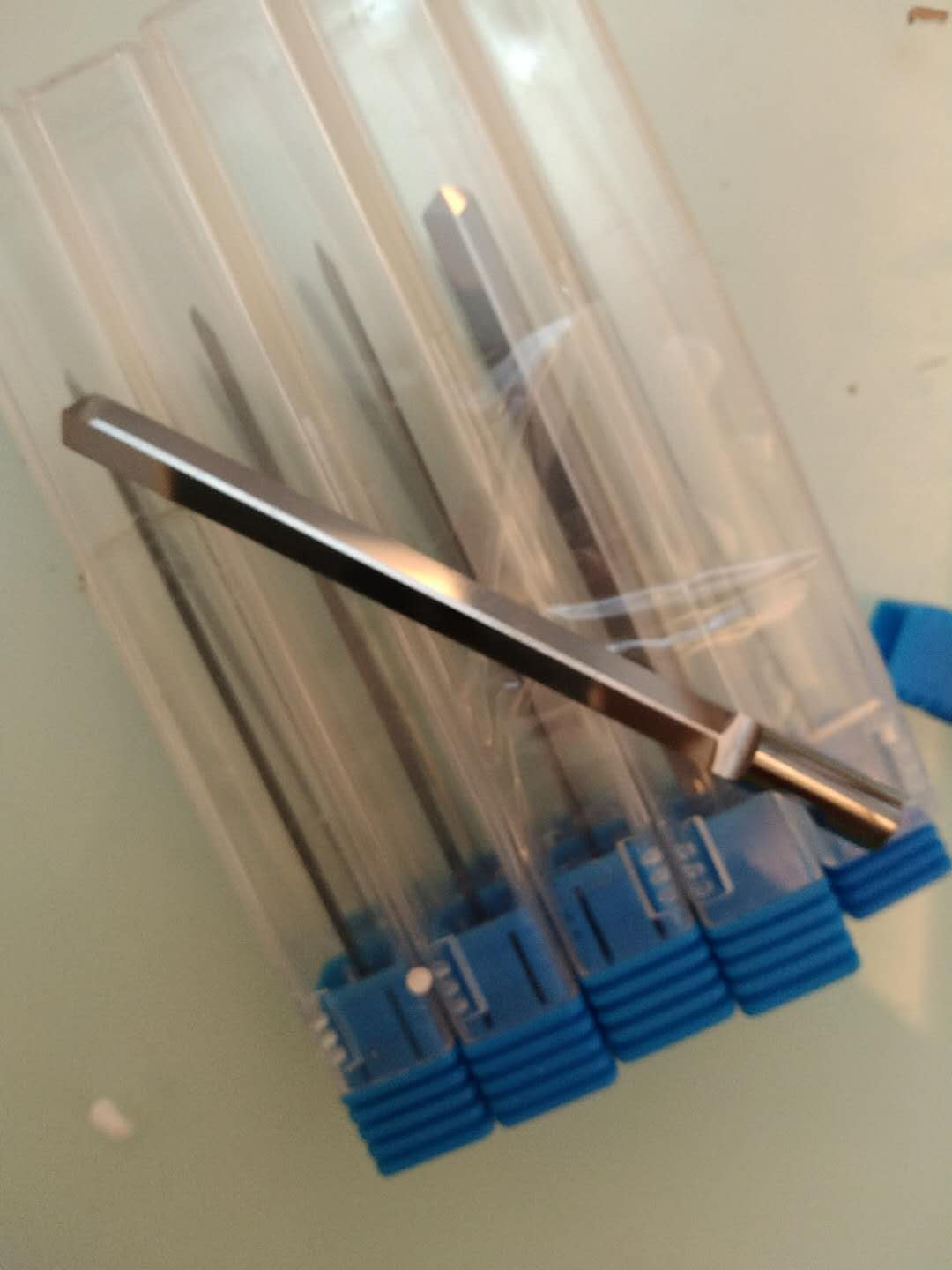

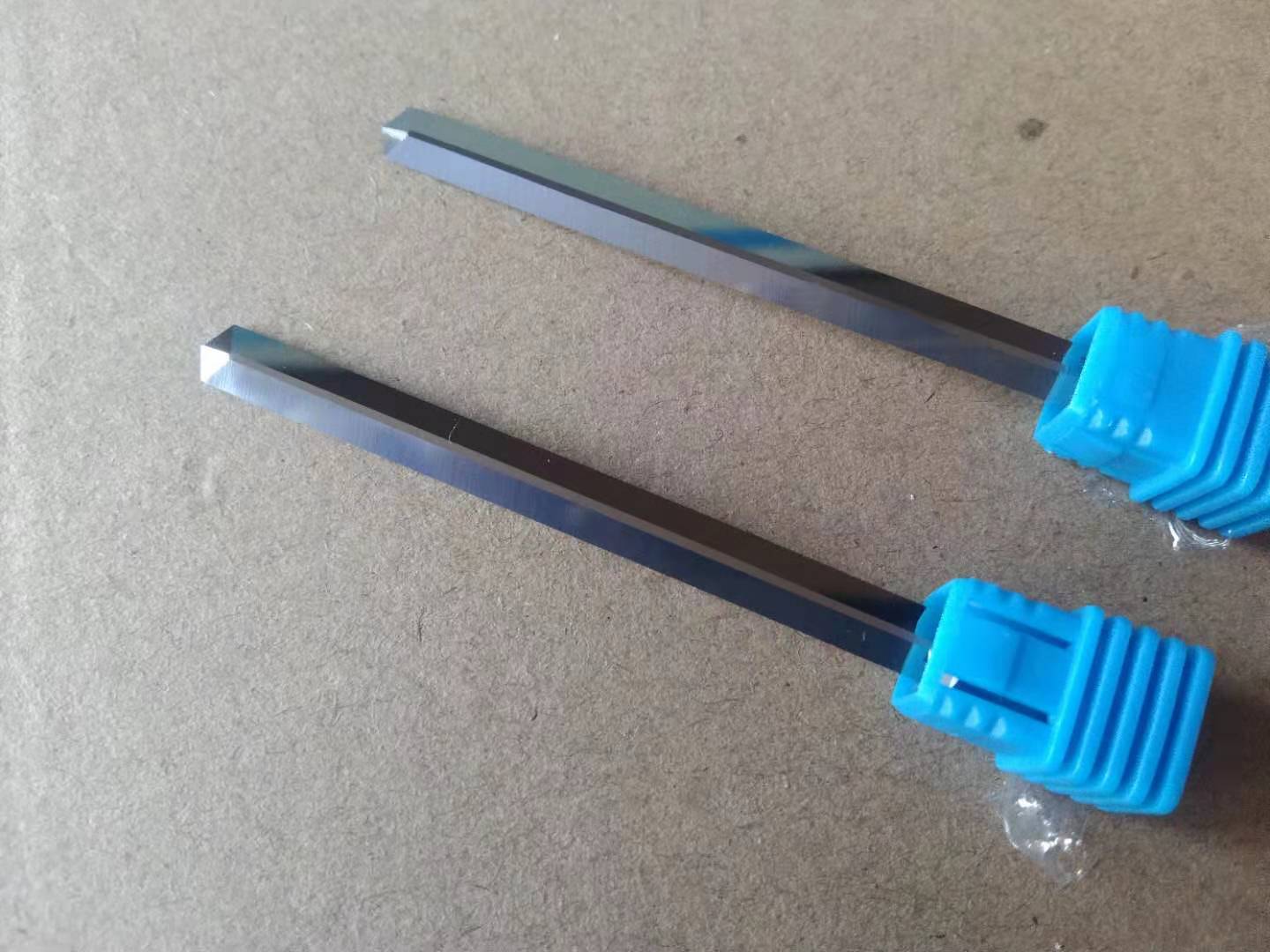

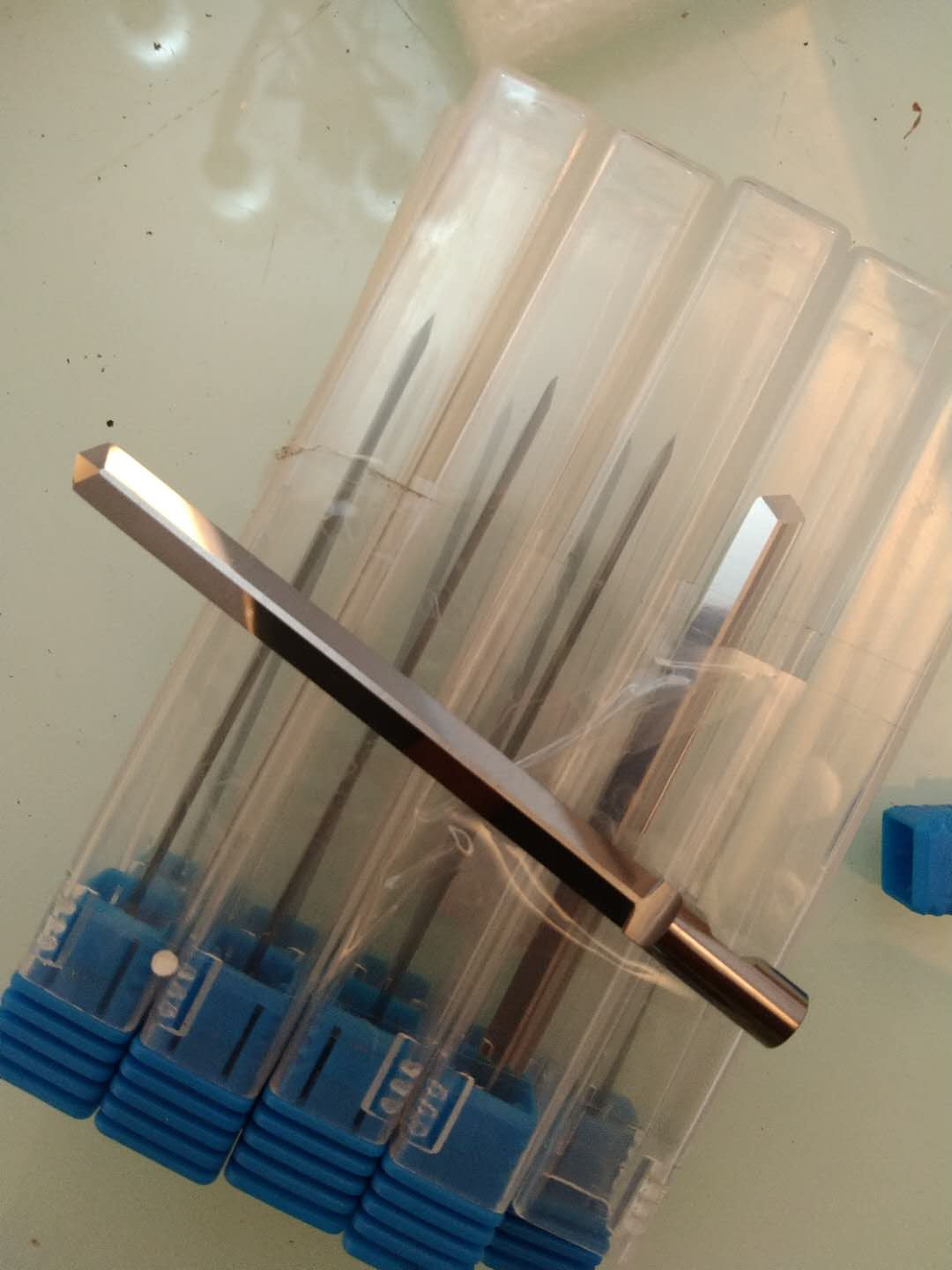

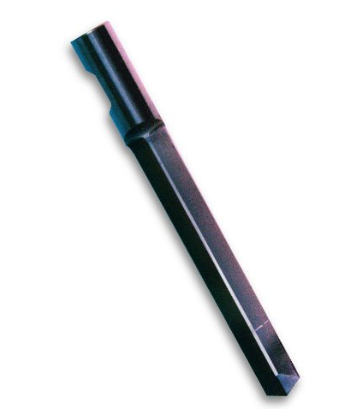

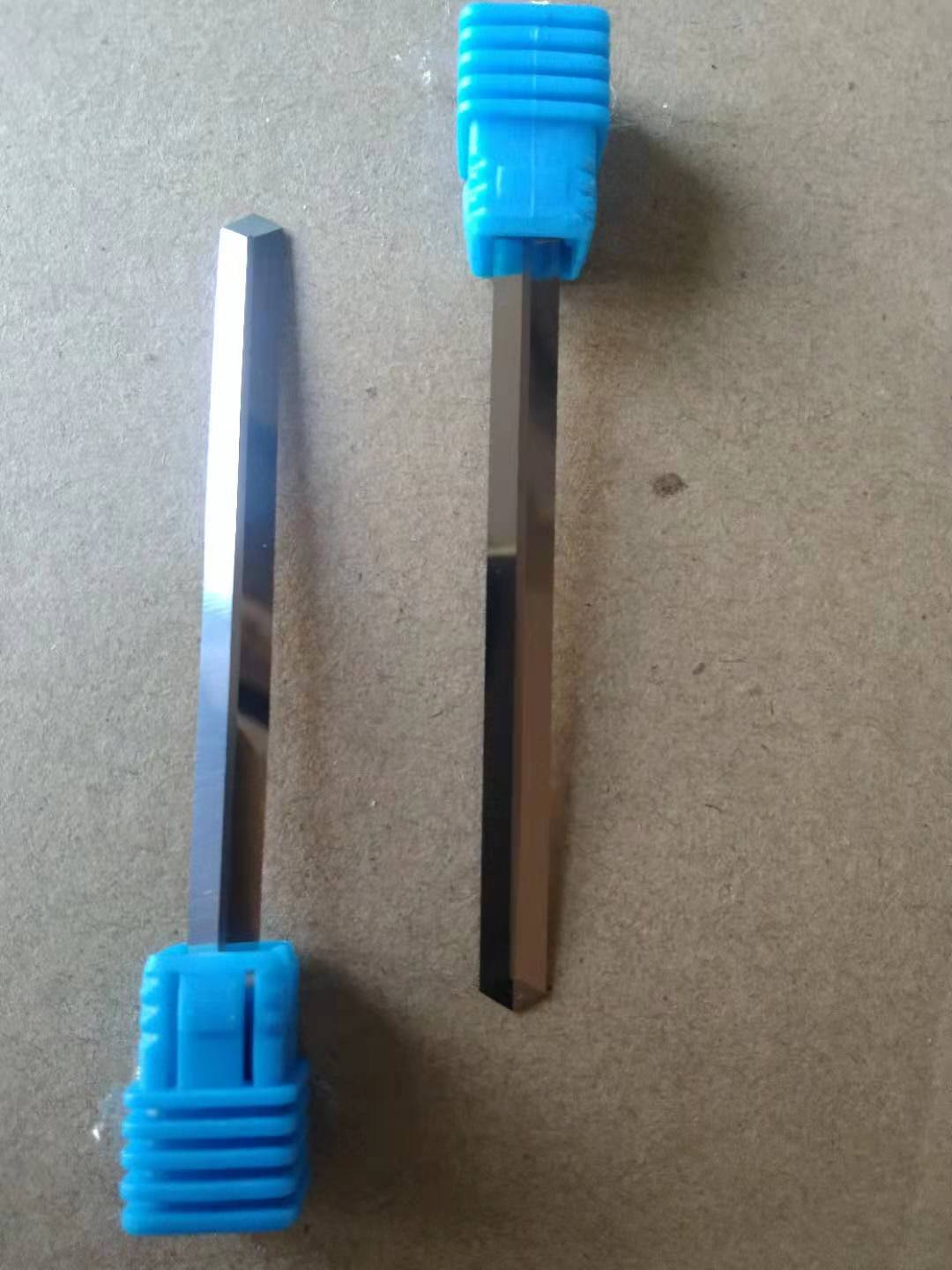

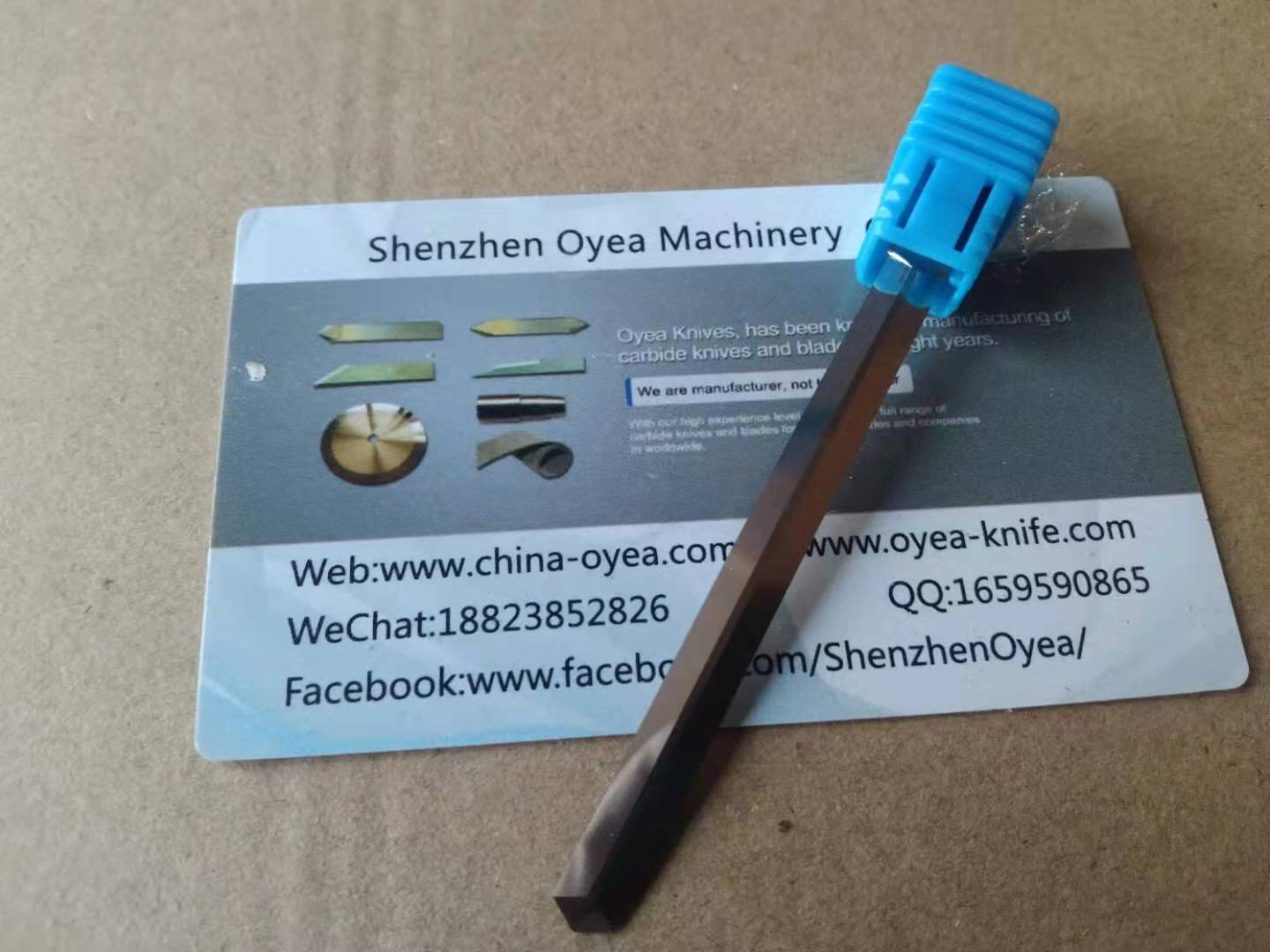

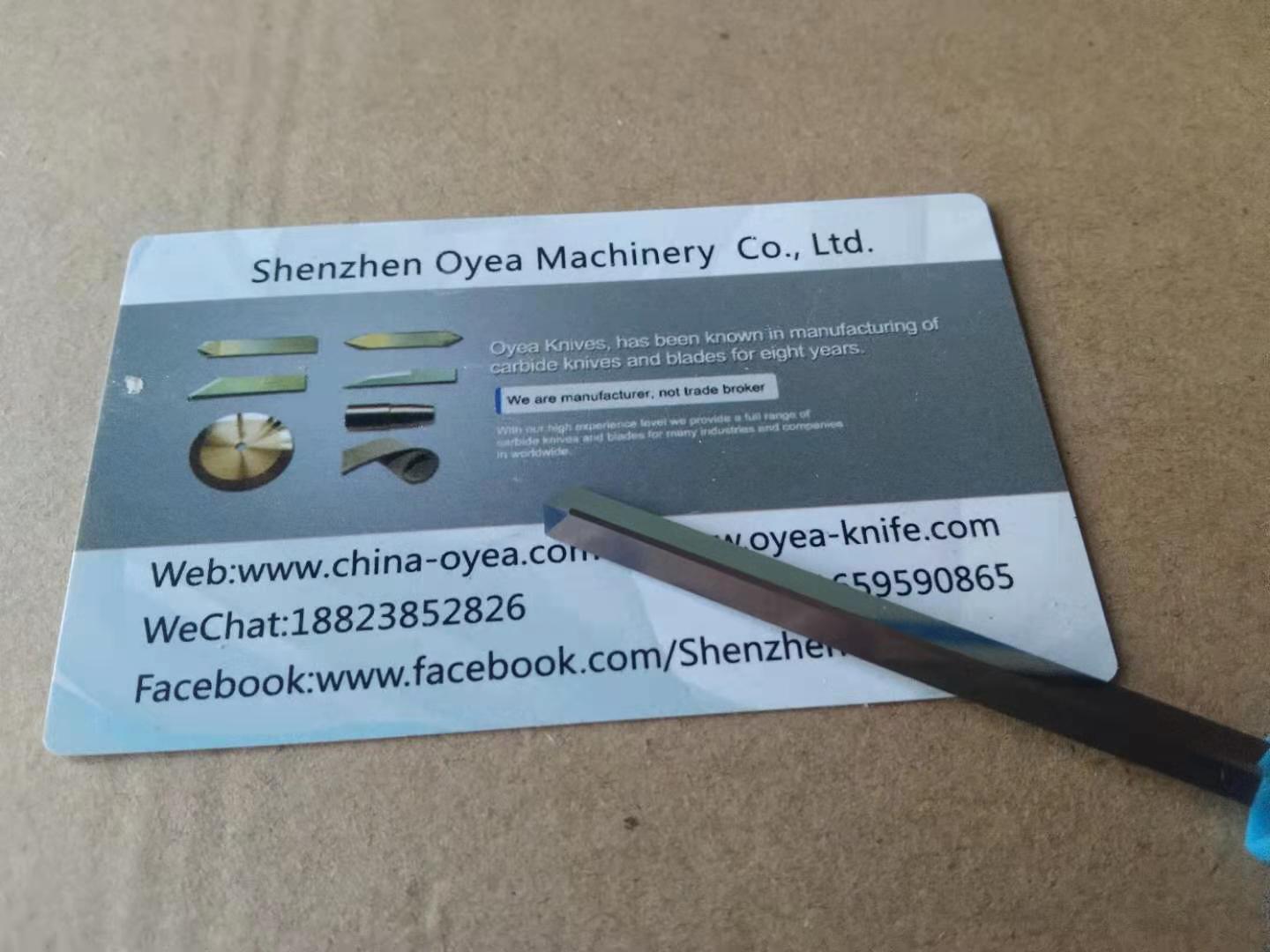

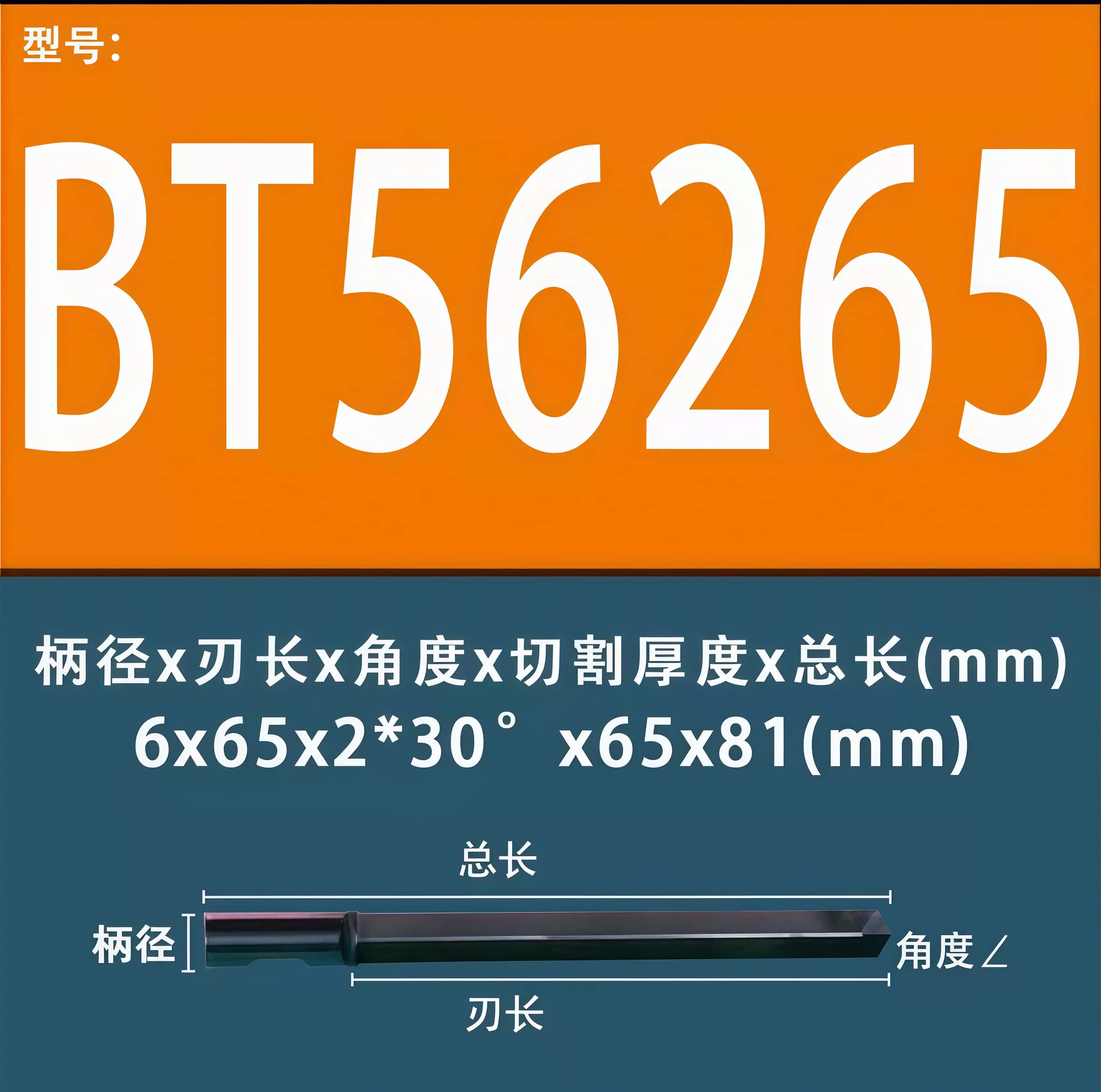

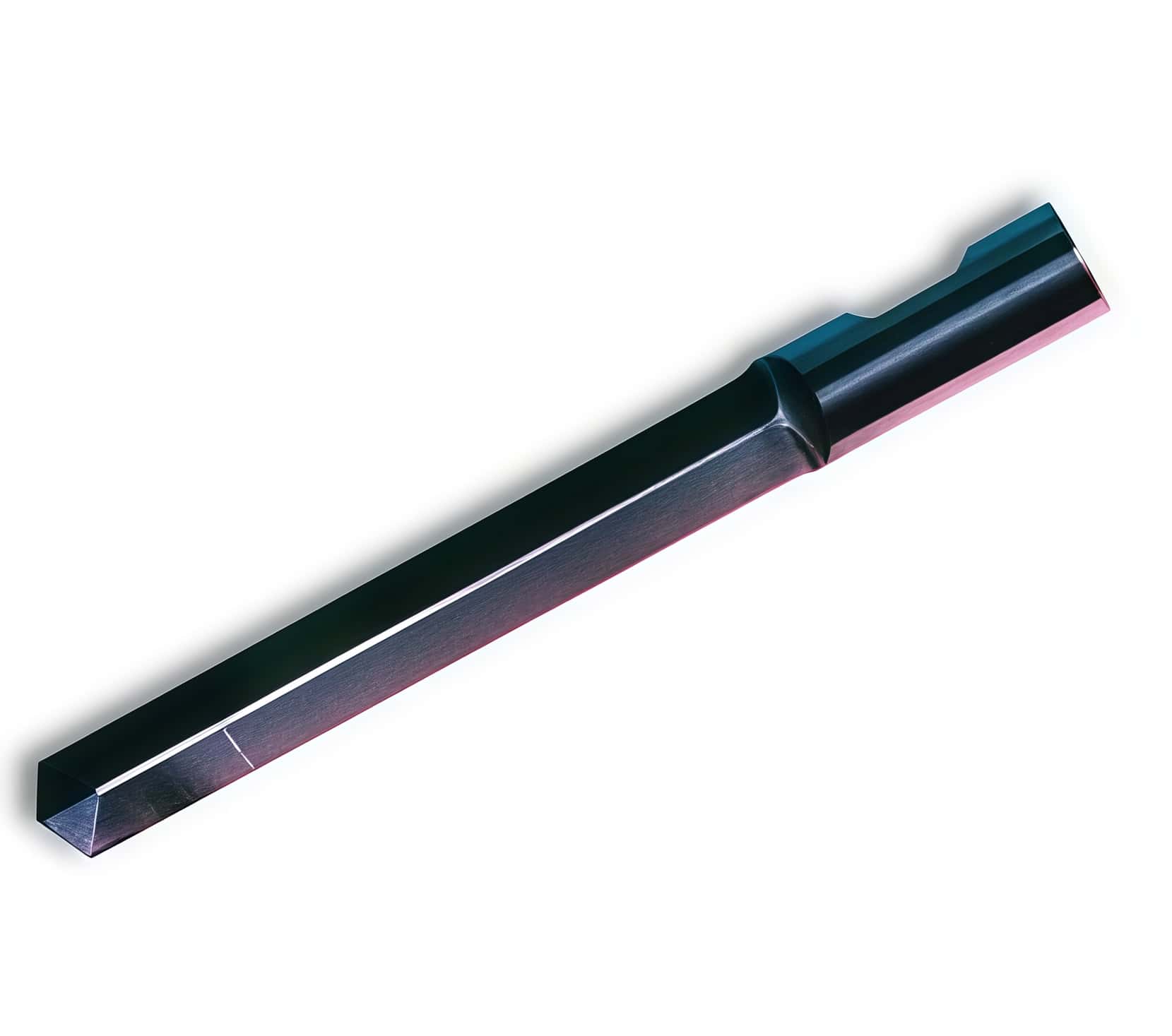

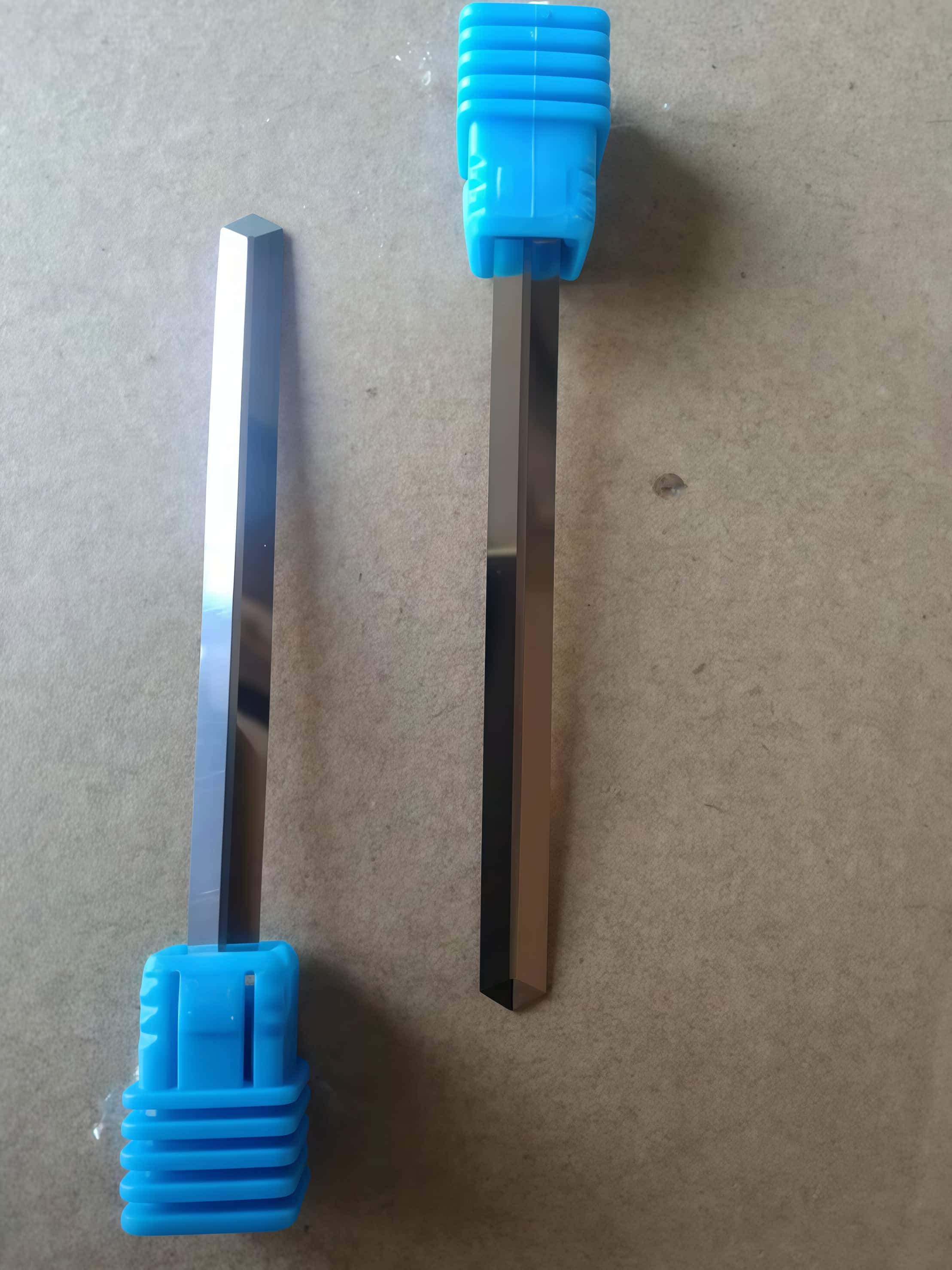

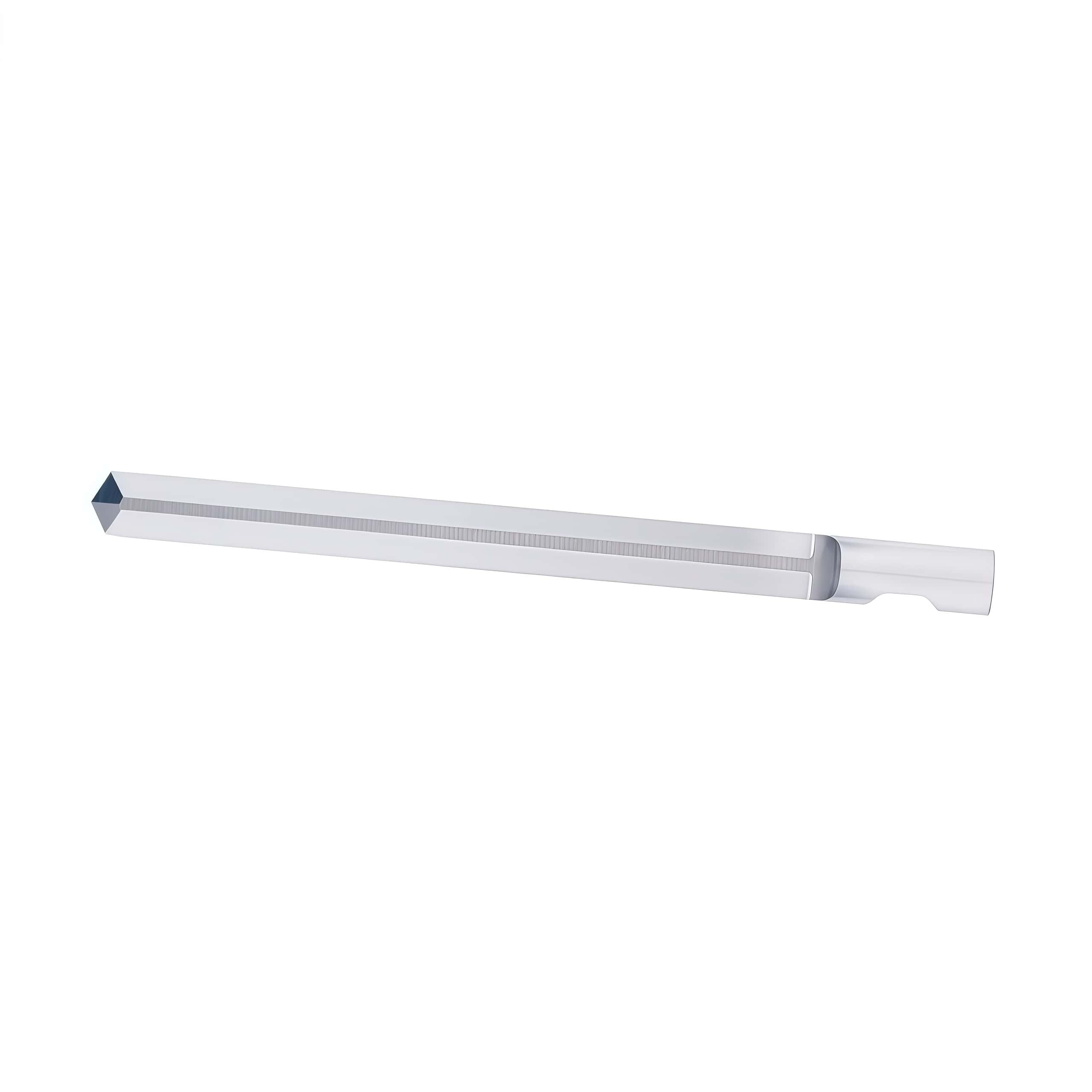

Axyz BT-56265 ( B2031L-65 , KF2-65 ) is 65mm medium-length carbide double-edged flat-head vibrating insert primarily used in CNC planar cutting systems (such as the AXYZ Trident and Flashcut series).

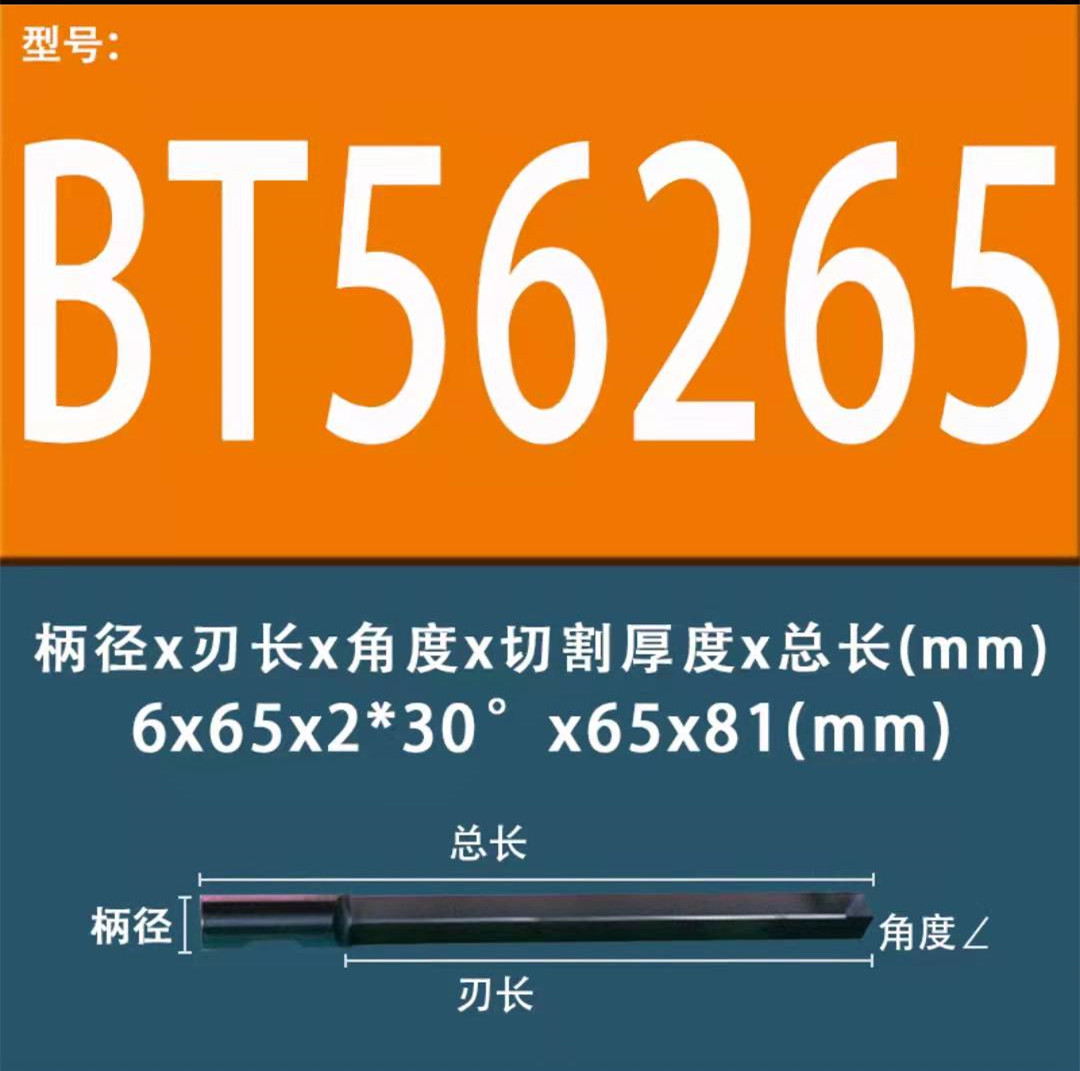

Diameter of the holder: 6 mm
Knife hight: 81 mm
Max. cutting depth: 65 mm
Knife type: Oscillating
Angle: 2 x 30°
Vergleichbar mit: MultiCam 84-00193-BT-56265, AXYZ B2031L-65

Primary Applications
Fibrous & Woven Materials: Heavy felt, synthetic fabrics, woven fiberglass, and carbon fiber.
Insulation & Foams: Medium- to high-density packaging foam, acoustic panels, and building insulation up to 65 mm thick.
Gaskets & Plastics: Rubberized gasket materials, silicone sheets, and multi-wall corrugated plastic.

Operational Key Takeaway
Because it uses a double-edge profile, the KF2-65 / B2031L-65 cuts cleanly in both stroke directions during oscillation. This allows your controller to execute tight toolpath moves and direction changes faster, as the blade doesn't need to perform a full 180° tangential swivel for minor directional corrections

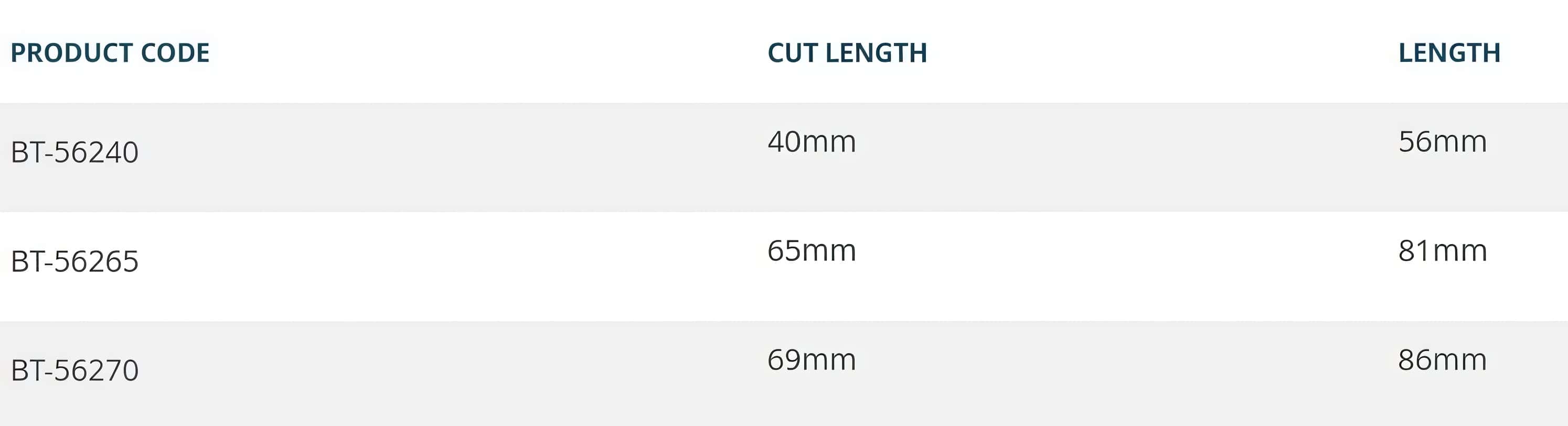

Axyz Bt-56240 BT-56265 BT-56270 BT-562090 Double Edge Flat Point Carbide Knife Blades Specifications and Sizes Comparison Table

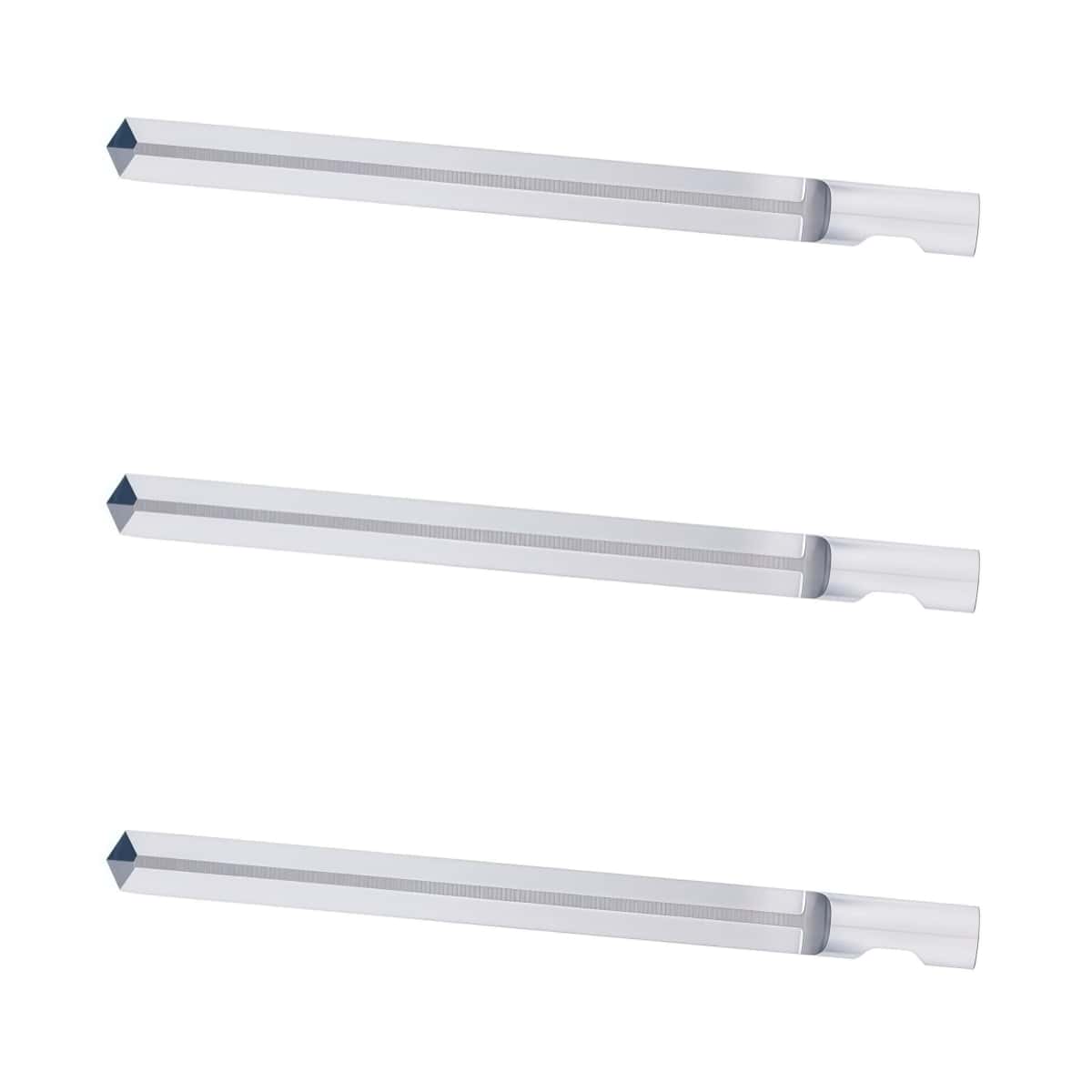

Axyz BT-562xx series (also referenced as the B2031L family) consists of solid tungsten carbide, double-edged, flat-point oscillating knife blades.

These are designed for high-speed cutting on Axyz Oscillating Knife Tools (OKT), MultiCam, and compatible 6 mm toolholders.

Part Number	Cut Length (Depth)	Overall Length (OAL)	Shank Diameter	Edge Geometry	Cross-Reference Part Numbers	Primary Applications
BT-56240	40 mm	56 mm	6.0 mm Round	Double Edge, Flat Point	B2031L-40, MultiCam 84-00193-BT-56240, K92	Rubber gaskets, acoustic felt, corrugated board, dense foam up to 40 mm.
BT-56265	65 mm	81 mm	6.0 mm Round	Double Edge, Flat Point	B2031L-65, KF2-65, MultiCam 84-00193-BT-56265, K116	High-density packaging foam, thick insulation mats, felt, layered packaging.
BT-56270	70 mm	86 mm	6.0 mm Round	Double Edge, Flat Point	B2031L-70, KF2-70	Deep foam inserts, soundproofing panels, thick acoustic insulation.
BT-562090	90 mm	106 mm	6.0 mm Round	Double Edge, Flat Point	B2031L-90, MultiCam 84-00193-BT-562090	Expanded Polystyrene (EPS), bulk foam conversion, heavy structural insulation.

Key Takeaways for Selection

Reach vs. Rigidity: Choose the shortest cut length that comfortably clears your material thickness. Shorter blades (like BT-56240) provide higher rigidity and lower deflection when cutting tighter contours or denser materials.
Speed Efficiency: Because these are double-edged, they allow bidirectional cutting strokes, eliminating the need for full 180° tangential lifting turns on minor directional changes.
Material Protection: The flat-point tip prevents snagging, tearing, or pulling the bottom face of soft, fibrous, or multi-layer materials.
