| KNIFE TYPE |
Flat, Oscillating blade, Pointed |
|---|---|
| MATERIALS |
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Textiles |
| REPLACEMENT |
Yes |
| KNIFE/BLADE MOUNTING |
flat 0,63 mm |

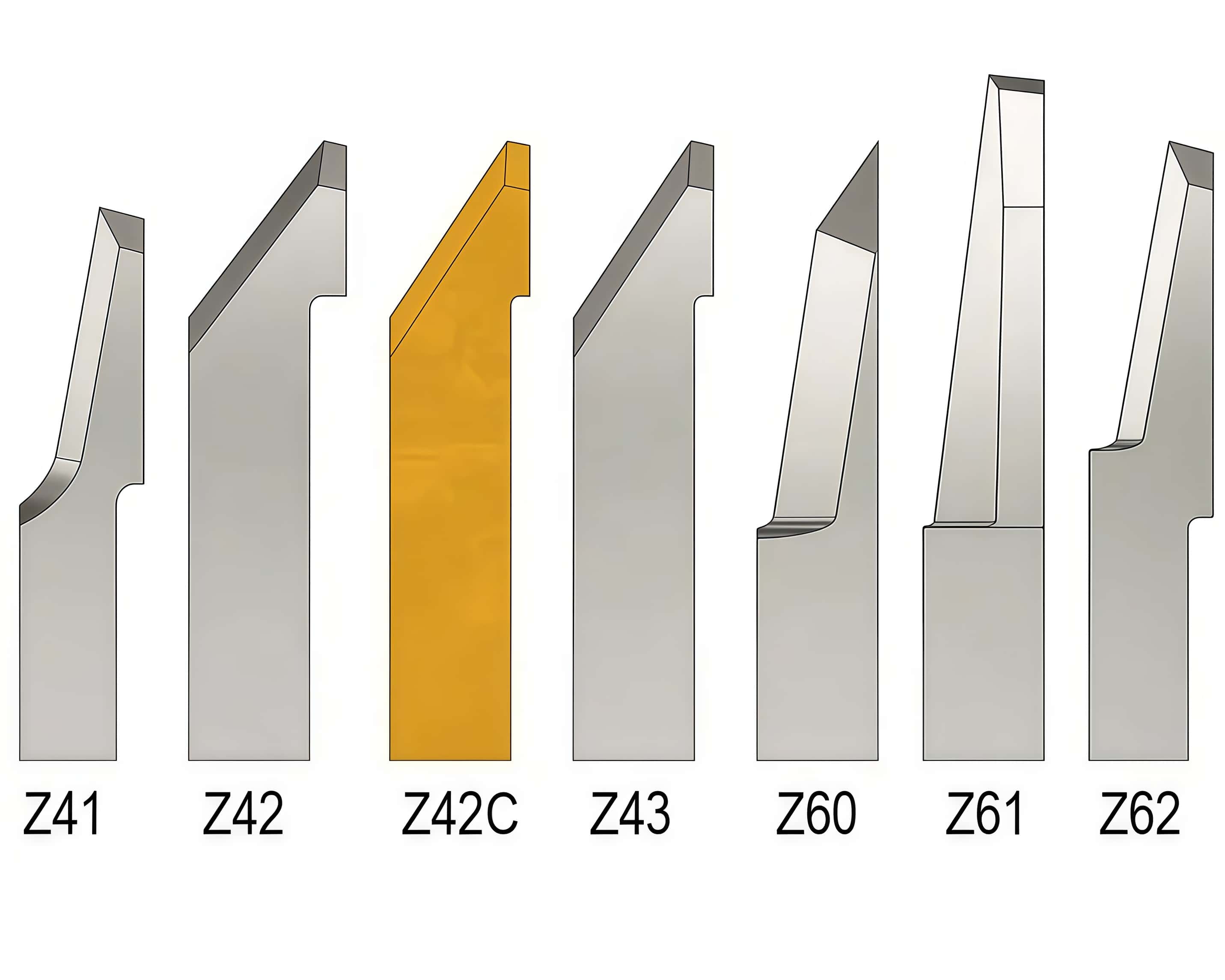

Here is a detailed overview of these blades:
|
Blade Model |
Cutting Type & Angle |
Max Cutting Depth |
Thickness |
Key Features & Applications |
|
Flat oscillating blade, 80° angle |
11.3 mm |
0.63 mm |
Small pre-cut, suitable for woven materials, textiles, leather, corrugated cardboard, felt, foam, aramid fibers, carbon fibers, nylon fabric, polyester fabrics, non-woven fabrics. |
|
|
Robust oscillating carbide knife |
7.8 mm |
~0.63 mm |
Max cutting depth 7.8 mm, 0.80 mm post-cut, 0.7 x Tm pre-cut, similar to Z26, used for various materials. |
|
|
Flat oscillating blade |
7.8 mm |
~0.63 mm |
Variant of Z42, details similar but may have specific cutting profile adjustments. |
|
|
Z43 |
Pointed oscillating blade |
7.8 mm |
0.63 mm |
Similar to Z42 but with smaller pre-cut and larger post-cut, recommended for carpet, leather (hard, hide, suede). |
|
Z60 |
Oscillating blade |
16.5 mm |
Not specified |
Higher cutting depth for thicker materials, carbide blade for heavy-duty cutting. |
|
Z61 |
Not detailed in search results |
Not specified |
Not specified |
Likely similar heavy-duty tungsten carbide oscillating blade, used in industrial cutting applications. |
|
Z62 |
Not detailed in search results |
Not specified |
Not specified |
Similar to Z61, designed for specific cutting depths and materials in Zund systems. |
Each blade’s tungsten carbide construction ensures durability and sharpness, but your choice should align with your material thickness and finish quality requirements. This tailored approach will maximize your Zund CNC plotter’s cutting efficiency and output quality
