Key Specifications

Compatible Atom Cutting Systems

The 01048400 is compatible with Atom automated cutting tables equipped with oscillating knife modules, including:

·

Atom FlashCut series – Standard oscillating modules

Atom FlashCut HV series – High-velocity oscillating heads

Atom automated cutting machines – General compatibility with oscillating tool heads

Material Applications

The 01048400 is optimized for cutting technical and synthetic materials, including:

Technical textiles: Coated fabrics, canvas, polyester, nylon, technical apparel fabrics

Composites: Carbon fiber prepreg, glass fiber prepreg, aramid fiber laminates

Synthetic materials: PVC, vinyl, technical films, synthetic leather

Textiles & apparel fabrics: Woven fabrics, knits, technical garments

Leather: Full-grain, split, synthetic leather

Other: Technical foils, packaging materials, foam board (limited thickness)

Key Features

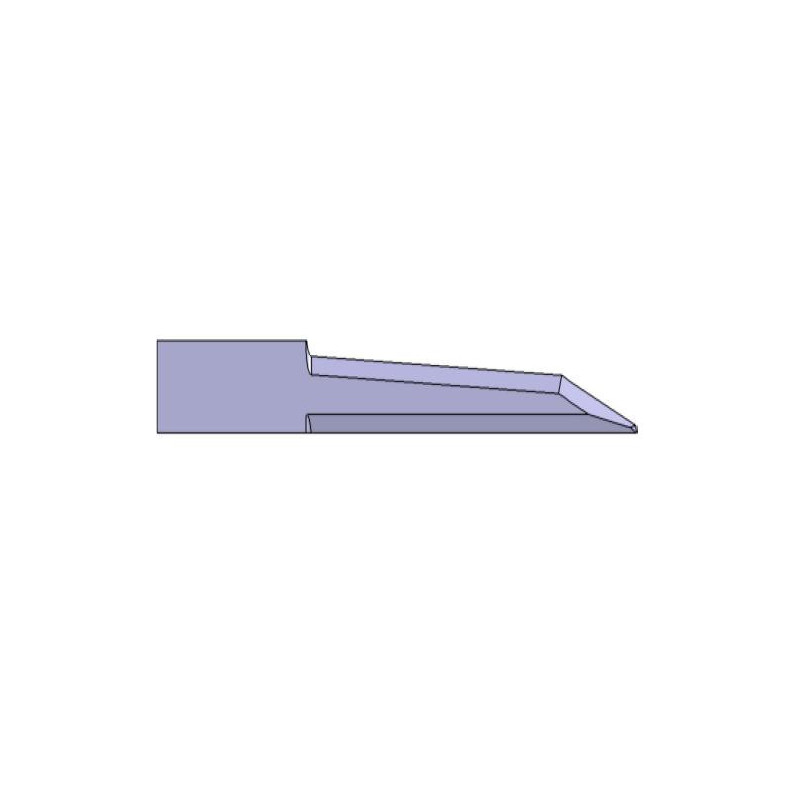

Complex 3°–25°–10° geometry: Multi-facet cutting edge optimized for technical materials and synthetic composites, providing clean cuts with minimal fraying

Tungsten carbide construction: High wear resistance and long blade life, especially for abrasive materials like carbon fiber prepreg and technical textiles

0.63 mm thin shank: Allows precise, low-friction oscillating cuts in technical materials

30 mm cutting depth: Suitable for medium-thickness technical substrates
