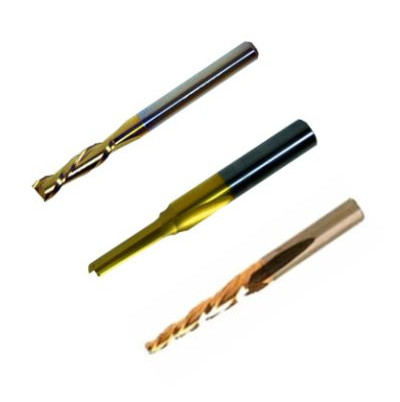

Gerber Gold routing bits are designed for greater performance and longer tool life. These remarkable routing bits are made from the highest quality micro-grain carbide to the tightest tolerances in the industry. The bits are coated with titanium nitride to enhance their durability even further. The result is superior edge quality and lower tooling costs.

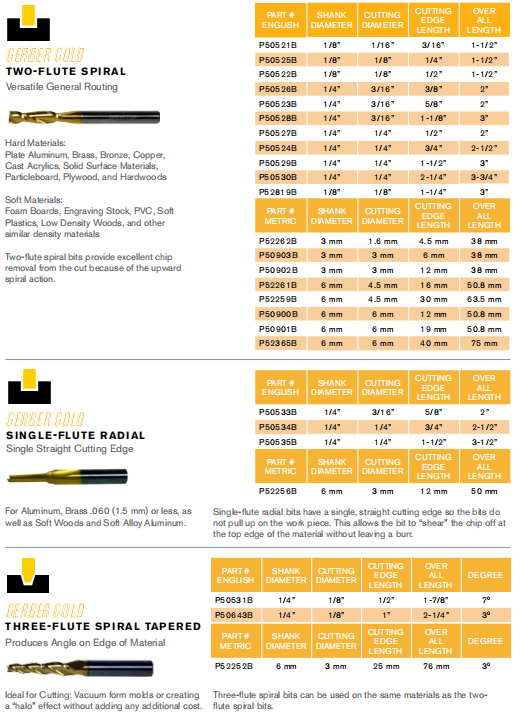

GERBER GOLD TWO-FLUTE SPIRAL
P50521B
P50525B
P50522B
P50526B
P50523B
P50528B
P50527B
P50524B
P50529B
P50530B
P52819B
GERBER GOLD SINGLE-FLUTE RADIAL Single Straight Cutting Edge
P50533B
P50534B
P50535B
P52256B
GERBER GOLD THREE-FLUTE SPIRAL TAPERED
P50531B
P50643B
P52252B
Key Features & Design
- Premium Materials : Fabricated from elite micrograin carbide to the tightest industry tolerances.
- Gold TiN Coating : Titanium nitride layer reduces heat buildup and extends operational life.
- Straight-Edge Flutes : Single straight cutting edges "shear" chips at the top edge without pulling the material upward.
- Burr-Free Finishes : The straight design leaves remarkably clean, burr-free edge qualities.
- Universal Fitting : Optimized for Gerber routers and engravers, but compatible with standard manual or automated CNC routers.
Common Applications
- Metals (such as soft aluminum or brass)
- Plastics (Acrylics, PVC, Vacuum form molds, and soft plastics)
- Woods (Hardwoods, softwoods, plywood, and composite boards)
- Foams (Foam boards and high-density signature foams)
