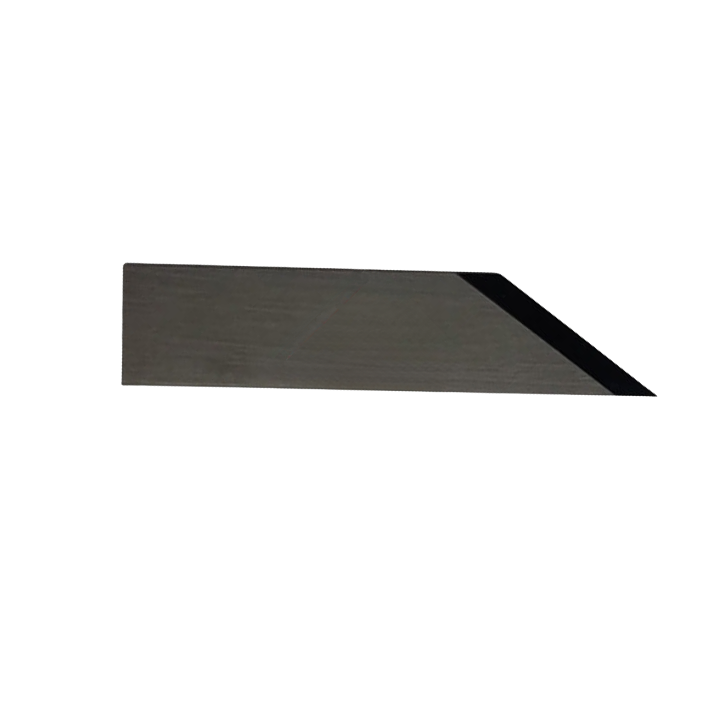

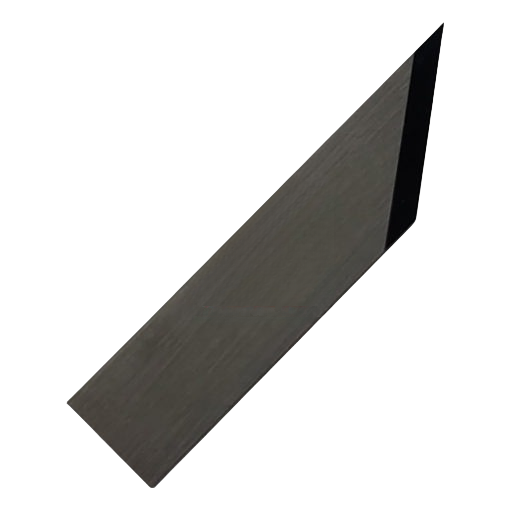

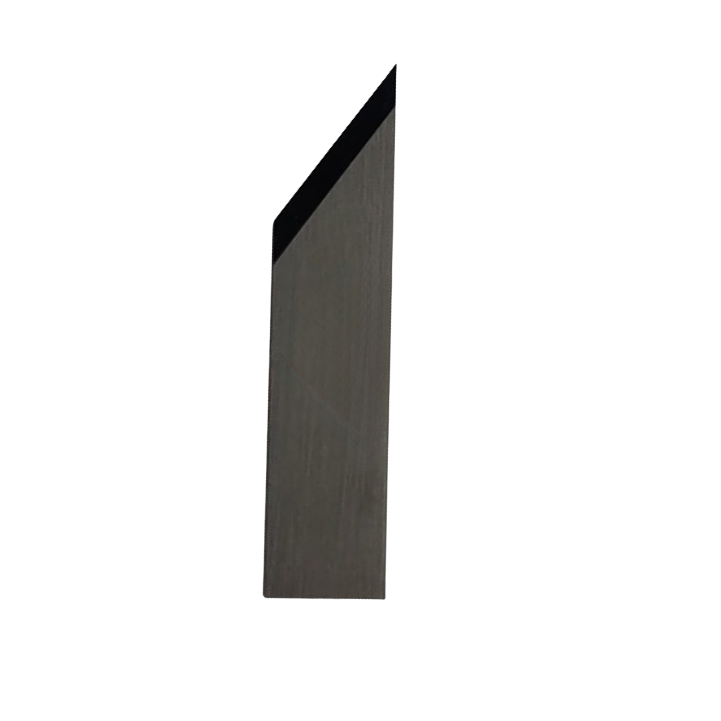

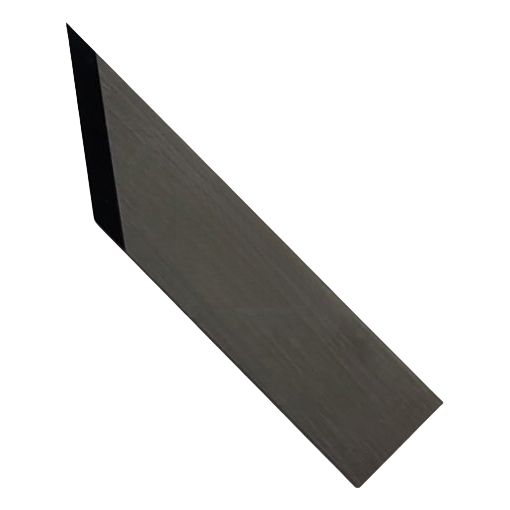

Valiani 002156 T16 oscillating knife blades for Valiani cutting systems

Valiani 002156 T16 is a 54° oscillating knife blade for Valiani cutting systems, with a 25 mm blade height, 5.60 mm blade width, 0.63 mm thickness, and 7.40 mm maximum cutting depth. It is the blade commonly described as the T16 in the Valiani oscillating family. Enquire now

Description

Valiani 002156 T16 oscillating knife blades for Valiani cutting systems

Valiani 002156 (T16) Oscillating Knife Blade is a specialized, flat-shank tungsten carbide blade engineered for high-precision digital finishing. Unlike the round-shank TC series (TC-10, TC-15), the T16 utilizes a flat 0.63 mm mounting profile. It is primarily engineered for Valiani's 90° White/Grey Tangential Heads and Pneumatic Oscillating Type X tools, which are operated on systems like the Optima, Maximus, and Integra

CUTTER BRAND
Valiani
ANGLE
54°
KNIFE HEIGHT
25,00 mm
KNIFE WIDTH
5,60 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
7,40 mm

KNIFE TYPE
Flat, Oscillating blade, Pointed

MATERIALS
Canvas, Foam board, Folding Carton, Gasket materials, Magnetic foil, Paper, Polyester fabric, PVC, PVC, Reflective vinyl film, Self-adhesive vinyl film

KNIFE/BLADE MOUNTING
flat 0,63 mm

suitable for machine manufacturer: original no.
Comagrav: FN8
CombiPro
Dyss
Esko Kongsberg: T16, 97AR836, G42441212, 42441212, BLD-SF216, (i-216)
iEcho: ( E16 )
Mécanuméric: ( 100610440 )
Zund: Z16, 3910306
