Valiani 001898 Tc-15 Carbide Vibrating Blade For Valani Digital Flatbed Plotter

Valiani 001898 is a 6 mm round-shank oscillating knife blade in the Valiani blade family. It is listed as the TC-15 blade, with a 15 mm cutting depth and use in Valiani oscillating cutting heads Enquire now

Description

Valiani 001898 Tc-15 Carbide Vibrating Blade For Valani Digital Flatbed Plotter

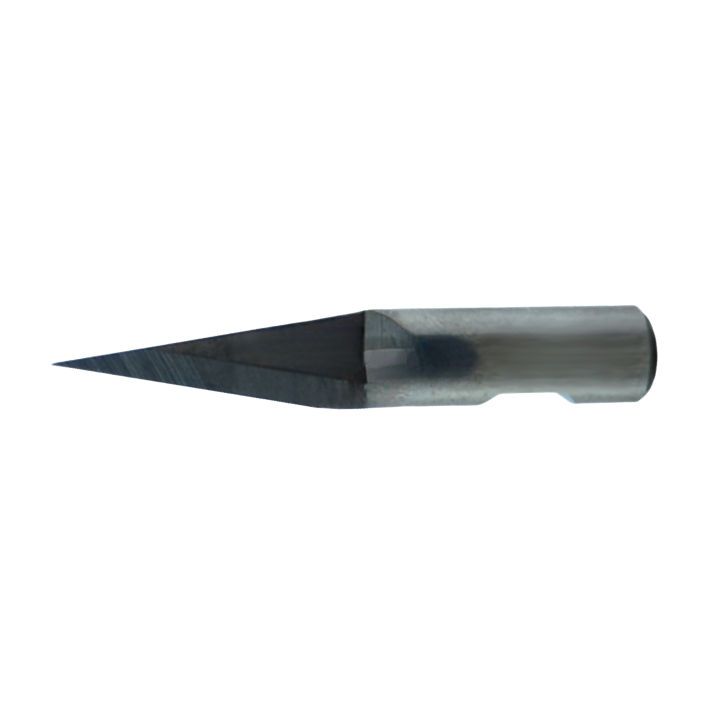

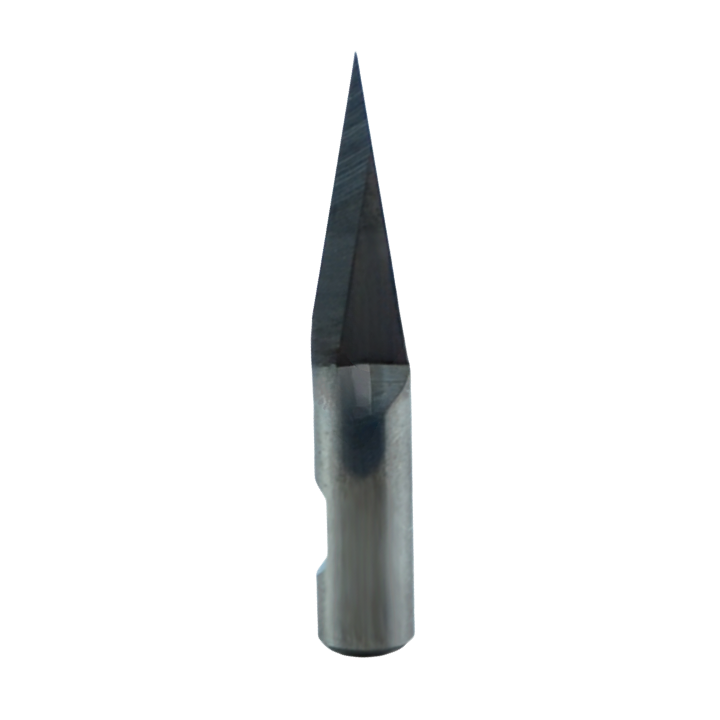

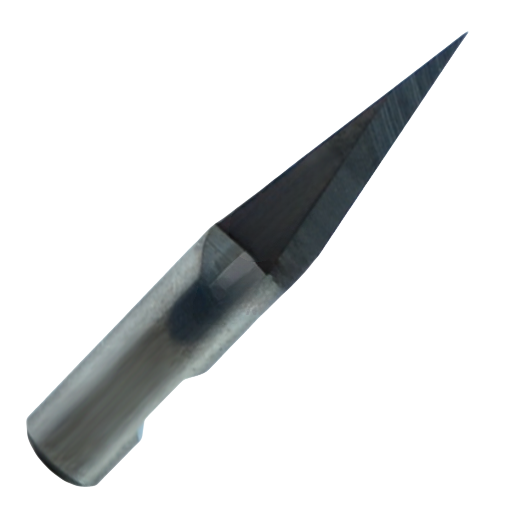

Valiani 001898 TC-15 Oscillation Knife Blade is a premium tungsten carbide cutting tool engineered for thick, dense media. It is specifically designed to fit the high-frequency vibrating and oscillating tool heads found on automated flatbed cutters like the Valiani Optima and Maximus series

CUTTER BRAND
Valiani
ANGLE
13,4°
KNIFE HEIGHT
36,00 mm
MAX. CUTTING DEPTH
15,00 mm

MATERIALS
Cardboard, Corrugated cardboard, Foam board, Folding Carton, Rubber

KNIFE TYPE
Oscillating blade, Weldon

KNIFE/BLADE MOUNTING
round Ø 6 mm

suitable for machine manufacturer: blade no.
Aristo: ( 0000 07265, 000007265, 7265, ( 0000 07598, 000007598, 7598 )
Comagrav
DRD Dierre
Kuris: 73357
Valiani: ( 001898 )

How to choose correctly

Use this rule set:

Match the machine’s approved tool holder and blade family first. Valiani TC blades are not chosen interchangeably just by length; the holder and tool type must accept the 6 mm round-shank oscillating blade format.
Select the smallest TC blade that fully reaches through the material. For example, if 5 mm cutting depth is enough, TC-5 is the safer starting point.myoyea
Step up to TC-10, TC-15, or TC-25 only when thickness, material density, or cut quality requires it.
For cleaner detail cuts, do not over-spec the blade; a larger TC blade can reduce precision on fine contours even if it reaches deeper

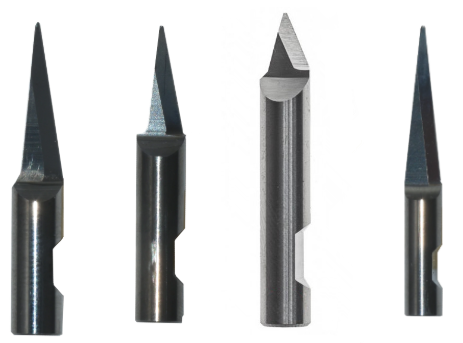

Blade	Typical role	Main selection cue
001952 / TC-5	Light oscillating cuts	Up to about 5 mm depth, common packaging and foam board
001899 / TC-10	Medium-duty oscillating cuts	Thicker stock or more cutting resistance than TC-5
001898 / TC-15	Heavy medium-duty cuts	When TC-10 is not enough for depth or stability
001897 / TC-25	Heavy-duty oscillating cuts	Thickest or toughest materials in this group
