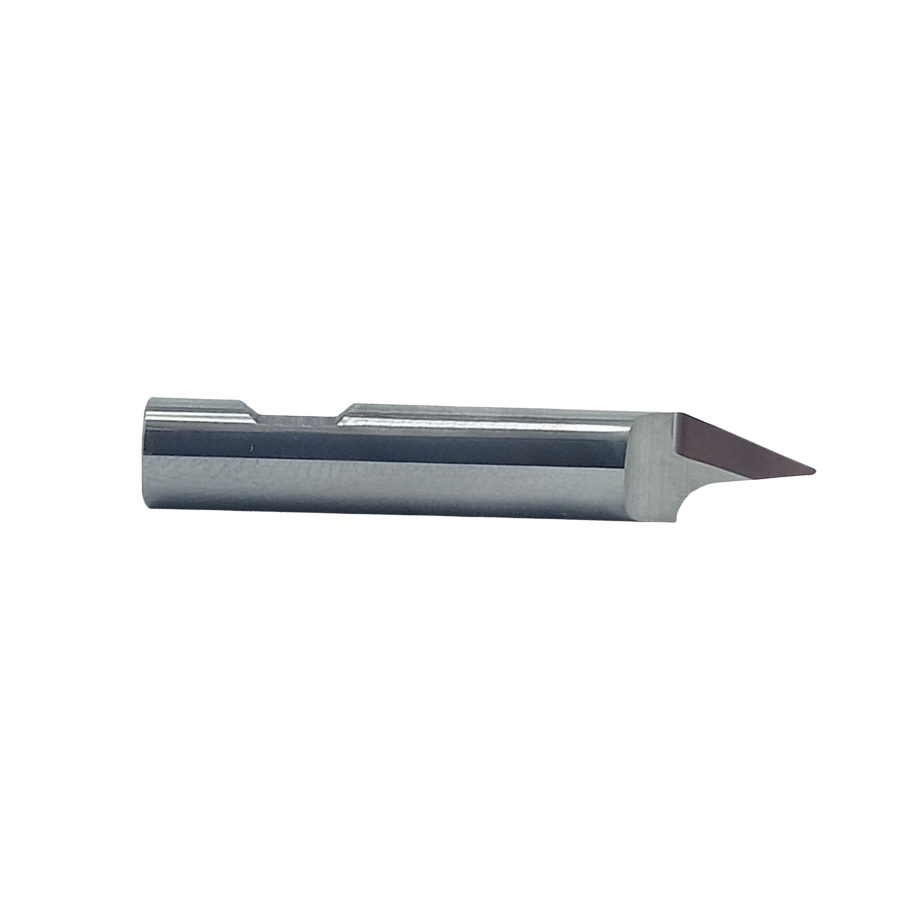

Valiani 001952 TC-5 Ø 6mm Knife Blades For Valiani Digital Flatbed Plotters

Valiani 001952 is a 6 mm round-shank oscillating knife blade for Valiani cutting systems. The available listings show it as a TC-5 blade with a 25° angle, about 36 mm tool height, and 5 mm max cutting depth Enquire now

Description

Valiani 001952 TC-5 Ø 6mm Knife Blades For Valiani Digital Flatbed Plotters

Valiani 001952 Ø 6mm Knife Blade is a specialized, highly durable cutting tool primarily designed for automated flatbed cutters and digital finishing systems. This particular model is prominently utilized in heavy-duty tools like the oscillating and vibrating tool heads found on machines like the Valiani Optima V250

CUTTER BRAND
Valiani
ANGLE
25°
KNIFE HEIGHT
36,00 mm
MAX. CUTTING DEPTH
5,00 mm

MATERIALS
Corrugated cardboard, Foam board, Folding Carton, Gasket materials, Rubber

KNIFE TYPE
Oscillating blade, Weldon

KNIFE/BLADE MOUNTING
round Ø 6 mm

suitable for machine manufacturer: original blade no.
Aristo: 0000 07180, 000007180, 7180, ( 0000 07275, 7275, 000007275 )
Comagrav
Kuris
Valiani: ( 001952 )

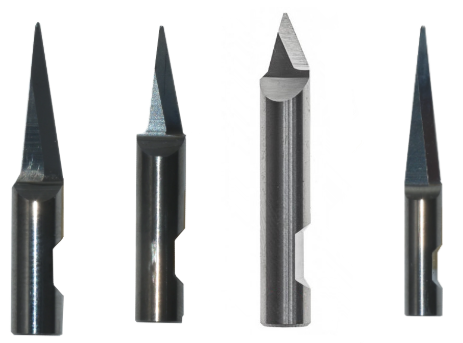

Core Parameter Comparison Table

Official Product Code (SKU)	Blade model	Applicable cutting thickness (length)	blade tip type	Main applicable materials
001952	TC-5	5 mm	Central Tip	Thinner cardboard, cardstock, greyboard, leather
001899	TC-10	10 mm	Central Tip	Standard cardboard, corrugated cardboard, PVC, honeycomb cardboard
001898	TC-15	15 mm	Central Tip	Thicker foam boards (KT boards), honeycomb cardboard, thick corrugated paper
001897	TC-25	25 mm	Central Tip	High-density foam board, extremely thick composite or packaging interlayer materials

Key Selection Recommendations

Naming convention : "TC" in the model number represents a vibratory cutter, and the following numbers (5, 10, 15, 25) directly correspond to the effective cutting depth (millimeters) of the blade .
Compatibility : All four inserts are fully compatible with Valani vibratory cutter heads (such as those used in Optima, Maximus, or Invicta models).
Usage instructions : The cutting thickness must be matched with the blade length. Using a blade that is too long (such as TC-25) to cut very thin materials can easily cause the blade tip to break due to excessive lateral pressure; while a blade that is too short will not be able to cut through the material in one go.
