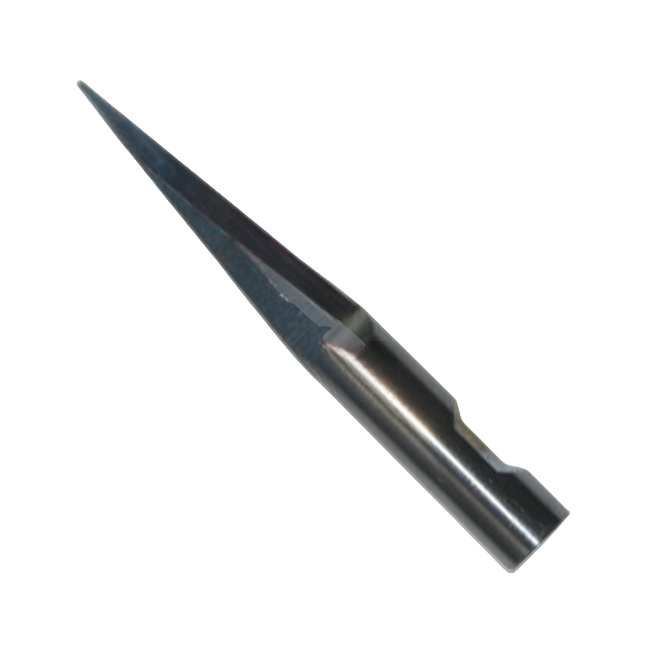

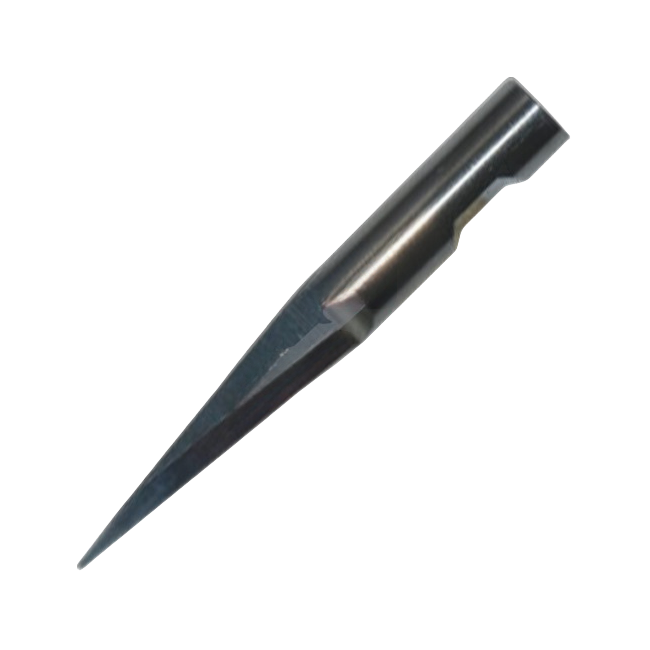

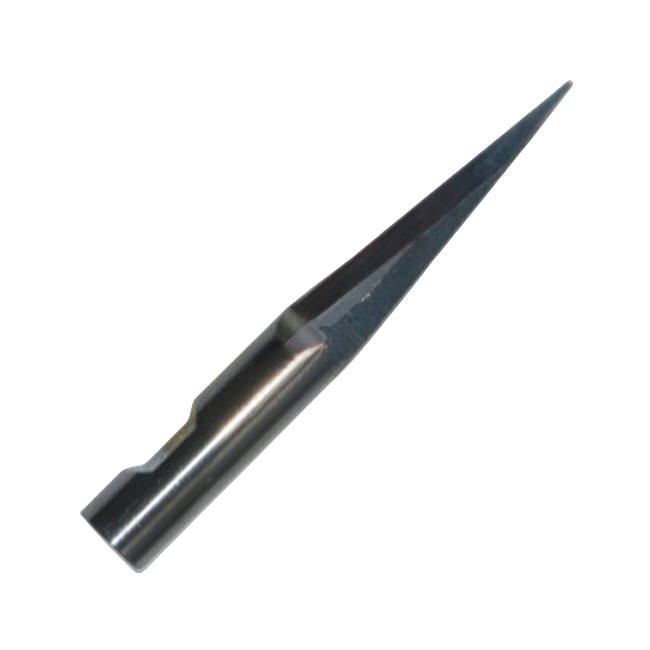

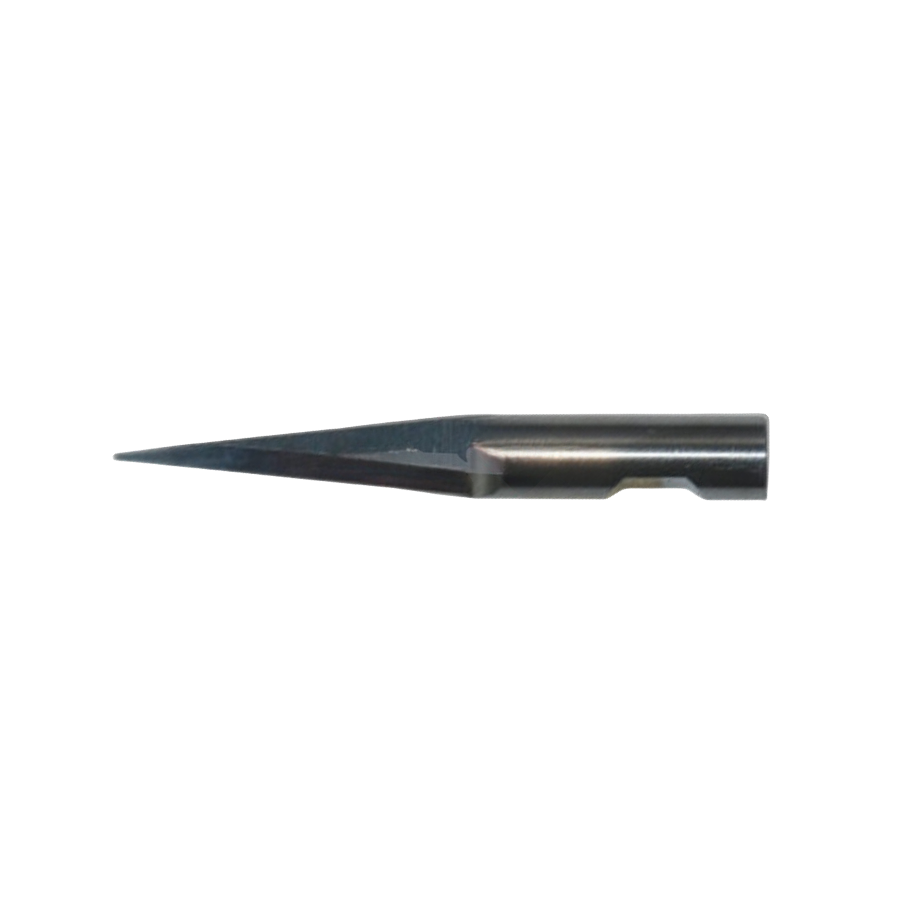

Valiani 001897 Tc-25 Carbide Vibrating Blades On Valiani Digital Flatbed Cutting Machines

Valiani 001897 is a 6 mm round-shank oscillating knife blade replacement, commonly identified as TC-25. It’s used on Valiani oscillating tools and is typically described as a tungsten-carbide blade for wide-format cutting, with a cutting depth of about 25 mm.

Enquire now

Description

Valiani 001897 Tc-25 Carbide Vibrating Blades On Valiani Digital Flatbed Cutting Machines

IN STOCK
US $0.00
(Negotiable)

The Valiani 001897 (also known as the TC25) is a precision oscillating knife blade designed for heavy-duty industrial cutting. It is primarily used with the Valiani Optima V250 oscillating tool and other digital flatbed cutting systems.

CUTTER BRAND
Valiani
ANGLE
83,9°
KNIFE HEIGHT
46,00 mm
MAX. CUTTING DEPTH
25,00 mm
MATERIALS
Canvas, Cardboard, Corrugated cardboard, Felt, Foam board, foamed rubber, Leather, Magnetic foil, PVC, Reflective foil, Textiles, Vinyls
KNIFE TYPE
Oscillating blade, Weldon
KNIFE/BLADE MOUNTING
round Ø 6 mm

suitable for machine manufacturer: blade no.
Aristo: ( 0000 07354, 000007354, 7354 )
Comagrav
DRD Dierre
Kuris: 78558
Multicam: 003612-MC7354
Valiani: 001897

Typical Applications
This blade is optimized for a wide variety of pliable and semi-rigid substrates, including:
Packaging: Corrugated cardboard, honeycomb materials, and folding cartons.
Signage & Displays: Foam board, PVC, vinyl, and reflective foils.
Industrial: Rubber, magnetic foils, and gasket materials.
Soft Goods: Felt, leather, and various textiles.

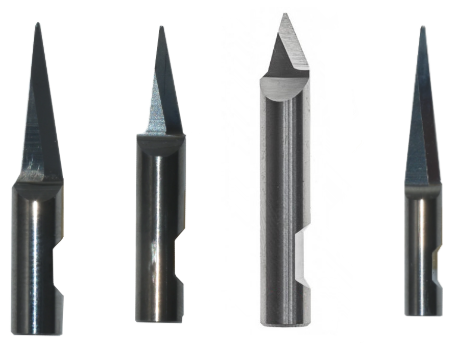

Blade Core Dimensions and Technical Specifications

All four blades are high-life blades made of carbide (Widia/tungsten carbide) . They share the same shank size , but differ in working length and tip angle design.

Official Product Code (SKU)	Corresponding model	Total blade height (Length)	Maximum cutting depth (Max Depth)	Shank diameter	Tip Type	Cutting Angle
001952	TC-5	Approximately 26.00 mm	5.00 mm	6.00 mm	Centrally symmetric single-edged blade	~14°
001899	TC-10	Approximately 31.00 mm	10.00 mm	6.00 mm	Centrally symmetric single-edged blade	~13.5°
001898	TC-15	36.00 mm	15.00 mm	6.00 mm	Centrally symmetric single-edged blade	13.4°
001897	TC-25	Approximately 46.00 mm	25.00 mm	6.00 mm	Centrally symmetric single-edged blade	~13°

Note: All shank diameters are 6mm round shank (with flat Weldon retainer) , perfectly compatible with Valani's standard Oscillating Tool head (2FTDT23).
