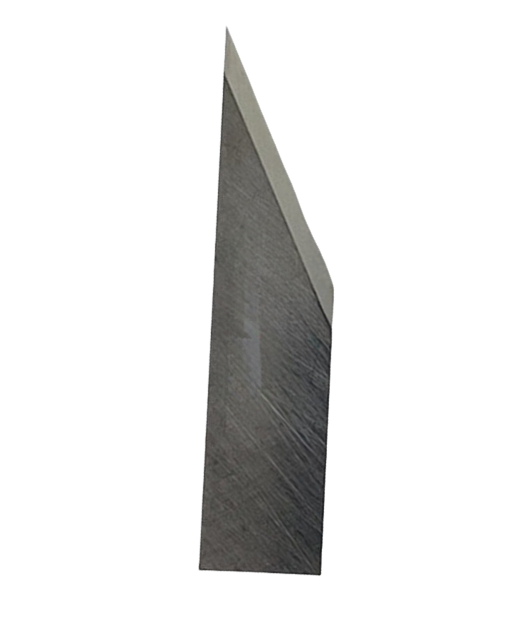

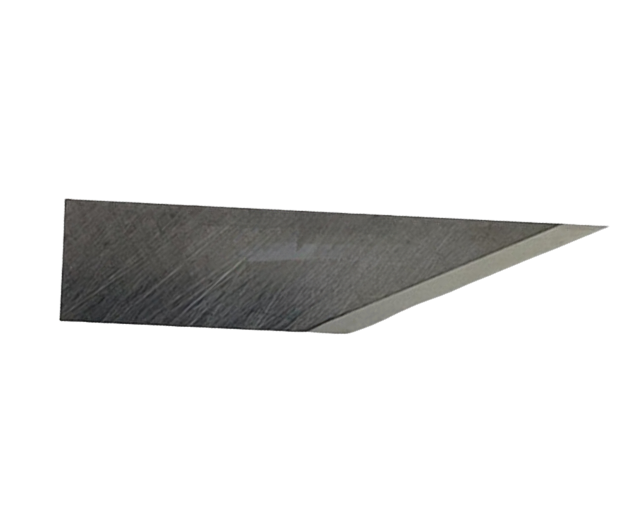

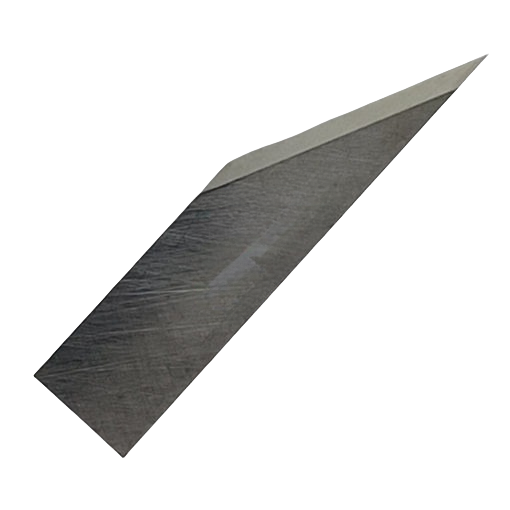

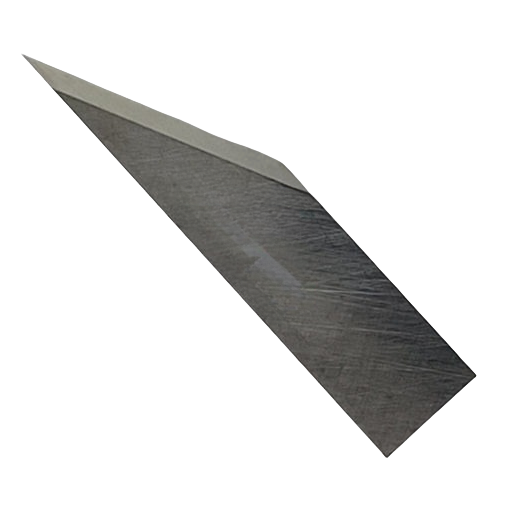

Valiani 002157 T17 carbide oscillating blades for Valiani cutters

Valiani 002157 T17 is a carbide oscillating blade for Valiani tangential oscillating type X cutters. It is the T17 variant in the Valiani blade family and is used for cutting standard-thickness materials. Enquire now

Description

Valiani 002157 T17 Oscillating Knife Blade – Replacement

Valiani 002157 T17 is a high-precision tungsten carbide (Widia) blade designed for Valiani digital flatbed plotters and cutting machines. It features a tight 25° cutting angle, making it highly efficient for complex geometries, intricate detail work, and cuts requiring a small radius

CUTTER BRAND
Valiani
ANGLE
65°
KNIFE HEIGHT
25,00 mm
KNIFE WIDTH
5,60 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
12,00 mm

KNIFE TYPE
Flat, Oscillating blade, Pointed

MATERIALS
Canvas, Folding Carton, Gasket materials, Magnetic foil, Paper, Polyester fabric, PVC, Reflective vinyl film, Self-adhesive vinyl film

KNIFE/BLADE MOUNTING
flat 0,63 mm

Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894
