Blade Comparison by Application
The following table compares common vibration knife blade types used for carton and car mat production.
|
Blade Model/Type |
Recommended Application |
Key Features |
|
Z12 / Z21 |
General Purpose, Cardboard |
Made of tungsten steel; neat, burr-free edges. |
|
26° / 35° / 45° |
Multi-thickness Materials |
High-frequency oscillation; suitable for density under 5mm. |
|
IECHO E Series |
Industrial Car Mats/Leather |
High-quality carbide for long service life; E1 to E71C models. |
|
JWEI J-Series |
Foam, EVA, & Honeycomb |
Wear-resistant and high-temperature stable. |

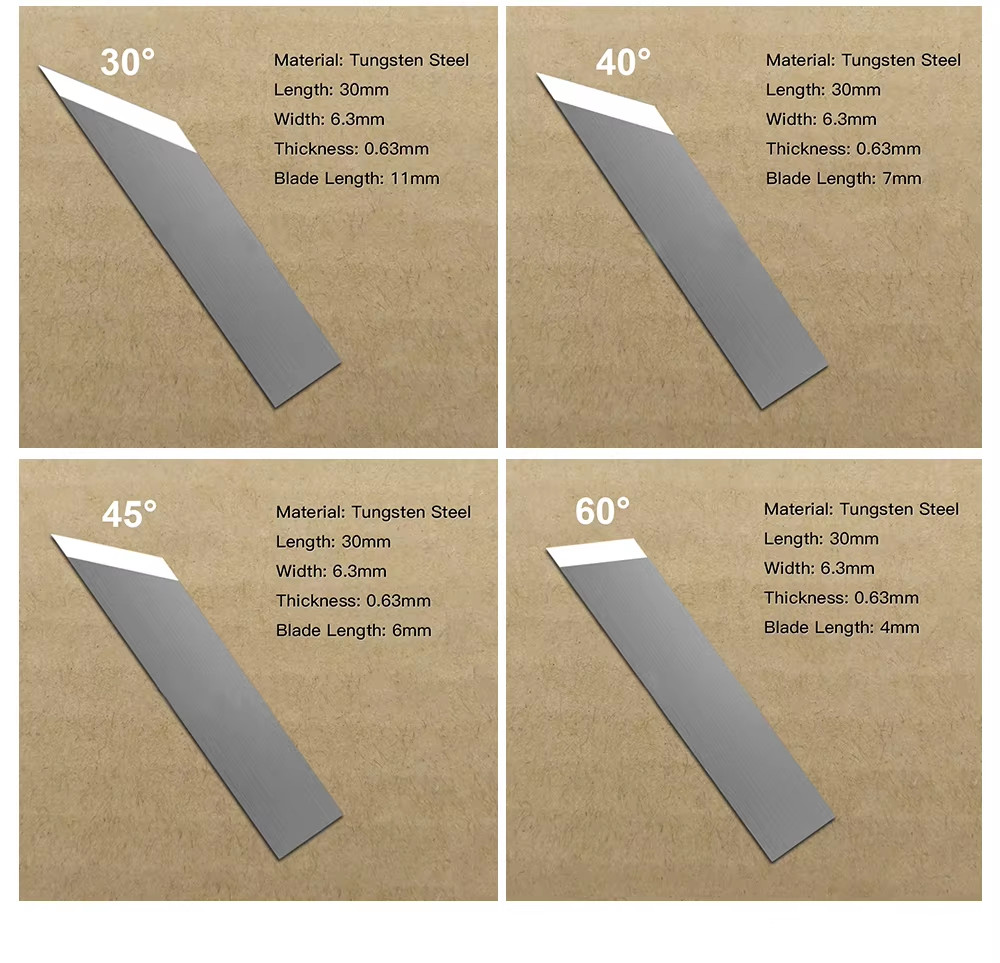

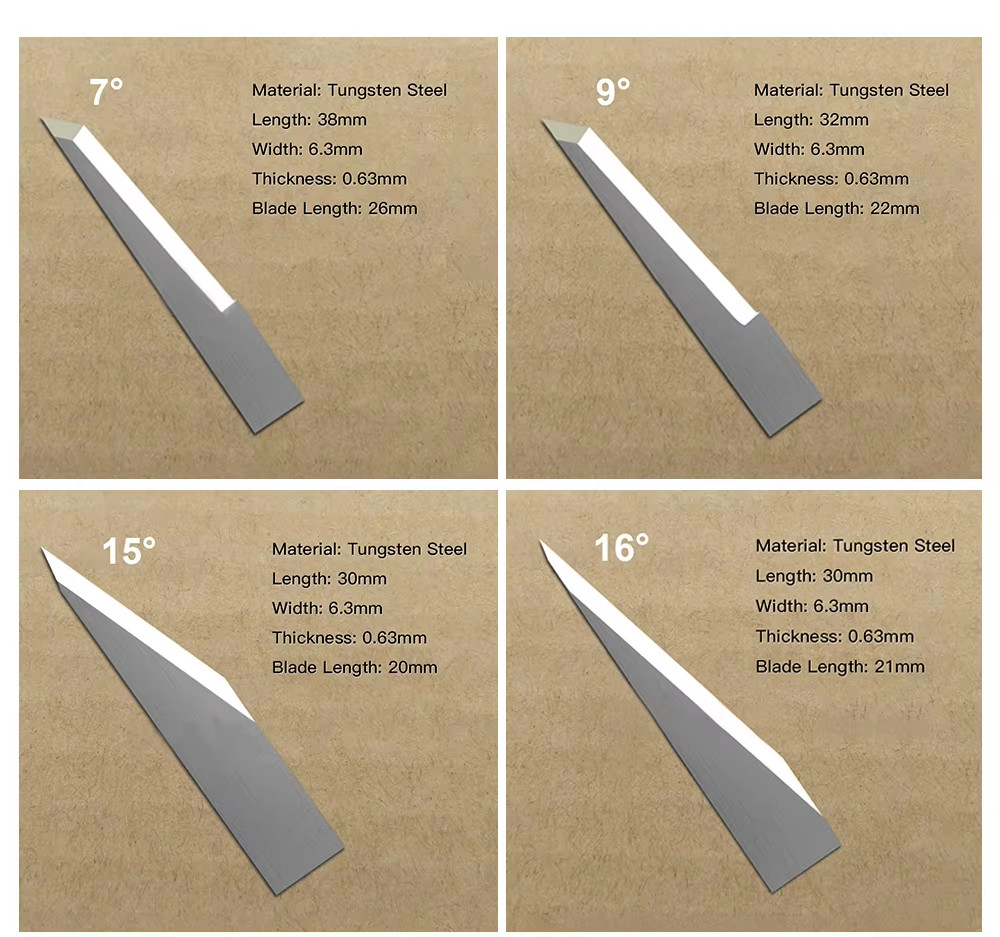

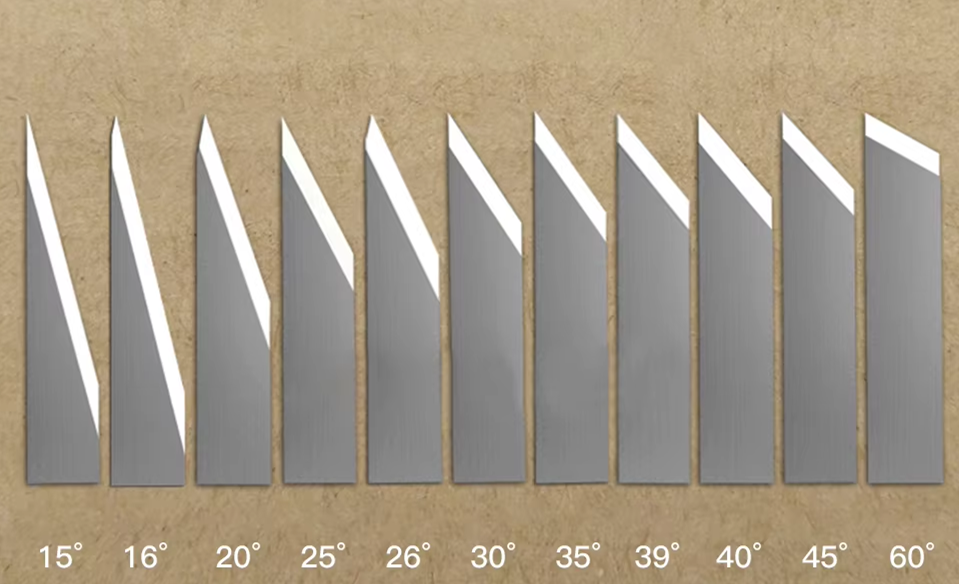

· Blade Angles: For thinner materials like folding cartons, a 26° blade provides sharper detail, while thicker car mats (rubber or PVC) often require 45° blades for structural stability during the cut.
· Machine Compatibility: Blades must match the specific knife head of your CNC machine. Major brands include Zund, IECHO, JWEI, and Ruizhou.
Exclusions: These blades are designed for flexible and semi-rigid non-metallic materials. They are not suitable for cutting hard metals or thick rigid plastics, which require a milling tool or router bit.
