Colex SharpCut Flatbed Cutter Types And Knives Knife Blades Overview

Colex SharpCut Flatbed Cutter Types And Knives Knife Blades

The Colex SharpCut Digital Finishing System is a high-performance industrial flatbed cutter tailored to meet the needs of the signage, packaging, and textile sectors. It boasts a Triple Interchangeable Tool Head, enabling swift transitions between routing, knife-cutting, and kiss-cutting functions. This versatility ensures efficiency and precision for various applications.

Flatbed Cutter Configurations
Colex offers two main configurations in their SharpCut series, each available in multiple table sizes to suit diverse business needs:

- SharpCut SX Series (Fixed Table):Built for production-grade output, this model excels at high-speed routing and precise cutting of rigid materials up to 2.5 inches thick:
- SX1717:5.5' x 5.5' working area.
- SX1732:5.5' x 10.5' working area.
- SX3216:10' x 5' working area.
- SX3232:10' x 10' working area.

- SharpCut SXC Series (Conveyor System):Designed for automated workflows, these models feature an integrated conveyor belt for continuous, high-volume production. Ideal for roll-to-roll media cutting and automatic board handling:
- SXC1717: 5.5' x 5.5' working area with conveyor.
- SXC1732:5.5' x 10.5' working area with conveyor.
- SXC3216:10' x 5' working area with conveyor.

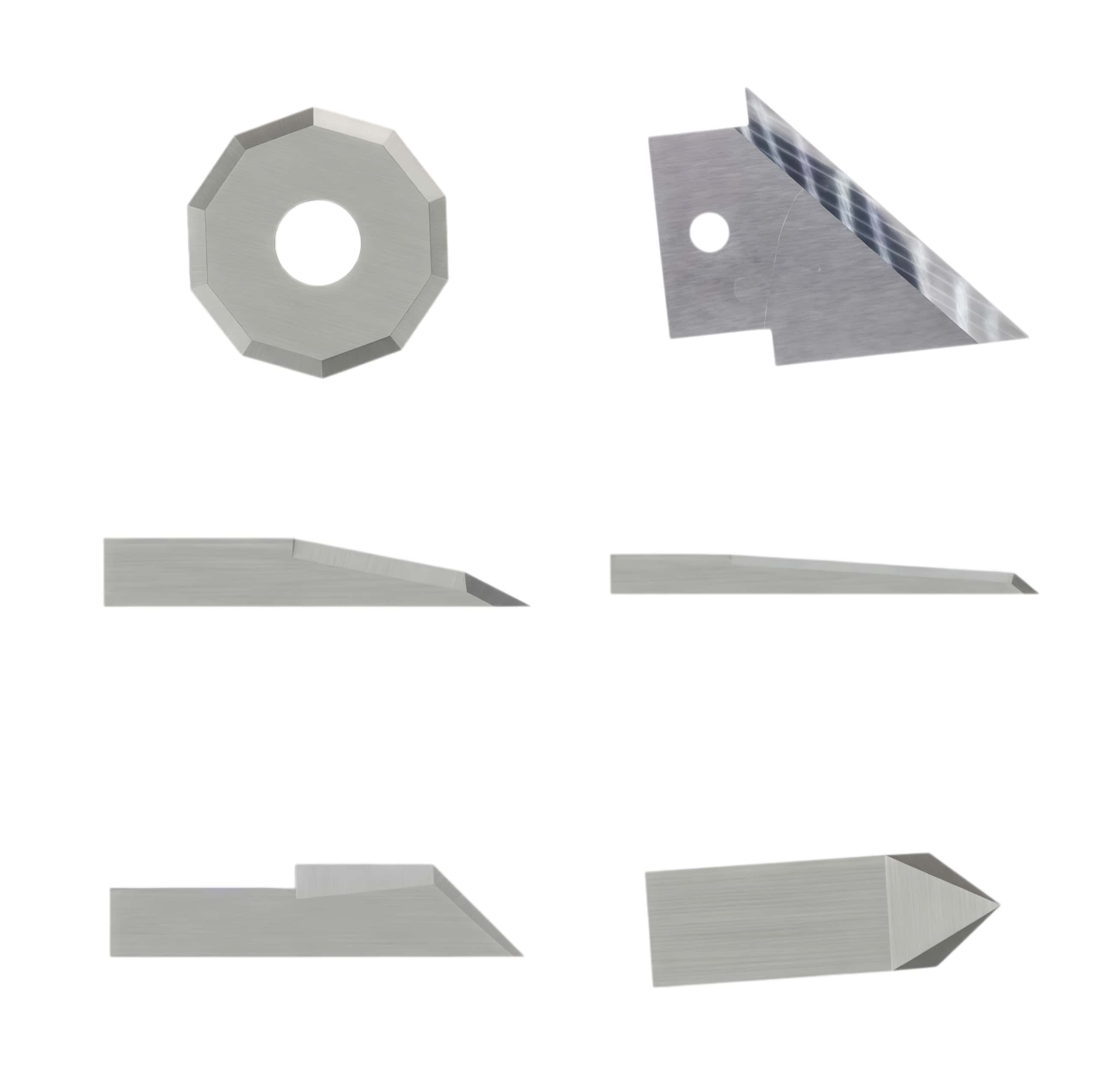

Specialized Knife Tools and Blade Options
The SharpCut system supports a versatile selection of knife tools and blades, designed to handle different material types and thicknesses with precision:

- Oscillating Knife:Ideal for cutting thicker or softer materials such as corrugated stock, foam boards, and honeycomb substrates:
- T00423:23mm blade for honeycomb and falcon board up to 3/4".
- T00418:6mm blade for thinner foam applications.
- T00420:14mm blade for corrugated material and styrofoam.

- Fixed Double-Edge Knife:Minimizes blade deflection, making it perfect for cutting tight radii in rigid plastics like Sintra, PVC, and styrene up to 3mm thick:
- T00312:80-degree double-edge blade for materials up to 3mm.
- T00313: 60-degree double-edge blade.

- Kiss-Cutting Knife:Tailored for pressure-sensitive labels, decals, and vinyl:
- T00212:Blade size range of 0.5mm to 0.2mm.
-T00213: Blade size range of 1mm to 0.4mm.

- Universal Single-Edge Knife:A tangential knife capable of cutting pliable substrates like paper and vinyl, as well as rigid materials up to 1/4 inch thick:
- T00330:Standard universal blade.

- V-Cut / Bevel Knife:Designed for precise folds (e.g., 90°, 108°) in foam core or corrugated material for creating 3D structures:
- T00340: V-cut blade.
- T00341: Bevel blade for cutting precise 45-degree edges.

- Rotary Knife (Motorized):Equipped with a 10-sided cutting wheel for accurately processing textiles, fabrics, and fibrous materials.

- Coroplast Knife:Specifically engineered for cutting corrugated plastic (Coroplast) up to 1/8 inch thick and other lightweight rigid materials:
- T00335:30-degree Coroplast blade.
- T00336: 45-degree Coroplast blade.

With its blend of advanced technology and robust functionality, the Colex SharpCut Digital Finishing System is a comprehensive solution for precision cutting across various industries.
