COLEX T00421 Sharpcut Oscillating Knife Blades--Replacement Online Store

COLEX T00421 is a precisely crafted, single-edged oscillating blade engineered specifically for use with the Colex Sharpcut digital flat cutter. Enquire now

Description

COLEX T00421 Sharpcut Oscillating Knife Blades--Replacement

COLEX Knife,COLEX T00421 Oscillating Blade,COLEX T00421,COLEX T00421 Blade,COLEX Oscillating Blade,COLEX Blade,Colex Blades

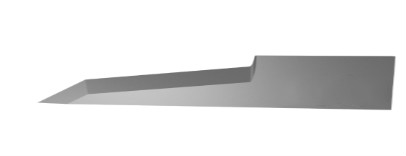

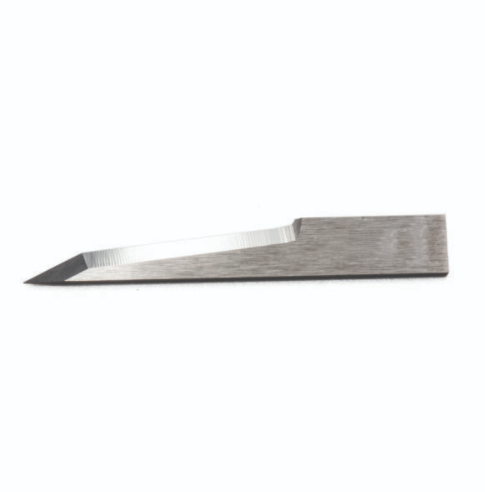

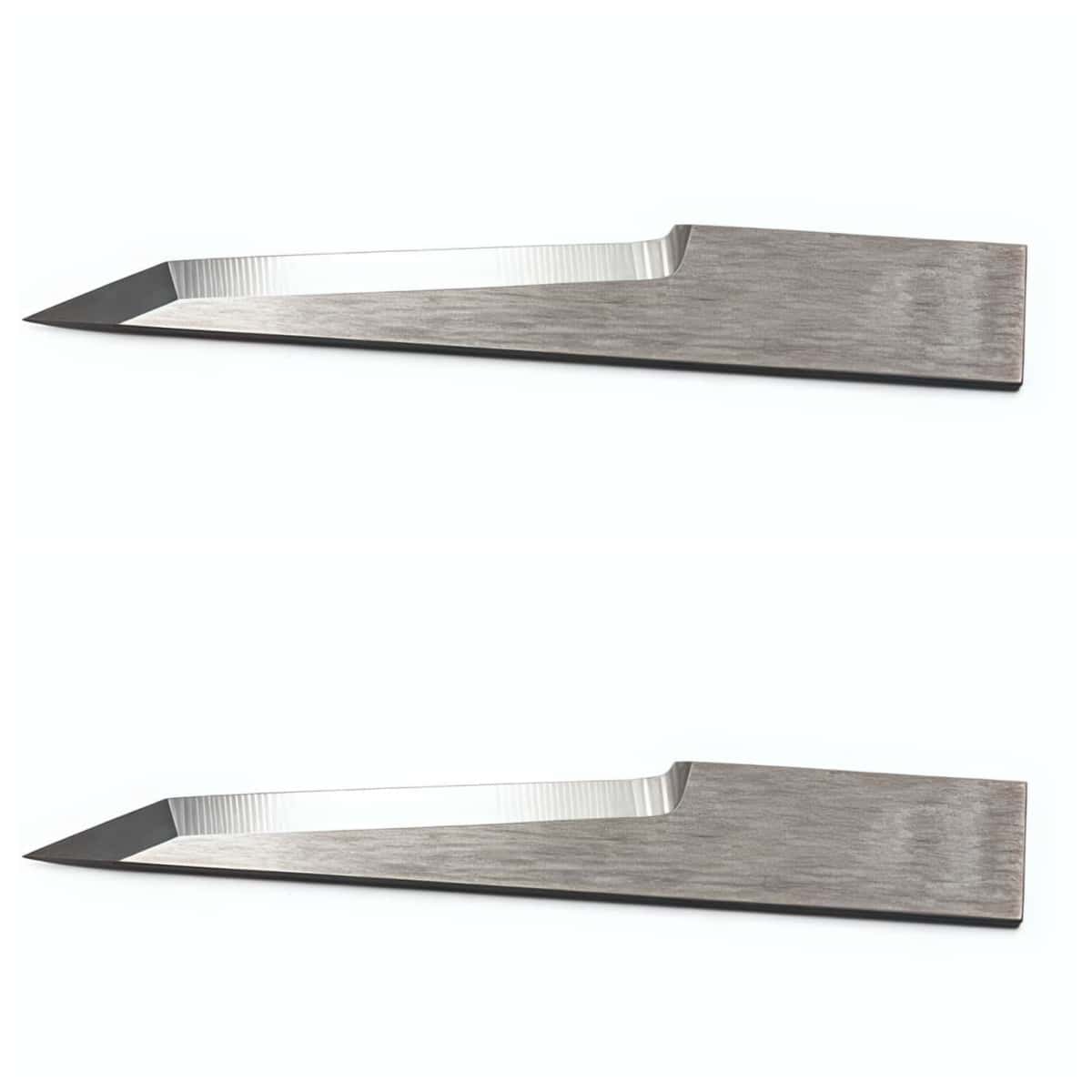

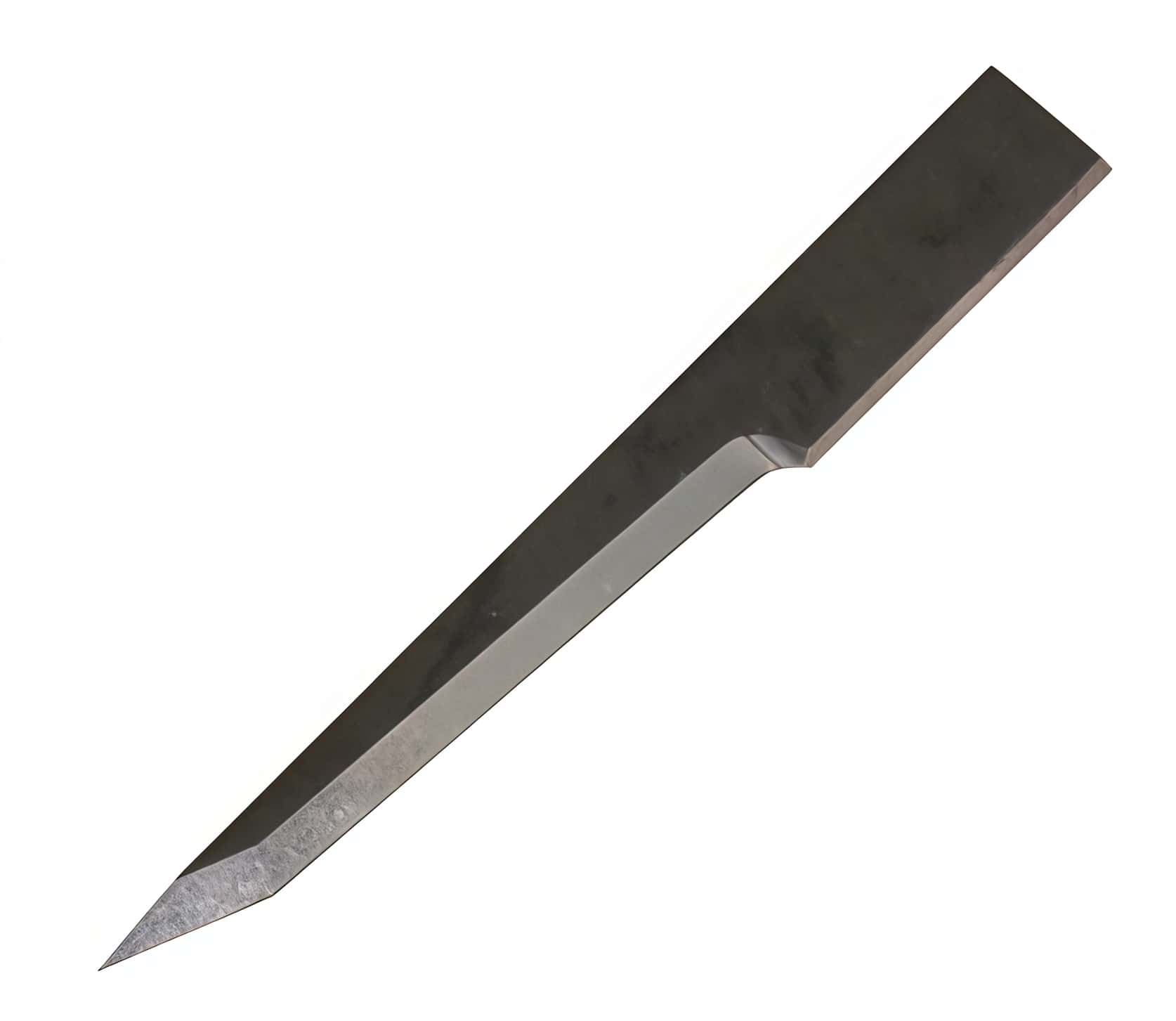

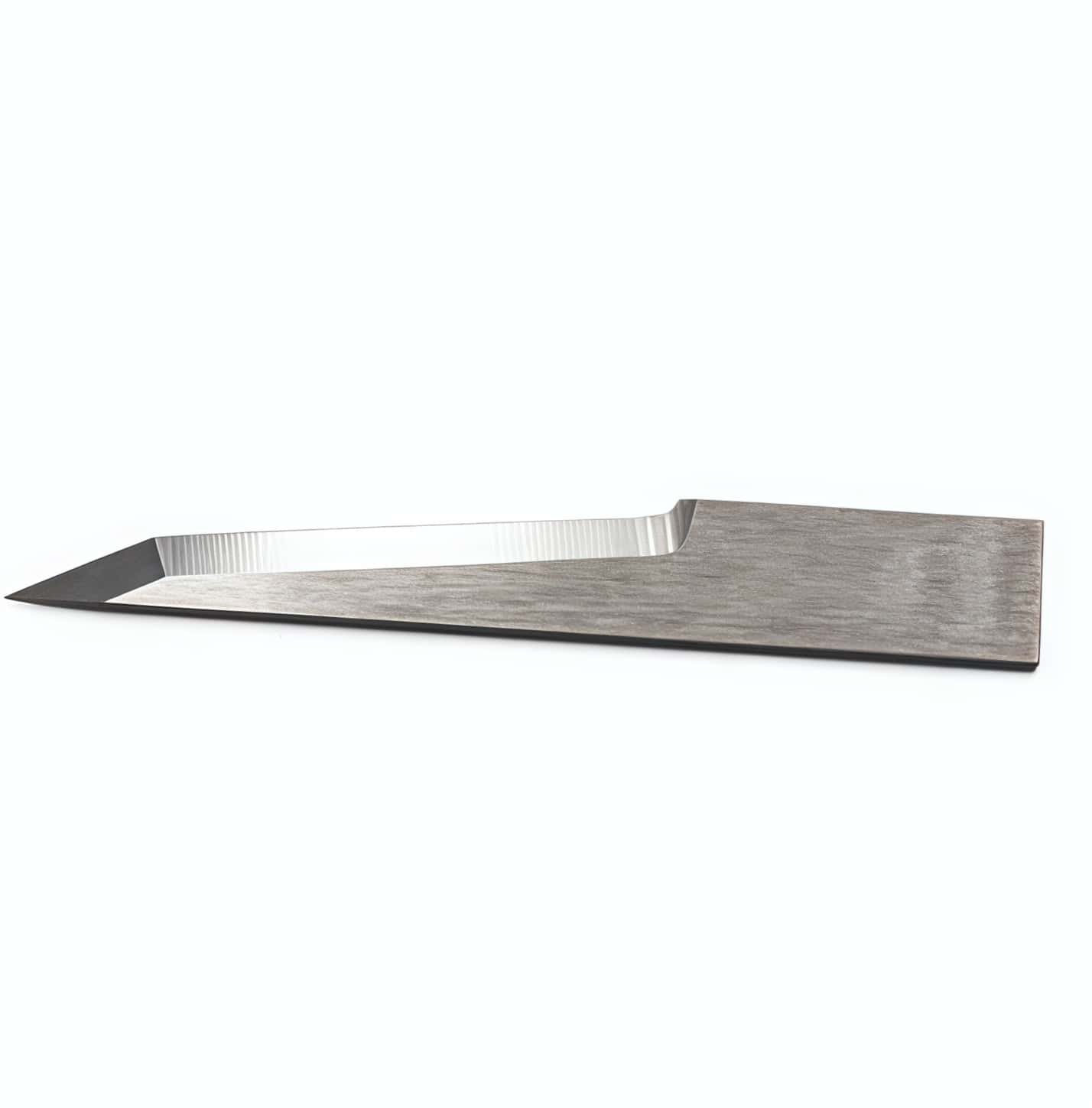

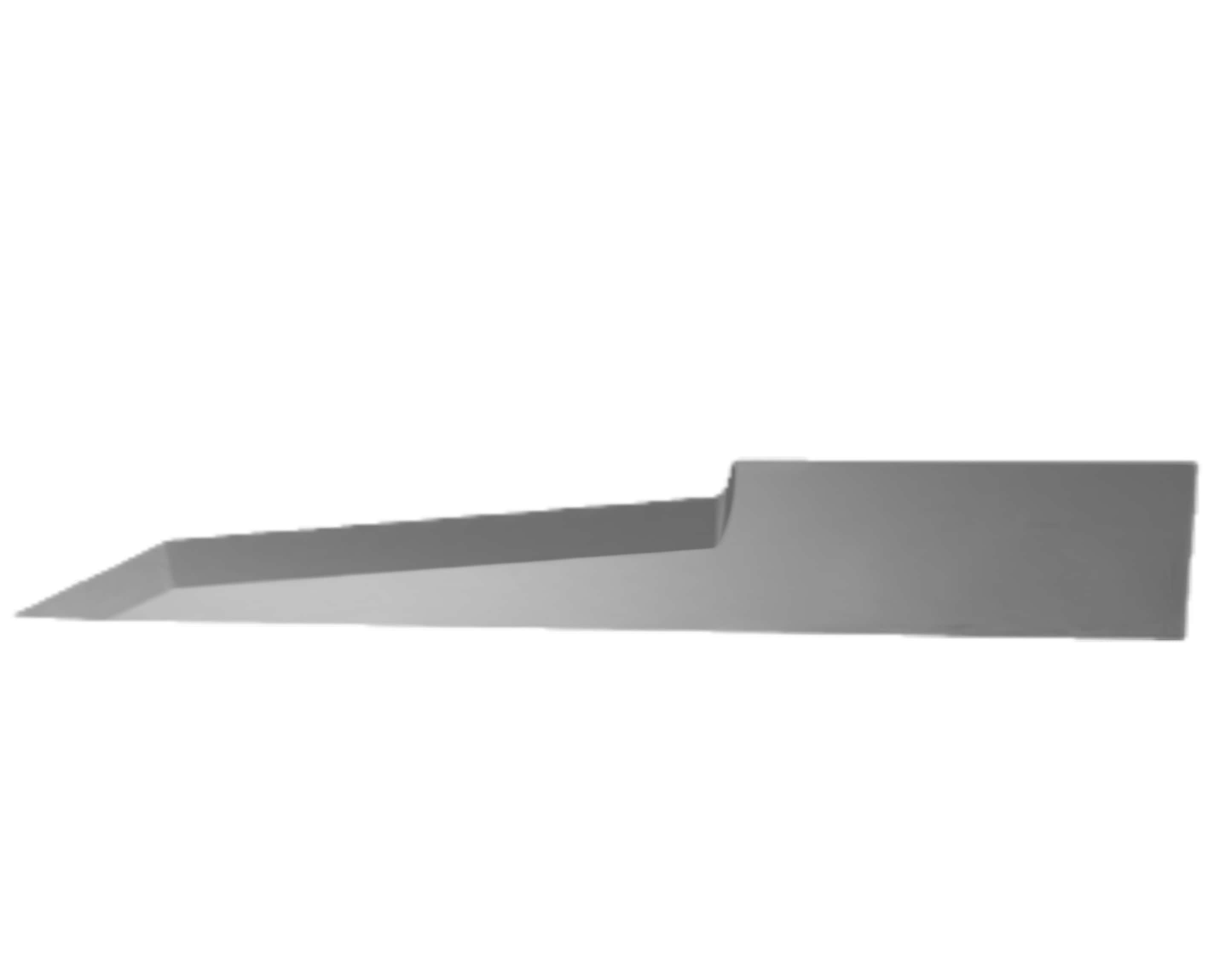

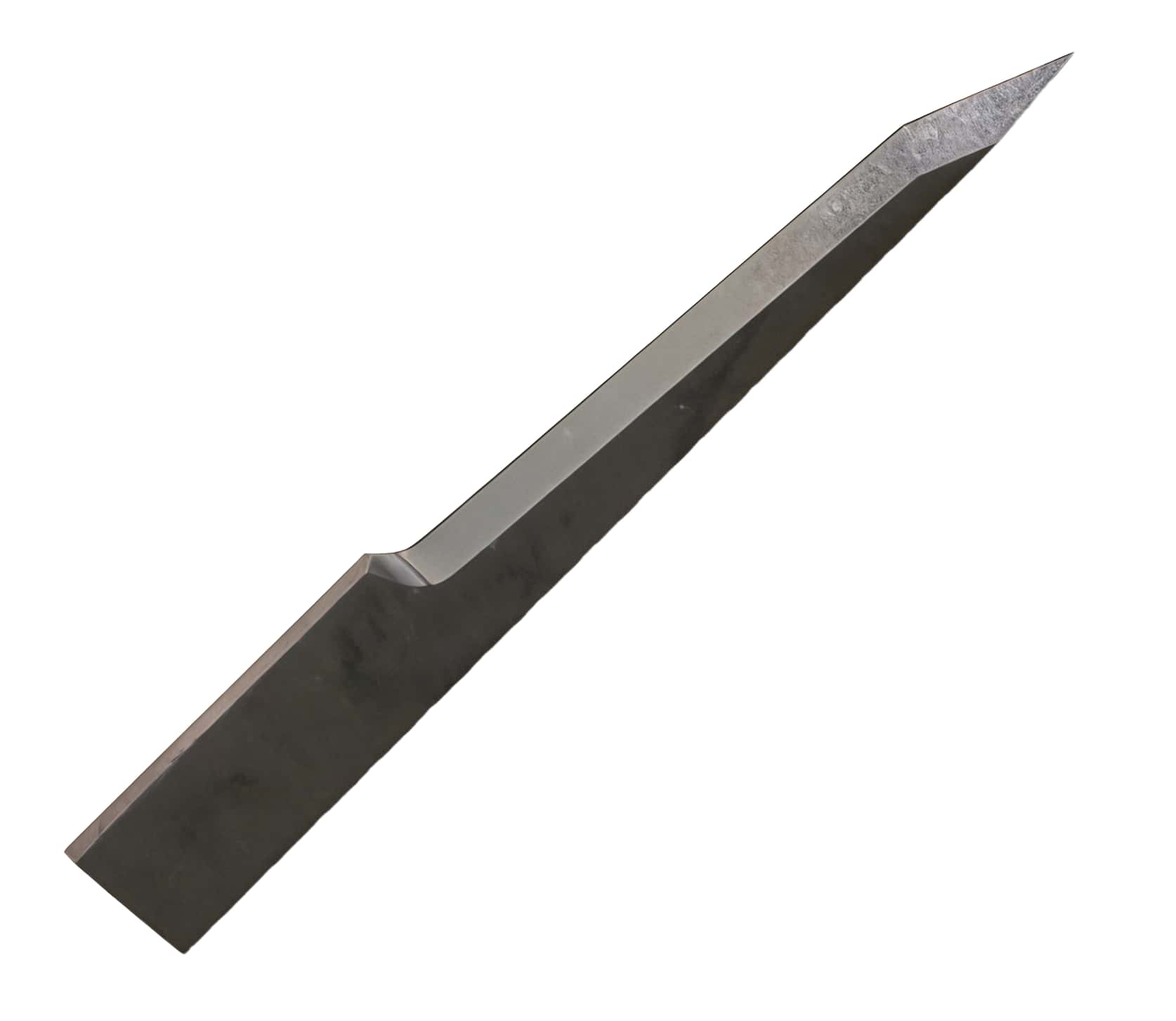

The COLEX T00421 Sharpcut Oscillating Knife Blades (also known as Z21 or 3910314) are high-precision tungsten carbide blades designed specifically for the Colex Sharpcut automated cutting system.

Key Specifications
Design Focus: Fine, delicate knife with minimal overcut, ideal for cutting complex geometries, small radii, and intricate details.

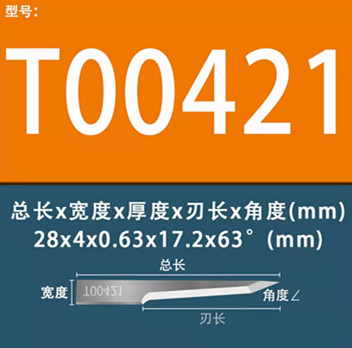

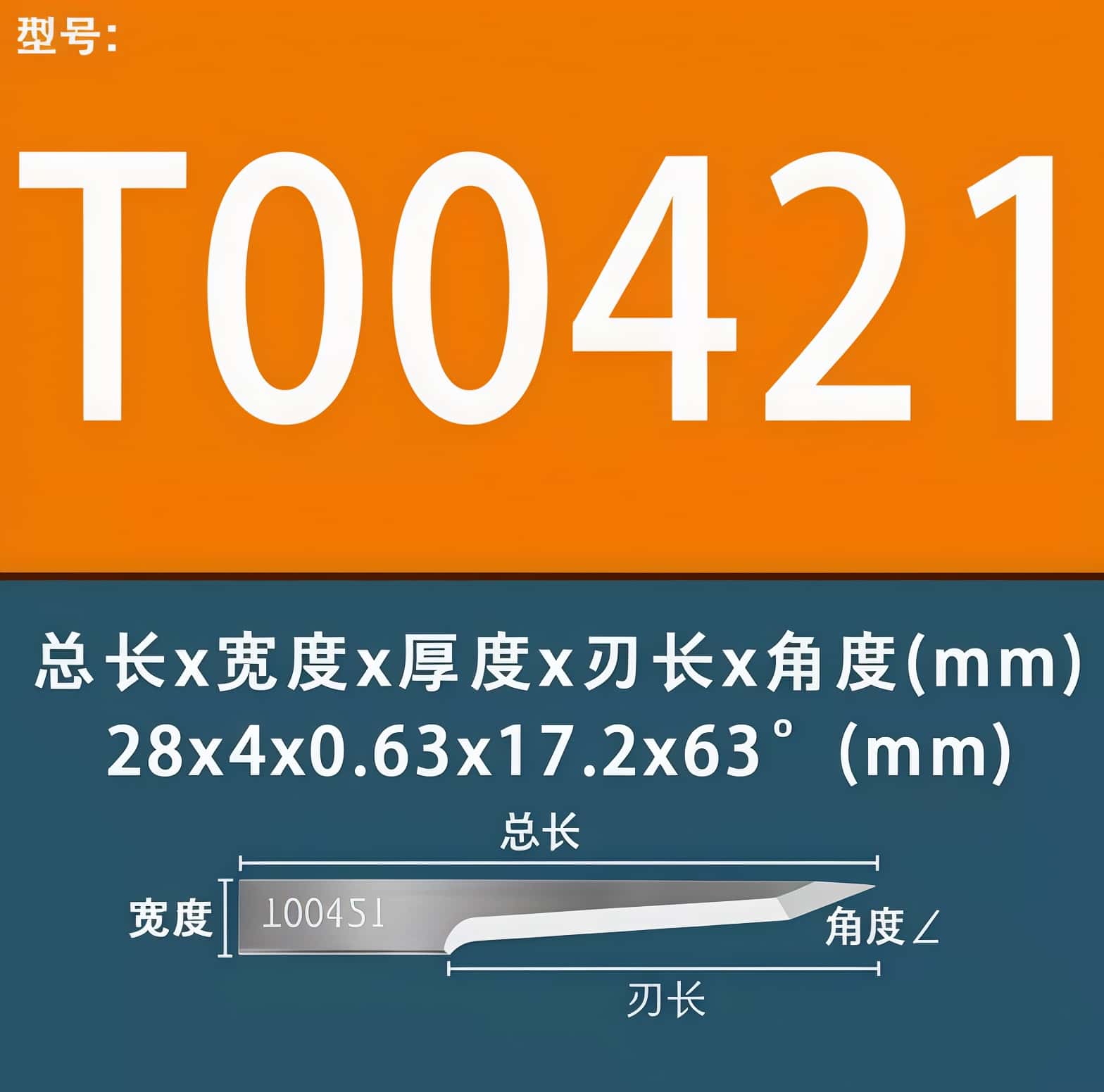

Dimensions: It has a height of 17.2 mm and a maximum cutting depth of 16.2 mm.
Material: Made from Tungsten Carbide (HM) for durability and hard metal performance.
Thickness: 0.63 mm.

Recommended Applications
These blades are versatile across various materials, particularly those used in packaging and signage:
Cardboard: Corrugated, solid, and honeycomb materials.
Leather: Hard, hide, and suede varieties.
Foam: PE, PUR, and foam board.
Plastics/Fabrics: PP corrugated plastic, magnetic foil, polyester fabrics, rubber, and carpet.

T00421 Oscillating Blade – 14 mm-9/16″
Dimensions 2 × .35 × .35 in
Colex Equivalent: T00421
Used With Colex Holder: T00126
Description: Flat Knife Oscillating Blade Single Edge
Notes: Same as XZ0020 except longer cut length

Production Note: Due to the narrow and long tip of the T00421 cutter, avoid using it as the primary cutter when cutting high-density hard plastics (such as 15mm thick PVC or acrylic) to prevent high-frequency vibration from causing the brittle tip to chip. For such hard, thick plates, it is recommended to use a Sharpcut router head for machining.

Replacement for:XZ0021 BT-2381 ITC BOP-21,Colex T00421,Esko Kongsber G42458257 42458257 BLD-SF421,iEcho E21,Summa 500-0812 500-9812,Zund 3910314 Z21,Blackman & White BW21,Mécanuméric 100610370 COMPO008757,ATOM 01033569 01039907,Ronchini RM-01039907,Comagrav FNS13,Gerber MCT SE21 895022,MultiCam 94-02466-910.314,

COLEX Knife,COLEX T00421 Oscillating Blade,COLEX T00421,COLEX T00421 Blade,COLEX Oscillating Blade,COLEX Blade

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
