Summa 500-9812 500-0812 F Series Electronic Oscillating Tool(Eot)Vinyl Plotter Knives Knife Blades

Summa 500-9812 (also cataloged as 500-0812) is a high-precision, solid tungsten carbide oscillating knife blade designed specifically for the Summa F Series flatbed cutting systems. Built for the motor-driven Electronic Oscillating Tool (EOT) module Enquire now

Description

Summa F-Series Oscillating Knife Blade 500-9812 500-0812 -Replacement Compatible Review

,Summa Blades,Summa F Series Blades,Summa Plotter Blades,Summa Knives,Summa EOT Blades

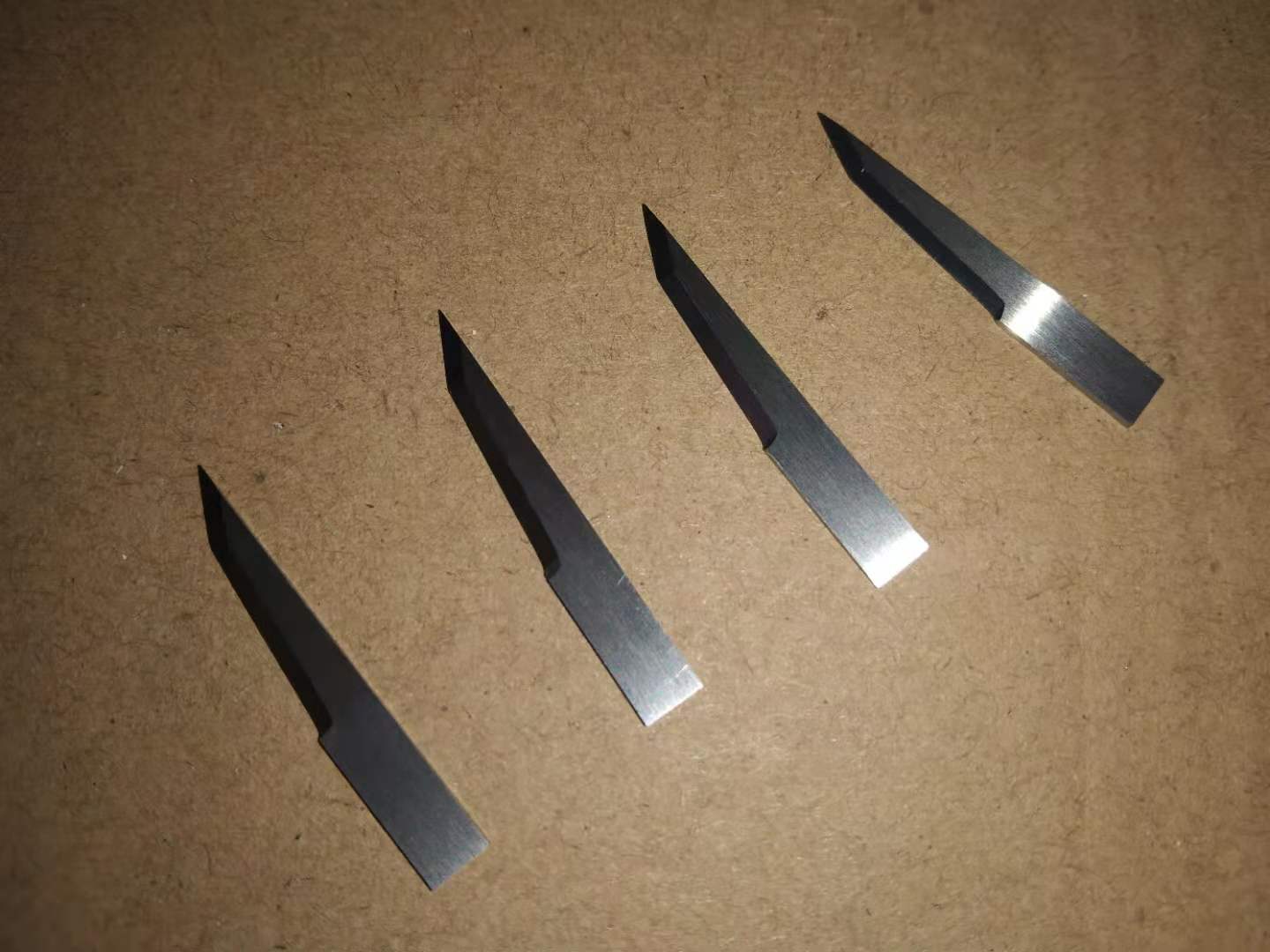

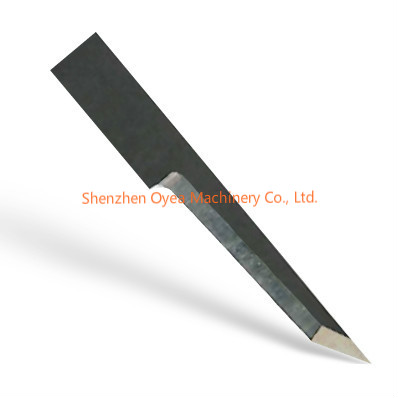

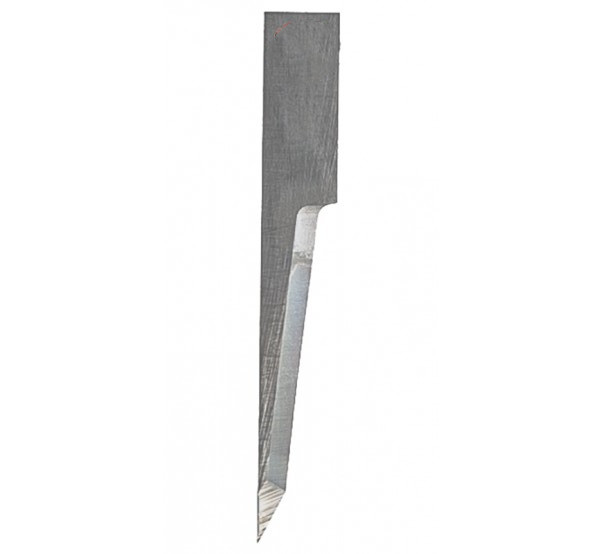

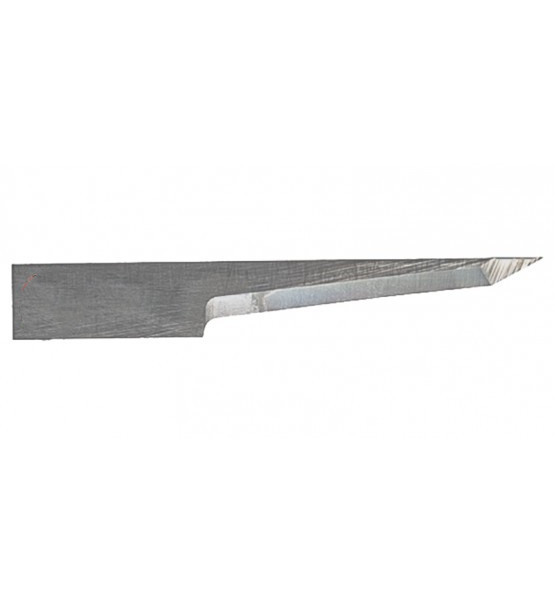

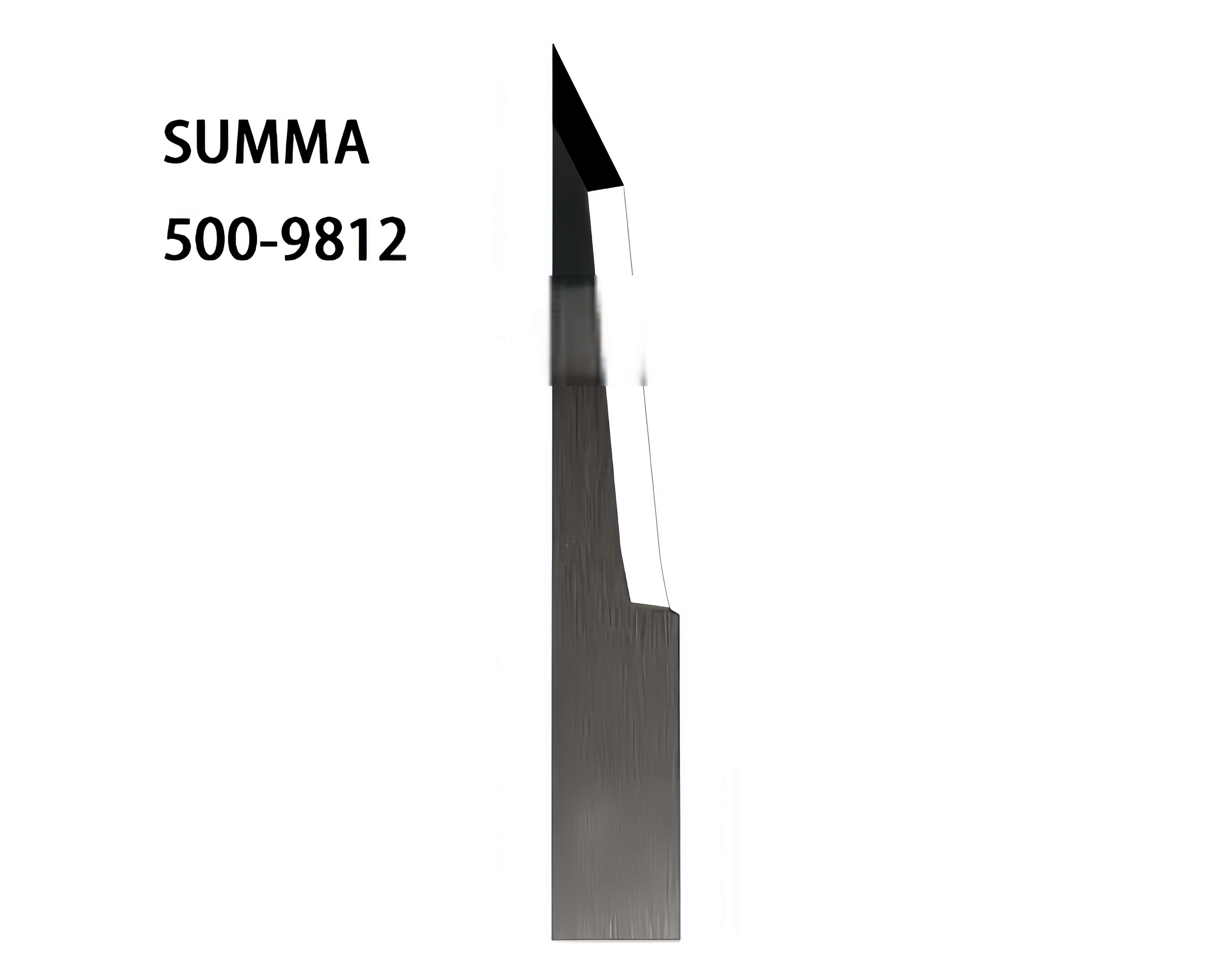

Summa 500-9812 (also indexed under part number 500-0812) is a specialty tungsten carbide oscillating knife blade explicitly engineered for the Summa F Series flatbed cutting machines. It functions as a core component within the Electronic Oscillating Tool (EOT) module, translating high-frequency mechanical vibration into fine, precise cuts across low-to-medium-density industrial signage and packaging substrates.

Core Product Data & Specifications

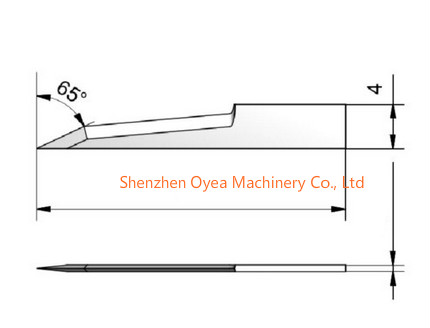

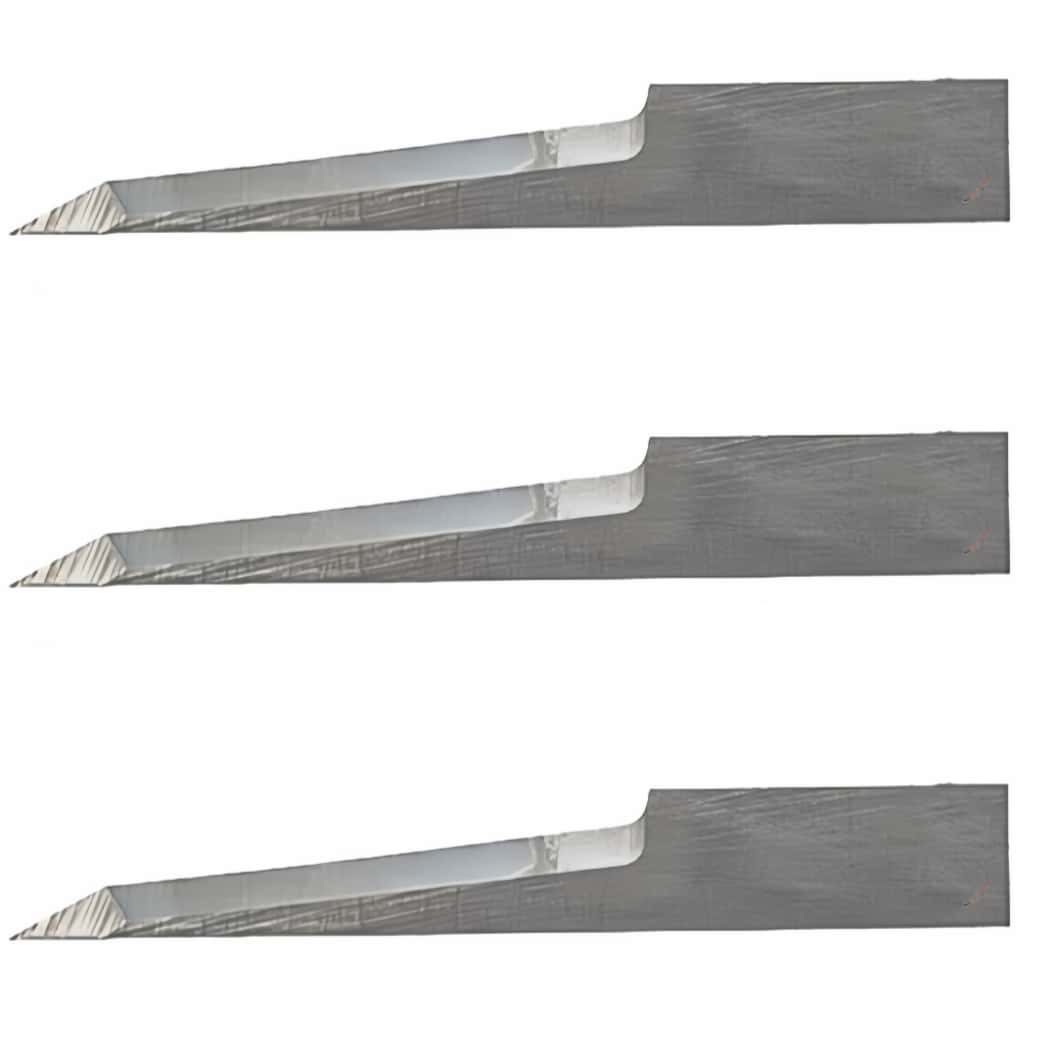

Blade Classification: Pointed, single-edge flat shank oscillating blade.
Material Architecture: Ultra-fine grain solid Tungsten Carbide (HM/SHM).

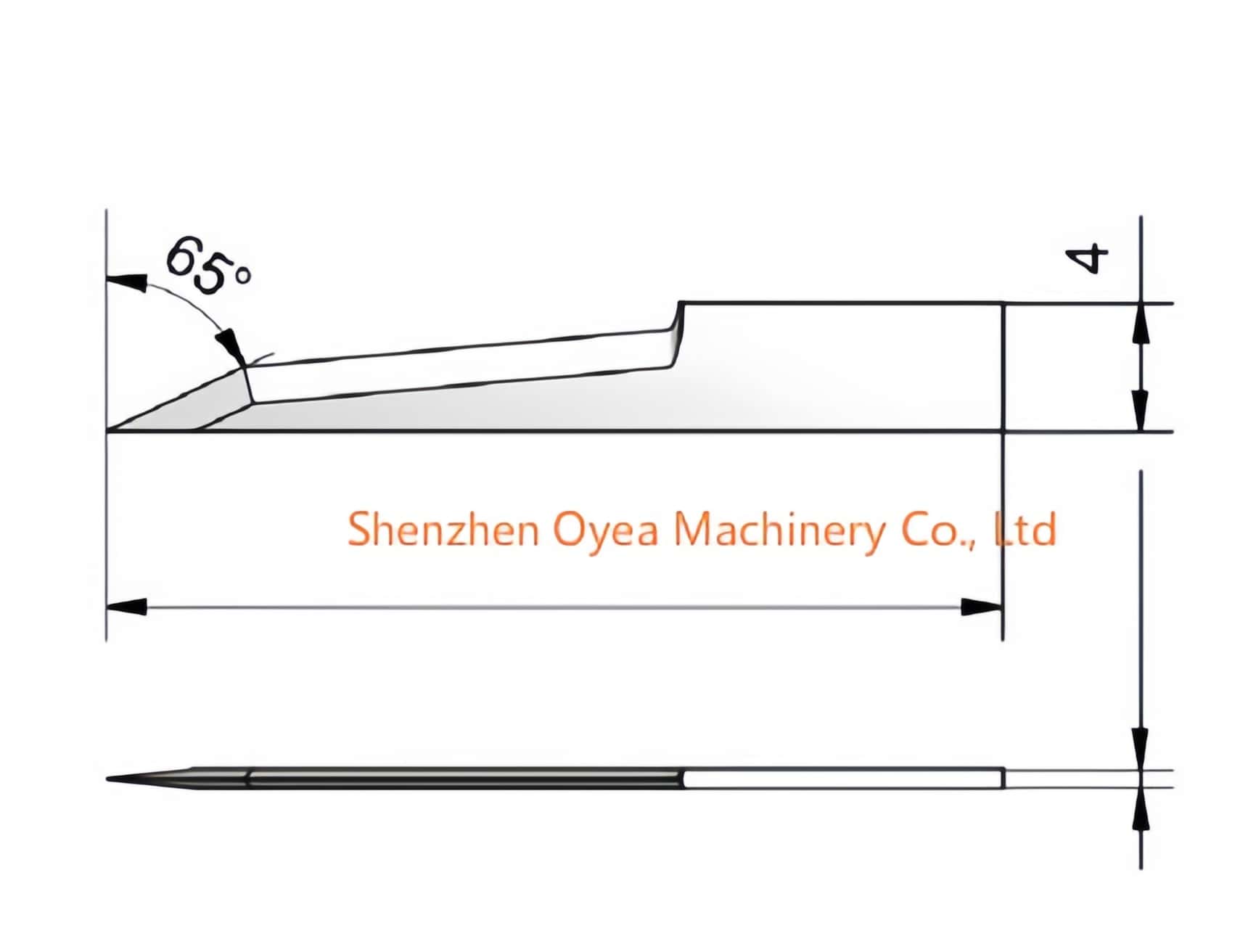

Cutting Angles: 63° / 84° profile (frequently designated as 65°–85°).

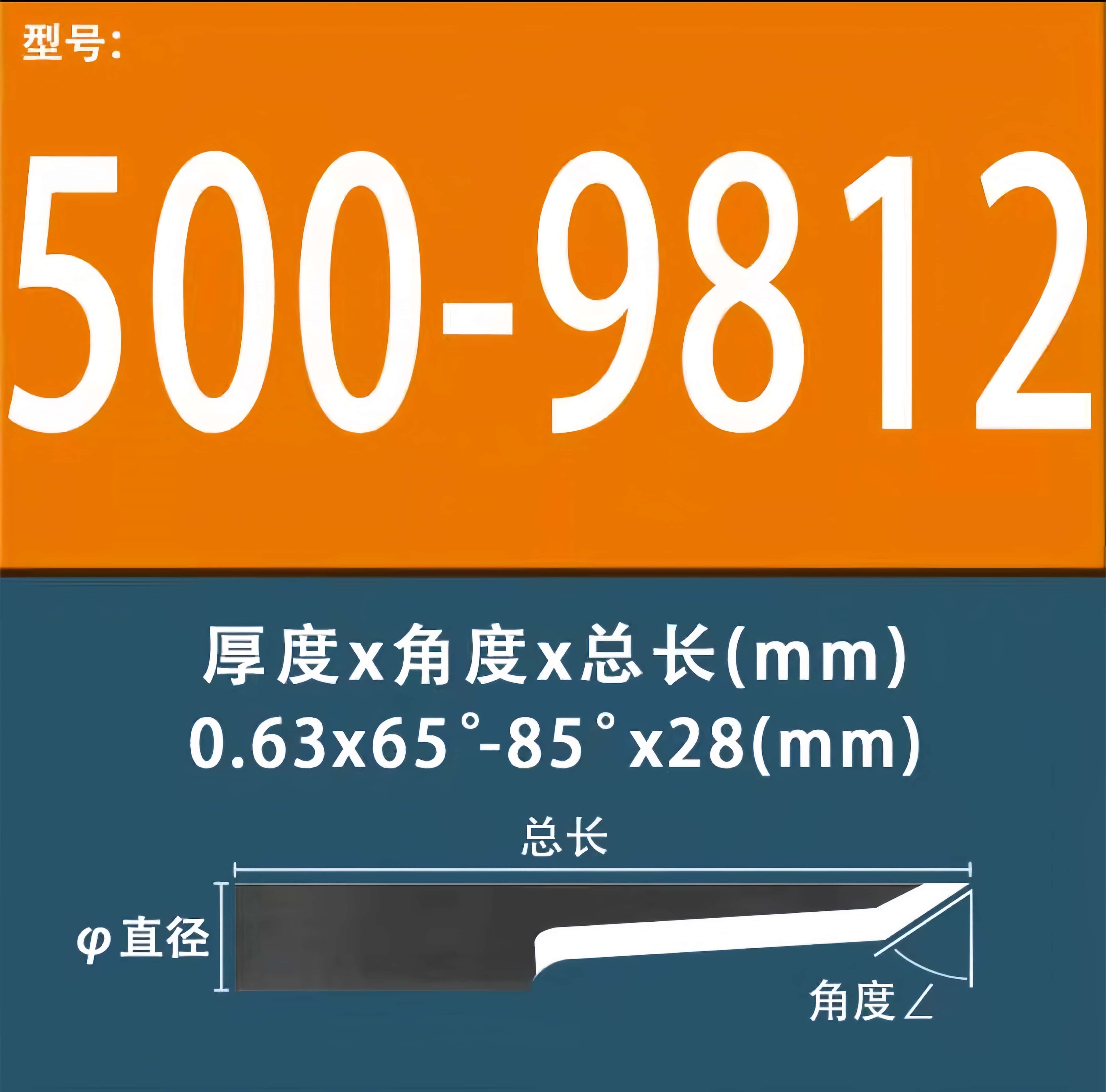

Physical Proportions: Height: 28.00 mm | Thickness: 0.63 mm | Width: 4.00 mm.
Maximum Cutting Depth: Up to 17.20 mm depending on material structure (commonly maxes out at 14.00 mm when utilized without a specialized gliding disk).

Optimized Material Applications

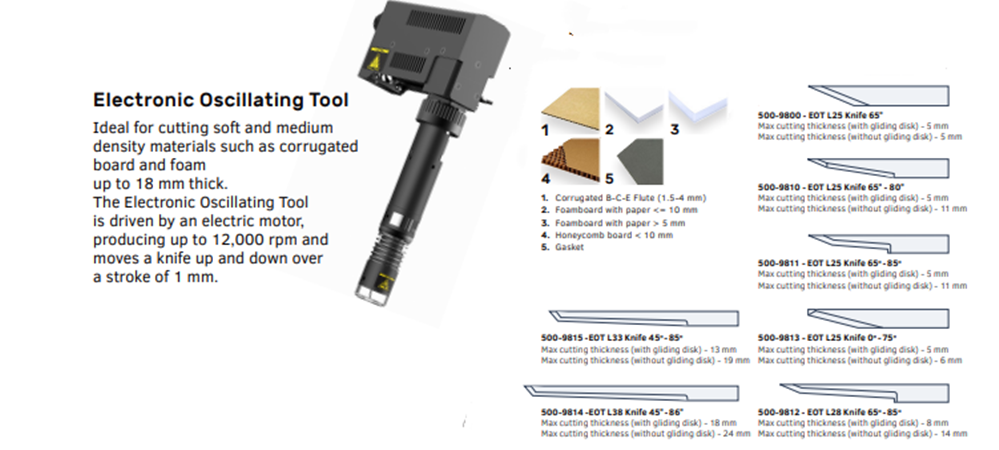

Because the EOT module saws rapidly through media rather than dragging through it, the 500-9812 blade is ideal for soft-to-medium industrial packaging and graphic materials:

Corrugated media: Single and multi-wall corrugated cardboard or folding cartons
Foam substrates: Soft polyurethane core foam boards up to 14mm thick
Graphics & Plastics: Corrugated plastics (e.g., Coroplast), heavy magnetic foil, and display boards
Industrial Textiles: Thick felt, polyester fabrics, heavy rubber, and gasket sheets

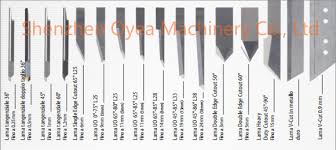

Replacement for:XZ0021 BT-2381 Colex T00421,Esko Kongsber G42458257 42458257 BLD-SF421,iEcho E21,Summa 500-0812 500-9812,Zund 3910314 Z21,Blackman & White BW21,Mécanuméric 100610370 COMPO008757,ATOM 01033569 01039907,Ronchini RM-01039907,Comagrav FNS13,Gerber MCT SE21 895022,MultiCam 94-02466-910.314
.
