Colex T00423 Sharpcut Oscillating Knife Blades--Replacement Price

Colex T00423 is a high-performance solid tungsten carbide oscillating knife blade designed for precision vertical processing on Colex Sharpcut Flatbed Digital Cutting Systems. Enquire now

Description

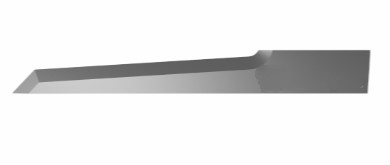

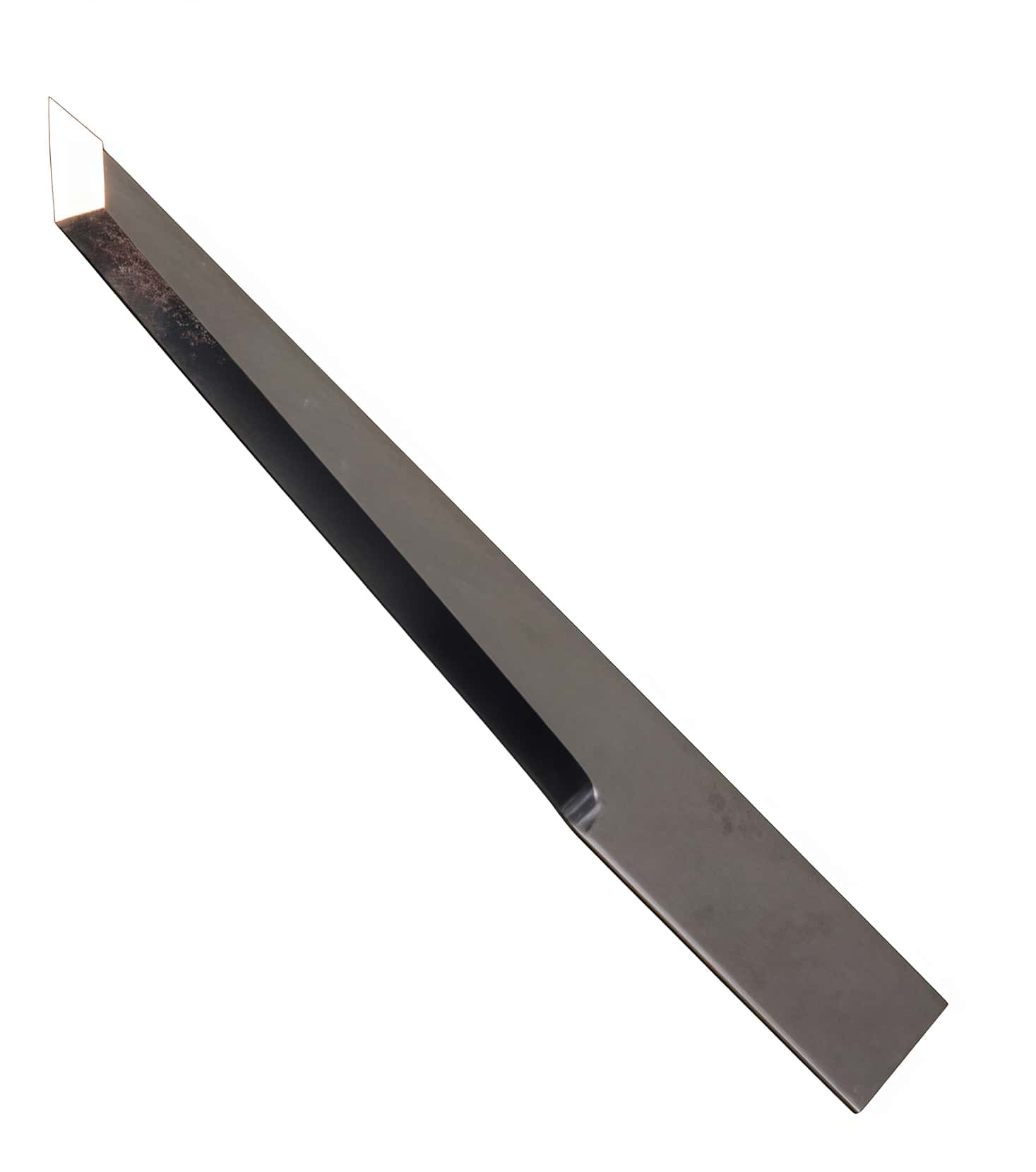

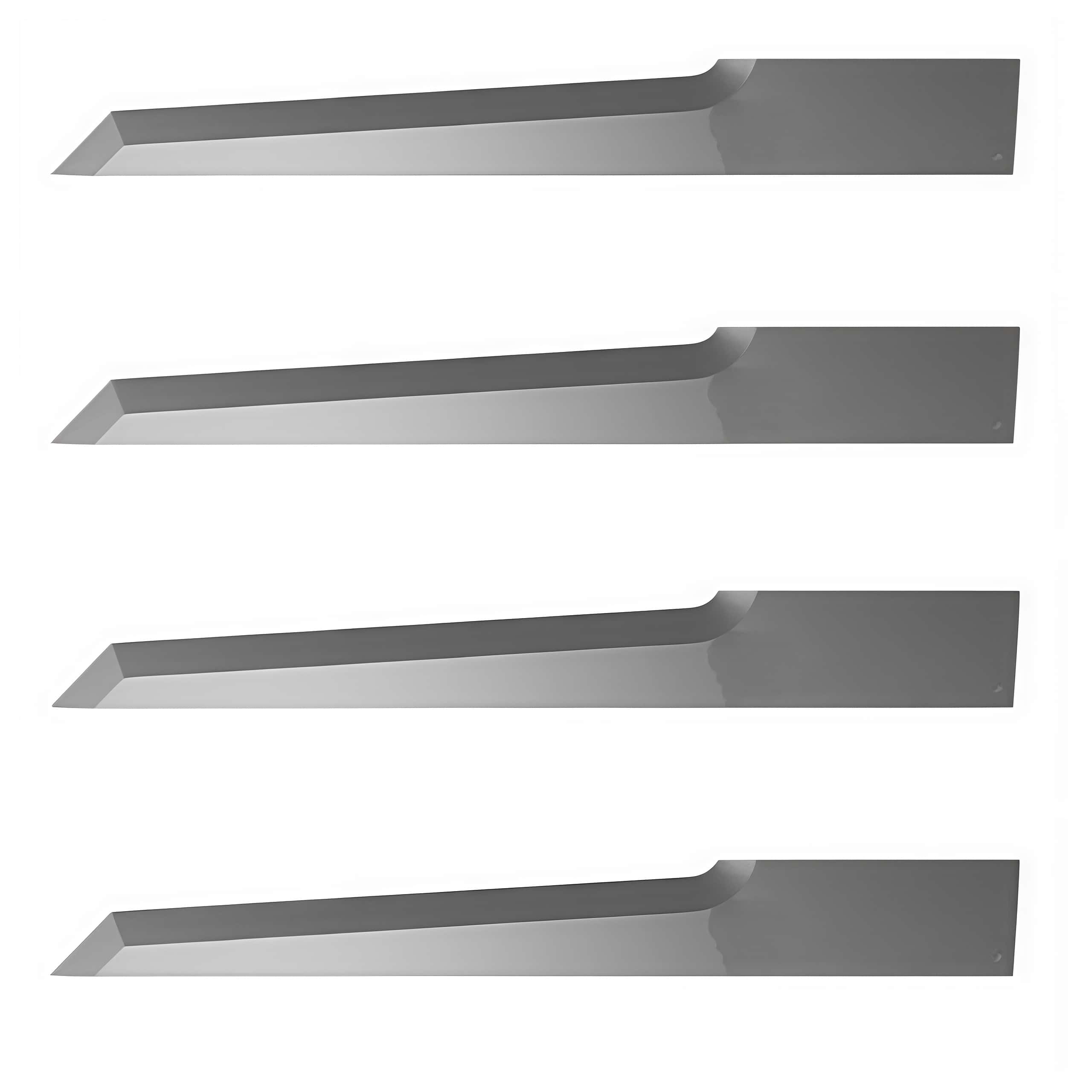

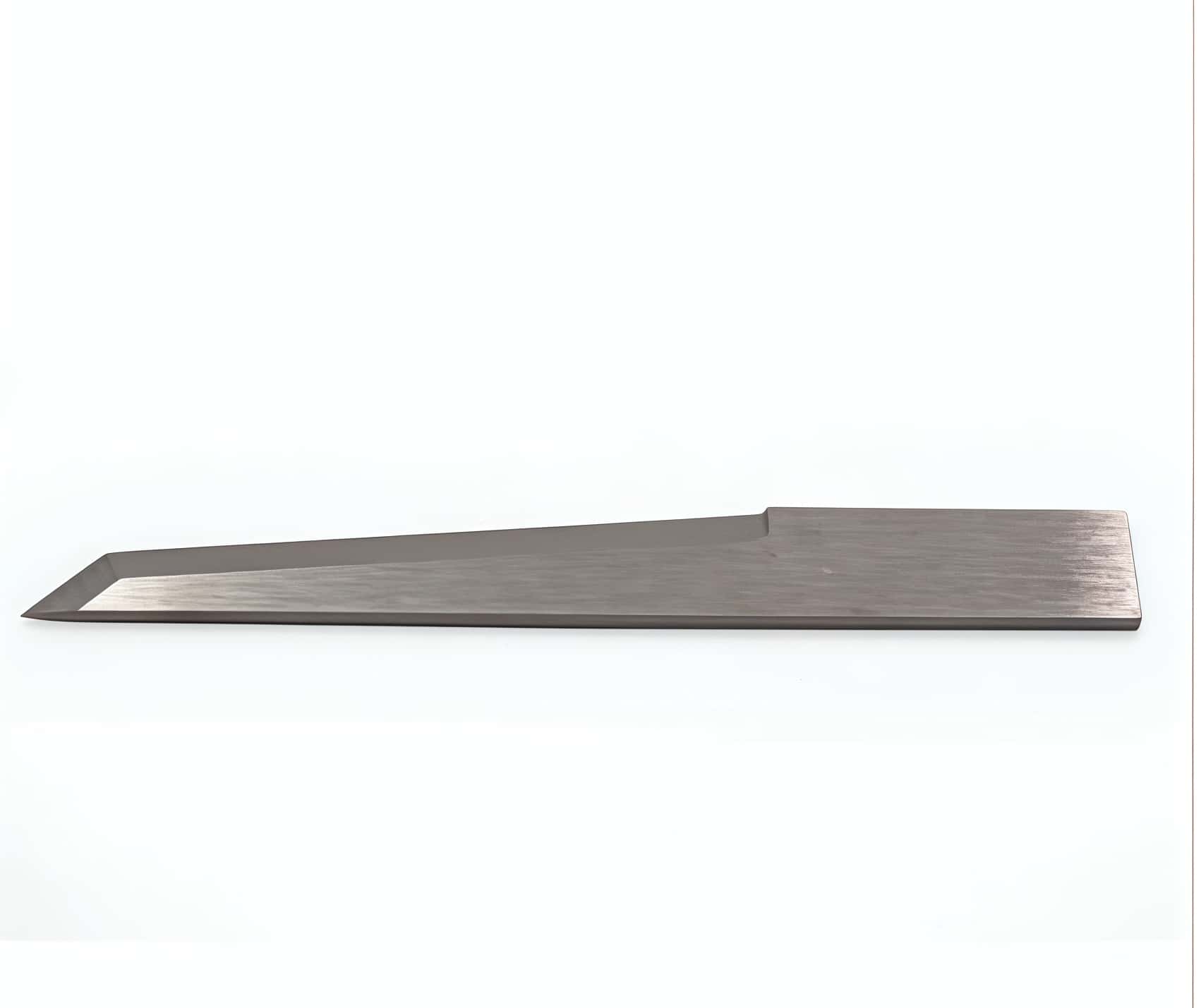

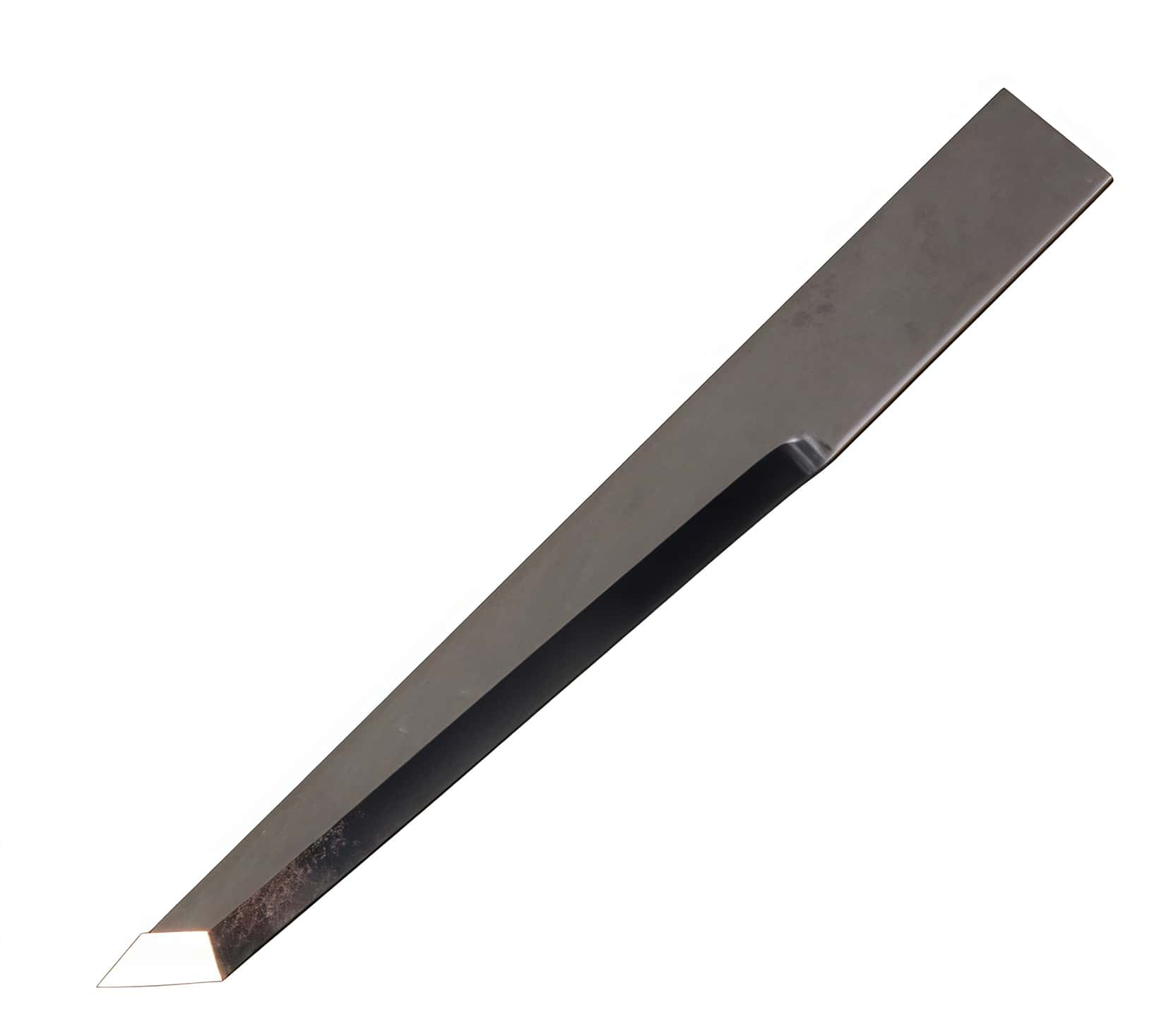

Colex T00423 Sharpcut Oscillating Knife Blades--Replacement

COLEX Knife,COLEX T00423 Oscillating Blade,COLEX T00423,COLEX T00423 Blade,COLEX Oscillating Blade,COLEX Blade,Colex Blades

The Colex T00423 is a high-performance oscillating blade designed for the Colex Sharpcut digital cutting system. It is primarily used for cutting thick, semi-rigid materials and is characterized by its ability to handle intricate details with a fine, long tip.

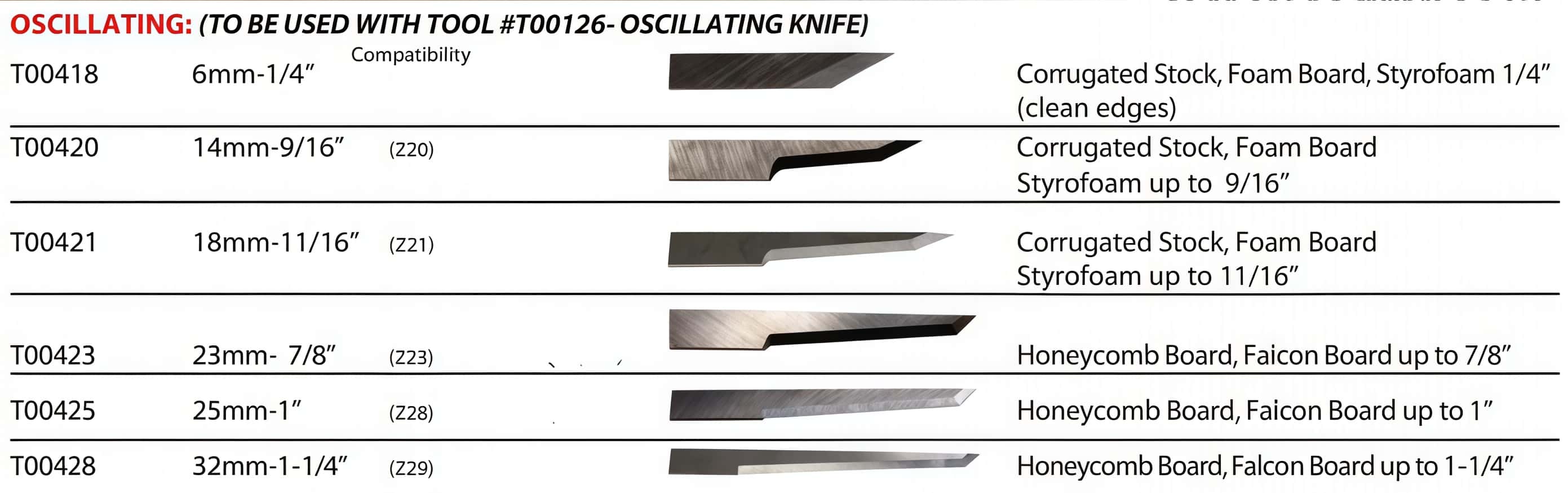

T00423 Oscillating Blade – 23 mm-7/8″
T00423 Oscillating blade is designed for cutting Honeycomb Board, Falcon Board, Corrugated Stock, Foam Board, stryofoam, and more.

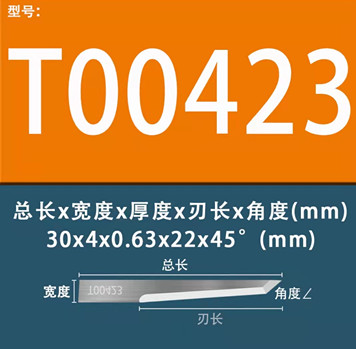

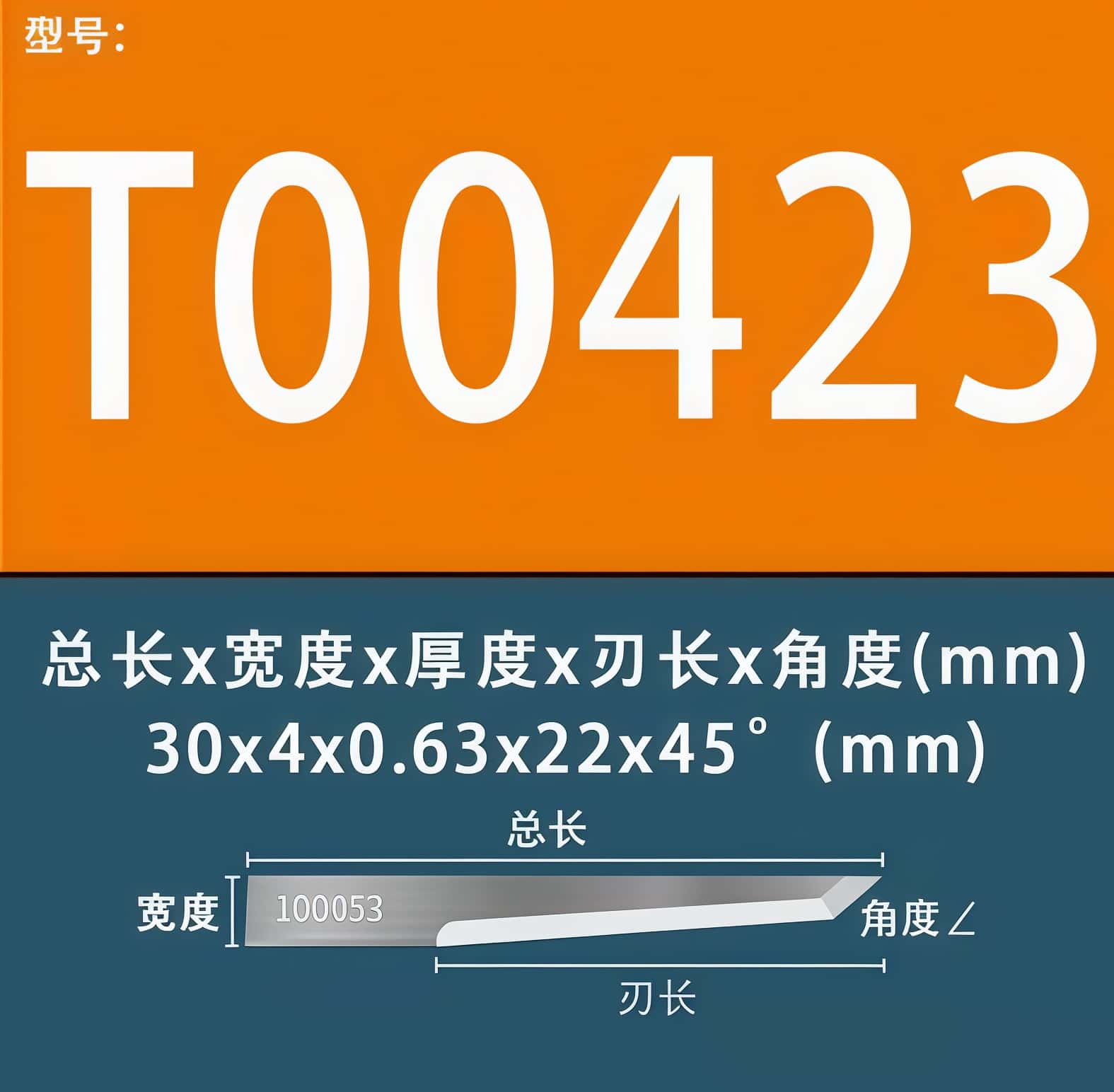

Dimensions 2 × .35 × .35 in
Used With Colex Holder: T00126
Description: Flat Knife Oscillating Blade Single Edge
Notes: Best used for thick corrugated paper-based materials
Materials: Honeycomb board, falcon board, etc.

Target Substrates & Applications

The single-edge pointed geometry allows the blade to cleanly slice through materials up to 3/4" thick without causing crushing deformation:

Structural Boards: Falconboard, Honeycomb boards, and Xanita paper panels.
Packaging Media: Single-wall and double-wall corrugated cardboards and dense folding chipboards.
Display & Signage: Thick foam boards, expanded PVC foam, and Styrofoam.
Technical Materials: Thick industrial felt, natural rubber sheets, magnetic foil, and layered polyester fabrics.

Production efficiency reminder: Because the blade tip of the T00423 is designed to handle high-precision turns with a very long and narrow tip, it is relatively brittle. When cutting honeycomb panels or rigid double-sided cardboard, please ensure that the surface of the underlayment mat on the cutter is flat. If the blade frequently and too deeply penetrates the damaged mat during a full-cut, uneven resistance may cause minor chipping of the thin blade tip.

Equivalent to:XZ0023 BT-2323 iEcho E23 Summa 500-0815 500-9815 Zund 5005560 Z23 Blackman & White BW23 Colex T00423 ESKO KONGSBERG BLD-SF428
