Summa 500-9815 500-0815 F Series Electronic Oscillating Tool(Eot)Vinyl Plotter Knives Knife Blades

china Summa 500-9815 (500-0815) is apremium, solid tungsten carbide L33 Oscillating Knife Blade designed specifically for the Electronic Oscillating Tool (EOT) module on Summa F Series Flatbed Cutters Enquire now

Description

Summa 500-9815,500-0815 F-Series Oscillating Knife Blades

Summa 500-9815,Summa 500-0815,,Summa Blades,Summa F Series Blades,Summa Plotter Blades,Summa Knives,Summa EOT Blades

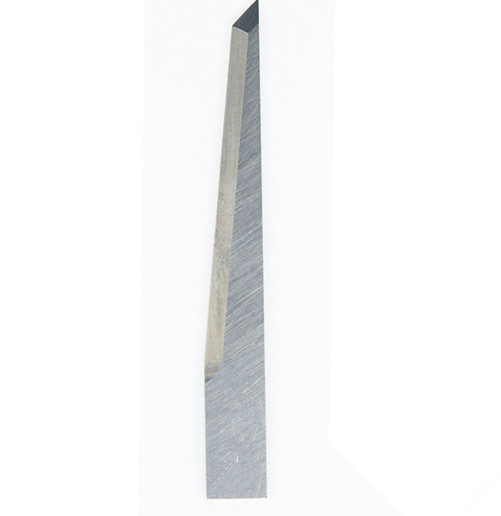

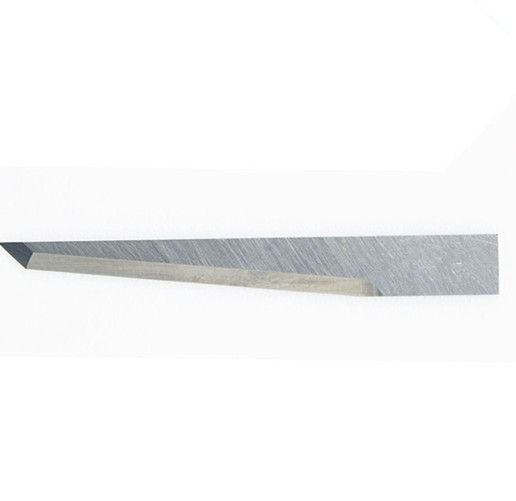

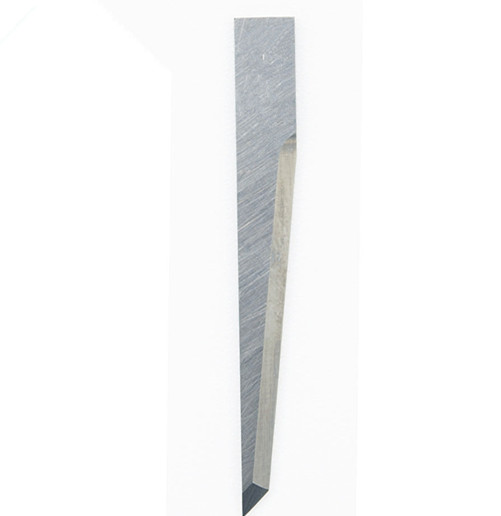

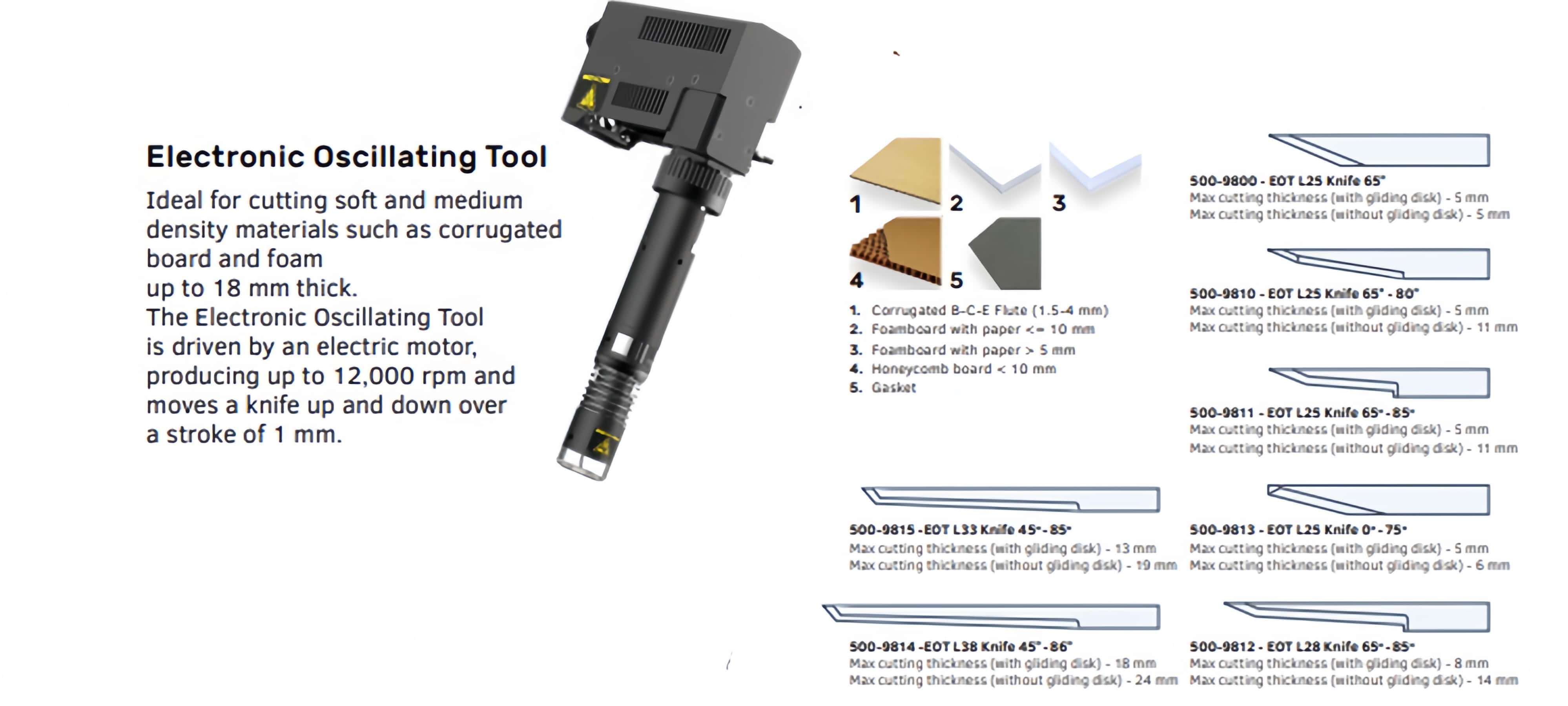

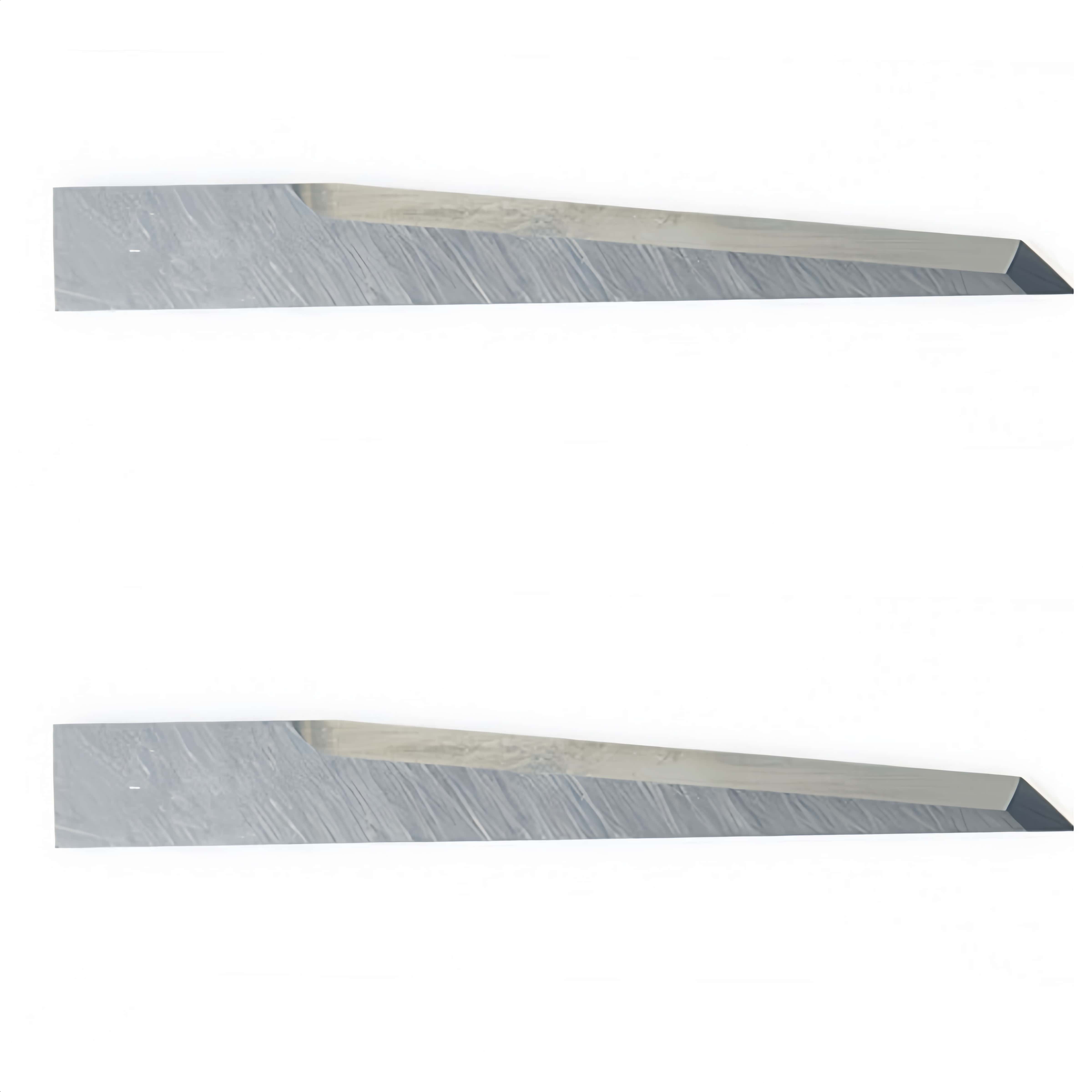

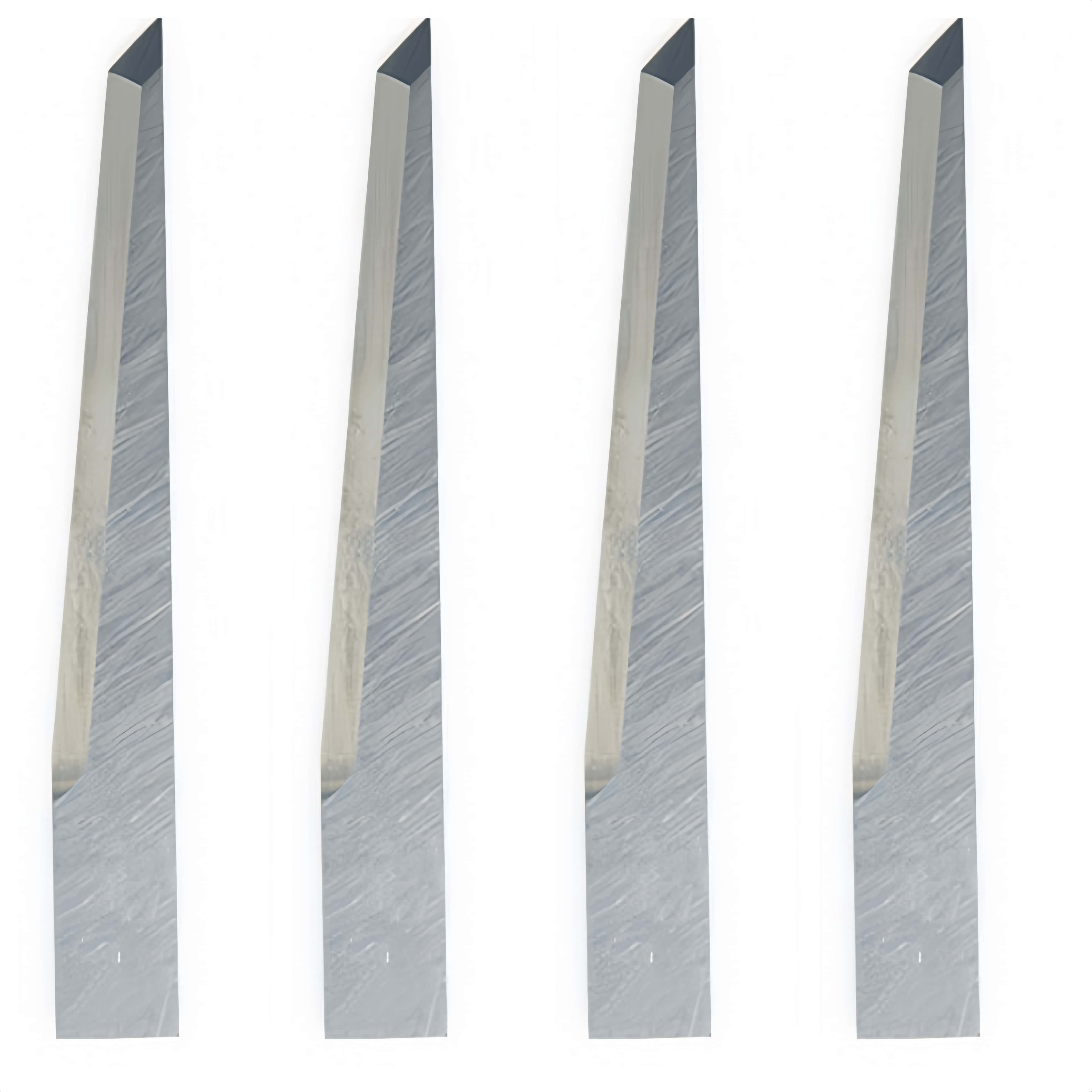

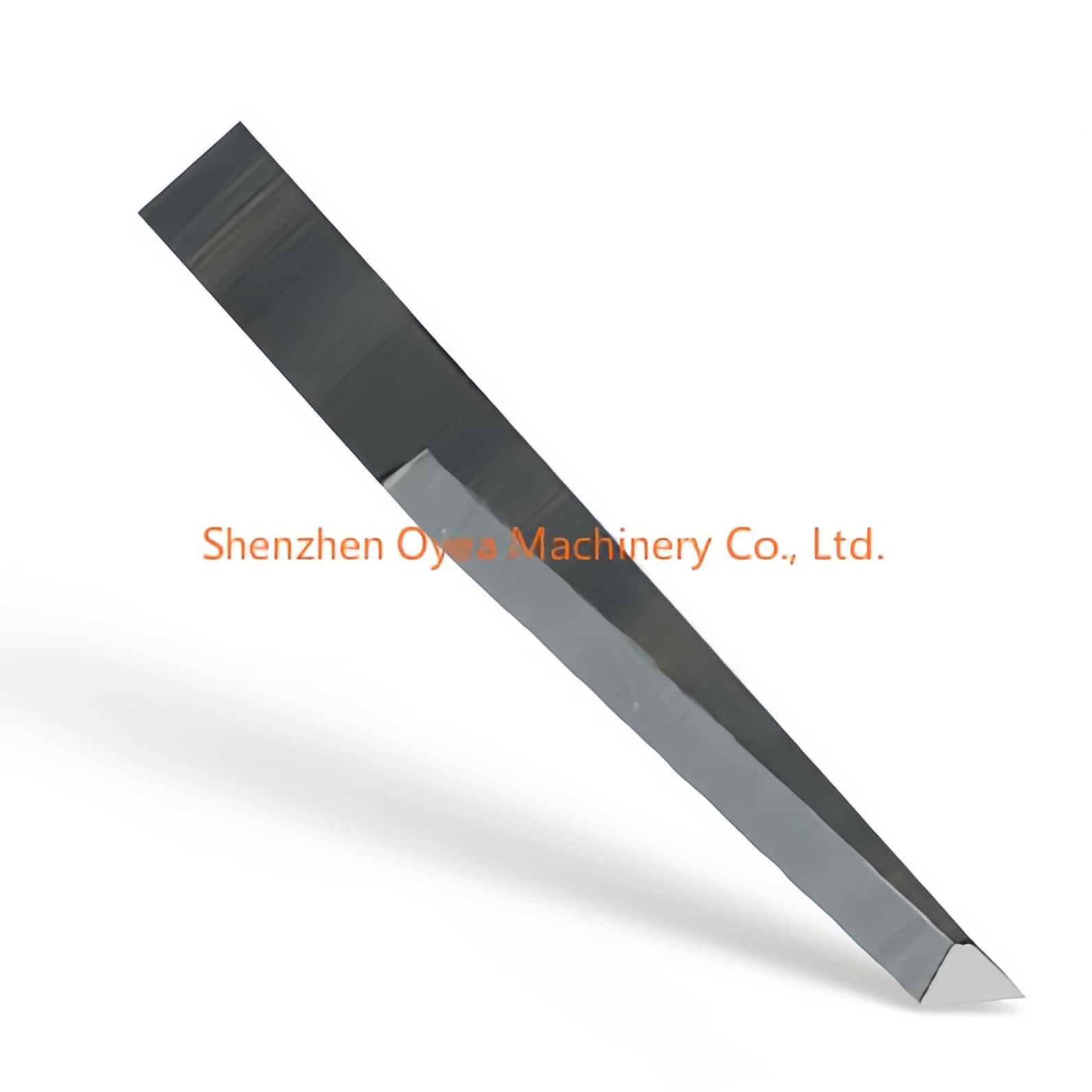

Summa 500-9815 (often cataloged as 500-0815) is a premium solid tungsten carbide L33 point oscillating knife blade. It is engineered for the Electronic Oscillating Tool (EOT) module used on Summa F Series flatbed cutters.

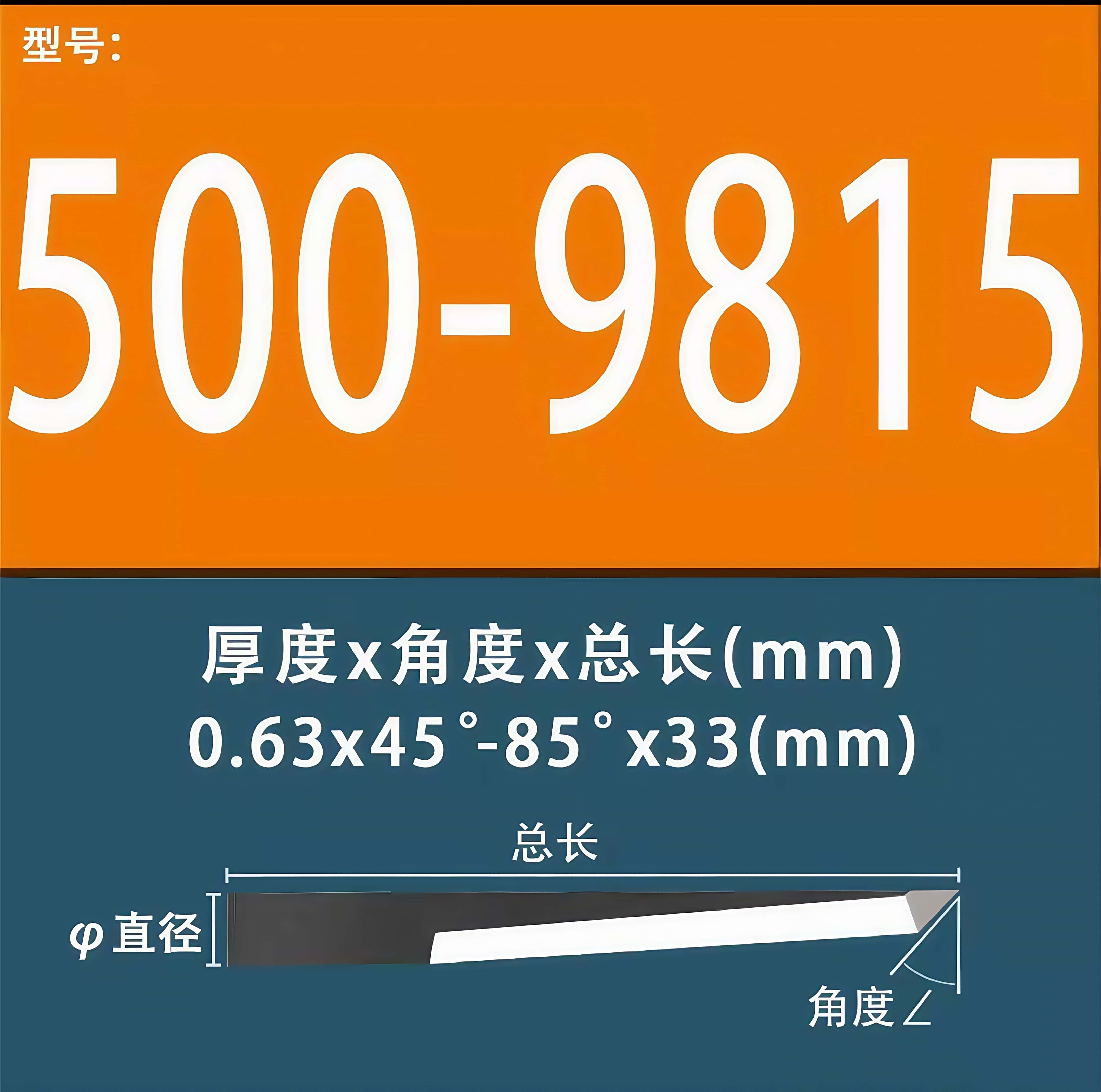

Technical Specifications

Blade Type: L33 Pointed Oscillating Blade (Flat Shank)
Cutting Angles: 45° / 85°
Thickness: 0.63 mm
Total Length: 33 mm
Max Cutting Depth: 19 mm (without gliding disk) or 13 mm (with gliding disk)

Best For Cutting

This blade uses a rapid vertical vibrating action to slice cleanly through

Corrugated cardboard (B, C, and E flutes)
Foam board and foam-core signage (up to 10mm)
Honeycomb boards (X-Board, Re-board)
Rubber and industrial gasket materials

Equivalent to:XZ0023 BT-2323 iEcho E23 Summa 500-0815 500-9815 Zund 5005560 Z23 Blackman & White BW23 Colex T00423 ESKO KONGSBERG BLD-SF428

In addition to blade production, various Summa blade options are available, including drag knives, tangential blades, cutter plotter blades, and heavy-duty knives in different series such as T, D, and F. Customers can access these products through multiple channels like marketplaces or nearby distribution networks. Whether purchased through Amazon or specialty retailers, the blades are offered at competitive prices with high-performance guarantees.
