COLEX T00330 Universal Knife Blades Compatible Cutting Systems

COLEX T00428 is extended oscillating blade designed specifically for the Colex Sharpcut digital flatbed slicing machine.Its maximum cutting depth reaches 32 mm (1-1/4 inch) Enquire now

Description

COLEX T00330 Universal Knife Blades Compatible With Colex Cutting Systems

COLEX T00330 Blade,COLEX T00330,COLEX Universal Knife,COLEX Universal Blade,COLEX T00330 Knife,Colex Blade,Colex Blades

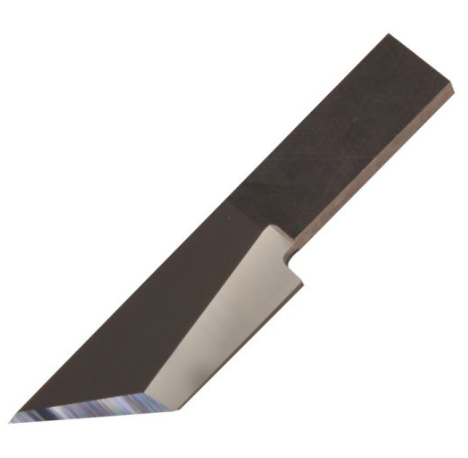

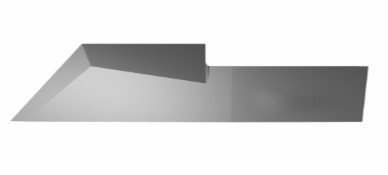

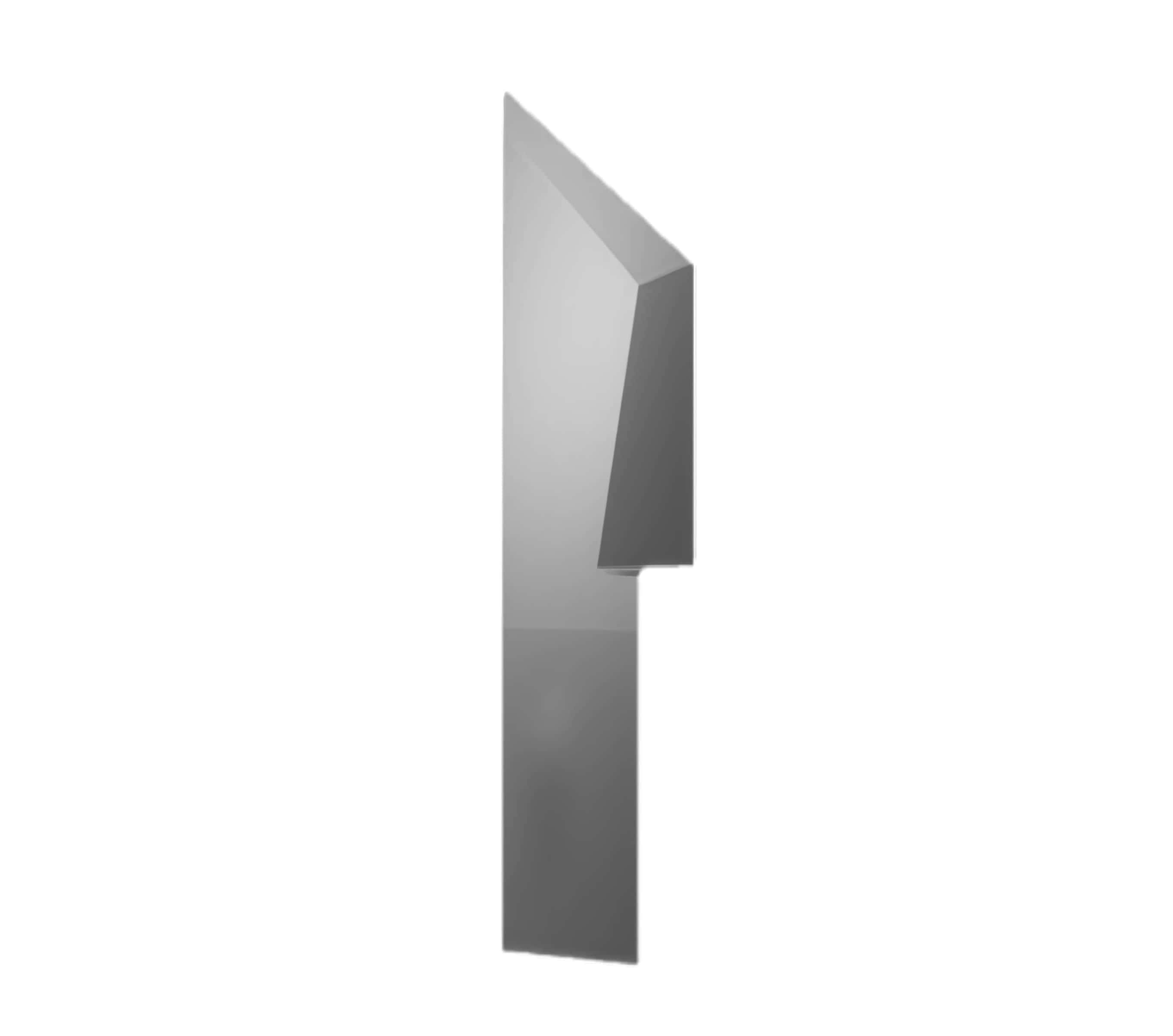

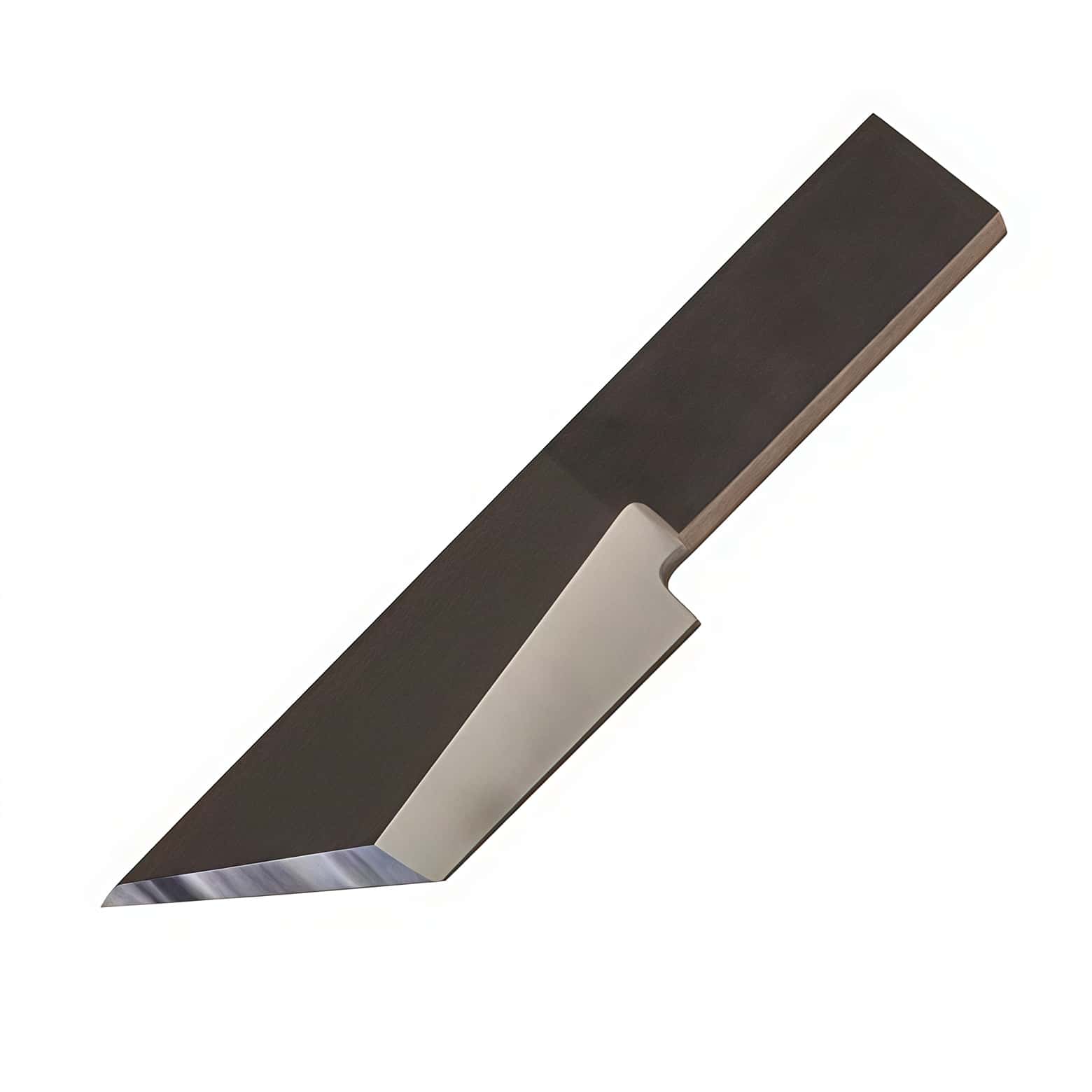

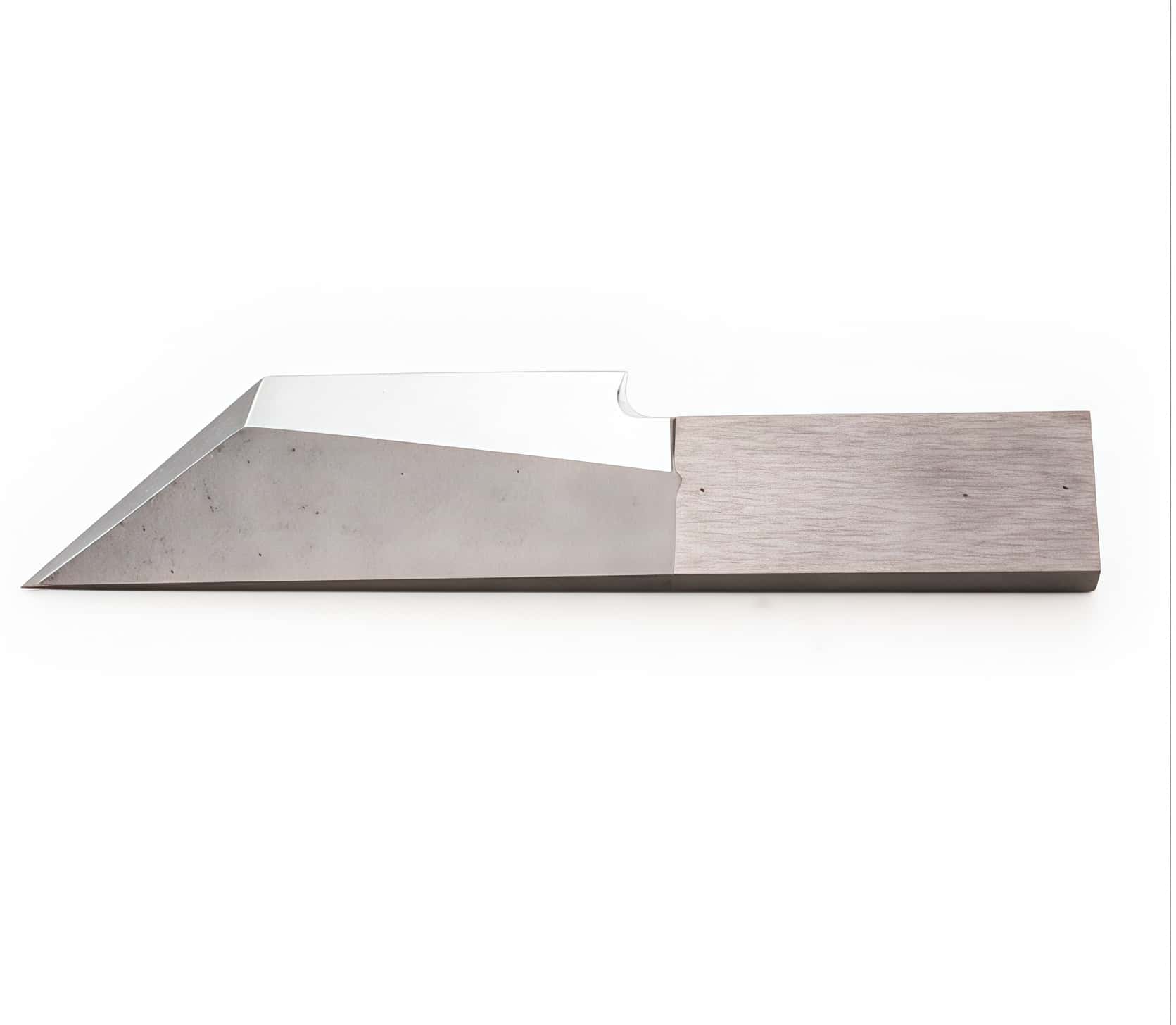

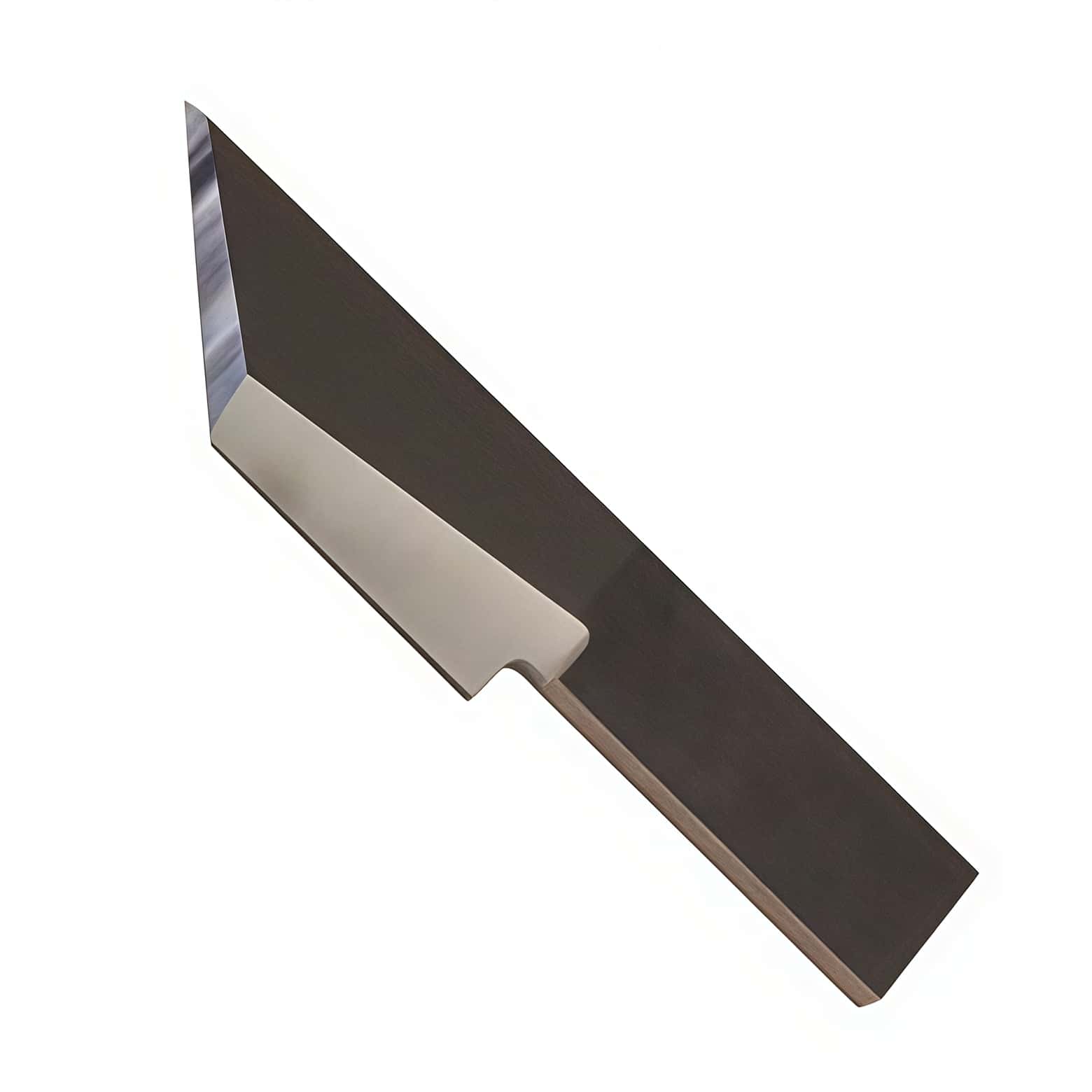

T00330 Universal Single Edge Blade

T00330 Universal single edge blade designed to vut materials like Sintra, Styrene, and foamboard. Can be used for wide curves and straight lines up to 12mm.

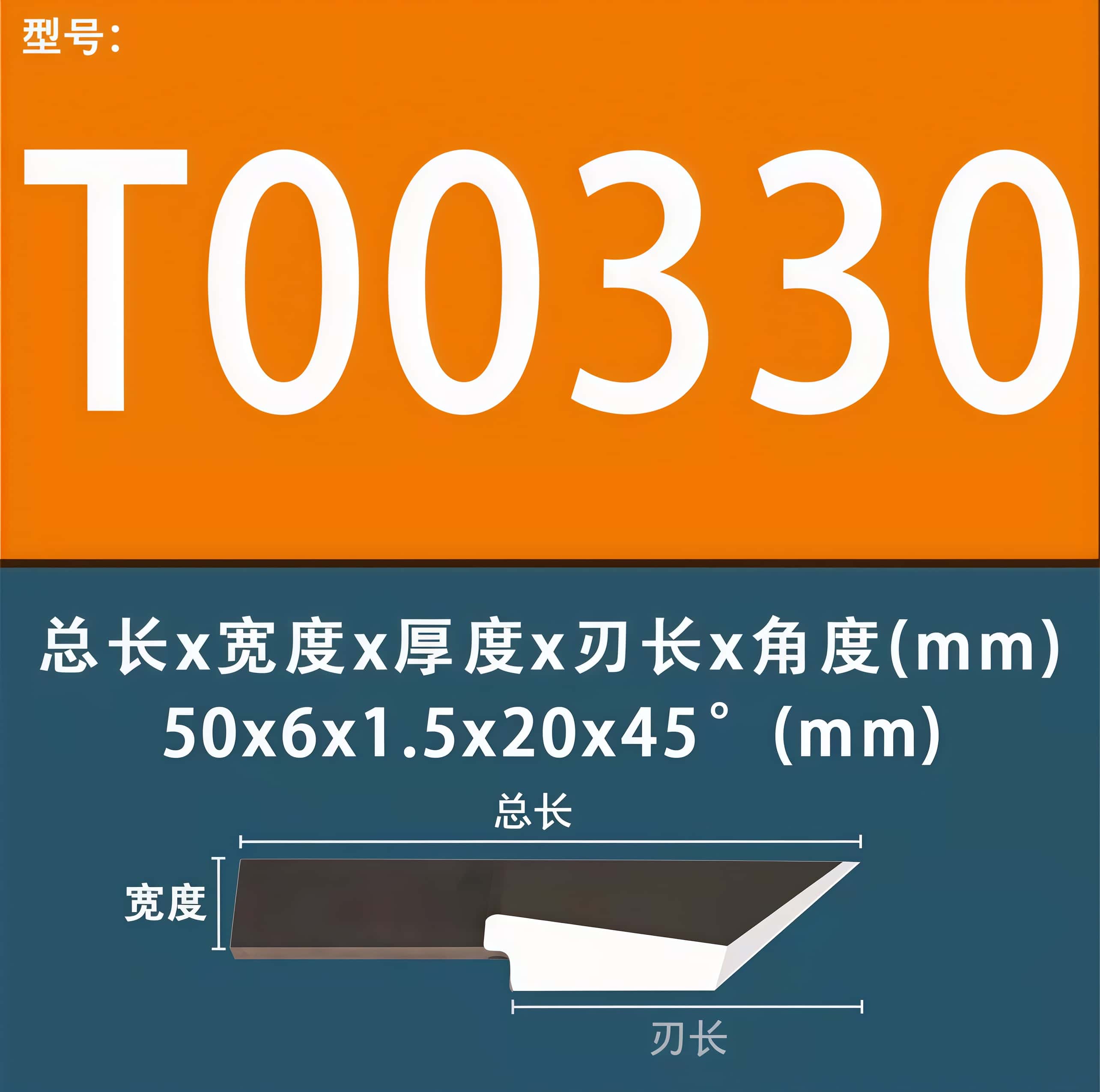

Dimensions 3.7 × 1.75 × .25 in

Used With Colex Holder:

T00139

Description: Universal Single Edge Blade
Notes: Best used for wide curves & straight line

Compatible Materials
The T00330 is engineered for a variety of signage and industrial materials, including:
Sintra & PVC: Rigid plastic sheets.
Styrene & Foamboard: Lightweight display materials.
Other: Vinyl, magnets, corrugated plastic, and carpet.

Official recommended cutting parameters (taking 1" thick sheet metal as an example)

when you use T00428 When cutting irregularly shaped or straight sheets with a thickness of 1 inch (approximately 25.4 mm) , the following parameters are recommended:

X, Y axis feed rate (Speed) : Limited to 30 - 40 inches/min maximum.
Z-axis cutting speed : It is recommended to set it to 50% .
Acceleration : It is recommended to lower it to 50% .

Productivity Tip:
Because T00428 The blade is very long and relatively thin (0.63mm). When cutting at a full load depth of 32mm, the frictional resistance of the material against the blade's sides increases exponentially. Please strictly adhere to the low speed (30-40 in/min) mentioned above . Excessive speed will cause the blade to deform and bend inside thick materials, resulting in cuts with beveled edges, or even directly causing high-frequency breakage of expensive carbide blades

Replacement For:Zund Z46 4800073 Summa 500-9807 Esko Kongsberg BLD-SF346 i-346 G42458406 Colex T00330 Blackman & White BW46 iEcho E46C Comagrav E46 Gerber MCT SE346 895346 Aristo 4800.073-AR35 Heavy Duty Cutout Knife Blade
