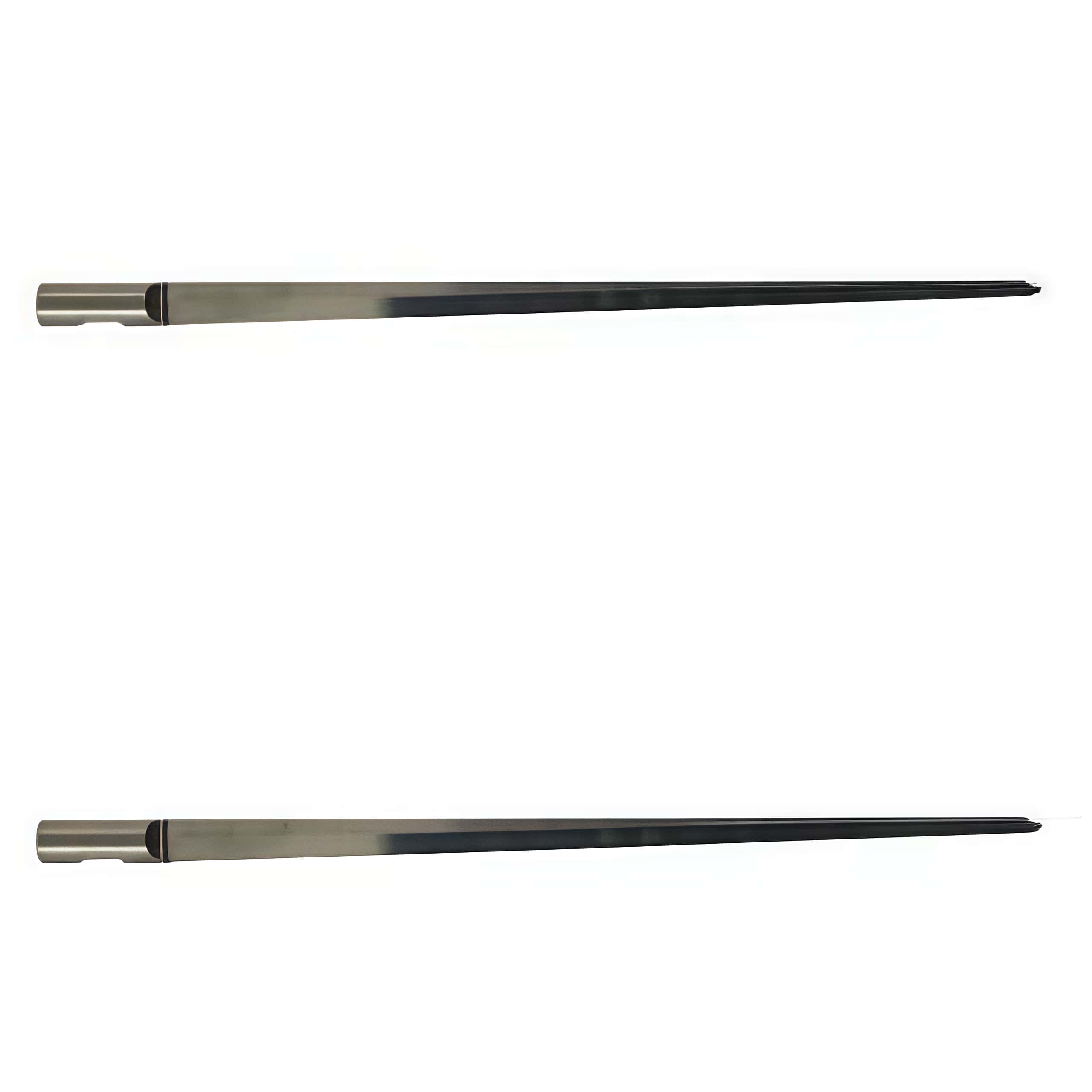

MultiCam 84-00193-BT-572115 AXYZ B1041L-115 Oscillating Round Point Knife Blade
The codes MultiCam 84-00193-BT-572115 and AXYZ B1041L115 refer to an identical extra-long, high-performance solid tungsten carbide oscillating knife blade. It is a universal consumable designed for heavy-duty, deep-drawn vertical cuts on CNC digital finishing tables.

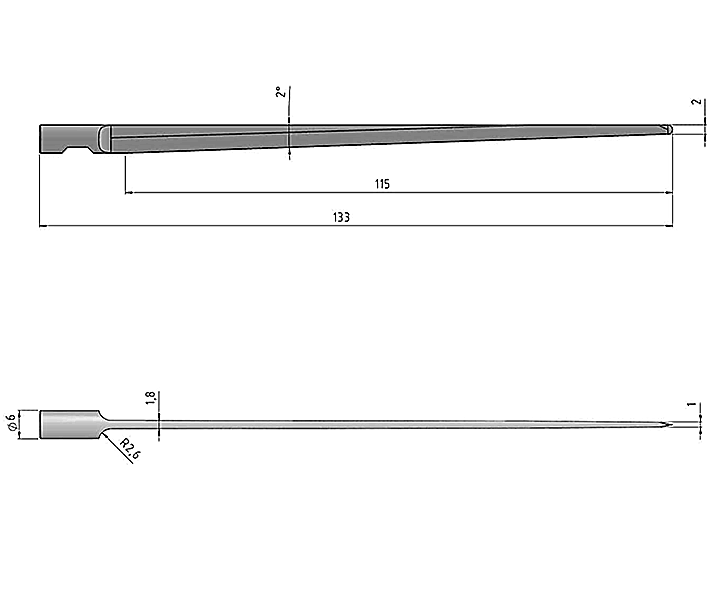

Specifications Blueprint
- Universal Manufacturing Code: BT-572115
- MultiCam SKU: 84-00193-BT-572115 (or simply 84-00193)
- AXYZ SKU: B1041L115 / B1041L-115
- Cutting Depth Capacity: 115.00 mm (extra-long reach)
- Total Length (OAL): Approximately 131.00 mm to 133.00 mm
- Shank Diameter: 6.00 mm round shank with a precision-ground Weldon flat lock
- Blade Geometry: Single-edge profile paired with a specialized rounded point/tip
Design & Performance Highlights
- Solid Tungsten Carbide: Built entirely from premium micro-grain tungsten carbide to withstand high abrasive wear and outlast high-speed steel (HSS) alternatives by a massive margin.
- Anti-Snag Round Point: The rounded cutting tip prevents the blade from snagging, tearing, or pulling loose fibers when executing sharp, high-speed directional changes or vertical plunges.
- Deflection Resistance: Despite its 115mm length, the rigid carbide composition minimizes lateral bending (deflection) when vibrating through thick materials.
Ideal Material Applications
This blade requires high-frequency, high-stroke oscillating tool heads to cut through deep, thick materials such as:
- Dense Signage & Packaging Foams: Thick open-cell and closed-cell foams, polyurethane (PU), polyethylene (PE), and heavy EVA foam inserts.
- Acoustic & Insulation Panels: Architectural felt layouts, dense fiberglass panels, soundproofing composites, and mineral wool boards.
- Structural Corrugated Boards: Heavy-duty triple-wall corrugated boxes, honeycomb paperboards, and thick industrial fiber liners.
