Blackman & White BWR104 Tungsten Steel Router Bits Spares Shop Price

Blackman & White BWR104 (often listed under product code BW104) is a single-flute solid tungsten carbide router bit engineered for high-speed routing on Blackman & White CNC cutting systems (such as the Genesis or Orion series). Enquire now

Description

Blackman & White BWR104 Tungsten Steel Router Bits Spares Shop Price

Blackman & White BWR104,Blackman & White Router Bits,Blackman & White Router,Blackman & White Bits

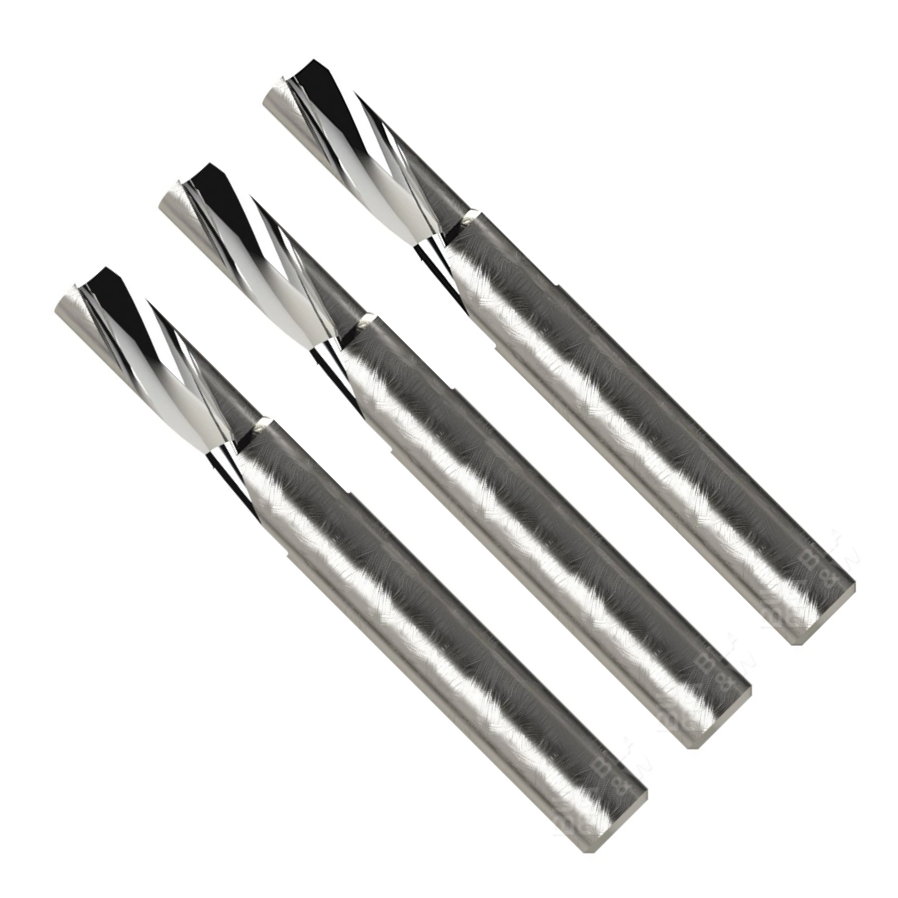

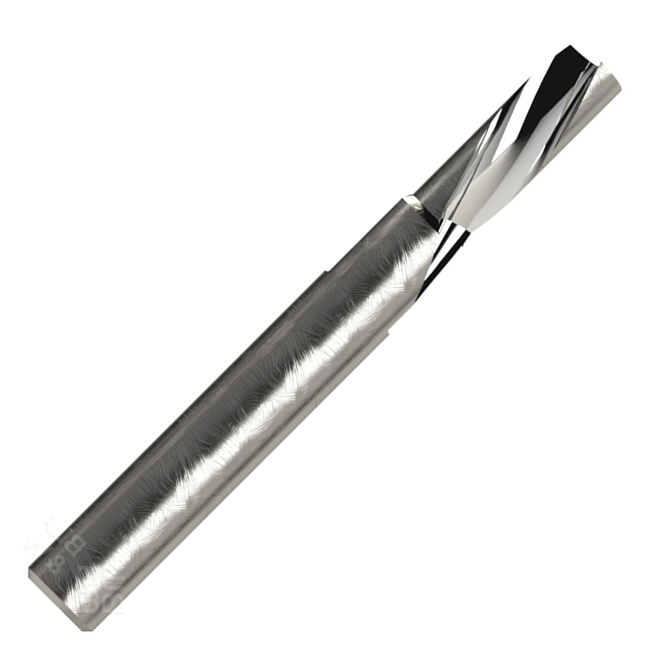

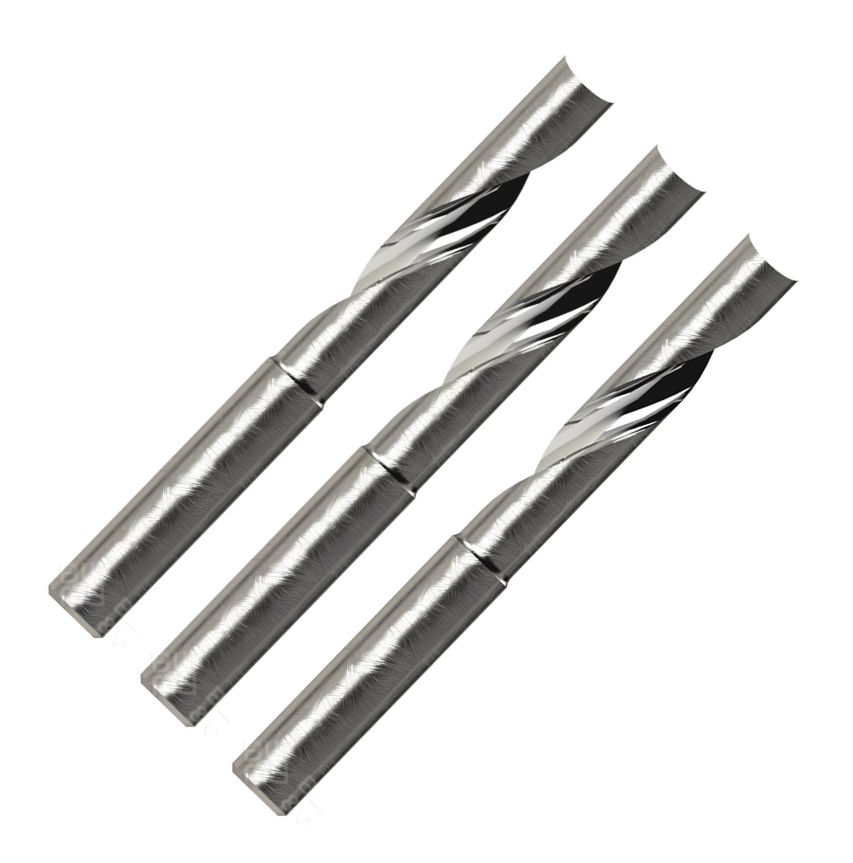

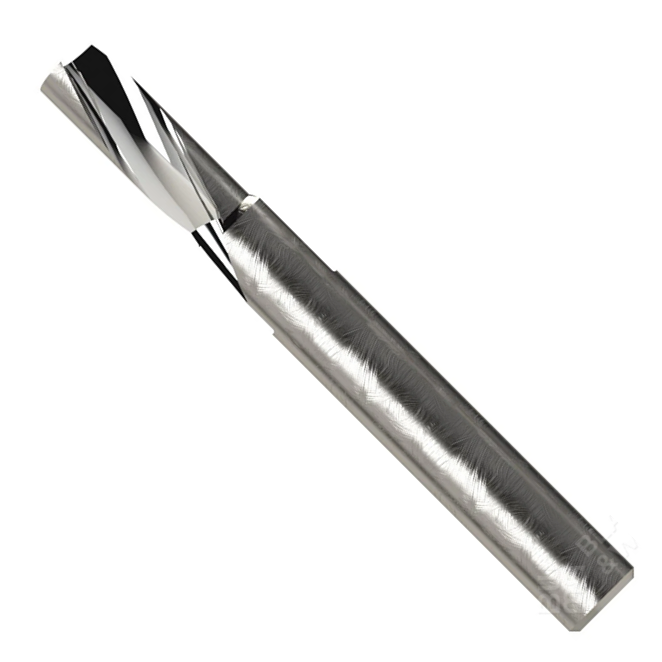

Blackman & White BWR104 is a tungsten steel (tungsten carbide) router bit designed for Blackman & White flatbed CNC cutting tables. It’s part of their BWR series of industrial routing tools used for cutting and profiling thicker or more rigid sheet materials that knives can’t handle.

Recommended materials
Expanded PVC
Acrylic
ACM
Wood
Polycarbonate
PETG
Aluminium
Perspex

Shank diameter 6mm
Diameter of route 4mm
Depth of route 14mm
Cutting edges 1
Maximum RPM 46,660

These dimensions put BWR104 in the small‑diameter, medium‑depth range: suitable for fine profiling, narrow slots, and detailed routing in materials like foam board, plastics, composites, and some wood‑based boards.

Position in the BWR series

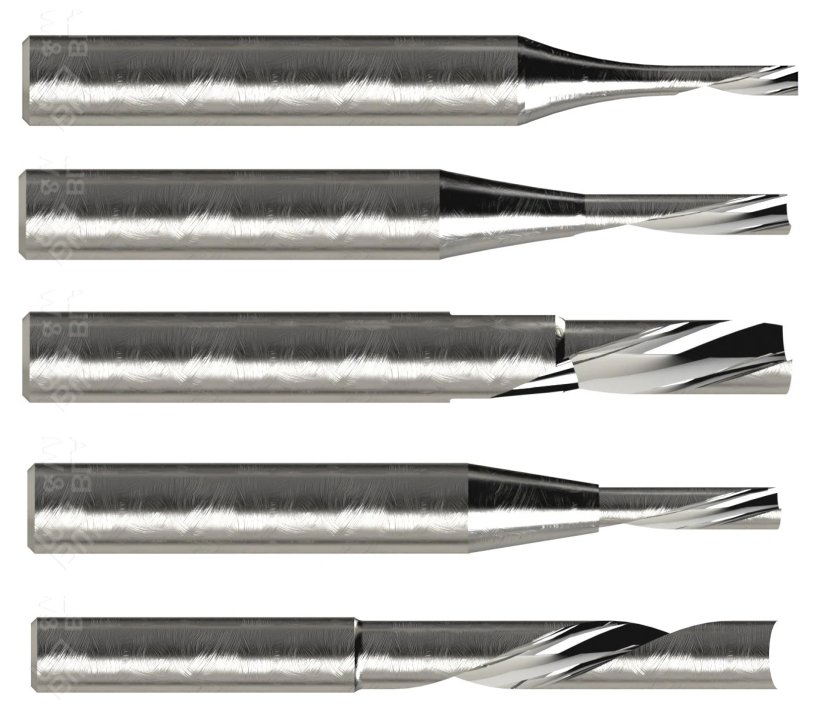

Other BWR bits from Blackman & White show the naming pattern and typical ranges:
BWR103: 6 mm shank, 3 mm cut diameter, 11 mm cut depth
BWR104: 6 mm shank, 4 mm cut diameter, 14 mm cut depth
BWR109, BWR116, etc.: larger diameters and/or longer cuts for heavier routing
