What Are The Differences Between The Iecho E19-36, E19-37,E19-38 Cutting Knives Blades

The Iecho E19-36, E19-37, and E19-38 blades are oscillating knife blades designed for use with Iecho cutting machines, particularly the PK-1209 model. While they share similarities, they differ in cutting depth capabilities and cutting angles, making each suitable for specific applications.

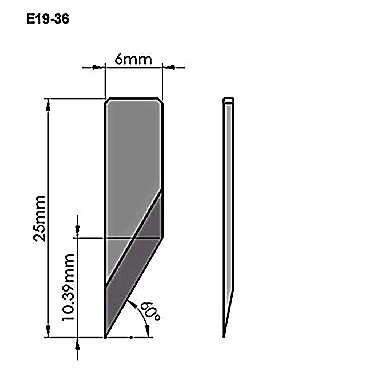

E19-36 Blade:
Total Length: 25 mm
Width: 6 mm
Max. Cutting Depth: 10 mm
Cutting Angle: 60°
Suitable Materials: Chevron board, corrugated paper, gray cardboard
Applicable Tools: EOT (used with Clamp 3)
Applicable Models: PK-1209

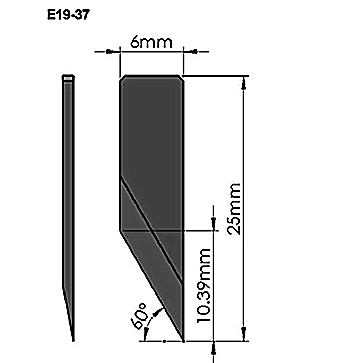

E19-37 Blade:
Total Length: 25 mm
Thickness: 1 mm
Max. Cutting Depth: 10 mm
Cutting Angle: 60°
Suitable Materials: Chevron board, corrugated paper, gray cardboard
Applicable Tools: EOT (used with Clamp 3)
Applicable Models: PK-1209

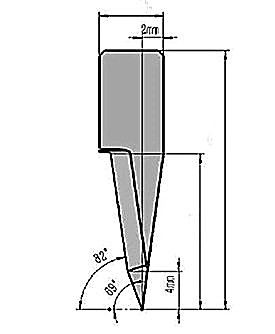

E19-38 Blade:
Total Length: 25 mm
Width: 6 mm
Thickness: 1 mm
Max. Cutting Depth: 15 mm
Cutting Angle: 69°

Suitable Materials: Chevron board, corrugated paper, gray cardboard
Applicable Tools: EOT (used with Clamp 3)
Applicable Models: PK-1209

In summary, while the E19-36 and E19-37 blades have similar dimensions and cutting capabilities, the E19-38 blade offers a greater cutting depth of 15 mm and a steeper cutting angle of 69°, making it more suitable for thicker materials. The choice among these blades should be based on the specific material thickness and cutting requirements of your project.
