These models all refer to the same 6mm diameter oscillating blade , which is one of the most commonly used universal specifications in the global digital cutting industry.

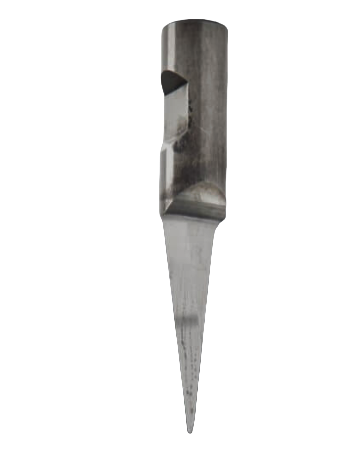

Round Shank Knife Blade, single- edged, oscillating, rounded tip
Diameter
6,00mm
Overall Length
36,0mm
Cutting Lenght
18,0mm
Cutting Angle
76,7°
Geometry
1 Cutting edge, Rounded tip - center

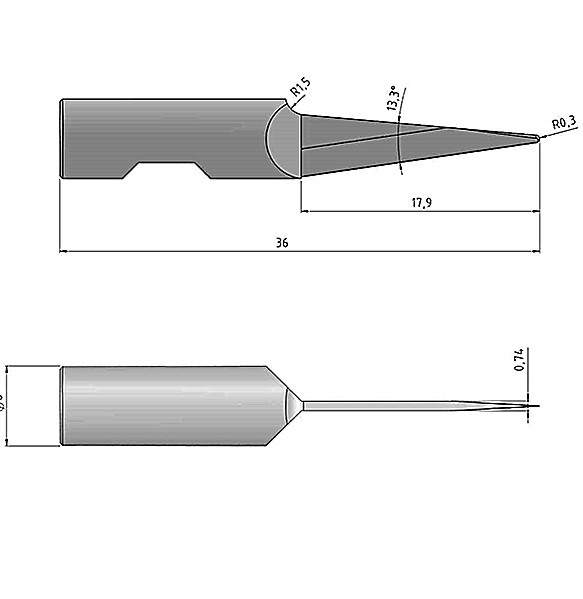

Core Technical Specifications
equivalent to: Aristo 7265,Aristo 000007265,Aristo 0000 07265, Aristo 0000 07598, Aristo 000007598, Aristo 7598 MultiCam 003612-MC7265,AXYZ B1041L-15,Kuris 73357,Valiani 001898
Diameter
6,00mm
Overall Length
36,0mm
Cutting Lenght
18,0mm
Cutting Angle
76,7°
Geometry
1 Cutting edge, Rounded tip - center
Core Technical Specifications
All alternative compatible blades produced by major manufacturers strictly adhere to the following physical parameters:
- Shank Type : Round Shank
- Shank Diameter : 6.0 mm
- Total Length : 36.0 mm
- Maximum Cutting Depth : 15.0 mm
- Blade Angle : 45° / 13.4° (Double-edged/Single-edge cutting)
- Material : Solid cemented carbide / Solid tungsten carbide
Core Application Scenarios
This blade is primarily mounted on a high-frequency oscillating tool, relying on high-frequency reciprocating motion to cut through materials. It is particularly suitable for:
- Packaging and printing : Corrugated cardboard, grey board, honeycomb board.
- Advertising signage : Pearl cotton, EVA foam board, KT board.
- Industrial seals : rubber gaskets, Teflon sheets, graphite gaskets.
- Textiles and leather : carbon fiber cloth, fiberglass cloth, thick felt.
Ordering and Selection Tips
-
Differences in blade tip design :
- Flat tip/Rectified tip/Drag tip : The blade tip is slightly rounded, which can withstand greater lateral shearing force, is less prone to chipping , and is suitable for high-speed straight cutting.
- Sharp Point : The blade tip is extremely sharp, suitable for cutting complex patterns, sharp angles, and English lettering with small radii .
- Material grade : There are high-quality domestic tungsten steel (high cost performance) and imported Luxembourg/German tungsten steel on the market (wear resistance is improved by 2-3 times). The choice should be made according to the daily processing volume of the factory .
equivalent to: Aristo 7265,Aristo 000007265,Aristo 0000 07265, Aristo 0000 07598, Aristo 000007598, Aristo 7598 MultiCam 003612-MC7265,AXYZ B1041L-15,Kuris 73357,Valiani 001898
