Axyz Bt-57265 B1041l-15 KR1-15 Carbide Round Shank/Round Point Oscillating Knife Blades

Axyz BT-57265 B1041L-15 KR1-15 is an industrial-grade round shank /round point oscillating knife blade, widely used in the oscillating cutter heads of automated CNC cutting machines and CNC engraving machines. It is one of the most commonly used standard specifications in the industry Enquire now

Description

Axyz Bt-57265 B1041l-15 KR1-15 Carbide Round Shank/Round Point Oscillating Knife Blades

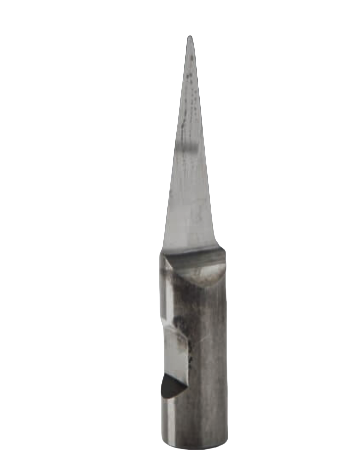

AXYZ BT-57265 / B1041L-15 is a tungsten carbide oscillating knife blade designed for AXYZ CNC routers and flatbed digital cutting machines equipped with an oscillating knife attachment.

Specifications

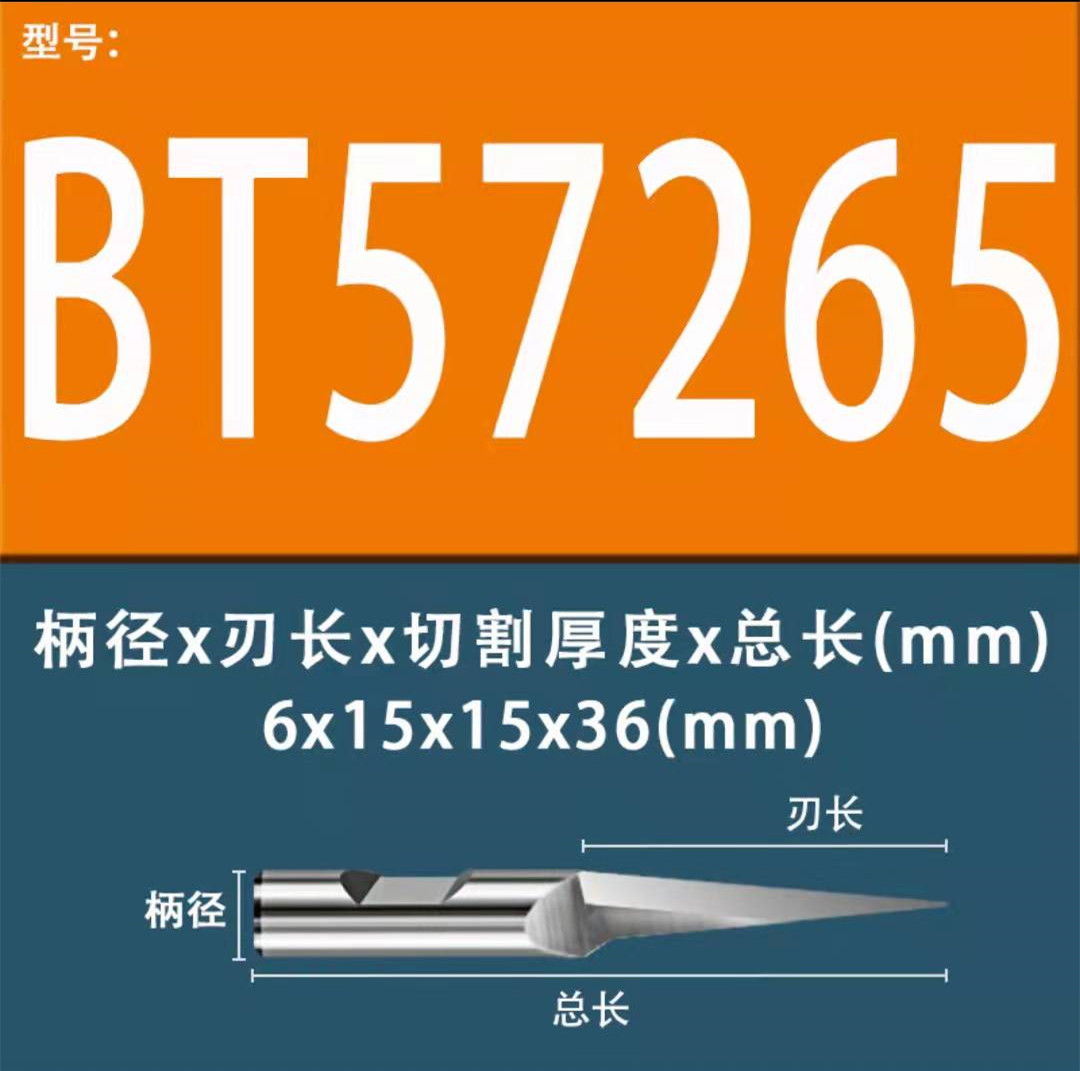

Part Numbers: BT-57265 (AXYZ / OEM style), B1041L-15
Blade Type: Round Shank Oscillating Knife Blade
Shank Type: Round Shank (typically 6 mm diameter)
Tip Geometry: Pointed / Round Point
Cut Length: 15 mm

Material: Solid Tungsten Carbide
Key Applications
This blade geometry is optimized for high-speed oscillating cutting, detailed shapes, and tight radius curves in soft-to-medium density media:
Corrugated cardboard, solid board, and honeycomb packaging
Foam and sponge materials
Soft rubber, gaskets, and flexible plastic media
Leather, textiles, and industrial fabrics

equivalent to: Aristo 7265,Aristo 000007265,Aristo 0000 07265, Aristo 0000 07598, Aristo 000007598, Aristo 7598 MultiCam 003612-MC7265,AXYZ B1041L-15,Kuris 73357,Valiani 001898

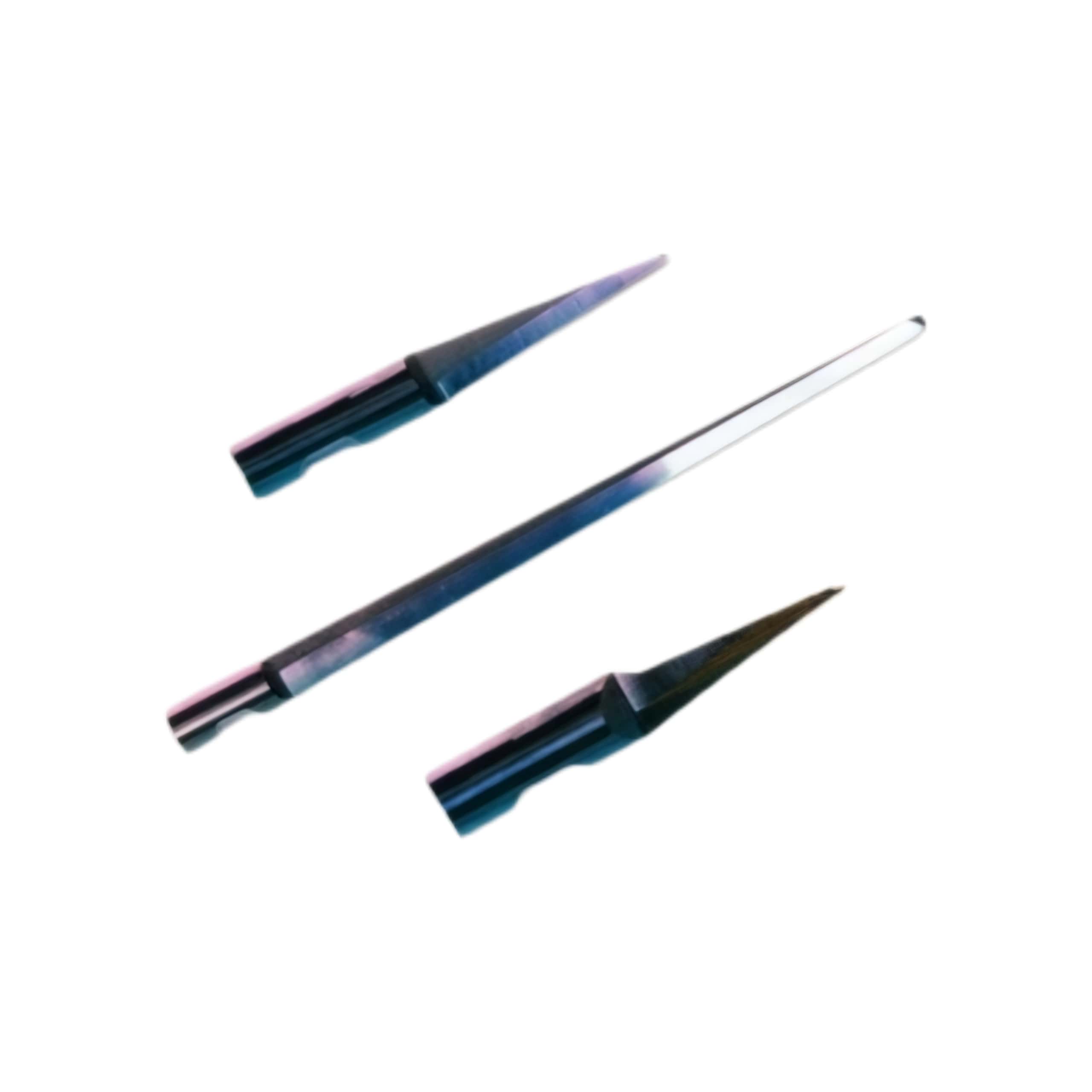

Axyz BT-57275 BT-57267 BT-57265 BT-57269 BT-57268 Tungsten Steel Oscillating Knife Blades are the main selection for use.

AXYZ Tungsten Steel Oscillating Knife Blades are the industry standard for digital flatbed cutters and CNC routers like the AXYZ Trident and Flashcut series. These solid carbide round-shank blades feature a rounded tip geometry and a 6mm shank diameter, making them highly rigid for precise high-speed reciprocating cuts.

The primary difference between these specific model numbers is their rated cutting length, allowing operators to match the blade to the thickness of the substrate.

Blade Model Comparison

Model Number	Equivalent OEM Code	Rated Cutting Length	Ideal Material Substrates
BT-57275	B1041L-6	6 mm	Thin plastics, heavy cardstock, film
BT-57267	B1041L-10	10 mm	Folding cartons, thin rubber, gaskets
BT-57265	B1041L-15	15 mm	Corrugated cardboard, compact materials
BT-57269	B1041L-20	20 mm	Medium density foam, Correx, textiles
BT-57268	B1041L-25	25 mm	Thick foam board, honeycomb, insulation

Core Performance Features

High-Speed Sawing Action: Optimized to handle high-frequency reciprocating tools running at up to 9,000 strokes per minute without fraying edges.
Cross-Brand Compatibility: These round-point blades cleanly swap into matching MultiCam (e.g., K4, K10) and Aristo CNC machines.
Tungsten Steel Durability: Formulated from micrograin cemented carbide to deliver extreme wear resistance and maintain edge sharpness over long production runs
