Esko Kongsberg Xe 10 C44 Xp 44 Digital Cutting Tables Milling & Router Bits

When choosing milling and router bits across the Kongsberg XE10, C44, and XP44 digital cutting tables, it is vital to segment them by their class. These tables span three totally different structural tiers, utilizing different tool heads, spindle power limitations, and shank requirements.

1. Kongsberg XE10 (The Packaging Specialist)

The XE10 is a small-format, high-precision plotter designed primarily for folding carton prototyping and sample making.

The Hardware Constraint: The XE series uses a FlexiHead M tool head which is restricted to a compact 150W to 200W high-speed spindle. It runs at extremely high RPMs but has very little structural torque compared to industrial gantry routers.

Bit Types Used: It utilizes VHM Channel and Periphery Tools with a unified 6mm shank, meant exclusively for paperboard, folding carton, and thin plastic composites.

Key OEM Parts:

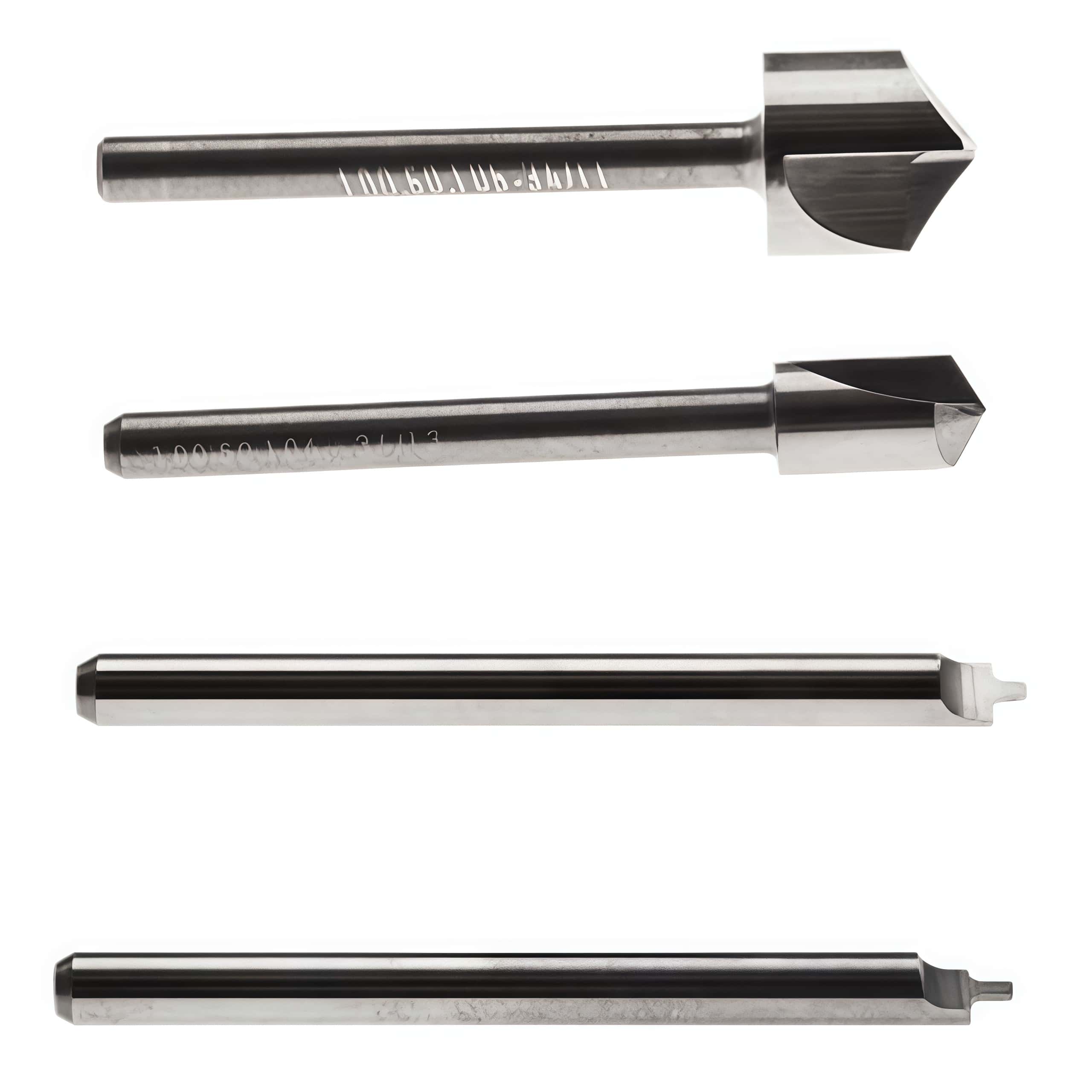

G42415992 (i-8034): VHM Chamfering Tool.

G42415984 (i-8040): VHM Periphery Tool.

G42444356 (i-8036): 1.0mm VHM Channel Tool (ideal for scoring cleanly without puncturing flutes).

G42415901 (i-8038): 1.2mm VHM Channel Tool.

2. Kongsberg XP44 (The Heavy-Duty Prototyper / Low-Run Workhorse)

The XP44 is engineered for continuous low-run manufacturing and versatile prototyping of heavy rigid materials like structural foam, dense Coroplast, and thick packaging.

The Hardware Constraint: Typically equipped with the MultiCUT tool head housing a 1kW spindle, or uprated to the high-throughput platform. It heavily favors high-torque, lower-deflection milling.

Bit Types Used: Uses a heavy mix of Balanced Down-Cut (BIT-ADS) and Heavy Foam / Plastic Balanced Up-Cut (BIT-AUS) tools, sticking mostly to a 6mm shank to prevent spindle strain while chewing through thick HDPE and structural foams.

Key OEM Parts:

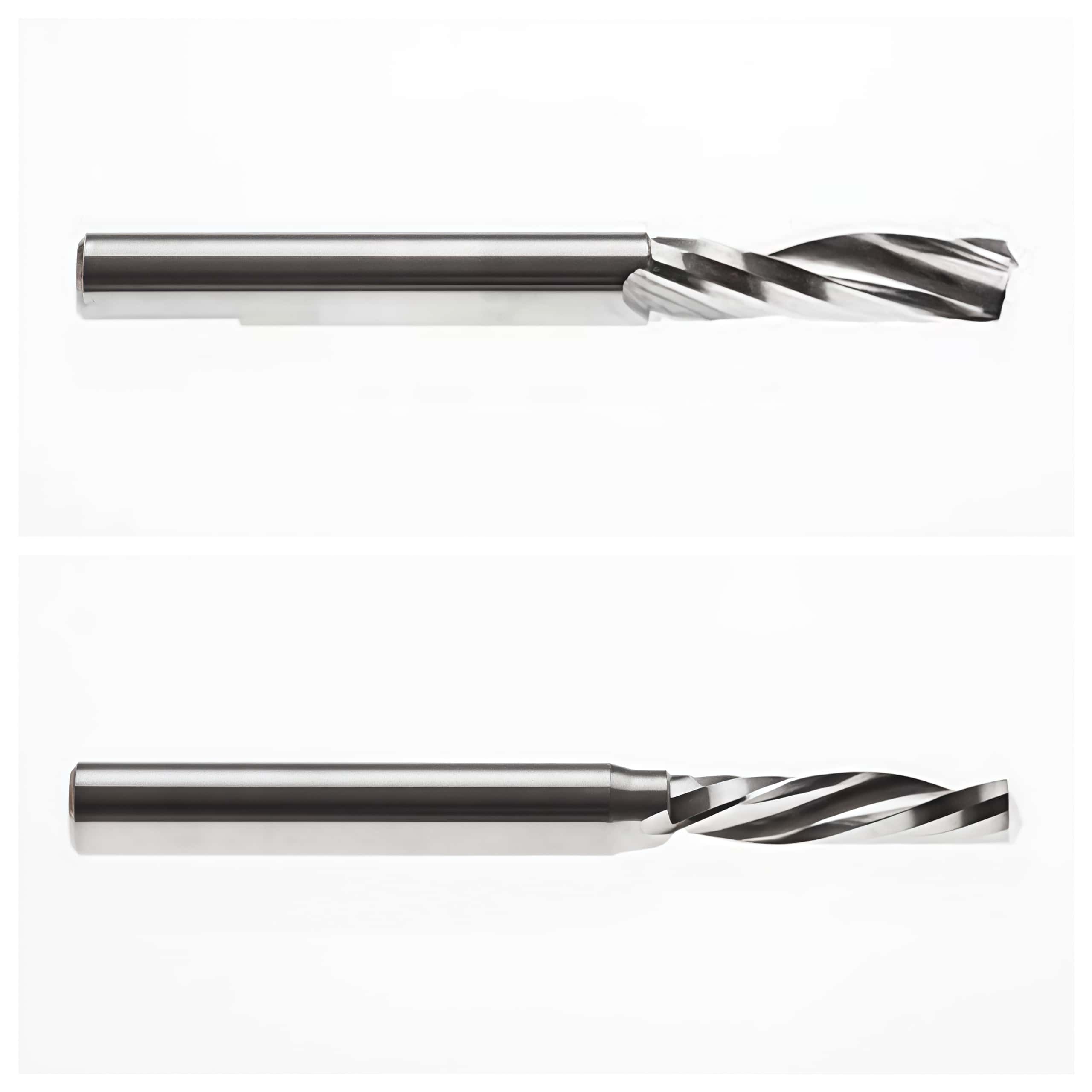

BIT-AUS06-6022-58 (G42442707): 6mm Tip, 22mm Flute Up-cut. The staple bit for high-speed routing of thick plastic boards and structural polymers.

BIT-ADS06-5022-60 (G42442756): 5mm Tip, 22mm Flute Down-cut. Primarily selected for cleanly pocketing and slotting dense returnable packaging foam without allowing the edges to tear upward

3. Kongsberg C44 (The 24/7 Industrial Production Beast)

The C44 is built on a heavy carbon fiber gantry meant for non-stop, industrial-scale signage, display graphics, and heavy material cutting.

The Hardware Constraint: This table relies on the brutal MultiCUT-HP (High Power) module with a 3kW liquid-cooled spindle. Because the carbon fiber arm dampens heavy vibrations, the C44 can seamlessly utilize 8mm shank heavy-duty bits without risk of spindle shudder or tool snapping.

Bit Types Used: Heavy-duty, deep-pass 8mm Up-Cut (BIT-AUS08) bits for thick acrylic layers and aluminum composite materials (ACM), alongside specialized V-Grooving folding tools.

Key OEM Parts:

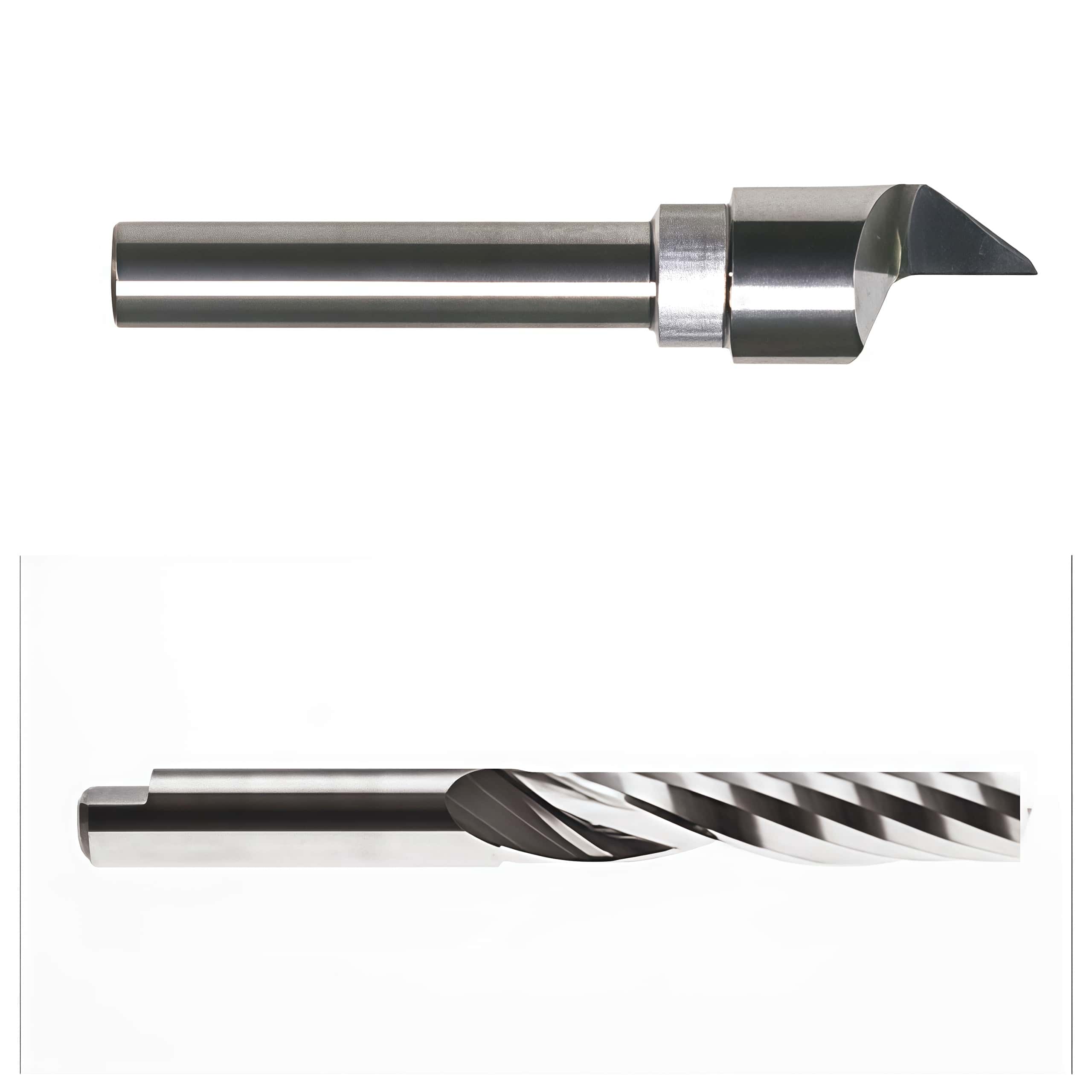

BIT-AUS08-8042-76 (G42454561): Heavy 8mm Shank/8mm Tip with a massive 42mm flute length. Used for slicing through thick structural plastics, thick wood substrates, and acrylic blocks up to 40mm.

BIT-EBV06-94 (G02731628): 90-Degree V-Notch/V-Folding Tool. Essential on the C44 for fast, single-pass V-grooving of Aluminum Composite Materials (ACM/Dibond) for sign-tray fabrication.

Hardware Reference Summary

To prevent tool damage or table errors, match your bit to the precise chuck insert required for the specific table's tool head:
