Cutting Method
Thru Cut, Drag Knife, Oscillating Knife

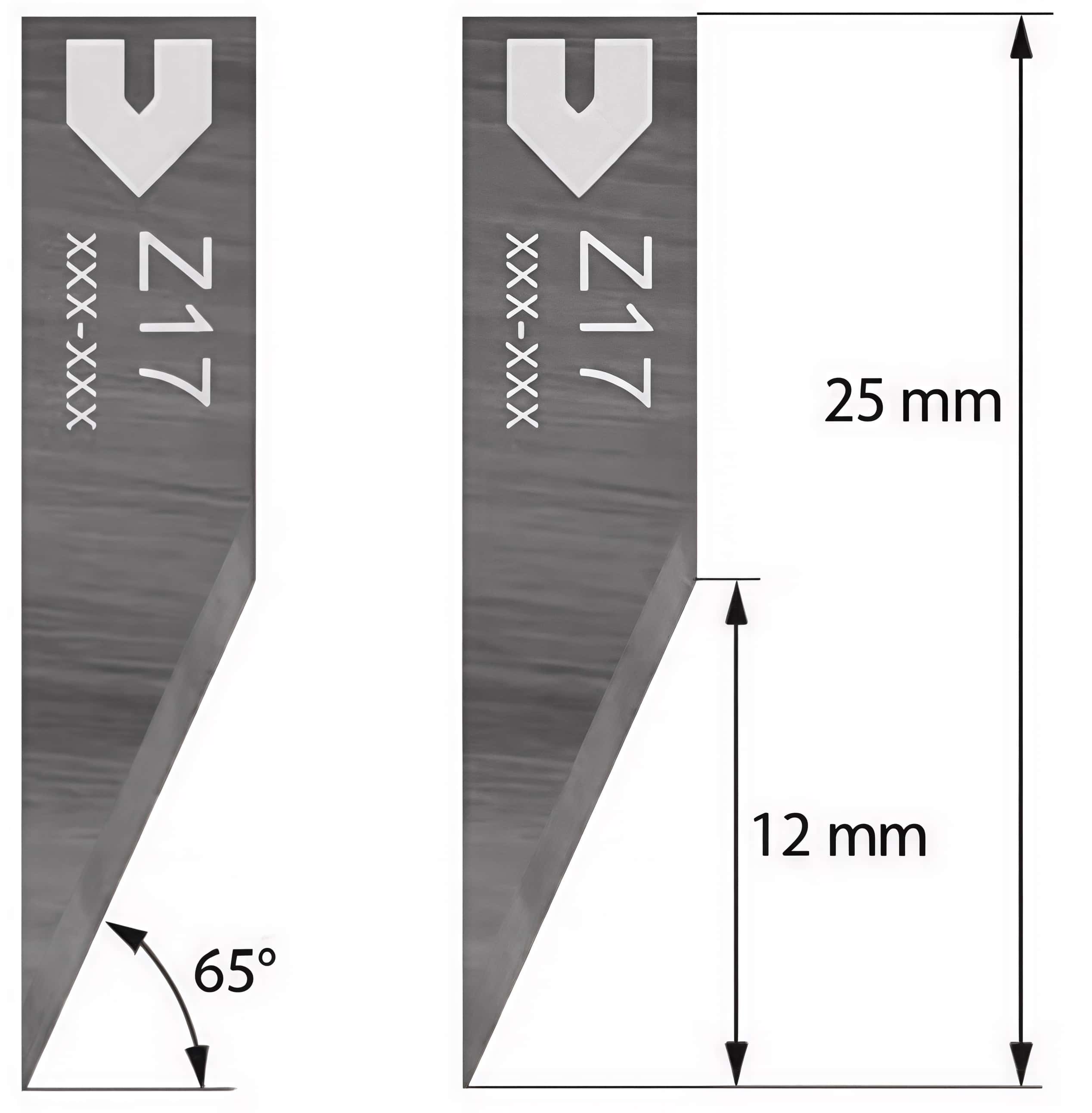

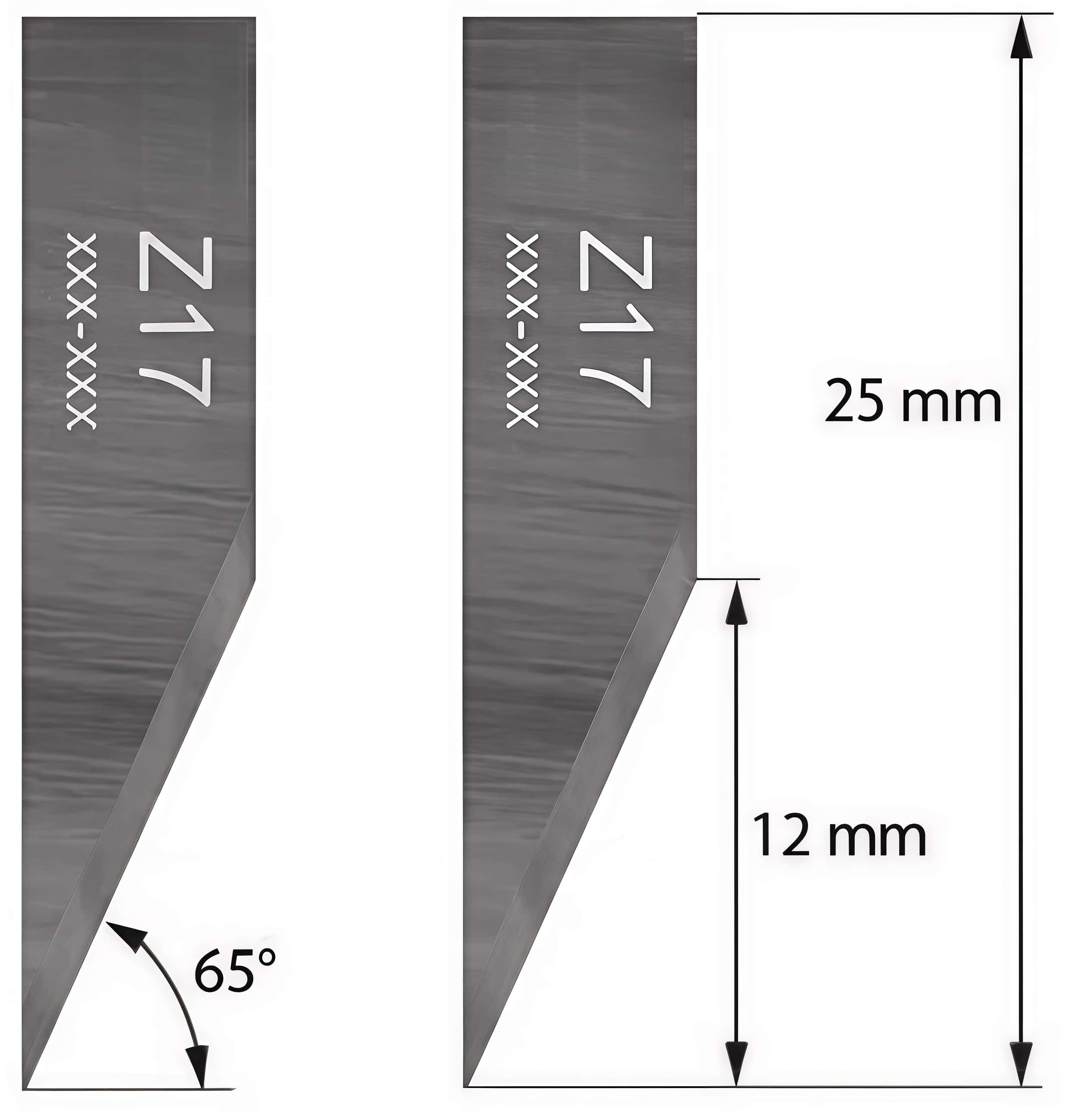

Cutting Angle
Single Edge 65°
Max Cutting Depth
0.472in / 12.0mm
Knife Type
Drag, Flat Stock
Knife Materials
Fine Grain Tungsten Carbide
Machine & Tooling Compatibility
This blade is universally shaped to slide into 0.63 mm flat stock tool holders and works exceptionally well with:
- Zund Tool Heads: Electric Oscillating Tool (EOT), Pneumatic Oscillating Tool (POT), and Universal Cutting Tool (UCT).
- Esko Tooling: MP HF, Vibracut, Hi-Force, and Static Knife systems.
Target Material Capabilities
The 65° pointed angle is meticulously engineered to execute clean, straight lines and high-detail radii on thin to medium flexible materials up to 12 mm thickness. This includes folding cartons (100g - 1500g), canvas, self-adhesive or reflective vinyl, PVC banner stock, polyester fabric, and gasket materials.
Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894
Shenzhen Oyea Global sales： ensuring availability across Europe, the USA, the Middle East, and Asia with efficient shipping and customer service.Sold To Germany, France, The United Kingdom, Poland, The United States, Russia, Vietnam, Thailand, Indonesia, Singapore, The Netherlands, Switzerland, South Korea, Japan, Turkey, The Philippines, Hong Kong, Taiwan, Italy, Spain, Hungary, The Czech Republic And Other Countries Or Regions
