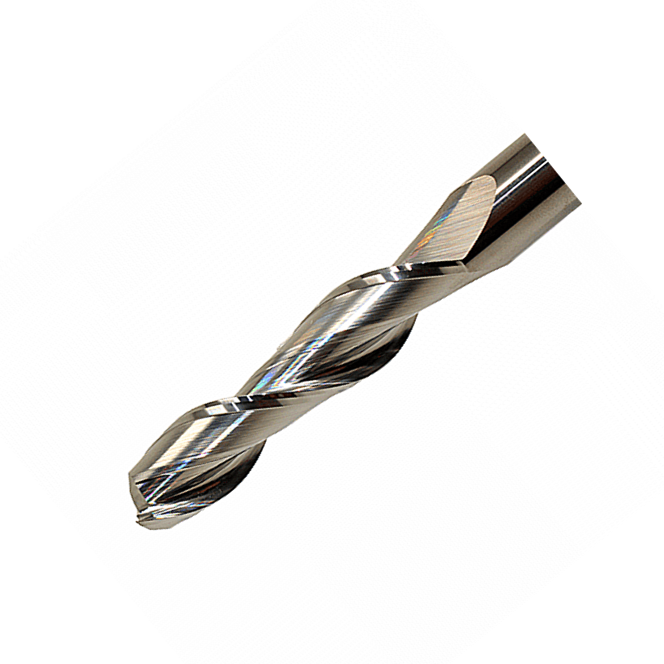

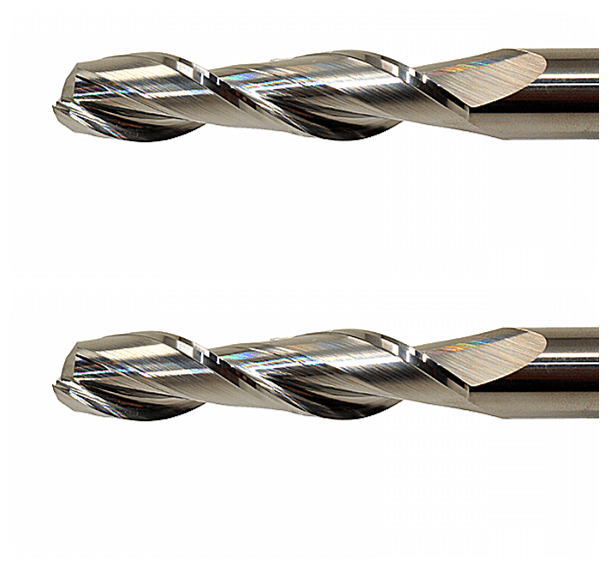

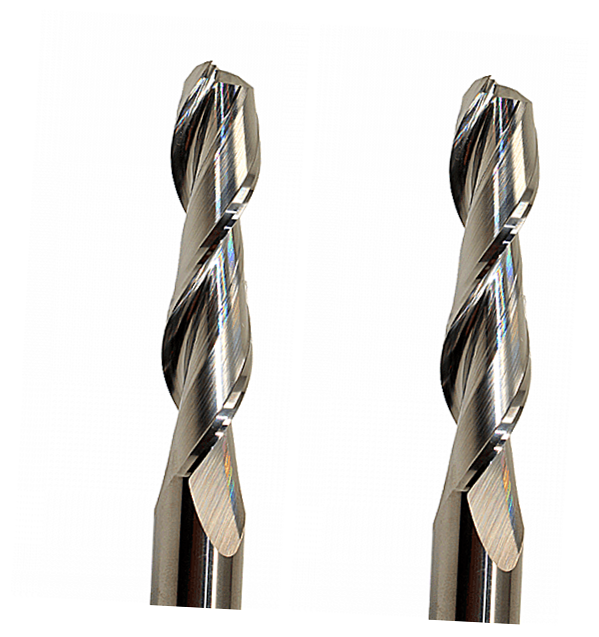

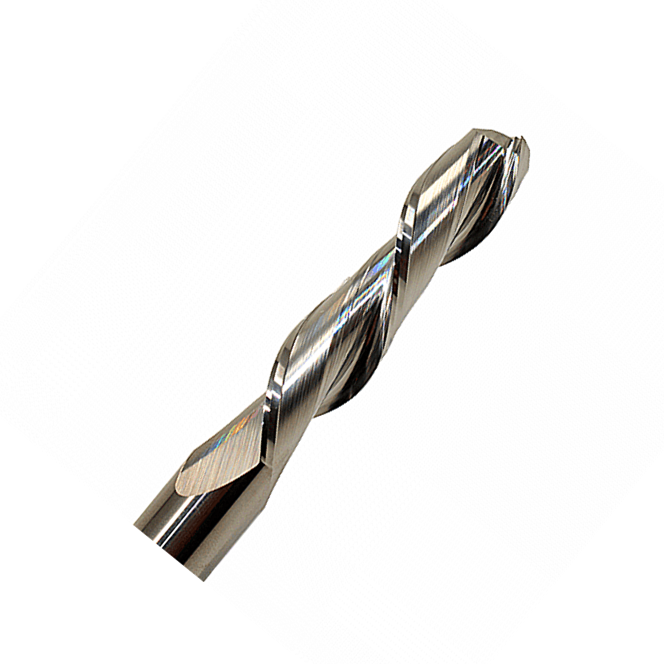

Colex T00488 Universal Upcut Router Bit For Colex Sharpcut Flatbed Cutter

Colex T00488 is a high-performance upcut spiral router bit designed for use with the Colex Sharpcut flatbed cutter. As an "upcut" bit, it is engineered to pull chips and debris upward toward the router motor, which helps prevent clogging during deep cuts or mortising. Enquire now

Description

Colex T00488 Universal Upcut Router Bit

Colex T00488,Colex Router Bit,Colex Bit,Colex Upcut Router Bit

Bit Type Upcut, 2 Flute
Cut Diameter 10 mm
Cut Length 2 – 1/8” – 55 mm
Shank Diameter 10 mm

Product Specifications & Usage

While detailed dimensions for the T00488 specifically are less common than other models, it belongs to a universal line of CNC tools from Colex used for high-speed digital finishing.

· Bit Type: Spiral Upcut. This design ensures that the material is pulled up, providing a cleaner bottom surface but potentially a rougher top edge compared to downcut bits.

· Best For: Making dados, mortises, and deep grooves where chip clearance is critical.

· Common Applications: Primarily used in CNC routing for signage and display materials including:

Hard and soft plastics.

Acrylic and ACM (Aluminum Composite Material).

Wood and composite materials like gator board.

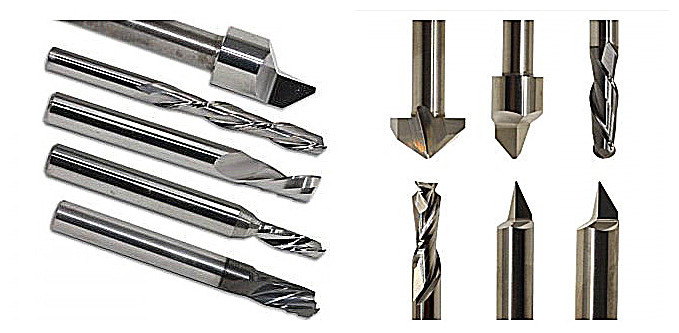

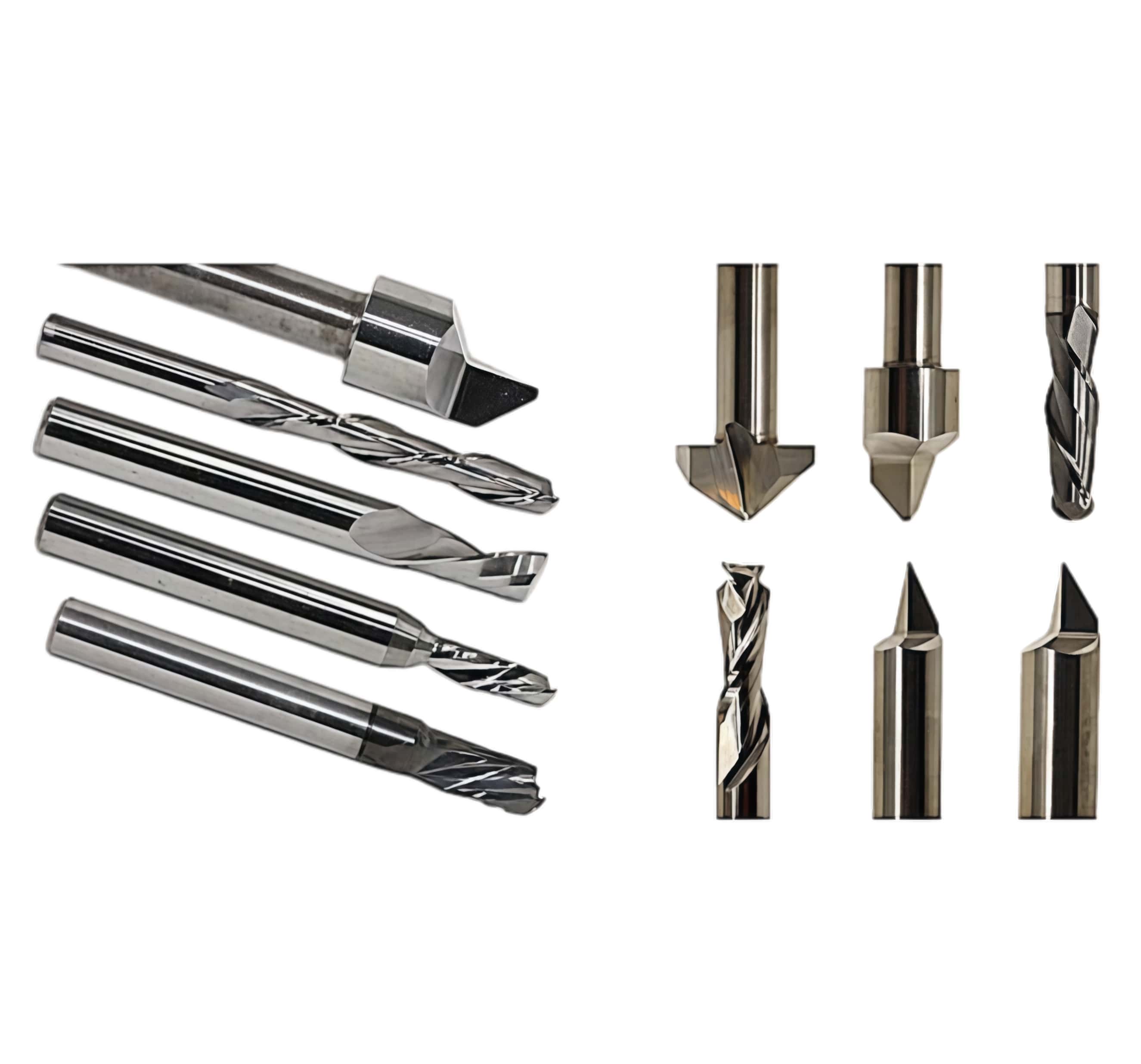

Related Universal Bits

If the T00488 is out of stock or you need different cut lengths, Colex offers several similar universal upcut bits:

Model	Typical Use Case
T00502	Soft/Hard plastic, ACM; 7/16" cut length
T00508	Plastic, ACM, Wood, Acrylic; 7/16" cut length
T00498	Hard/Soft wood, Gator board; 1" cut length
T00525	Specialized high-durability routing
