Metric Sizes (mm)
|
Part No. |
|
Cut Angle |
Lip Angle |
Overall Length |
Length of Cut |
Shank Diameter |
Material |
|
|
BDR-1 |
|
35 |
40 |
18.5 |
1 |
3 |
Carbide kisscut knife blade suitable for foils |
|
|
BDR-2 |
|
35 |
30 |
18.5 |
1 |
3 |
Carbide knife blade for adhesive vinyl |
|
|
BDR-3 |
|
35 |
40 |
18.5 |
1 |
3 |
Double edged carbide kisscut knife blade suitable for vinyl and foil |
|
|
|
55 |
25 |
18.5 |
2.1 |
3 |
Fine tipped carbide kisscut knife blade suitable for sandblast and reflective vinlyls |
|
|
|
BDR-5 |
|
60 |
20 |
18.5 |
2.6 |
3 |
Slim single carbide kisscut blade for soft materials |
|
|
BDR-116 |
|
60 |
30 |
40 |
13 |
8 |
Single edge carbide knife suitable for rigid material such as forex |
|
|
BDR-117 |
|
50 |
30 |
40 |
7 |
8 |
Similar to BDR-116, shorter, sturdy blade for tough materials |
|
|
|
60 |
12 |
25 |
5 |
6 |
Single edge carbide knife for thin flexible materials |
|
|
|
BDR-212 |
|
60 |
24 |
40 |
6 |
6 |
Double edged carbide knife for thin, rigid materials |
|
|
BDR-213 |
|
50 |
34 |
40 |
5 |
8 |
Double edged carbide knife for thin, rigid materials |
|
|
BDR-214 |
|
60 |
12 |
25 |
5 |
6 |
Double edged carbide knife for thin, flexible materials |
|
|
|
60 |
40 |
40 |
12 |
6 |
Carbide knife blade for corrugated materials |
|
|
|
BDR-224 |
|
66 |
34 |
40 |
12 |
6 |
Carbide knife blade for corrugated materials |
|
|
BDR-310 |
|
45/79 |
34 |
40 |
20 |
6 |
Carbide knife ideal for triple wall corrugated |
|
|
BDR-312 |
|
45/84 |
40 |
52 |
32 |
6 |
Carbide knife blade for foam |
|
|
BDR-8170 |
|
30 |
12 |
40 |
6.5 |
8 |
Single edge carbide knife for vinyls and foamboard |
|
|
|
60 |
30 |
40 |
6.9 |
8 |
Asymmetric carbide knife for thin plastics, foam and vinyl |
|
|
|
BDR-8172 |
|
50 |
40 |
40 |
4.8 |
- |
Carbide knife for paper, vinyls and folding carton |
|
|
BDR-1010 |
|
79 |
22 |
36 |
10 |
6 |
Gasket materials, packaging, foamed materials, rubber |
|
|
BDR-1015 |
|
70 |
20 |
36 |
15 |
6 |
Gasket materials, packaging, foamed materials, rubber |
|
|
BDR-S35D |
|
35 |
24 |
20 |
0.25 |
2.5 |
Paper, adhesive vinyl, adhesive pvc, banner vinyl |
|
|
|
36 |
21 |
31 |
0.25 |
2.5 |
Paper, adhesive vinyl, sandblast material, window film, magnetic foil |
|
|
|
BDR-S36T2 |
|
36 |
26 |
31 |
0.8 |
|
ITC BDR series consists of a wide range of specialized products tailored for diverse applications across various industries. This series includes models such as BDR-1, BDR-2, BDR-3, BDR-4, BDR-5, and extends into more advanced variants like BDR-116, BDR-117, BDR-150, BDR-212, BDR-213, BDR-214, BDR-223, and BDR-224. Additionally, the lineup progresses further with options such as BDR-310 and BDR-312 for advanced functionality. For large-scale and industrial tasks, models like BDR-8170, BDR-8171A, BDR-8172, and advanced solutions including BDR-1010 or BDR-1015 provide cutting-edge efficiency.

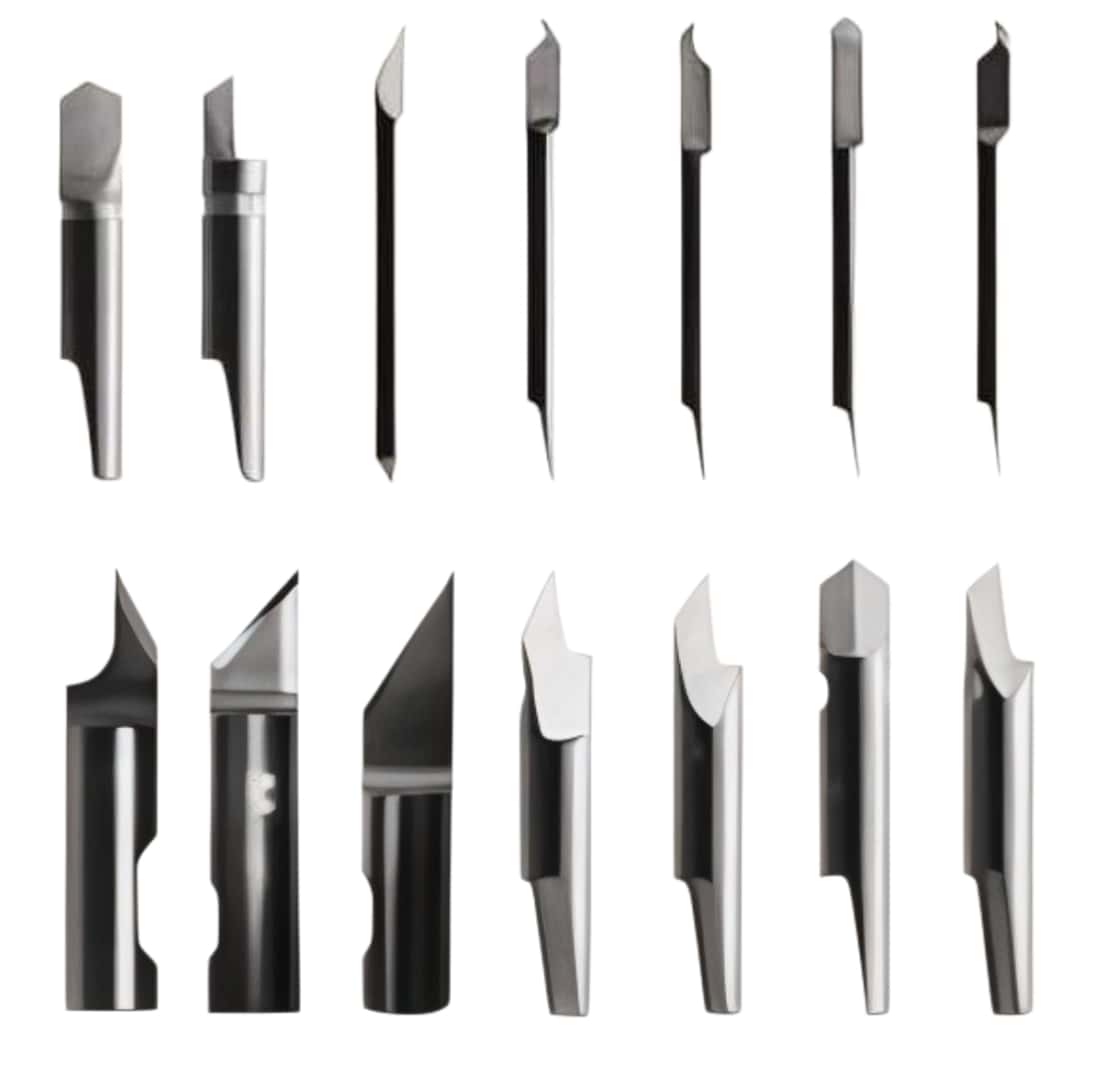

In particular, the BDR-S35 and the enhanced BDR-S36T as well as the refined BDR-S36T2 are Solid Carbide Round Shank Drag Knife Blades engineered to meet high-performance standards. These blades are compatible replacements designed for compatibility and application across renowned brands such as such as Esko, MCT, Summa, Known for their precision and durability, the Carbide Rotation Knife Blades from this range are widely utilized in demanding cutting systems.
