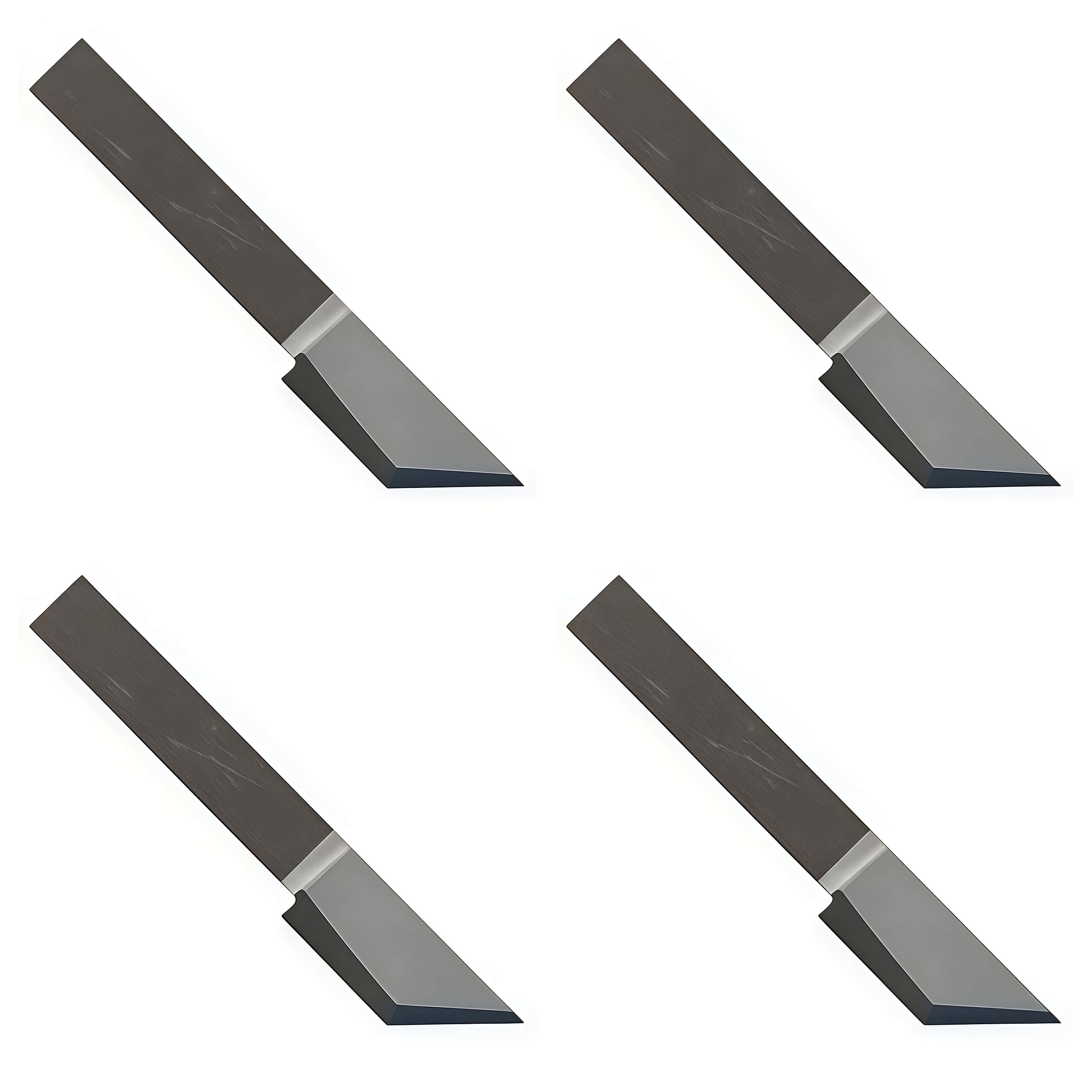

Specifications and Dimensions
- Part Number: 500‑9807
A unique identifier for easy ordering and compatibility verification.
- Type: Heavy Duty Cutout (Drag-Knife/Thru-Cut)
Perfect for robust cutting tasks requiring precision and adaptability to various materials.
- Cutting Angle: Adjustable between 45° and 90°
Designed to deliver flexibility, the angle can be tailored to match specific material profiles, balancing speed, precision, and material integrity based on the requirements of the project.
- Overall Blade Length: Approximately 50 mm
This measurement, spanning from the blade tip to the mounting flange, ensures compatibility with the specified cutter system while maintaining optimal cutting depth.
- Blade Width: Approximately 8 mm
Although aftermarket specifications often cite 8 mm as the standard width, variations may exist depending on the supplier, with some listing widths closer to 6 mm.
- Thickness: Approximately 1.5 mm
Designed for durability without compromising flexibility, this thickness is ideal for heavy-duty operations.
- Maximum Cutting Thickness: Up to 15 mm (≈0.6 inches)
Capable of cutting dense materials effectively, the blade's maximum depth depends on the material type and specific tool setup used with compatible F Series flatbed cutters.
Typical Applications
Renowned for its high performance and durability, the Summa 500‑9807 blade excels in various industrial cutting applications, including but not limited to:
- Display Boards and Foam Boards
Perfect for foam core or honeycomb-core boards up to a thickness of approximately 15 mm, lending itself well to signage and packaging projects that demand clean, sharp cuts.
- Corrugated Boards and Folding Cartons
Handles corrugated materials and sandwich boards with ease, making it an excellent choice for packaging and structural applications.
- Foam-Based Insulation and Acoustic Panels
Offers efficient cutting of materials like PET-felt and foamboard, commonly used in insulation products or acoustic treatments.
- Leather, Carpet, and Heavy-Duty Fabrics or Textiles
Appropriate for tougher textile applications such as leatherworking or cutting dense polyester-based materials for upholstery and protective layers.
- Gaskets, Rigid Plastics, and Other Specialty Materials
Well-suited for precision crafting of gaskets, thin polycarbonate plastics, varnish blanket materials, and other similar products that require intricate detailing or highly accurate cuts.
Optimizing Blade Use Based on Material
To achieve the best results in diverse applications, proper adjustment of the cutting angle is recommended:
- 45° Cutting Angle: This setting is ideal for less dense materials like soft foams and textiles where quicker cuts with lower drag are desired without sacrificing overall accuracy or material finish.
- 90° Cutting Angle**: For denser materials such as thick display boards or hard plastics, a 90° angle ensures precise, sharper cuts by providing improved edge definition during heavier-duty cutting processes.
By following these guidelines and leveraging the versatility of the Summa 500‑9807 Heavy Duty Cutout blade, users can achieve peak productivity in their operations while delivering consistently high-quality outcomes across a wide range of professional applications. This makes it an indispensable tool for industries demanding precision cutting solutions for rigid and semi-rigid materials alike.
