iEcho E46C Cutter Drag Knife Blades-Replacement For Zund Z46 Summa 500-9807 Kongsberg BLD-SF346

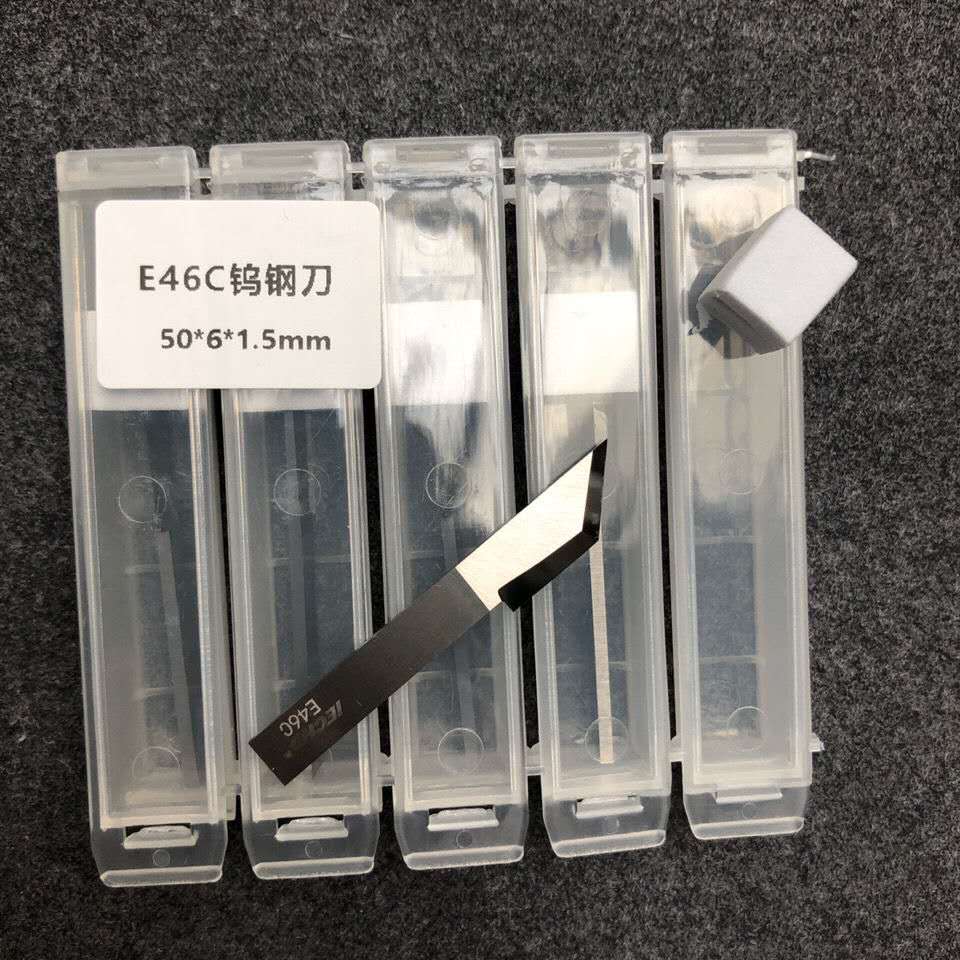

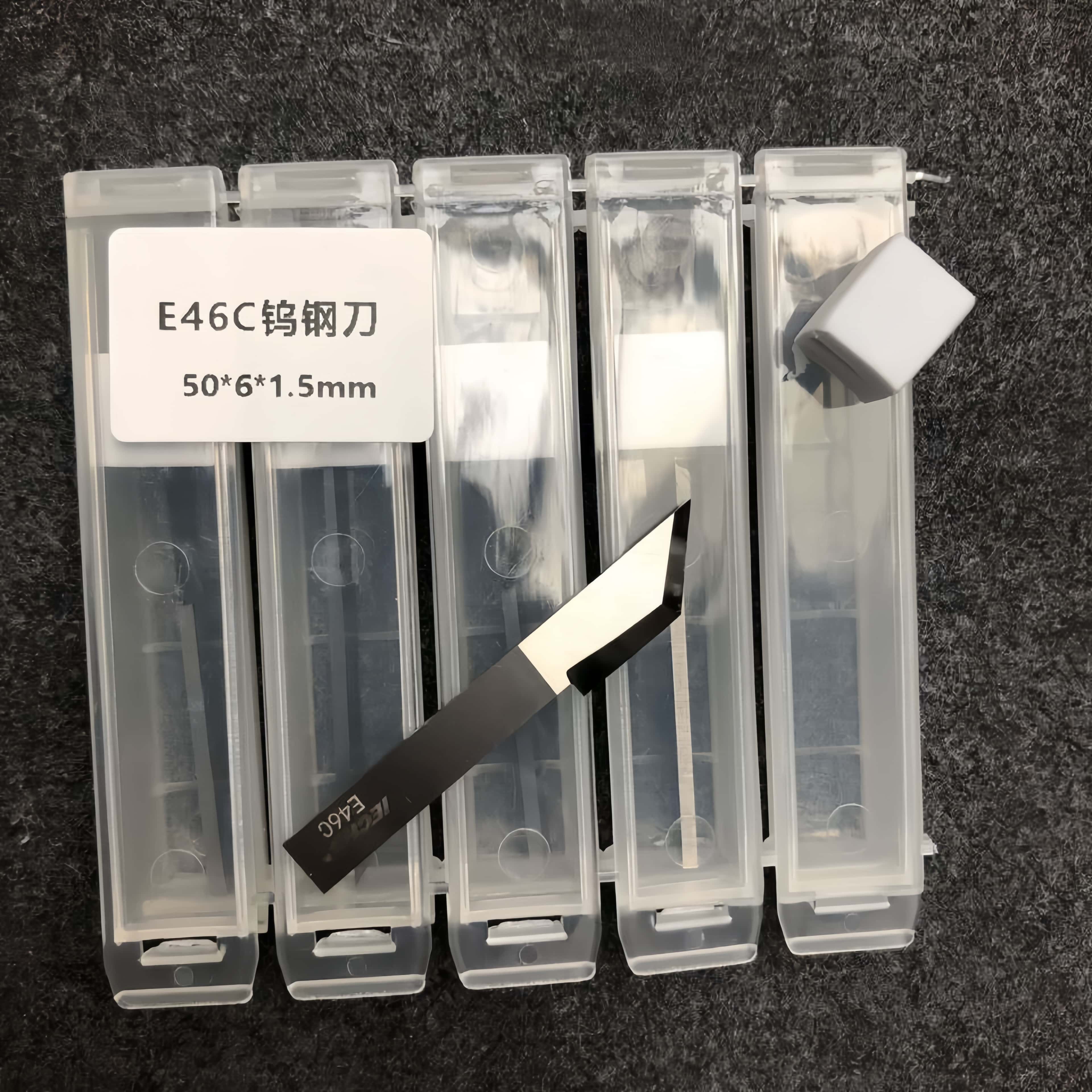

iEcho E46C drag knife blade is a heavy-duty flat drag blade for iEcho digital cutters, with listings showing a 50 mm height, 6.0 mm width, 1.5 mm thickness, and a 45°/90° cutting angle. Enquire now

Description

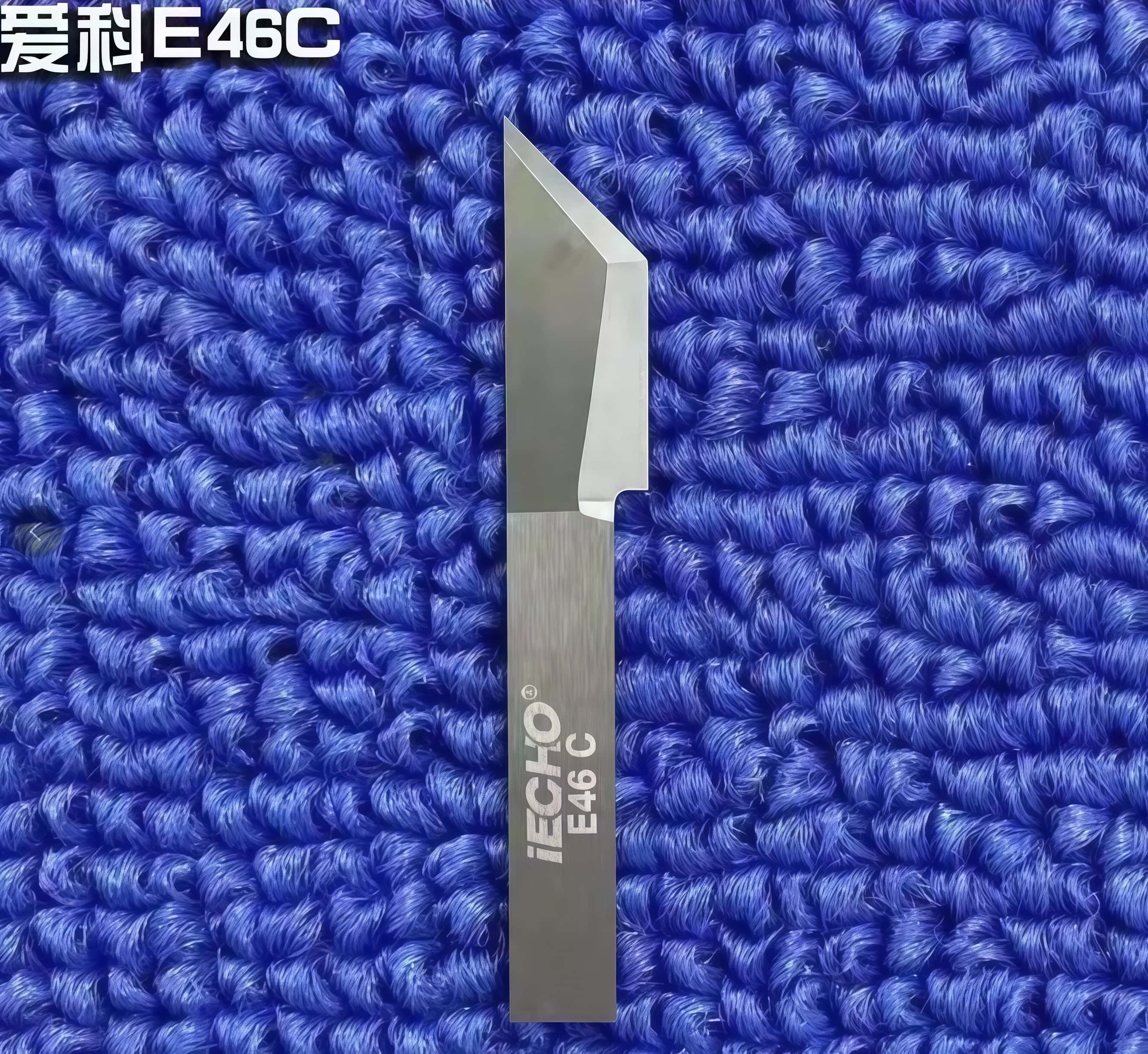

iEcho E46C Drag Knife Blades

iEcho E46,iEcho E46 Blade,iEcho Drag Blade,iEcho Blade e46

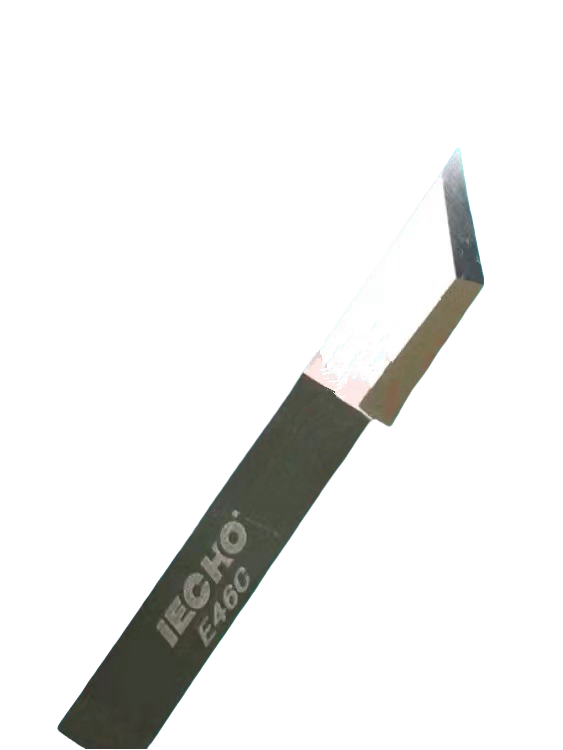

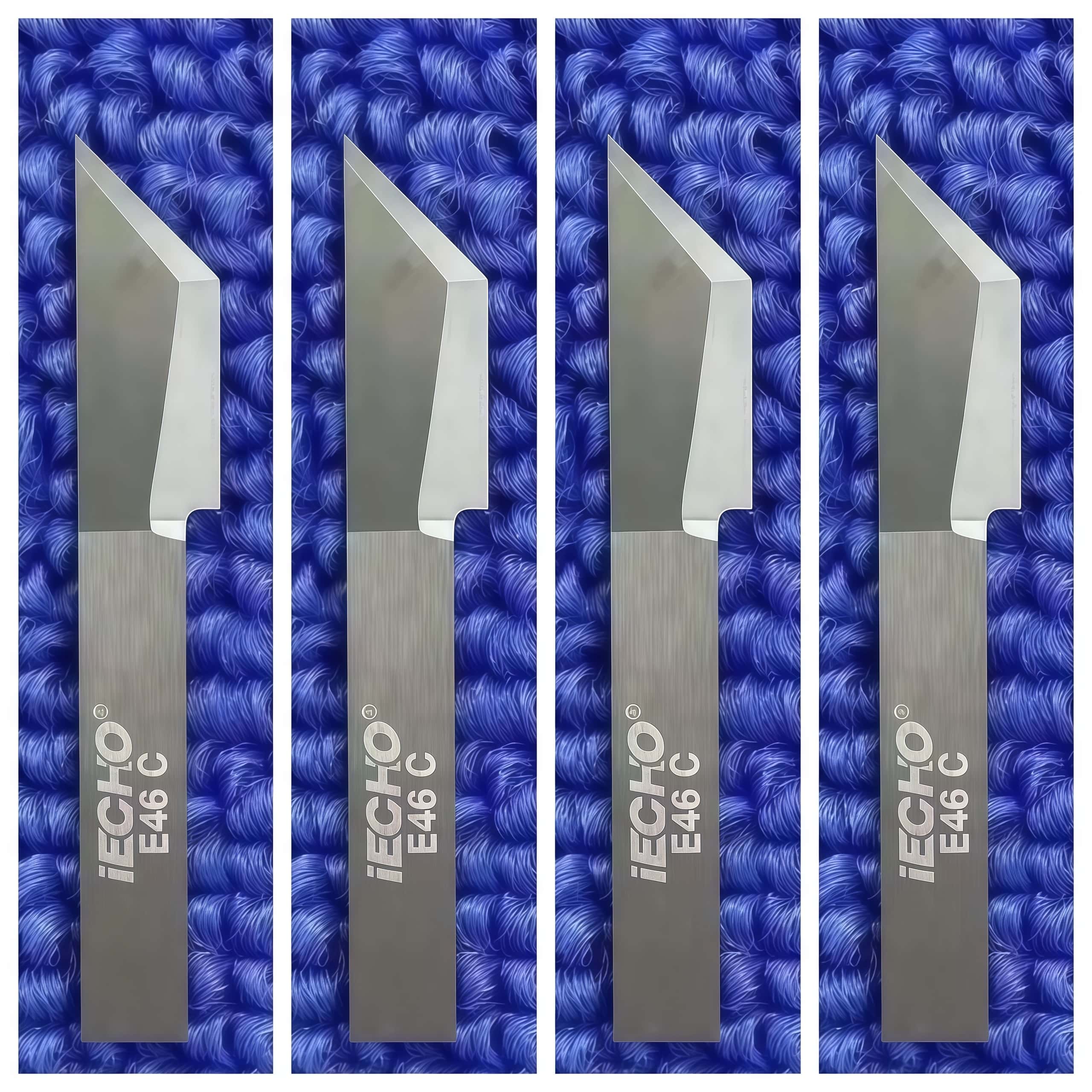

iEcho E46C Cutter Drag Knife Blade (frequently referred to interchangeability as the E46) is a heavy-duty, flat-stock static drag blade engineered for high-performance slicing on iEcho Automated Digital Flatbed Cutters. This blade is uniquely optimized for processing soft, lightweight, and thick substrates. It is structurally engineered to exert very little drag resistance against the material, though it utilizes a larger overcut to clear sharp corners.

Knife height: 50mm
Thickness: 1.5mm
Max. cutting depth:20mm
Knife type: Oscillating
Angle:45/90°
KNIFE TYPE
Drag blade, Flat

MATERIALS
Corrugated plastic, Covering, Foam board, Paper, Polyester fabric, PVC, Tarpaulin

KNIFE/BLADE MOUNTING
flat 1,5 mm

Tool Compatibility

The 1.5mm thick flat shank is dimensioned specifically to lock into iEcho's static cutting modules:

UCT (Universal Cutting Tool): Also known as the Tangential Tool or Drag Knife module. The UCT holds the E46C firmly and steers the flat blade actively along the contour vector path, enabling deep, continuous straight and curved tracking.

Ideal Material Applications

Because the E46C glides smoothly through airy, thick, or flexible substrates without crushing their internal structure, it is widely utilized for cutting:

Foam & Insulation: Expanded foam boards, sandwich foam cores, and soft structural foams.
Packaging Material: Corrugated plastics (PP flute), heavy-gauge paperboards, and folding boxes.
Heavy Fabrics & Floor Coverings: Industrial carpeting, thick felt backing, mesh fabrics, and heavy woven tarpaulins.
Graphics & Signage: Thick PVC banners, promotional vinyl, and specialized paper backdrops.

Performance Variations

Depending on your production volume and the abrasive nature of your materials, two main material grades are available:

Standard Hard Metal (HM): General-purpose tungsten carbide offering reliable durability for typical print, packaging, and sign shops.
Super Hard Metal (SHM): Premium long-life variations designed with micro-grain carbide structural configurations. SHM blades lower frictional heat, resist edge dulling when slicing through abrasive textiles, and provide up to double the service life of standard blades.

Replacement For:Zund Z46 4800073 Summa 500-9807 Esko Kongsberg BLD-SF346 i-346 G42458406 Colex T00330 Blackman & White BW46 iEcho E46C Comagrav E46 Gerber MCT SE346 895346 Aristo 4800.073-AR35 Cutworx Apex CWX/CWT E46 Heavy Duty Cutout Knife Blade
