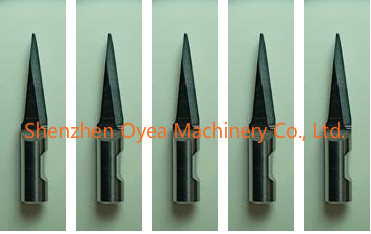

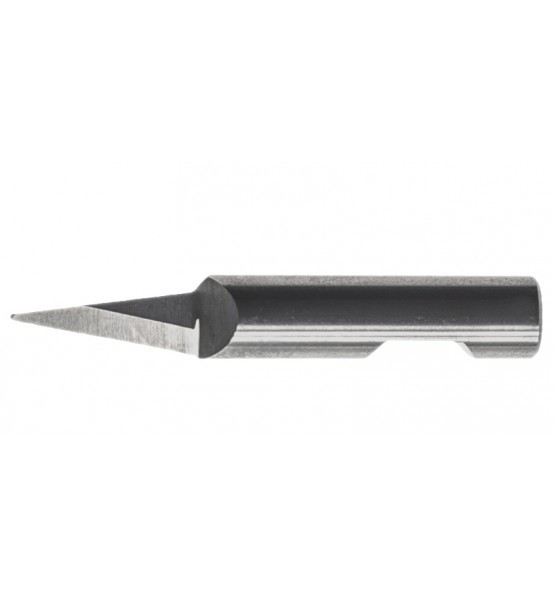

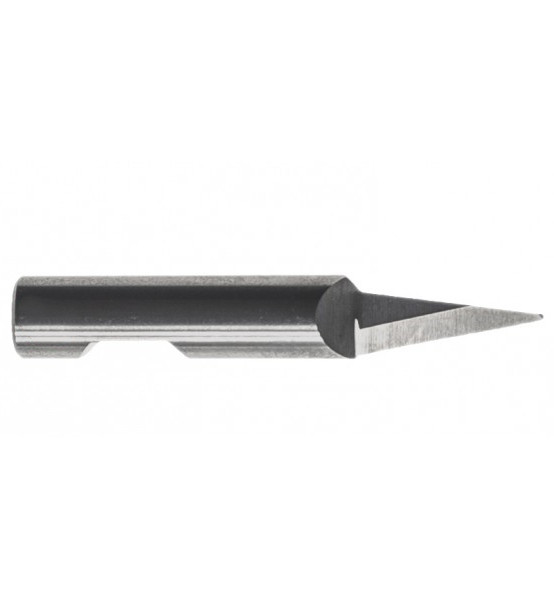

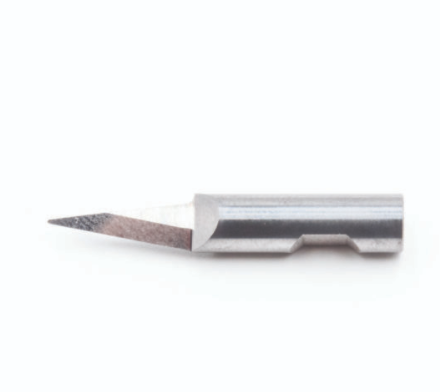

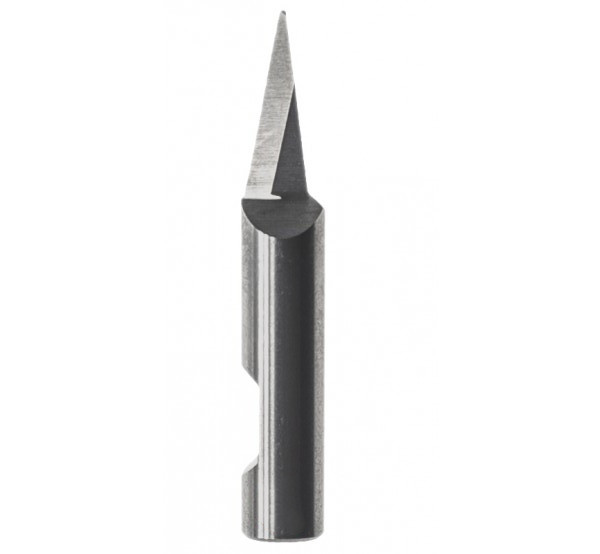

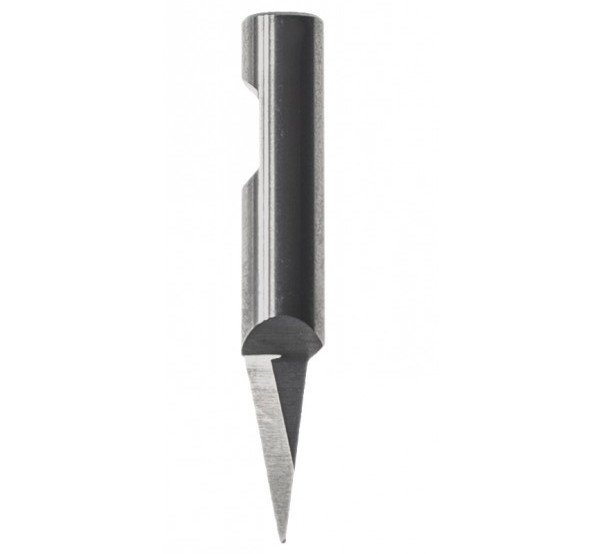

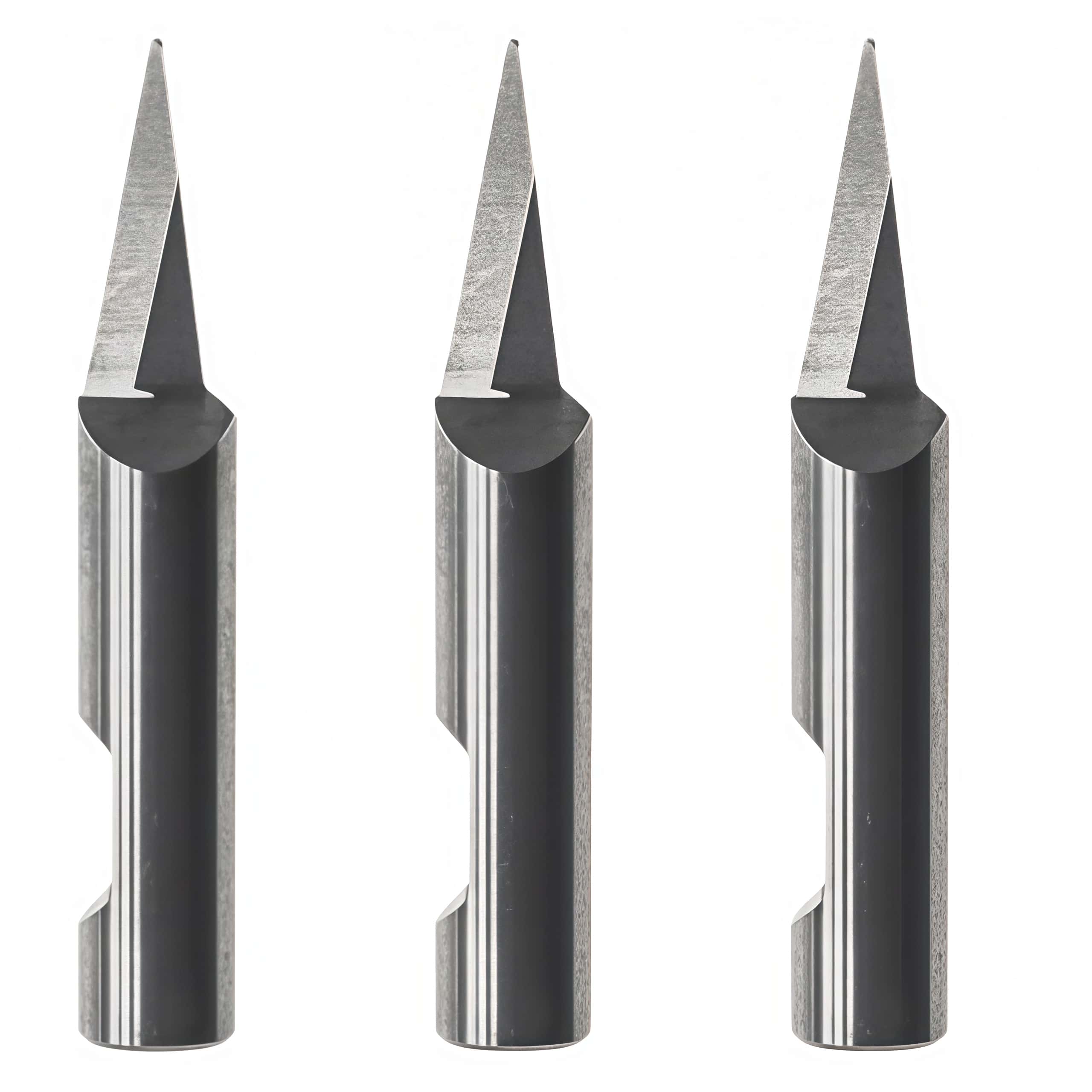

Multicam Bt-57267 84-00193-BT-57267 003612-MC7267 K4 Round Shank shaft Blades For Multicam Cutter

MultiCam BT-57267(Corresponding part number)84-00193-BT-57267/ 003612-MC7267 / Industry code K4 ) isA high-rigidity round shank vibratory cutter insert specifically developed for MultiCam CNC equipment.. Enquire now

Description

Multicam Bt-57267 84-00193-BT-57267 003612-MC7267 K4 Round Shank shaft Knife Blade For Multicam Cutter

Core Technical Specifications

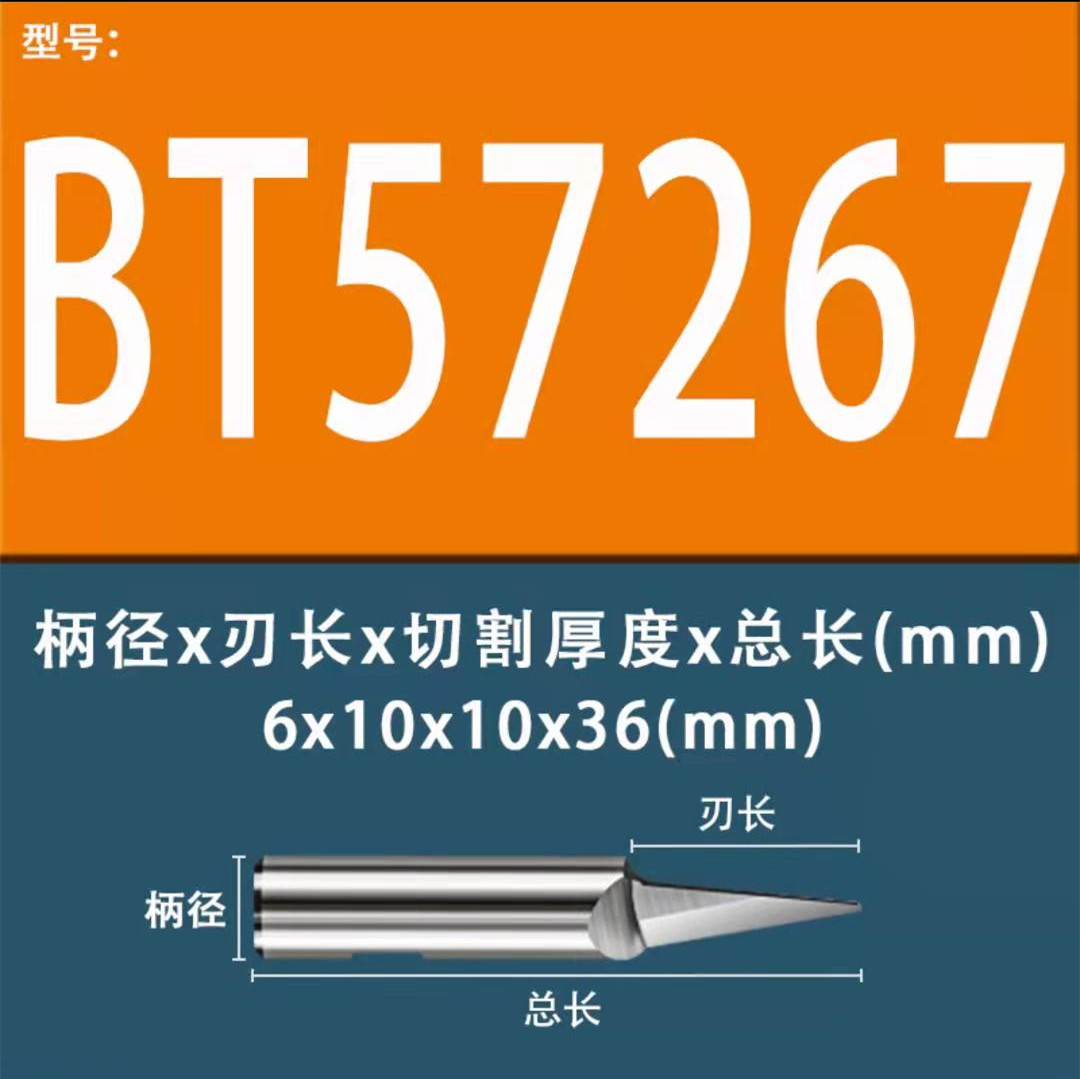

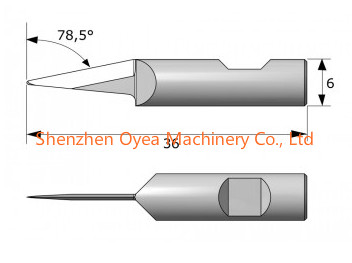

Maximum cutting depth/rated length : 10mm .

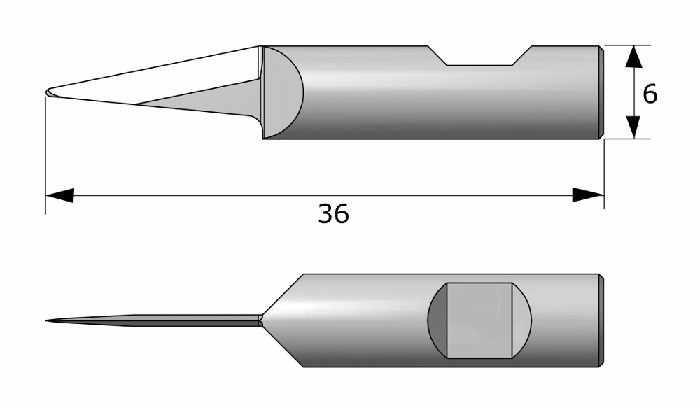

Total blade length (OAL) : 36.0 mm .
Cutter tip geometry : Round Point / Centered Tip, cutting angle is usually 79° or 12° (depending on the specific profile), the cutter tip is located at the center of rotation, which makes it more precise when turning during vibratory cutting.
Handle specifications : 6mm round shank .
Material : Made of ultra-fine particles of solid carbide/tungsten steel , with excellent edge wear resistance.

Compatibility with applicable materials and equipment

Because this insert features a high-rigidity 6mm cylindrical shank design (suitable for multiCam KH6 and other tool holders), it can maintain extremely low runout while withstanding high-frequency vibrations, making it ideal for machining:

Corrugated cardboard boxes and thick cardboard .
Rubber and gasket materials
Soft foam board and cork Industry equivalent interchangeable models:

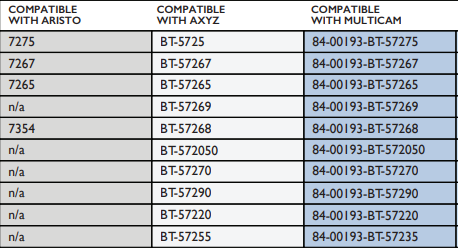

This blade is not only compatible with the K4 interface of the MultiCam system, but is also fully equivalent in the industry to the Aristo 7267 (000007267) and AXYZ B1041L-10 blades.

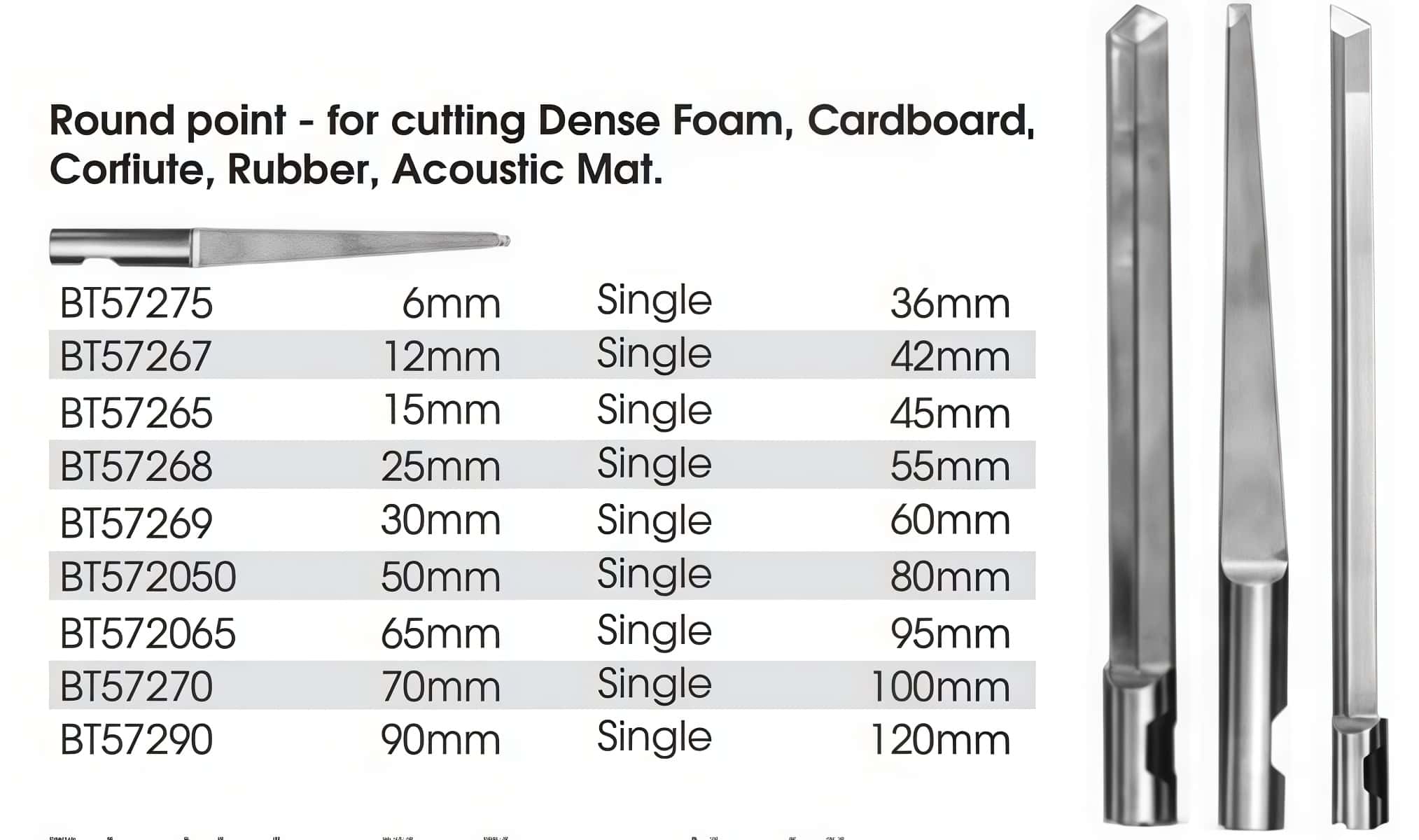

equivalent to: BT-57267 Aristo 7267, Aristo 000007267, Aristo 0000 07267, ARISTO 7181,000007181,0000 07181,MultiCam 84-00193-BT-57267, MultiCam 003612-MC7267, AXYZ B1041L-10
