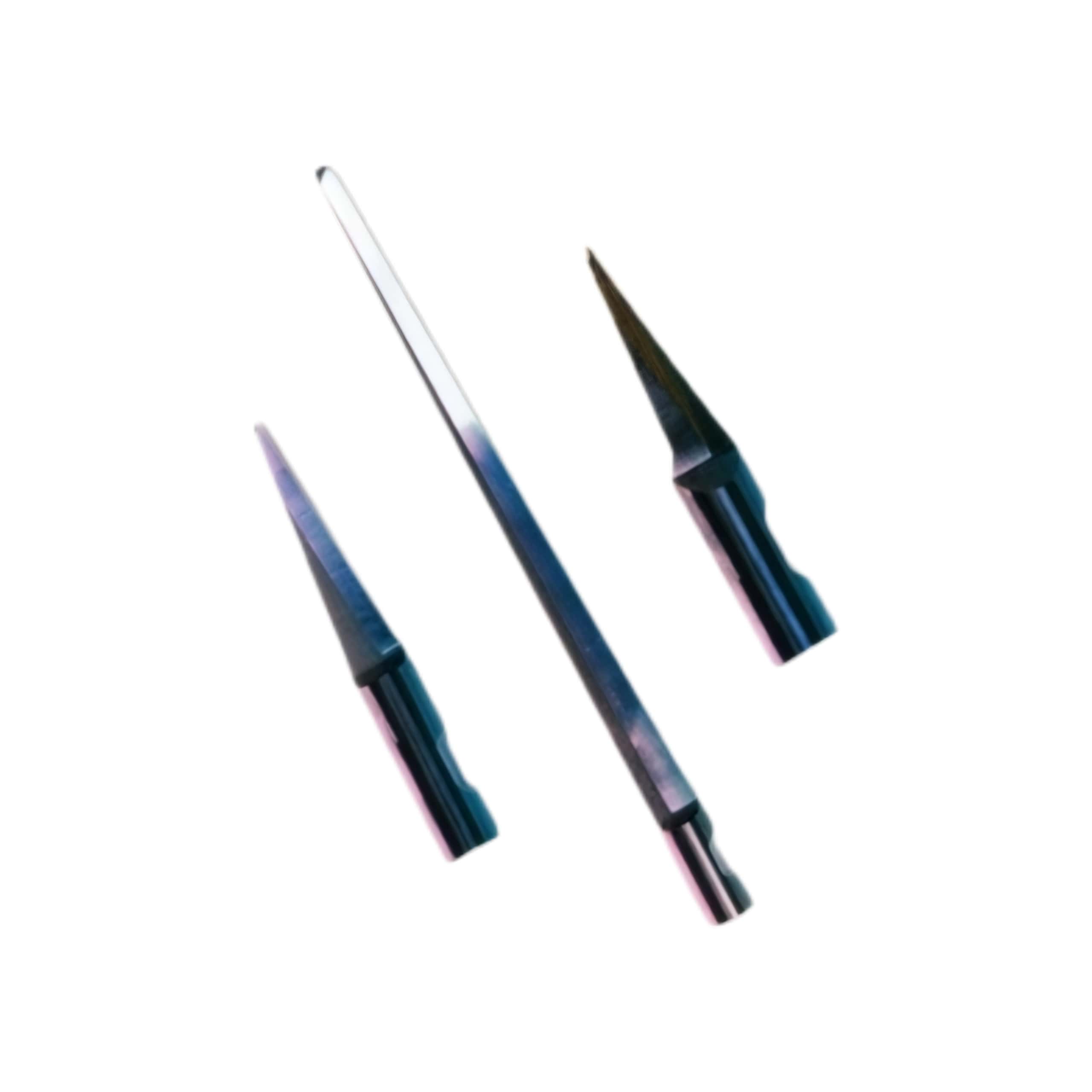

Axyz Bt-57267 B1041l-10 KR1-10 Cnc Routers Industrial Tungsten Carbide Cutting Knife Blades

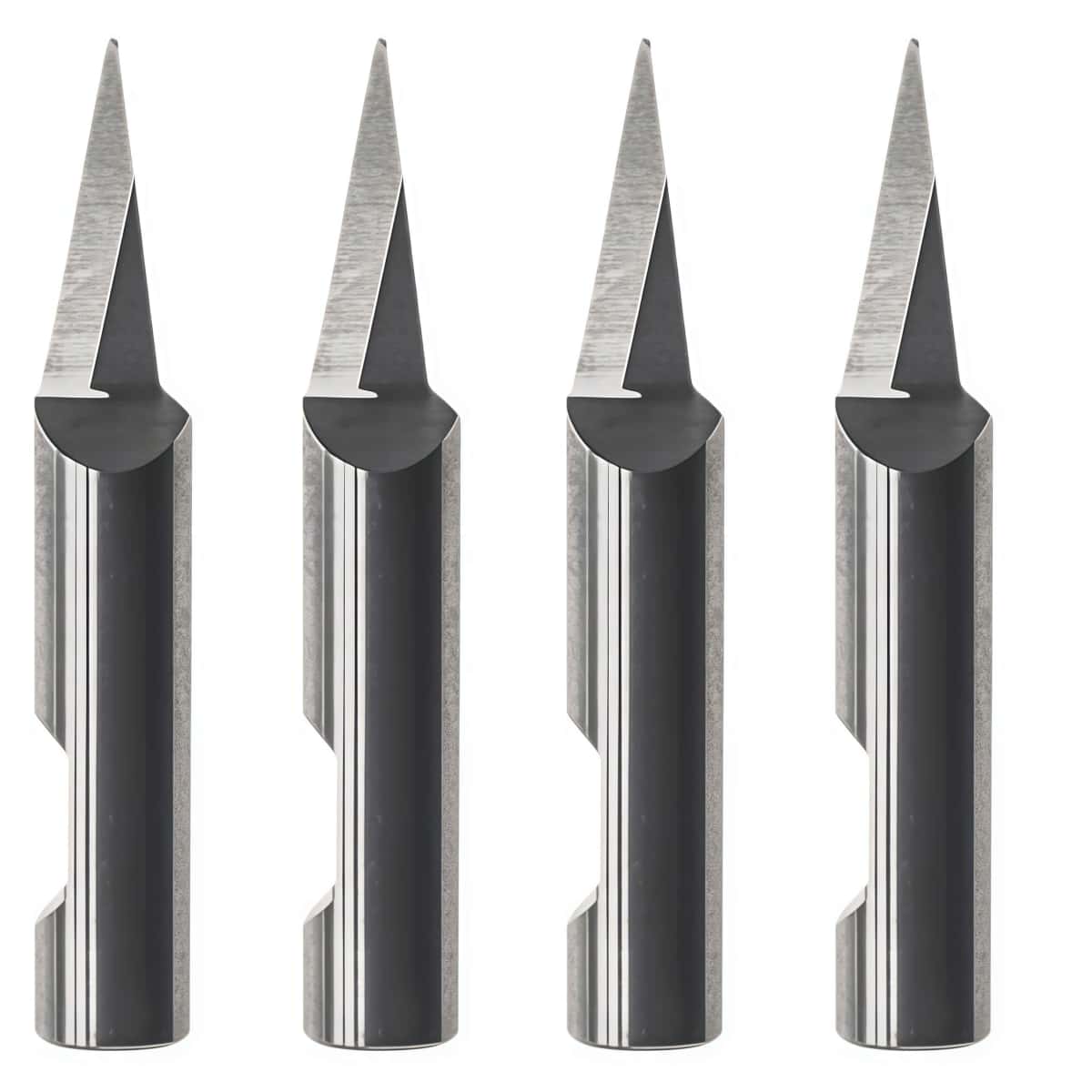

AXYZ BT-57267 (B1041L-10 KR1-10) is an industrial solid tungsten carbide single-edge oscillating knife blade engineered specifically for AXYZ CNC routers equipped with oscillating knife units.
Enquire now
Axyz Bt-57267 B1041l-10 KR1-10 Cnc Routers Industrial Tungsten Carbide Cutting Knife Blades

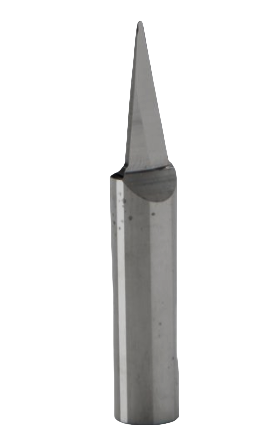

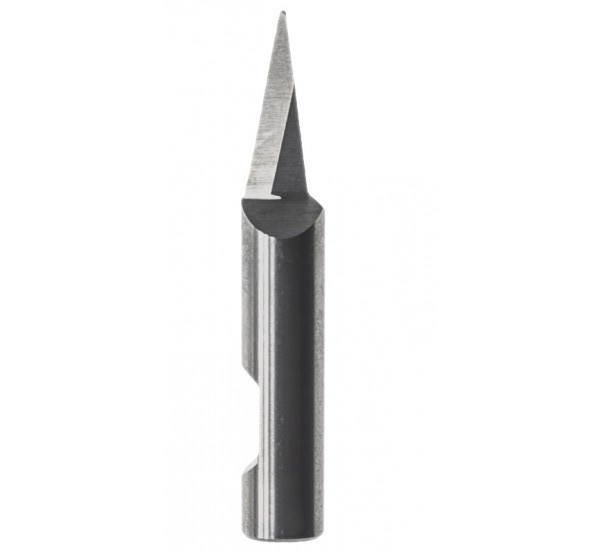

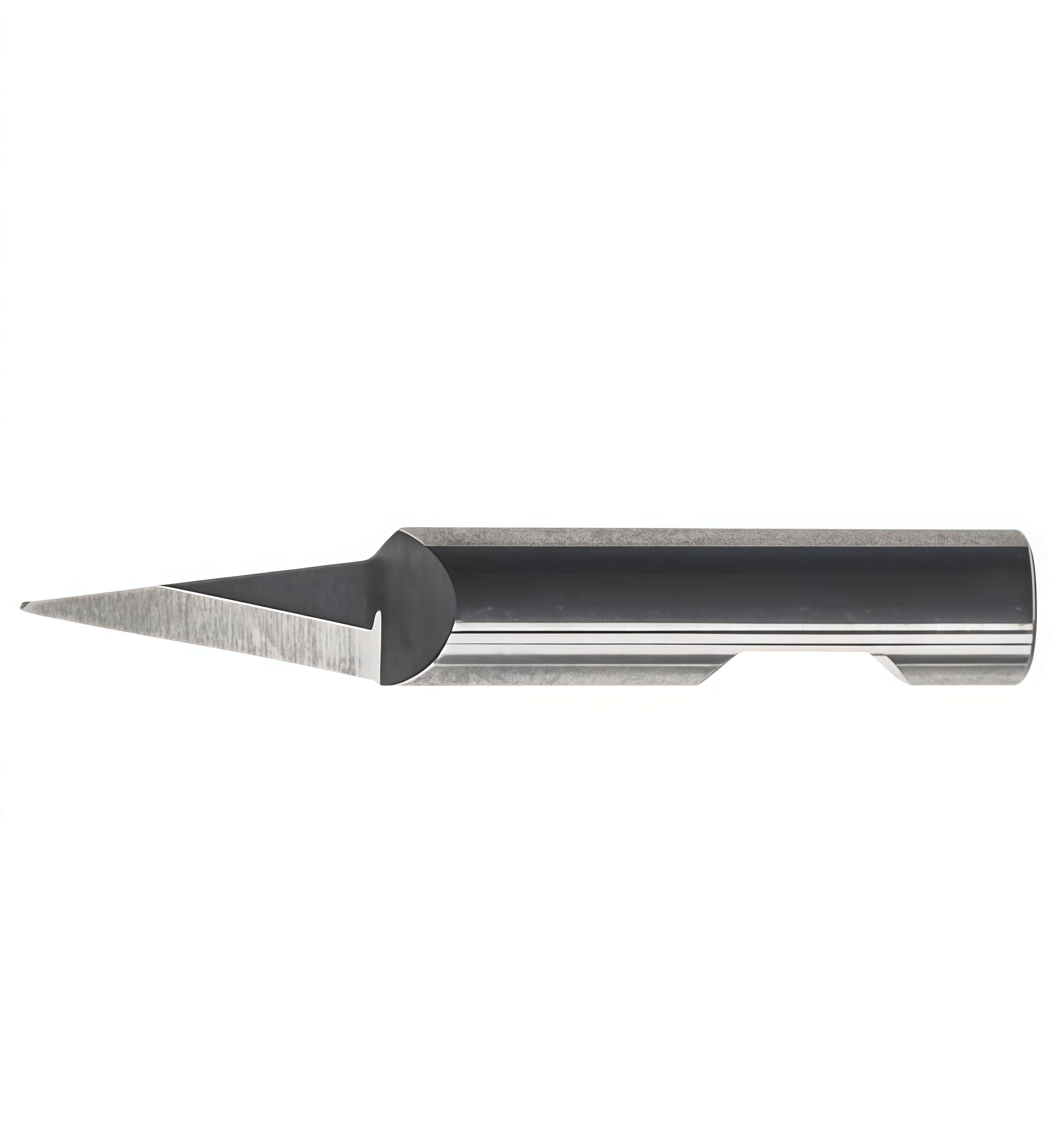

The Axyz BT-57267 (also known by the model number B1041L-10) is a professional-grade oscillating knife blade designed specifically for the Axyz Oscillating Knife tool. It features a round shank and a pointed, rounded tip geometry, making it ideal for cutting intricate details and curves in softer materials.
Description:
10mm Round Point Oscillating Knife. For cardboard, rubber, and softer materials. This blade has a round point.
Technical Specs:
Oscillating Knife
Round Point
Cardboard, rubber, and softer materials

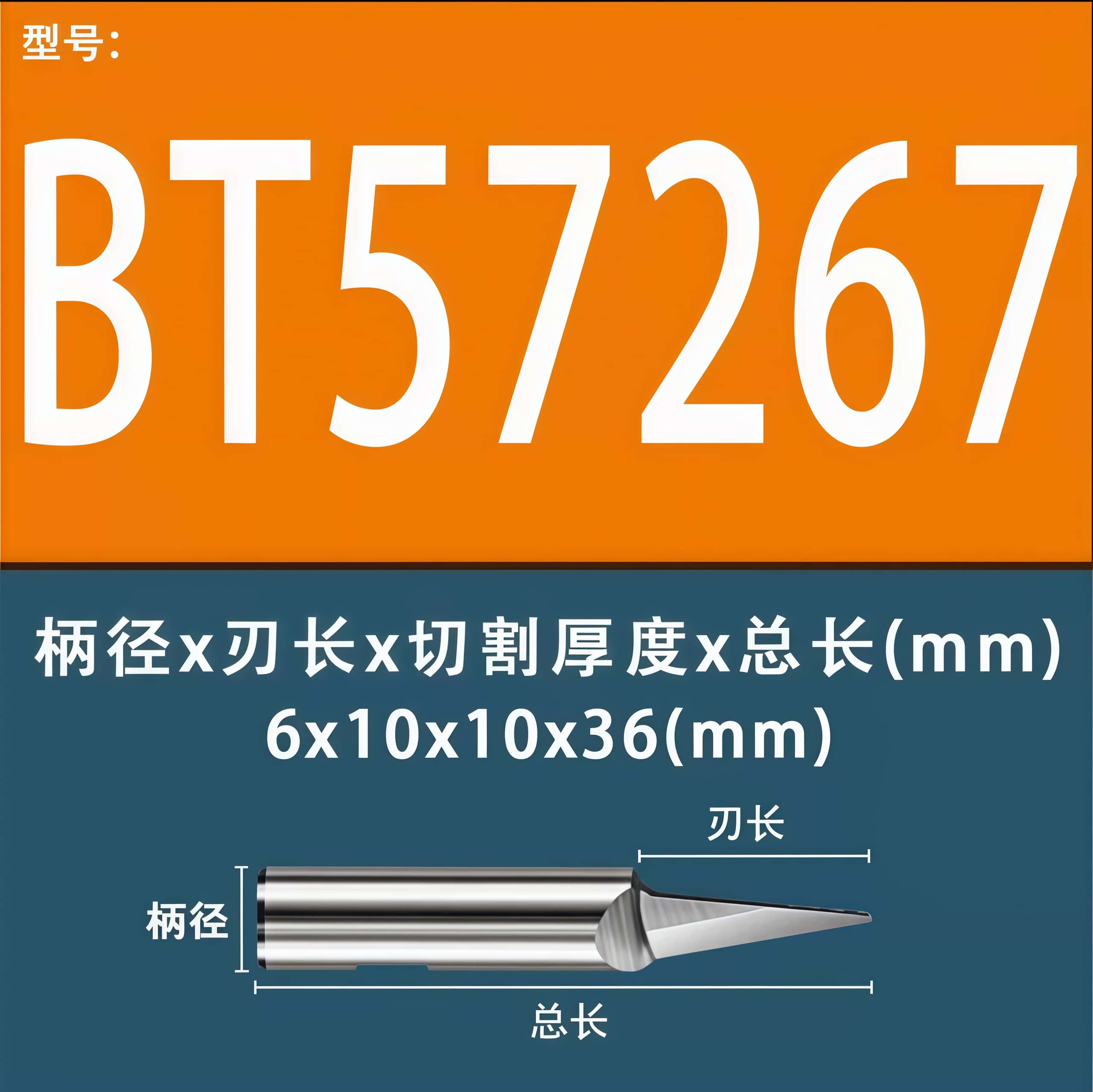

Rated Length 10.00mm
Cutting Edge Length 14.41mm
Overall Length 36.01mm
BT-57267
Extended Information:
Knife Oscillating
equivalent to: BT-57267 Aristo 7267, Aristo 000007267, Aristo 0000 07267, ARISTO 7181,000007181,0000 07181,MultiCam 84-00193-BT-57267, MultiCam 003612-MC7267, AXYZ B1041L-10
Description:
10mm Round Point Oscillating Knife. For cardboard, rubber, and softer materials. This blade has a round point.
Technical Specs:
Oscillating Knife
Round Point
Cardboard, rubber, and softer materials
Rated Length 10.00mm
Cutting Edge Length 14.41mm
Overall Length 36.01mm
BT-57267
Extended Information:
Knife Oscillating
equivalent to: BT-57267 Aristo 7267, Aristo 000007267, Aristo 0000 07267, ARISTO 7181,000007181,0000 07181,MultiCam 84-00193-BT-57267, MultiCam 003612-MC7267, AXYZ B1041L-10
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

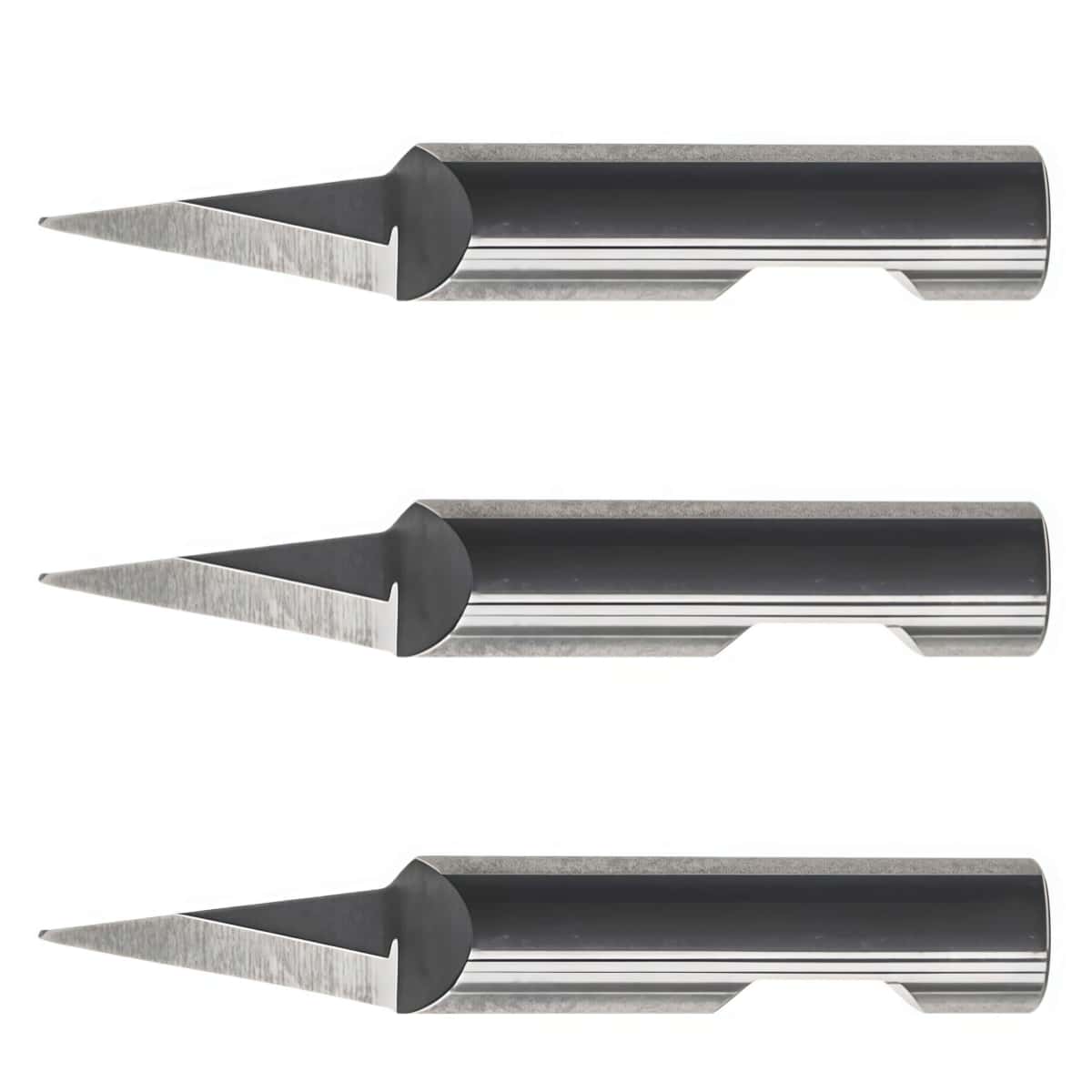

How to Choose Axyz BT-57275 BT-57267 BT-57265 BT-57269 BT-57268 Tungsten Steel Oscillating Knife Blades
Choosing the right AXYZ tungsten steel oscillating knife blade primarily hinges on the thickness of the material you need to cut. All models come with a standard 6mm round shank and a round point/center tip made from solid tungsten carbide steel, ensuring they last long when cutting flexible, fibrous, or soft materials.

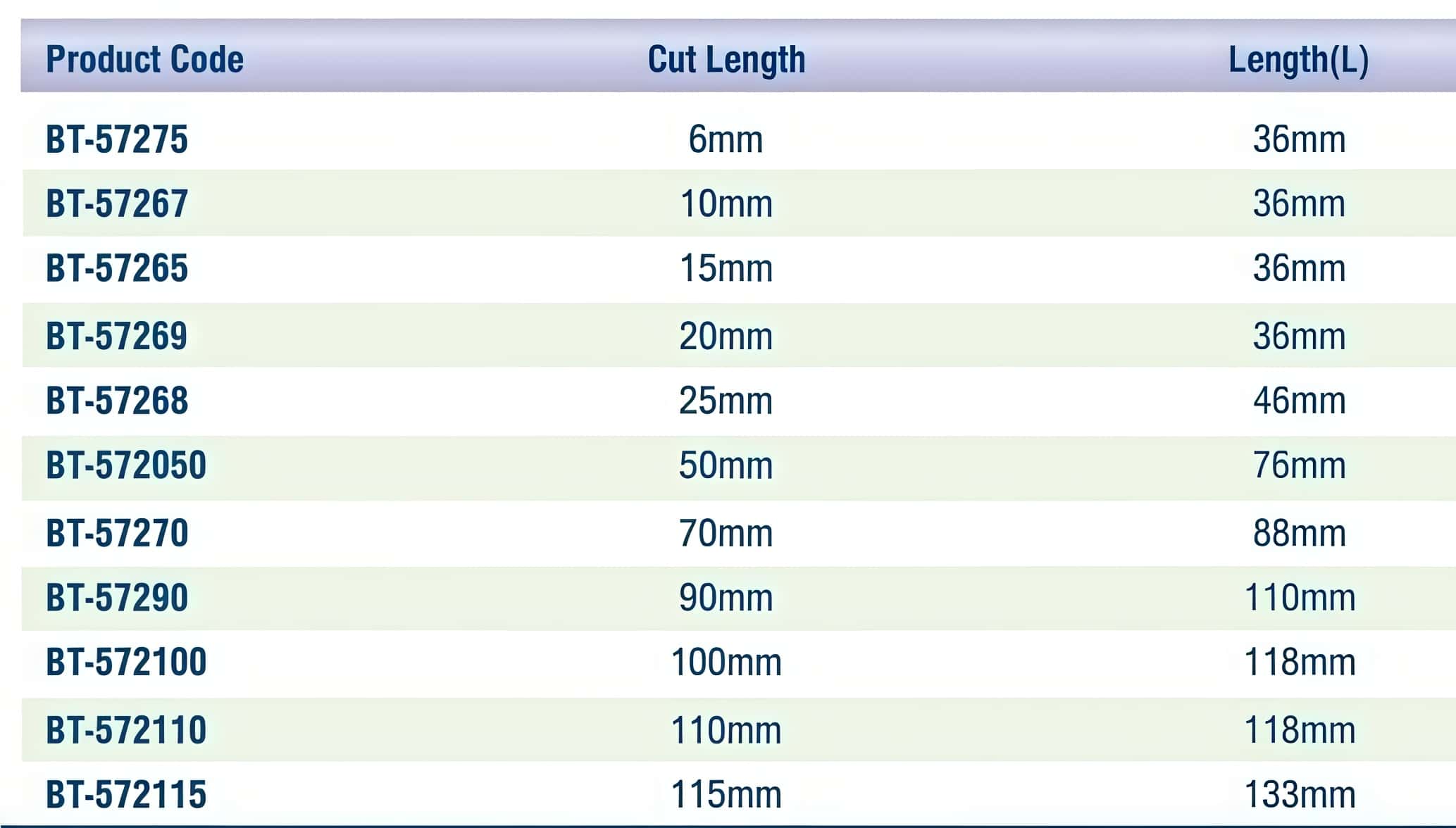

Step 1: Select by Material Thickness (Cut Length)
The main difference among the part numbers listed is the maximum depth of cut (Cut Length):
- BT-57275 (6mm Cut Length): Ideal for thin materials under 6mm thick, such as thin solid cartons, standard gaskets, vinyl, or light paperboard.
- BT-57267 (10mm Cut Length): Best for medium-thin materials up to 10mm deep, including thin corrugated board, dense rubber sheets, or heavy folding cartons.
- BT-57265 (15mm Cut Length): Suitable for medium-thickness substrates up to 15mm thick, like standard corrugated cardboard, Coroplast (corrugated plastic), and soft rubber.
- BT-57269 (20mm Cut Length): Designed for materials up to 20mm thick, such as multi-wall corrugated board and thin foam packaging materials.
- BT-57268 (25mm Cut Length): Built for thicker soft substrates up to 25mm (1 inch), like packaging foam, foam board, and thick gasket materials.
Step 2: Match the Blade Specifications to Your Workflow
When deciding between these options, consider these guidelines:
- Pick the shortest length possible: Choose a blade with a cut length closest to your material thickness. Shorter blades reduce deflection and vibration during high-speed oscillation, resulting in cleaner cuts and longer tool life.
- Blade Profile & Shank: Ensure your machine’s unit can accommodate 6mm round shanks. These round-point blades are designed to easily center and deliver clean corners without tearing soft substrates.
- Cross-Brand Compatibility: If you work with different CNC systems, note that these blades are often compatible with MultiCam, Aristo, and Kuris machines (e.g., BT-57267 corresponds to Aristo 7267 or MultiCam 84-00193-BT-57267).
Key Recommendations Summary
- For Corrugated Plastic & Cardboard: Opt for BT-57267 or BT-57265.
- For Packaging Foams & Thick Rubber: Choose BT-57269 or BT-57268.
- For Thin Gaskets & Paperboard: Select BT-57275.
Choosing the right AXYZ tungsten steel oscillating knife blade primarily hinges on the thickness of the material you need to cut. All models come with a standard 6mm round shank and a round point/center tip made from solid tungsten carbide steel, ensuring they last long when cutting flexible, fibrous, or soft materials.
Step 1: Select by Material Thickness (Cut Length)
The main difference among the part numbers listed is the maximum depth of cut (Cut Length):
- BT-57275 (6mm Cut Length): Ideal for thin materials under 6mm thick, such as thin solid cartons, standard gaskets, vinyl, or light paperboard.
- BT-57267 (10mm Cut Length): Best for medium-thin materials up to 10mm deep, including thin corrugated board, dense rubber sheets, or heavy folding cartons.
- BT-57265 (15mm Cut Length): Suitable for medium-thickness substrates up to 15mm thick, like standard corrugated cardboard, Coroplast (corrugated plastic), and soft rubber.
- BT-57269 (20mm Cut Length): Designed for materials up to 20mm thick, such as multi-wall corrugated board and thin foam packaging materials.
- BT-57268 (25mm Cut Length): Built for thicker soft substrates up to 25mm (1 inch), like packaging foam, foam board, and thick gasket materials.
Step 2: Match the Blade Specifications to Your Workflow
When deciding between these options, consider these guidelines:
- Pick the shortest length possible: Choose a blade with a cut length closest to your material thickness. Shorter blades reduce deflection and vibration during high-speed oscillation, resulting in cleaner cuts and longer tool life.
- Blade Profile & Shank: Ensure your machine’s unit can accommodate 6mm round shanks. These round-point blades are designed to easily center and deliver clean corners without tearing soft substrates.
- Cross-Brand Compatibility: If you work with different CNC systems, note that these blades are often compatible with MultiCam, Aristo, and Kuris machines (e.g., BT-57267 corresponds to Aristo 7267 or MultiCam 84-00193-BT-57267).
Key Recommendations Summary
- For Corrugated Plastic & Cardboard: Opt for BT-57267 or BT-57265.
- For Packaging Foams & Thick Rubber: Choose BT-57269 or BT-57268.
- For Thin Gaskets & Paperboard: Select BT-57275.
