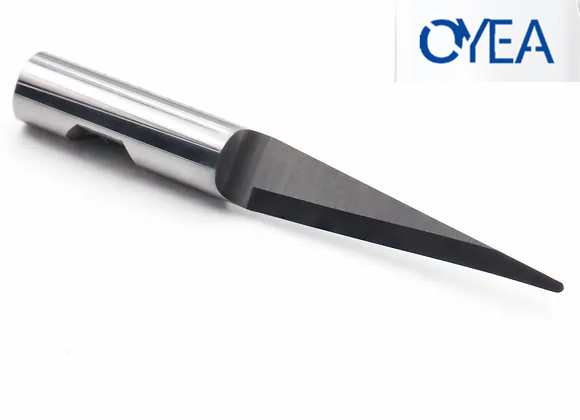

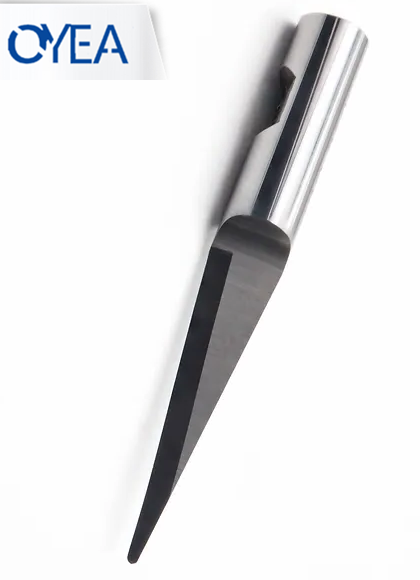

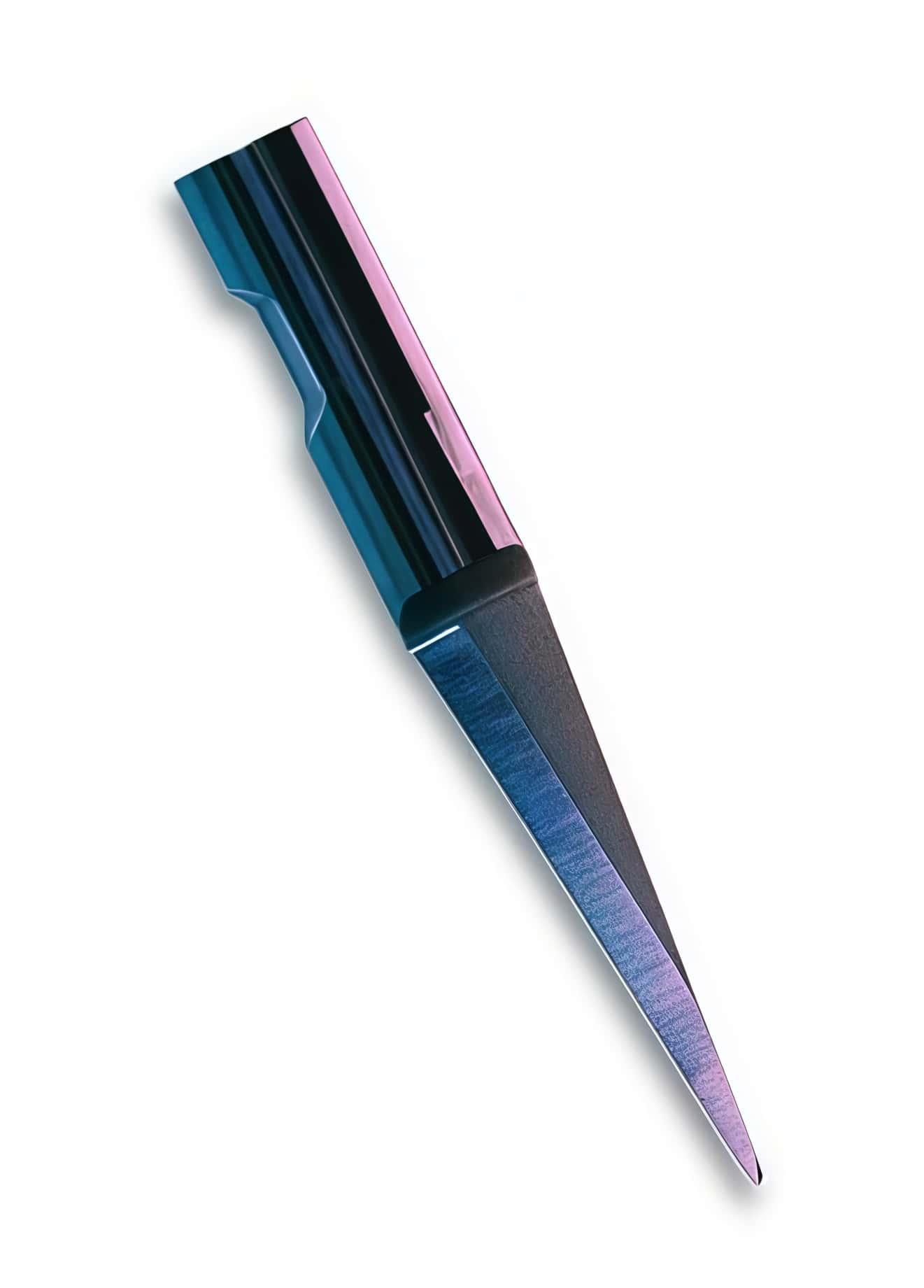

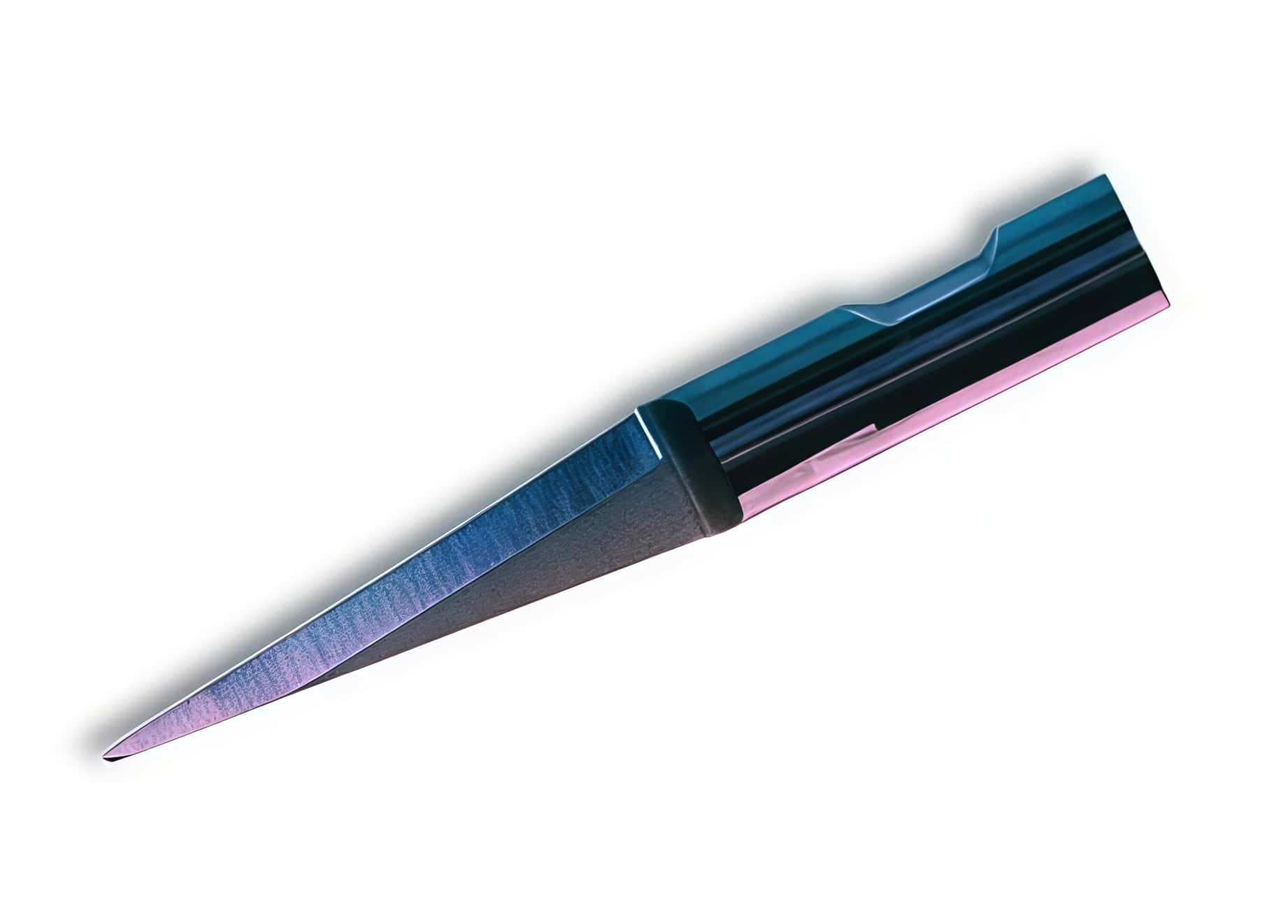

Axyz Bt-57268 B1041l-25 KR1-25 Cutting Machines Carbide Vibrating Cutting Knife Blades

Axyz BT-57268(B1041L-25 KR1-25) is a professional-grade carbide vibrating insert designed specifically for CNC cutting machines.It is widely used in AXYZ and MultiCam CNC vibratory cutter head systems for high-precision cutting of various soft and medium-density flexible materials Enquire now

Description

Axyz Bt-57268 B1041l-25 KR1-25 Cutting Machines Carbide Vibrating Cutting Knife Blades

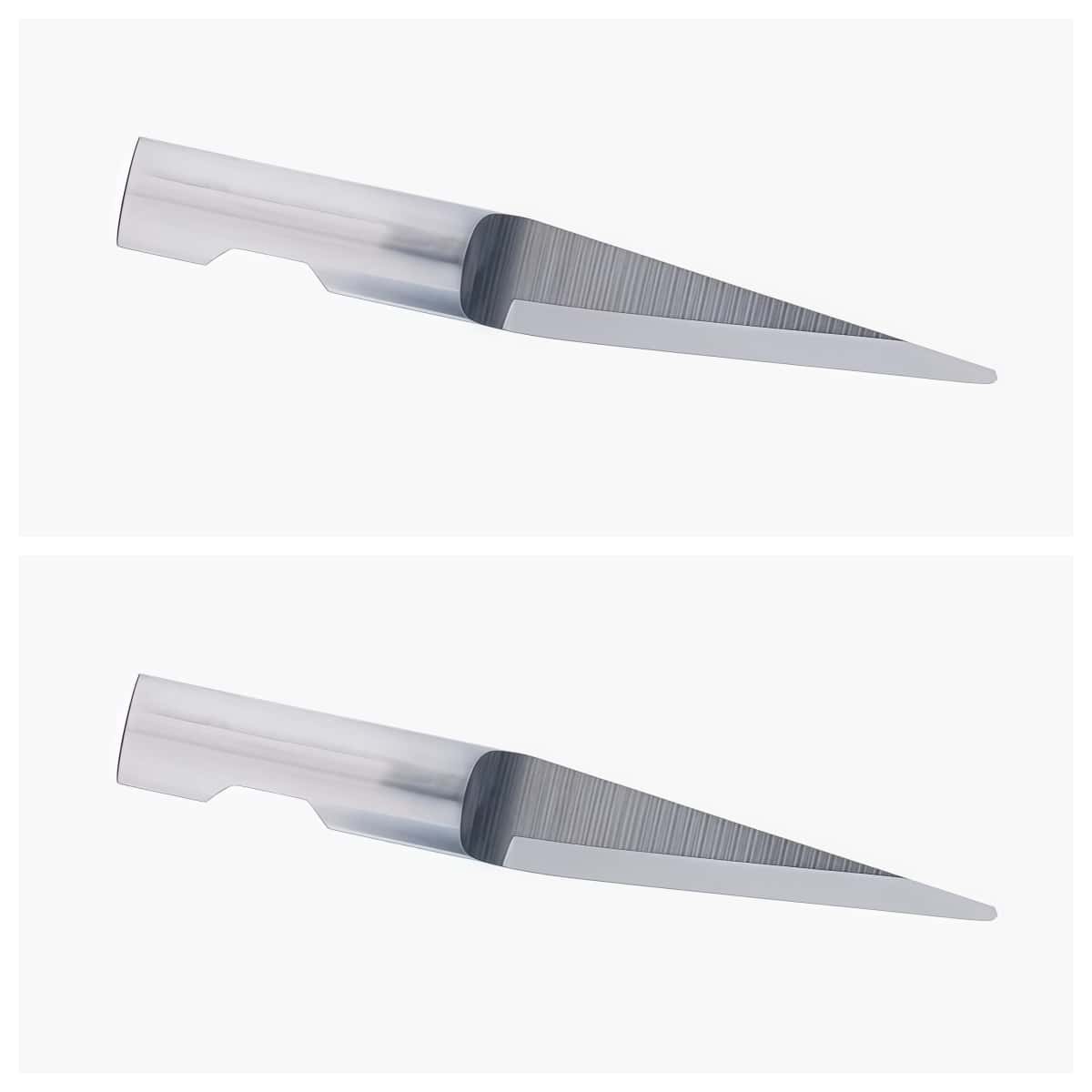

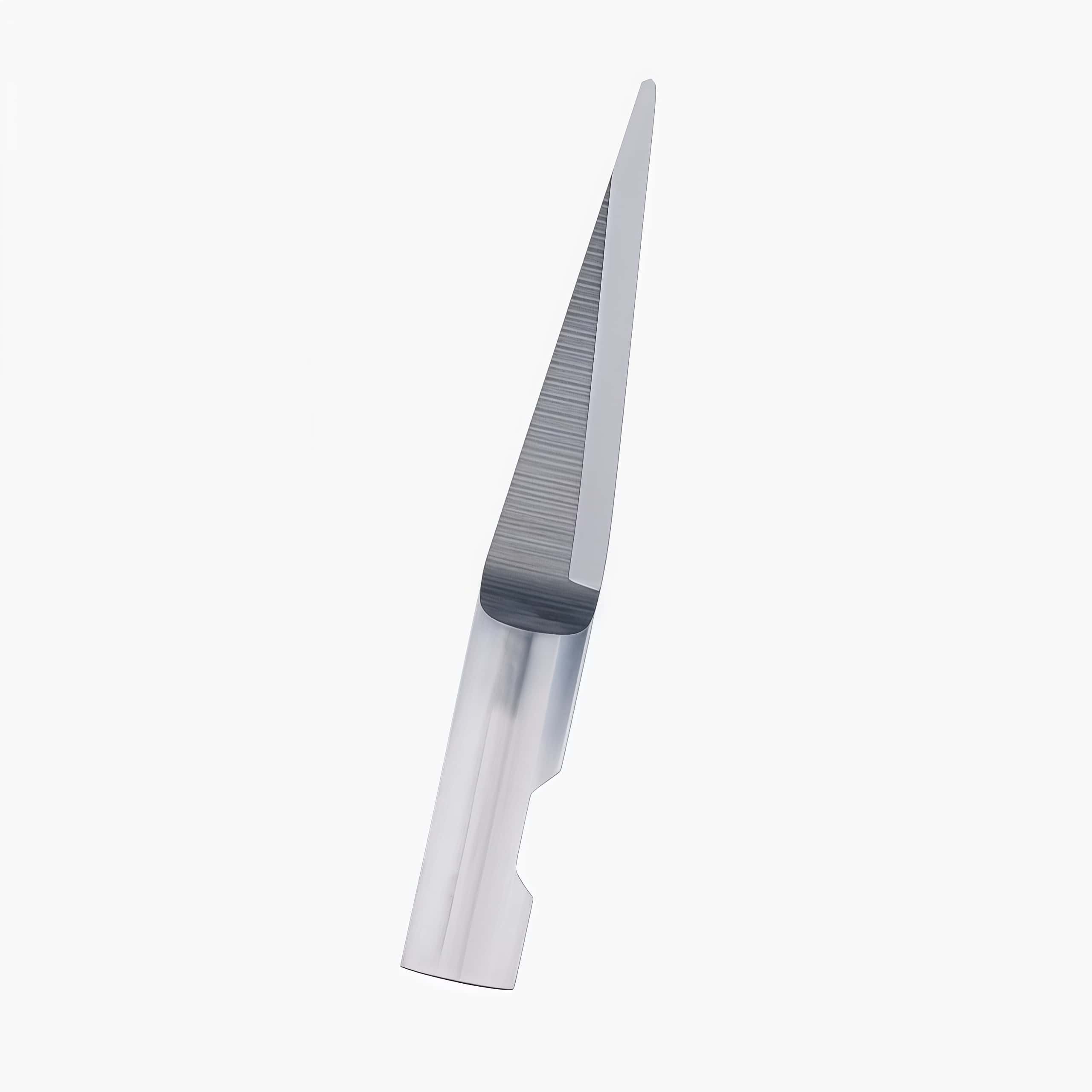

Axyz Bt-57268 B1041l-25 Cutting Machines Carbide Vibrating Cutting Knife Blades

The Axyz BT-57268 (Model B1041L-25) is a professional-grade oscillating knife blade designed for high-precision CNC cutting. Constructed from solid tungsten carbide, this blade is engineered for durability and clean finishes in high-volume production environments.

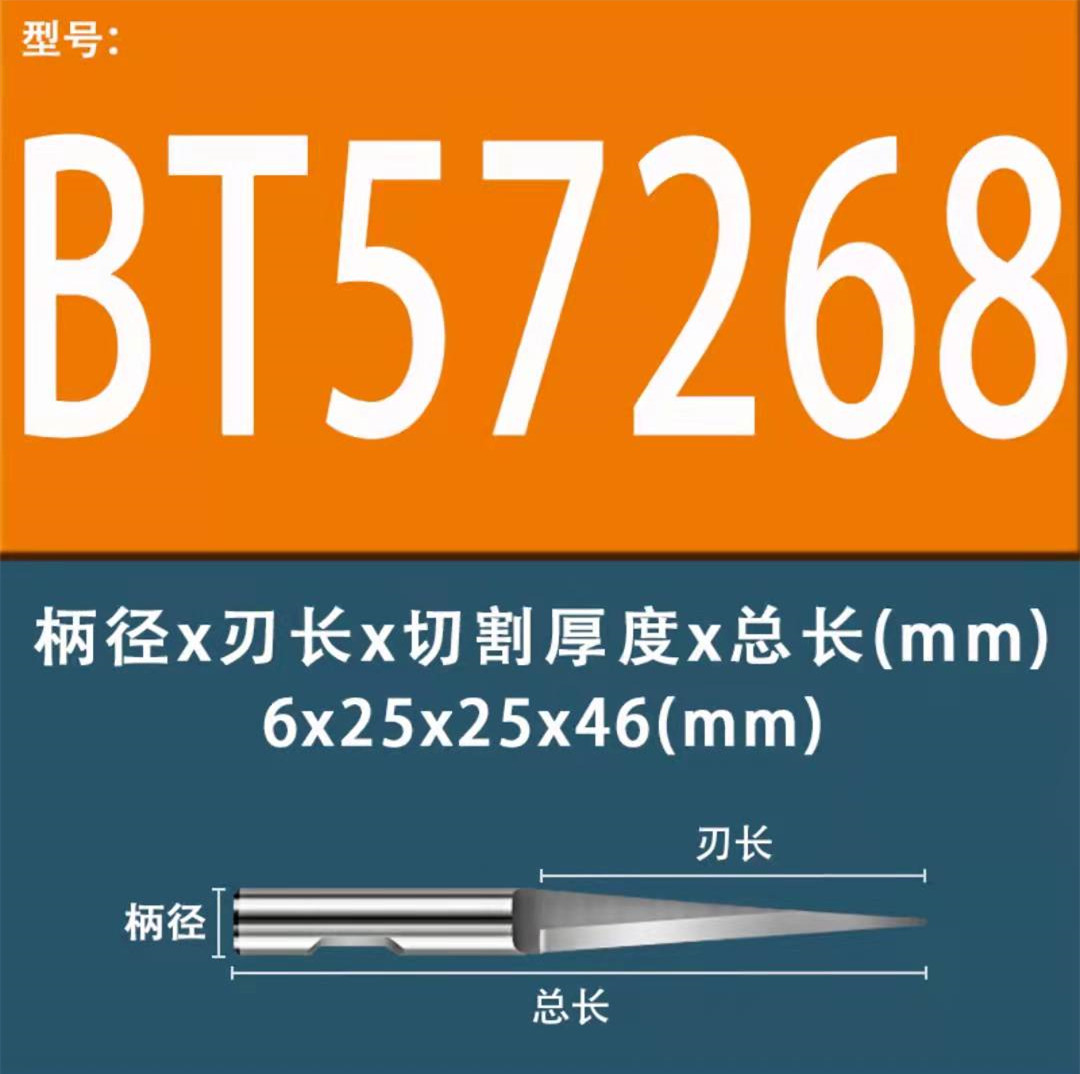

Core Technical Parameters
Maximum cutting depth : 25.00 mm
Overall Length : 46.00 mm
Mounting Style : Round Shank, typically 6.00 mm in diameter.
Point Type : Round Point/Point Shaft, Single-edged
Cutting Angle : 83.9°

Equivalent to: XK3025-ORP BT-57268 Aristo 7354, Aristo 000007354, Aristo 0000 07354, MultiCam 84-00193-BT-57268, MultiCam 003612-MC7354 ,AXYZ B1041L-25,Kuris 78558, Valiani 001897

Recommended Applications

It is primarily used in AXYZ oscillating knife tools to cut soft or fibrous materials that might otherwise fray. Compatible substrates include:

Cardboard: Corrugated boards and folding cartons.
Rubber: Both standard and softer PUR varieties.
Foam: Soft foams and foam board.
Others: Gaskets, textiles, plastic soft materials, and foils.

Axyz Bt-57268 VS Bt-57268-30 Cutting Machines Carbide Vibrating Cutting Knife Blades

Axyz BT-57268 and BT-57268-30 The most significant difference between the two vibrating cutting inserts lies in their maximum cutting depth and cutting angle .

They share the same physical architecture (both are 6mm round shank single-edged round-head vibrating cutters with a fixed flatness), but are designed for flexible materials of different thicknesses and densities.

Here is a direct technical comparison of the two blades:

Comparison Table of Core Technical Parameters

AXYZ official code

AXYZ official code

MultiCam Interchange Encoding

003612-MC7354(K10 blade)

MultiCam Interchange Encoding

84-00193-BT-57268-30(K12 blade)
