Axyz Bt-57275 B1041l-6 KR1-6 Round Shank Point Oscillating Knife Blades

AXYZ BT-57275 (B1041L-6 KR1-6) is a 6mm round shank, round point oscillating knife blade designed for CNC knife tools and digital cutting equipment. Enquire now

Description

Axyz Bt-57275 B1041l-6 KR1-6 Round Shank Point Oscillating Knife Blade

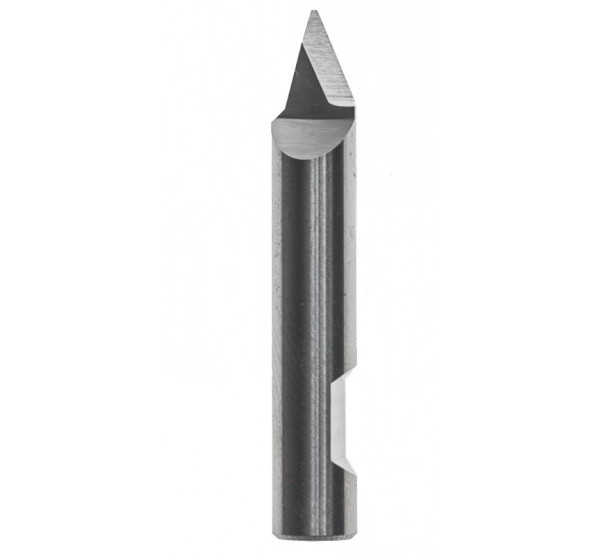

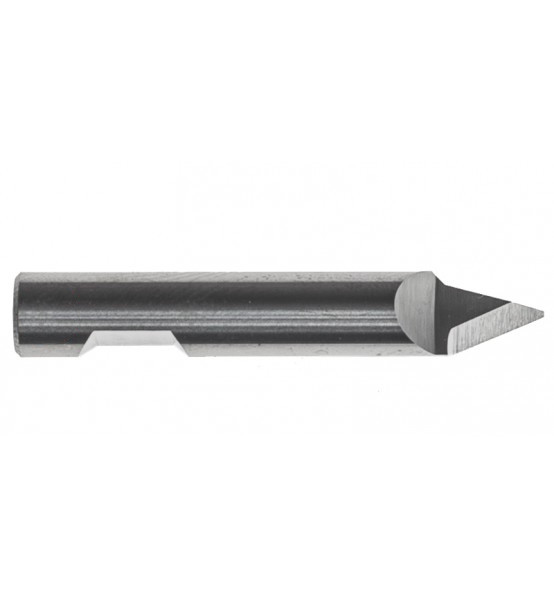

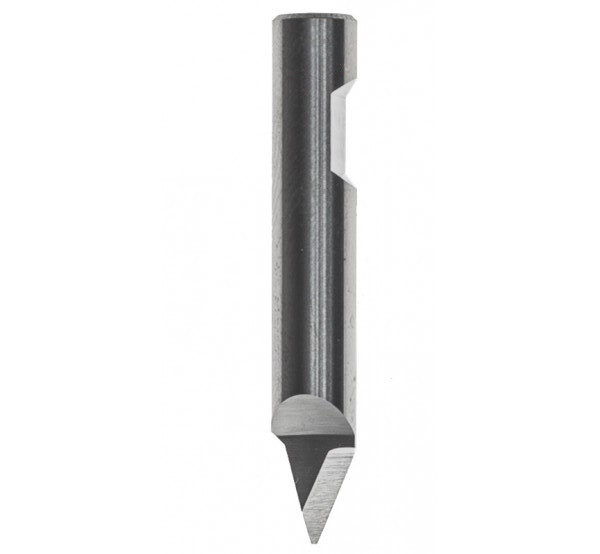

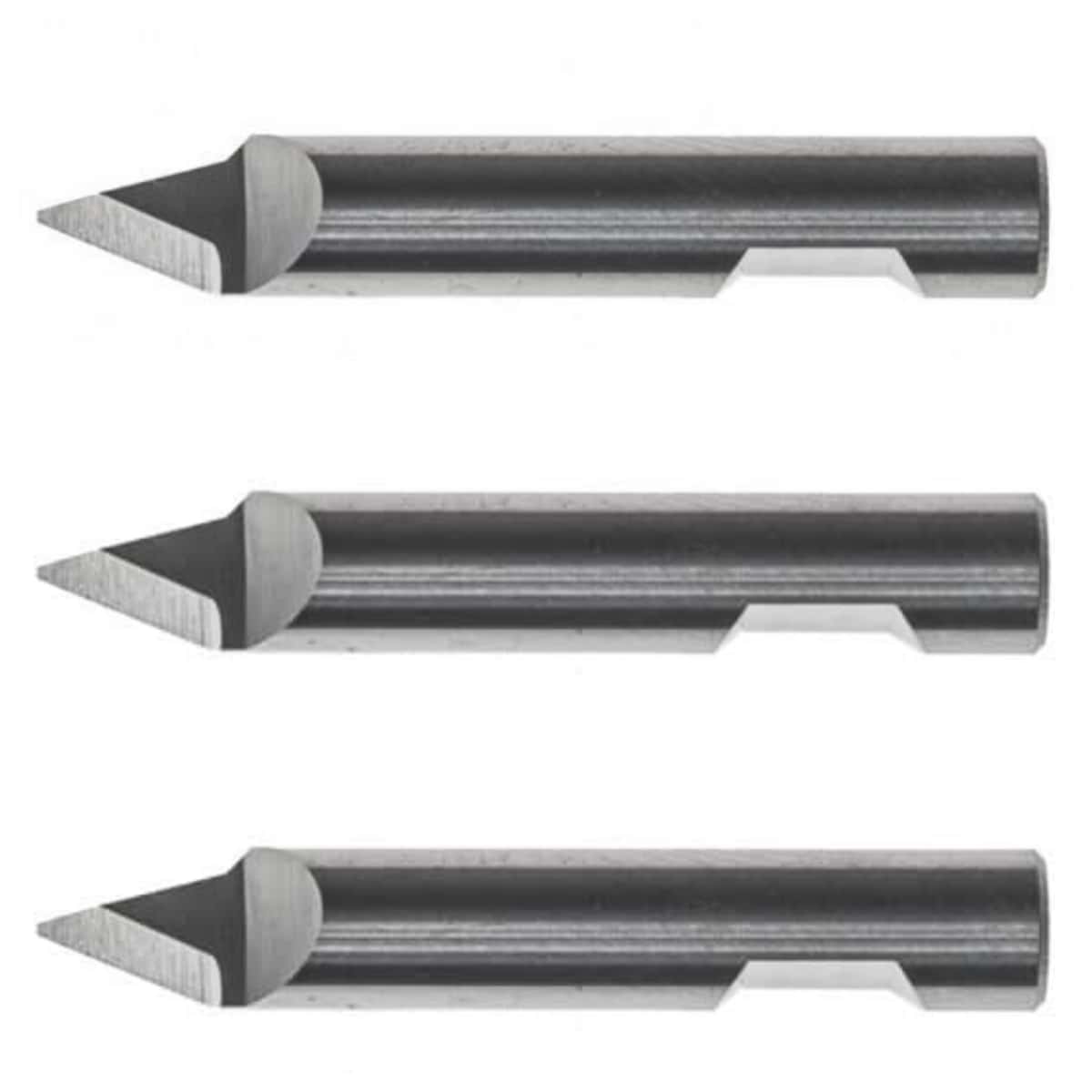

Axyz BT-57275 (B1041L-6) is a professional-grade, solid tungsten carbide round shank point oscillating knife blade engineered specifically for high-speed cutting on AXYZ CNC routers and digital cutting tables.

This specific blade geometry is optimized for processing tight curves, small intricate details, and clean edges on flexible or semi-rigid substrates.

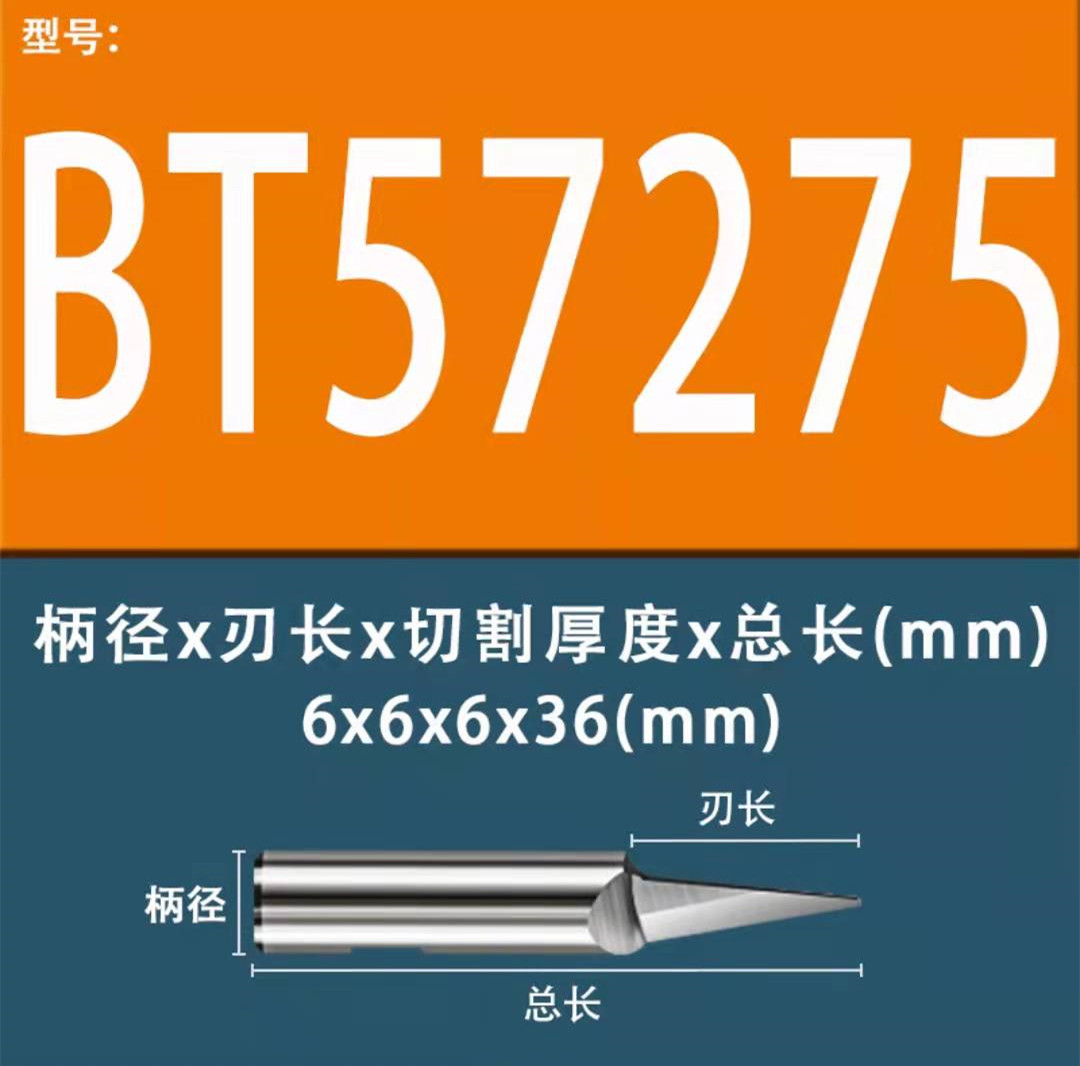

Maximum Cutting Depth:6MM
Shank Diameter:6MM
Overall Length:36MM

Common Applications & Compatible Materials
Packaging & Board: Corrugated cardboard, solid carton, honeycomb board
Gaskets & Rubbers: Soft rubber, foam materials (< 6mm thick), gasket materials
Flexible Substrates: Vinyl, magnetic foils, protective films, and industrial textiles

Equivalent to: Aristo 7275, Aristo 000007275, Aristo 0000 07275, Aristo 0000 07180, Aristo 000007180, Aristo 7180, MultiCam K2 84-00193-BT-57275, AXYZ B1041L-6

These knife blades are designed to fit the

AXYZ Oscillating knife tool. These versatile tools have the ability to cut a wide range of materials and are able to cut small detail and curves. These knife blades are available in different sizes and geometries to handle various materials and thicknesses.

Axyz Bt-57275 Bt-57267 BT-57265 BT-57269 BT-57268 Round Shank Point Oscillating Knife Blades Overview

Axyz BT-57275, BT-57267, BT-57265, BT-57269, and BT-57268 comprise a standardized family of 6mm round shank, single-edged micro-grain tungsten carbide oscillating knife blades designed for industrial digital cutting systems. While they share an identical physical footprint at the mounting shank, they are distinguished primarily by their maximum cutting depth, scaling from detailed 6mm cuts up to deep 25mm extractions

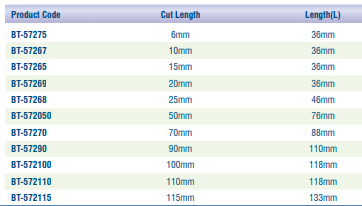

Specification & Selection Comparison

This series belongs to the B1041L industry standard catalog, tracking directly against maximum material thickness. All models feature a 36mm overall length and a 6.0mm round shank (Weldon style flat mount).

Part Number	Axyz Ind. Model	Max Cutting Depth	Best Suited For...	Cross-Reference / Equivalents
BT-57275	B1041L-6	6 mm	Tight, intricate radii; high-detail point cutting	Aristo 7275, MultiCam K2
BT-57267	B1041L-10	10 mm	Thin folding boxboards, single-wall corrugate, standard gaskets	Aristo 7267, MultiCam K4
BT-57265	B1041L-15	15 mm	Most common industry size; double-wall cardboard, rubber	Aristo 7265, MultiCam K6
BT-57269	B1041L-20	20 mm	Triple-wall corrugate, medium-thickness soft foams	MultiCam K8
BT-57268	B1041L-25	25 mm	Deep cuts, thick packaging foams, honeycomb boards	Aristo 7354, MultiCam K10
