SUMMA 500-9825 F Series POT Pneumatic Oscillating V‑Cut / Bevel‑Cut Tool Knives Knife Blades

Summa 500-9825 is a high-grade 0.9 mm Tungsten Carbide V-Cut flat knife blade manufactured for Summa F Series flatbed digital cutters
Enquire now

Description

SUMMA 500-9825 Replacement V-Cut Knife Blade For Sale Shop

Summa 500-9825,Summa 500-0825,Summa F Series Blades,Summa POT Blades,Summa V‑Cut Blade,Summa Bevel‑Cut Blades,Summa Knives,Summa Blades,Summa Pneumatic Blades,Summa Tool

Summa 500-9825 isA carbide (tungsten carbide) V-shaped kerf flat blade designed specifically for Summa F series digital flatbed cutters..

Quick Reference for Core Parameters

Nnumber : 500-9825
Blade thickness : 0.9 mm
Material and process : High-density cemented carbide, which has extremely high wear resistance and edge sharpness.
Cutting depth : Maximum cutting depth of 18 mm to 27 mm (depending on material hardness and machine configuration).

Tool module allocation

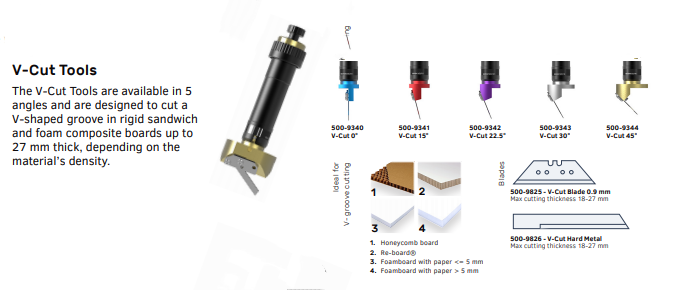

Primarily used in V-Cut Tool (VCT) modules : This blade is designed for vibration-free, high-cutting-force V-groove cutting heads. By cutting precise beveled grooves (15°, 22.5°, 30°, or 45°) into thick cardboard or honeycomb panels, rigid sheets can be perfectly folded into 3D display stands or packaging boxes.
Misconceptions about POT (pneumatic vibratory cutter) : Many third-party blade suppliers often label it as "POT/V-Cut universal". Although its flat shank slot can accommodate pneumatic vibratory tools, the cutting edge geometry of the 500-9825 is optimized for fixed-angle slotted folds (V-Cut), which can easily cause material tearing or chipping under high-speed vibration.

Applicable material fields

Honeycomb cardboard, environmentally friendly display boards (such as Re-board, X-board)
Heavy-duty packaging corrugated cardboard, double/triple wallboard
PET polyester fiber sound-absorbing panels, thick felt
Flexible foam core board, KT board and sandwich composite materials

EQUIVALENT TO :
Elitron no. 61329 , Axyz 61329 , Zund Z73 , Esko Kongsberg BLD-TZ129 , Jwei J351 , Summa 500-9825

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
