Esko Kongsberg 3mm Super Sharp Down Cut Milling & Router Bits

Esko Kongsberg 3mm Super Sharp Down Cut Milling & Router Bits are industrial-grade solid carbide tools engineered specifically for Kongsberg Precision Cutting Systems flatbed finishers. Belonging to the specialized 3mm tooling class (often designated with "03" in the shank profile code), these tools… Enquire now

Description

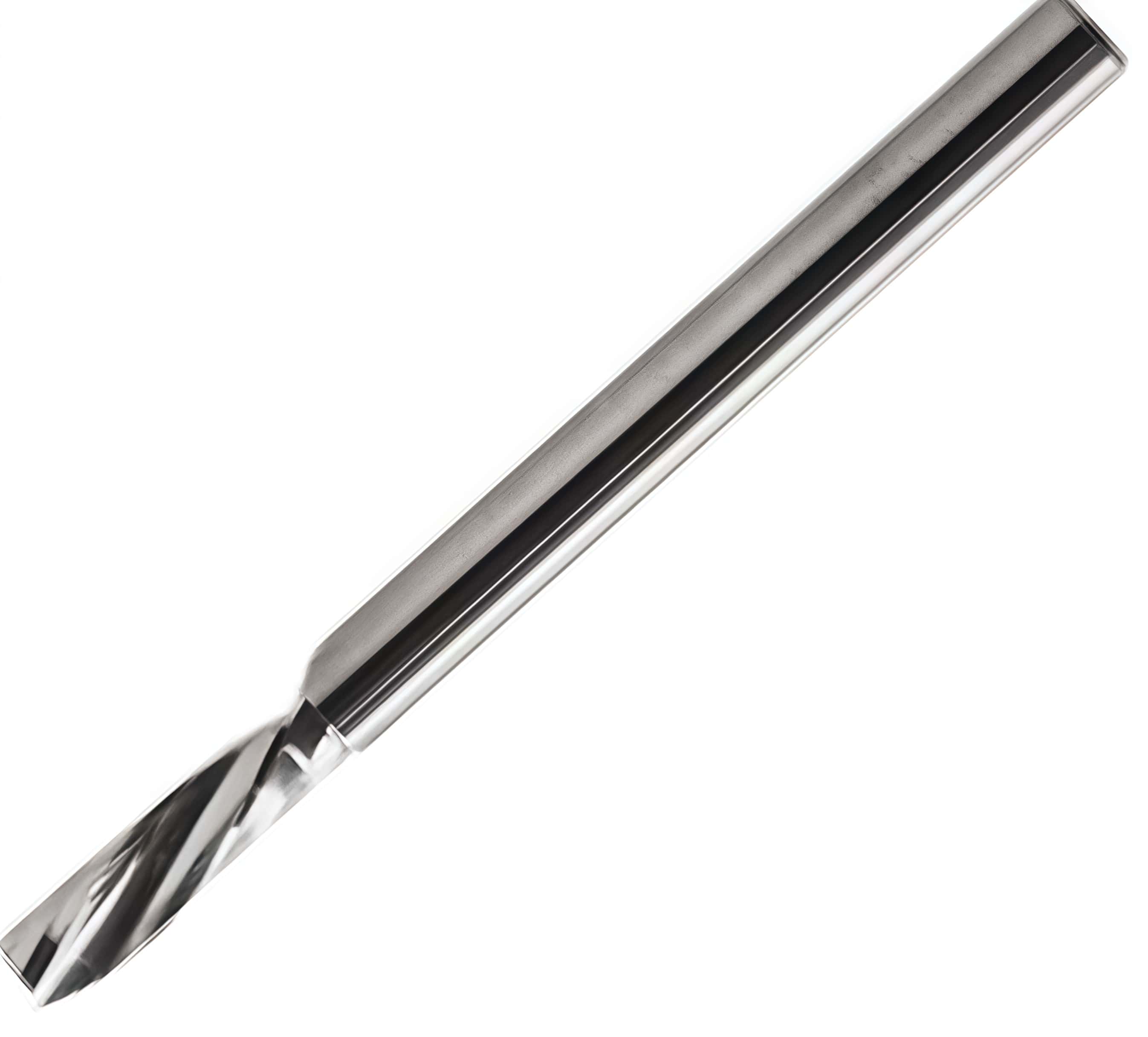

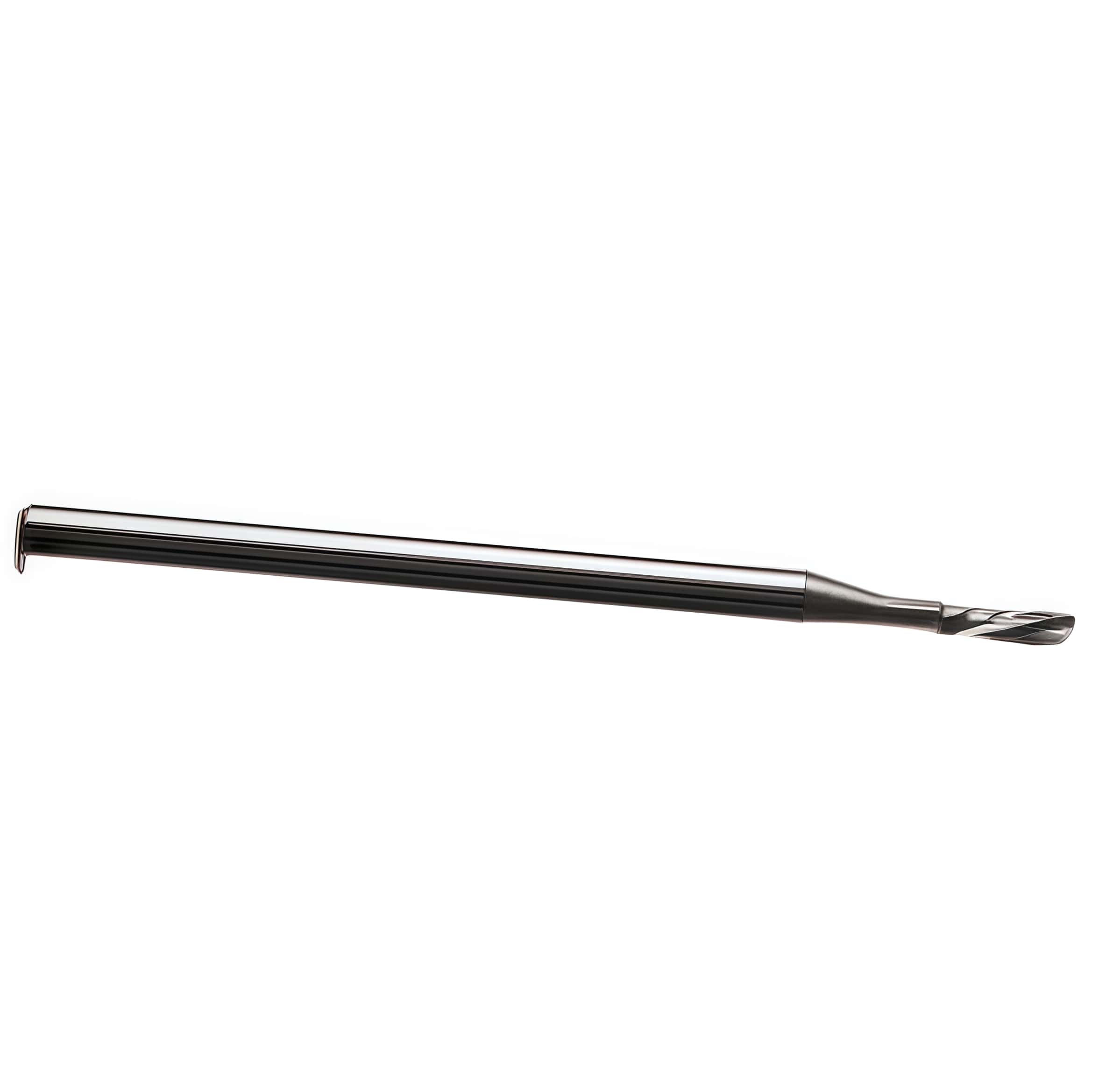

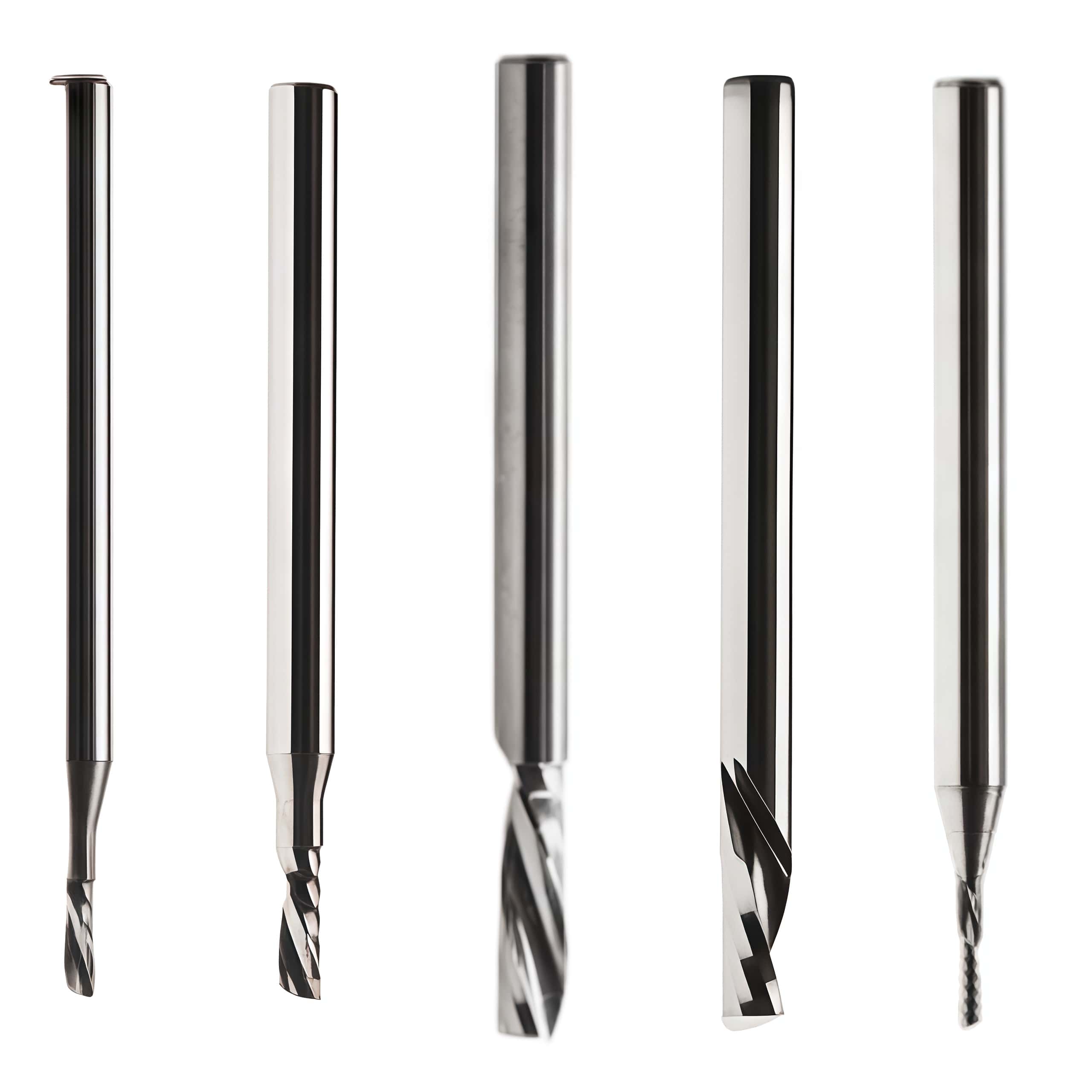

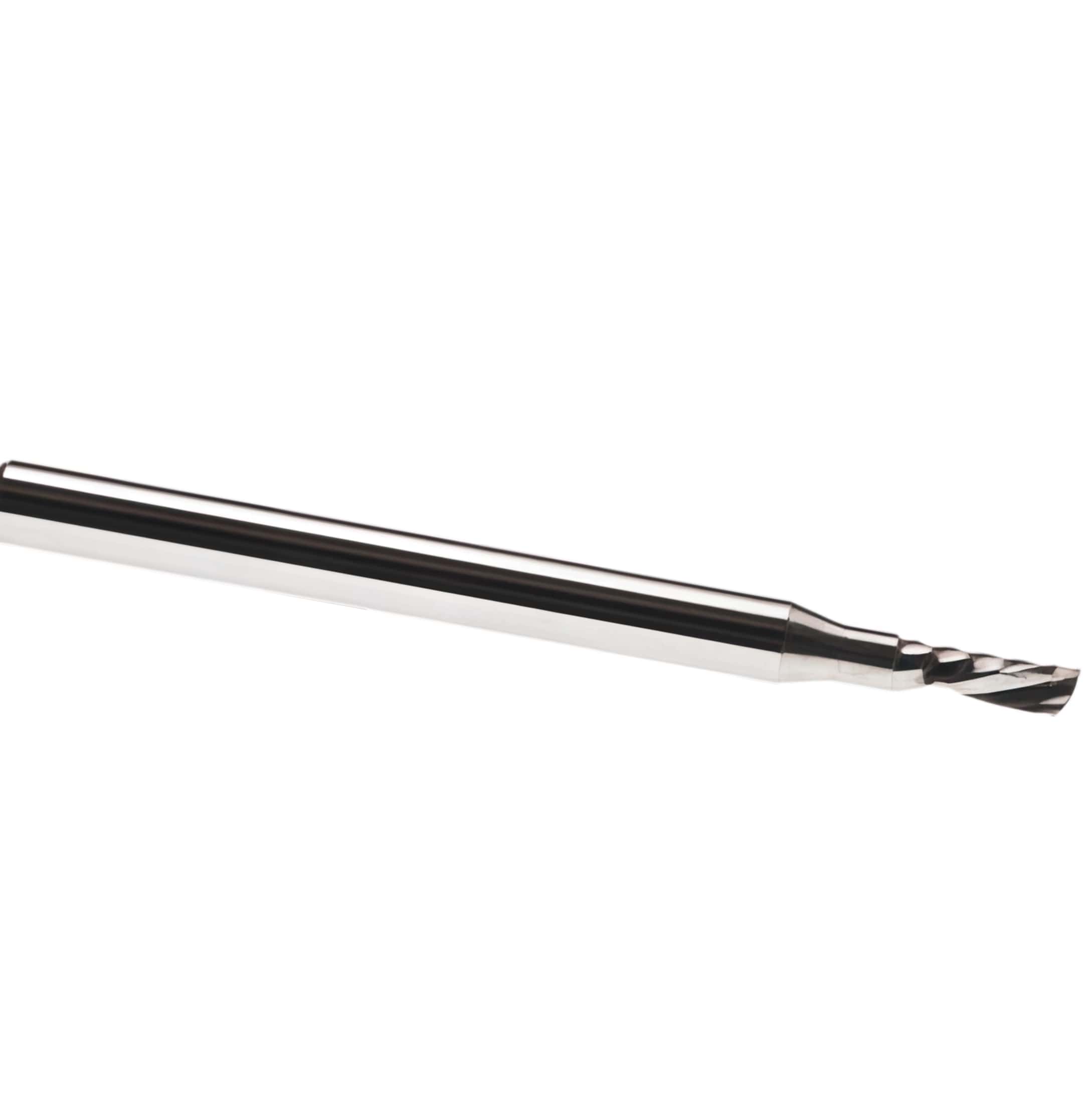

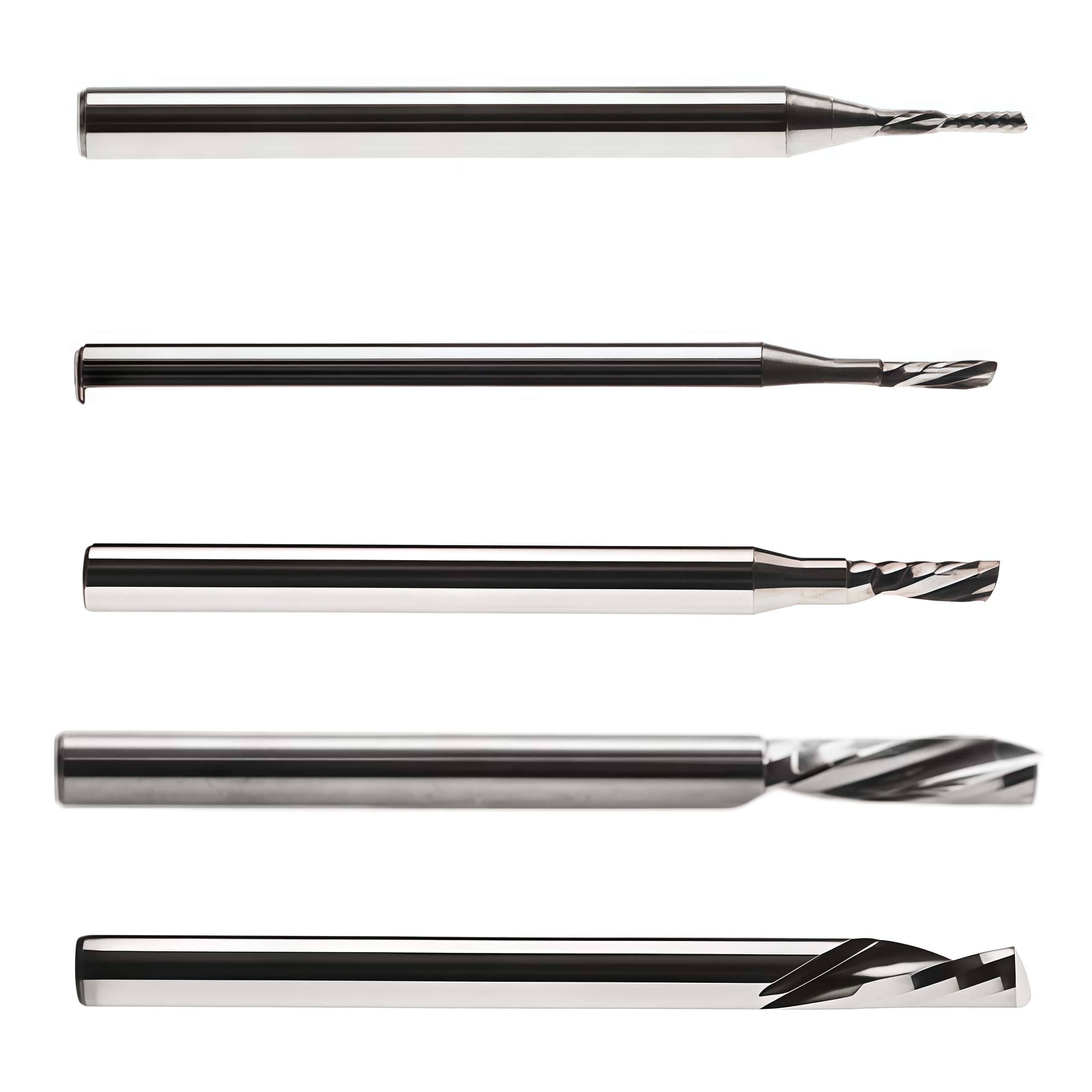

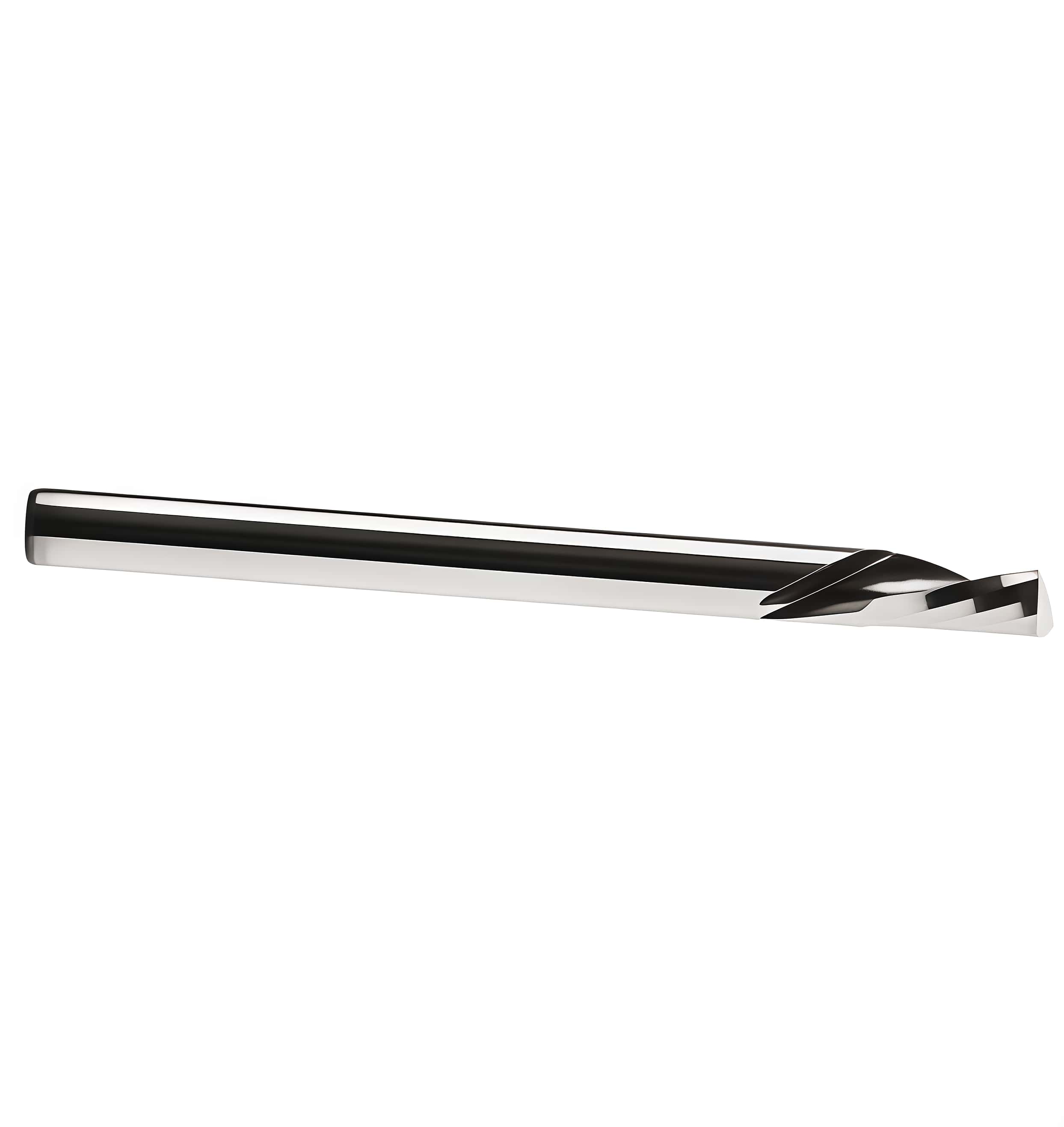

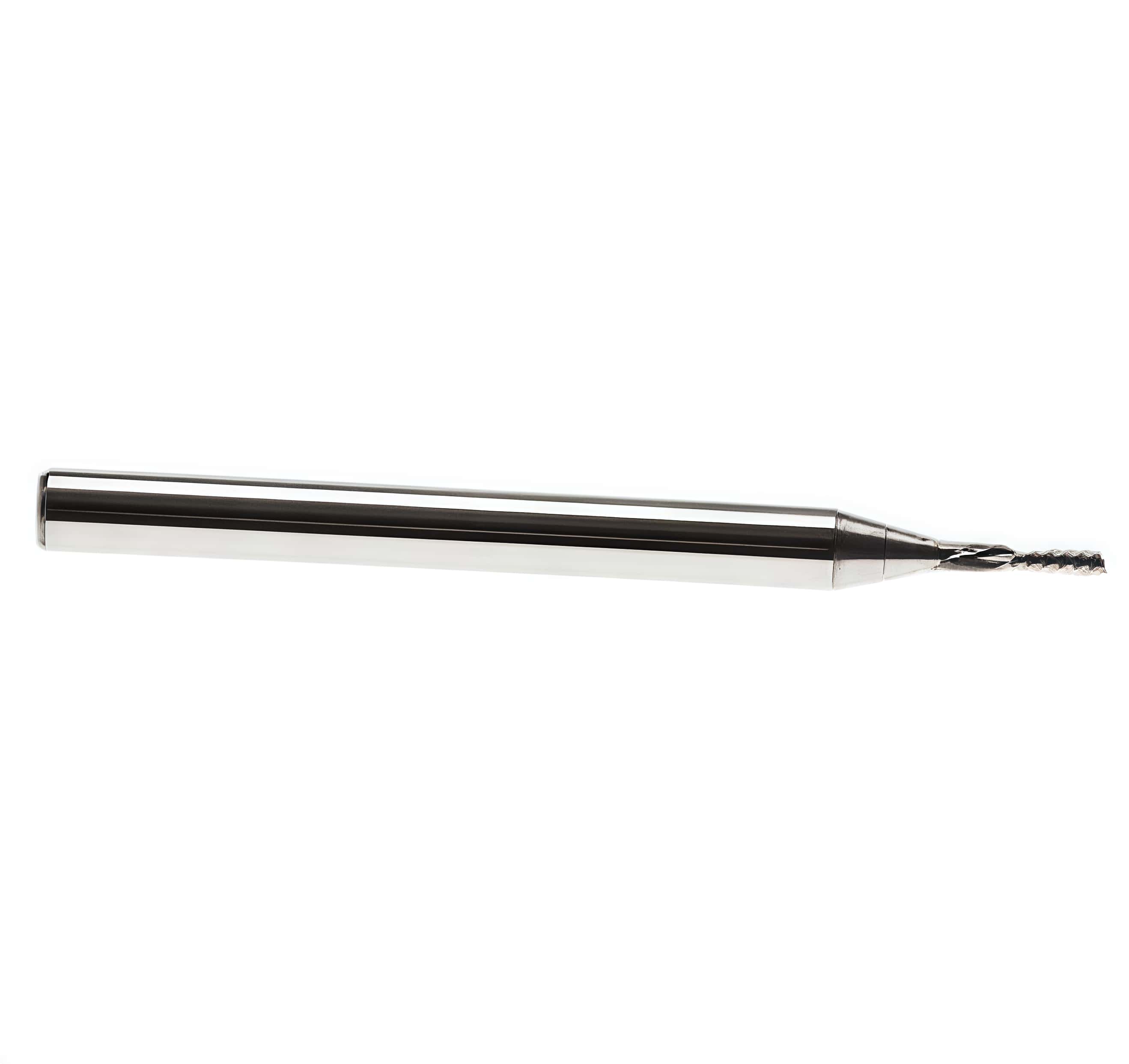

Esko Kongsberg 3mm Super Sharp Down Cut Milling & Router Bits

Understanding the Part Codes

The technical nomenclature used in the ADS series specifies the mechanical attributes of each tool:

BIT-ADS: Single Flute, Acrylic/Plastic Optimization (Down-cut or Up-cut depending on code).
03: 3mm shank diameter.
Next 4 Digits: Represents the cutting diameter and the maximum cutting depth (e.g., 1003 means 1.0mm diameter and 3mm depth; 3011 means 3.0mm diameter and 11mm depth).
38: 38mm overall tool length.

	BIT-ADS03-1003-38 G42449447
	BIT-ADS03-1504-38 G42449454
	BIT-ADS03-1006-38 G42449462
	BIT-ADS03-3011-38 G42449470
	BIT-ADS03-3006-38 G42445981

Key Applications & Material Compatibility

These solid carbide bits are engineered to maintain high-polish flutes that clear out chips efficiently, preventing melting or edge chipping. They are highly recommended for:

Signage & Displays: Polished acrylics, expanded PVC, and polystyrene.
Composite Materials: Aluminum Composite Materials (ACM / Dibond) and soft aluminum sheets.
Woodworking: Fine engraving or cutting on MDF, solid wood, and veneered boards.
Automated Support: These bits are designed to match the automated barcode tool recognition system native to the Kongsberg X-Series and C-Series platforms.
