Zund R24 3910704 Spiral Router Bit For Use Zund Cutting Systems

If you're in the market for CNC milling and router bits, the Zund R24 series could be worth your attention. Known for its precision and versatility, the Zund R24 CNC milling and router bits—specifically model 3910704—are gaining traction among professionals for their reliability and efficiency. Enquire now

Description

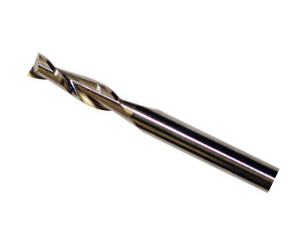

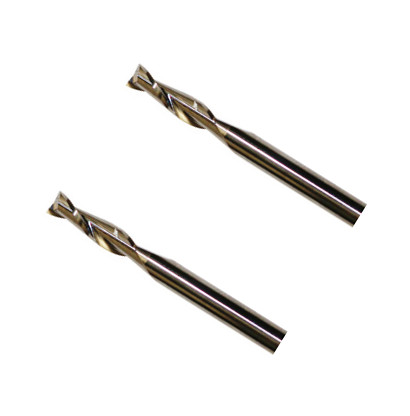

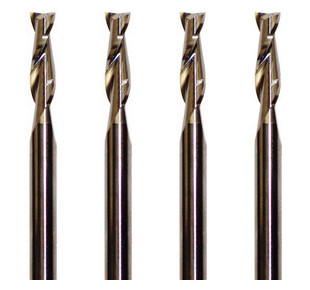

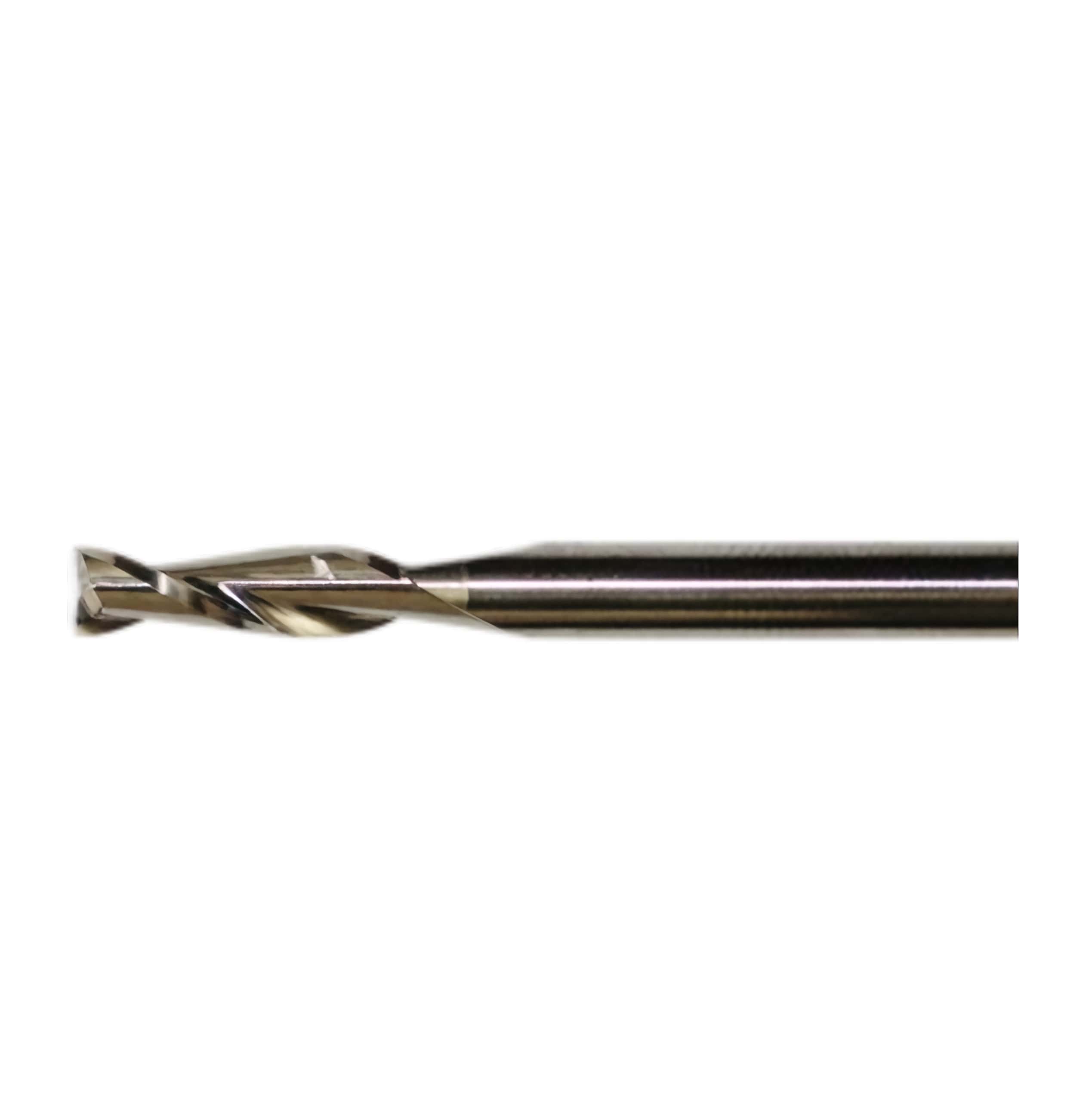

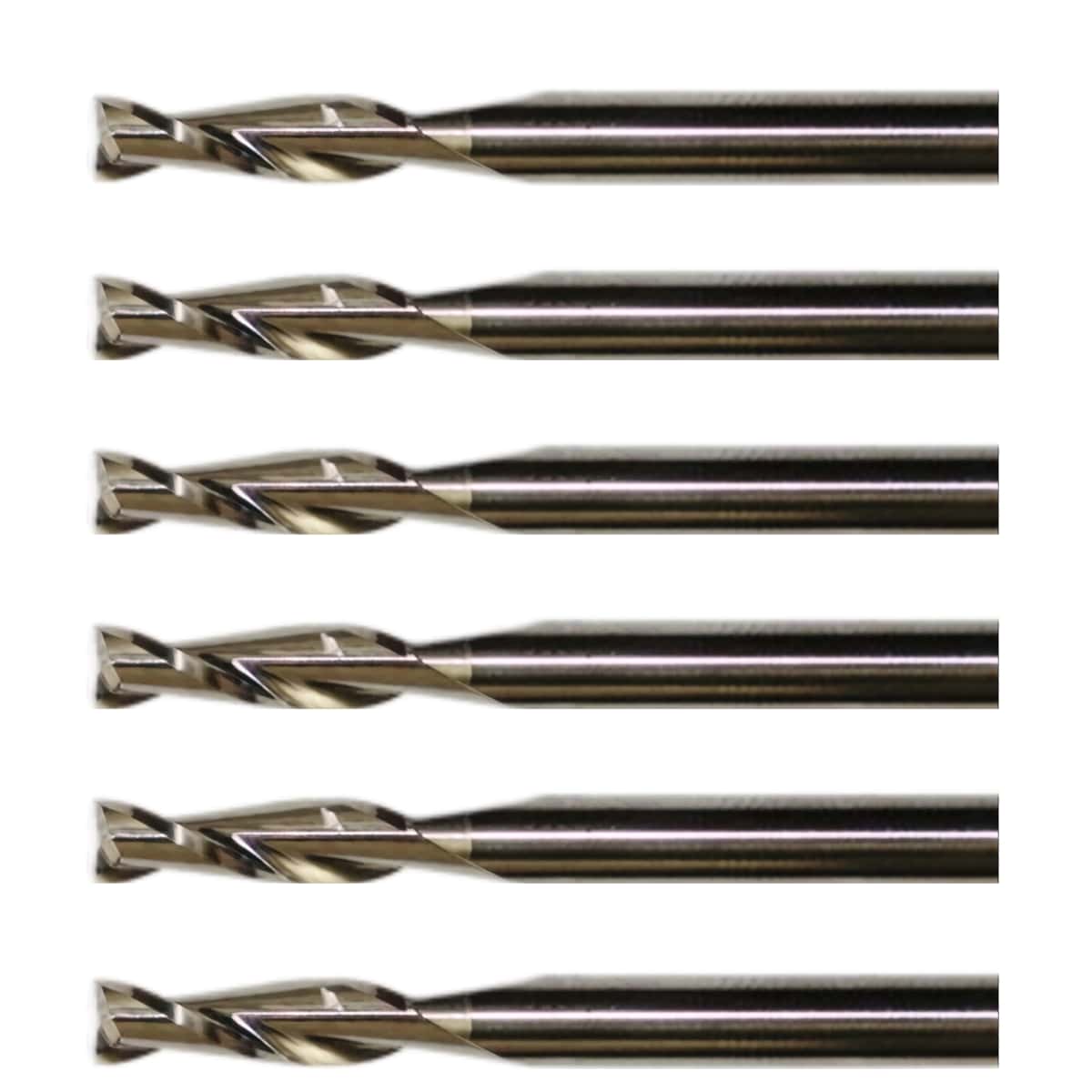

Zund R24 3910704 Spiral Router Bit For Use Zund Cutting Systems

The Zund R24 (Part No. 3910704) is a professional-grade, double-fluted spiral router bit designed for use with Zund cutting systems. Unlike the R15's single-flute design, the R24's dual flutes provide increased rotational stability and a balanced cut, making it particularly effective for high-speed milling in rigid substrates

Specifications
Recommended materials
Aluminum alloy
Plastic - PMMA (Acryl)
Tools
PN 150/450 W
Diameter of shank
1/8 in
Max. rotations speed (1/min)
80000
Max. routing depth
10 mm
Number of cutting edges
2

Primary Applications & Materials
The R24 is categorized as a universal bit for thin and rigid materials. The two-flute geometry helps reduce vibration and provides a finer surface finish in:
Aluminum Alloys: Thin aluminum sheets and aluminum composite materials (ACM).
Hard Plastics: PMMA (Acrylic), polycarbonate, and other rigid plastics.Signage Substrates: Ideal for precise routing of rigid boards used in the display and advertising industry.

Operational Note: Because the R24 uses a 1/8" (3.175 mm) shank, ensure your router module (such as the URT - Universal Routing Tool) is equipped with the correct collet size, as many other Zund bits (like the R202-206 series) standardly use a 6mm shank.
