Zund R15 Cnc Milling & Router Bits For Zund Cutting Systems 3910715

Zund R15 CNC Milling & Router Bits for Zund Cutting Systems – Model 3910715 Available for Purchase Explore Reviews | Replacement Options | Sizes Enquire now

Description

Zund R15 Cnc Milling & Router Bits For Zund Cutting Systems 3910715

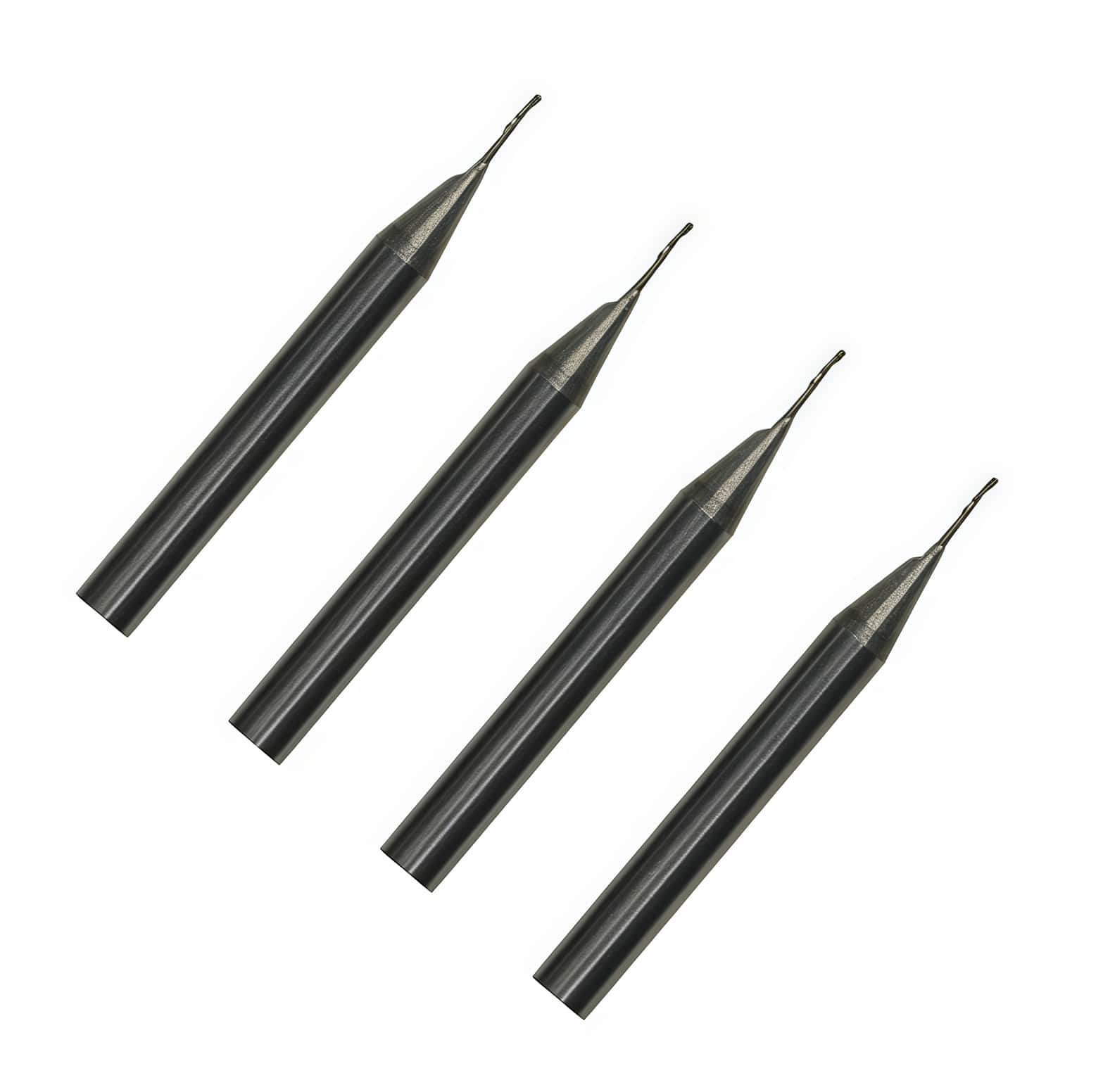

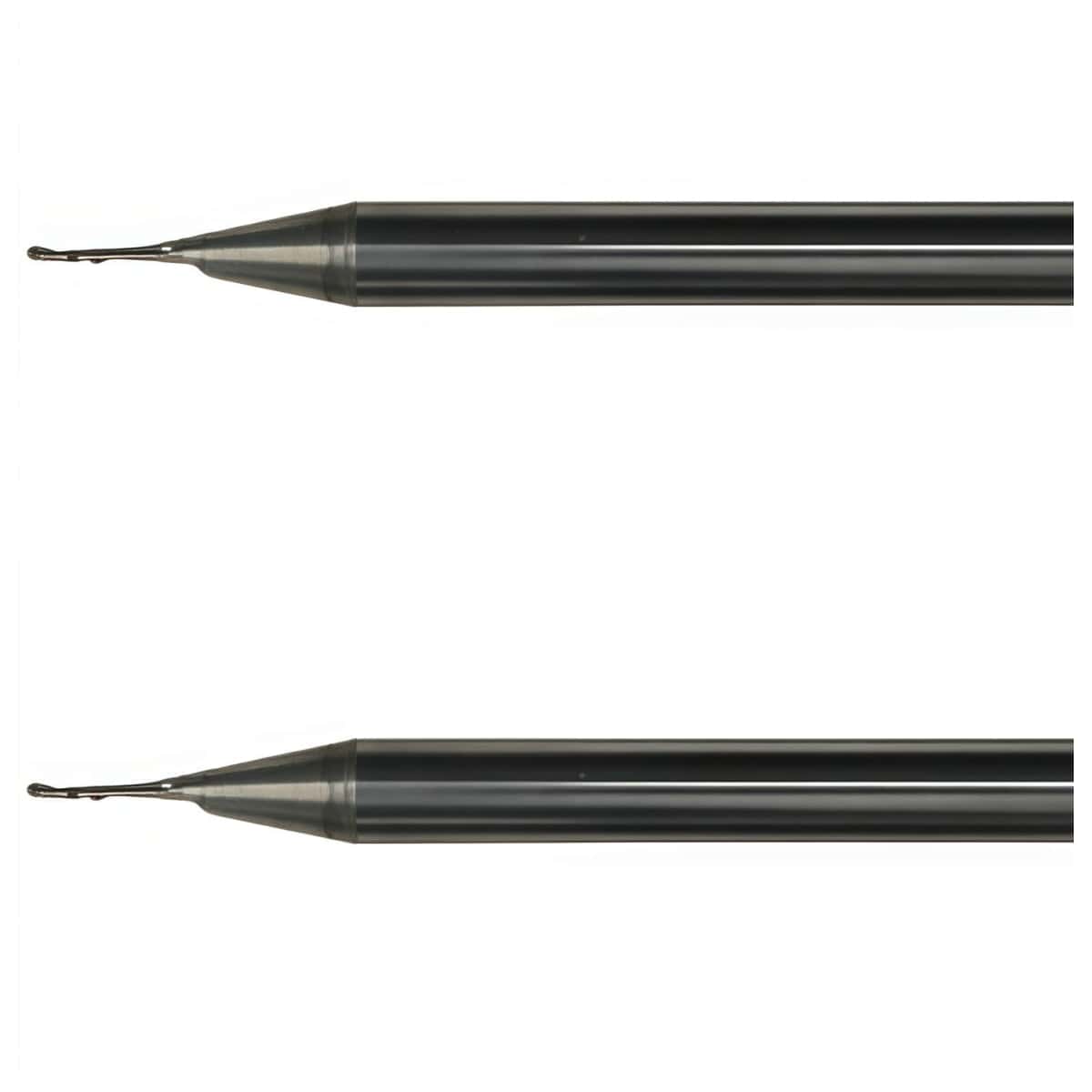

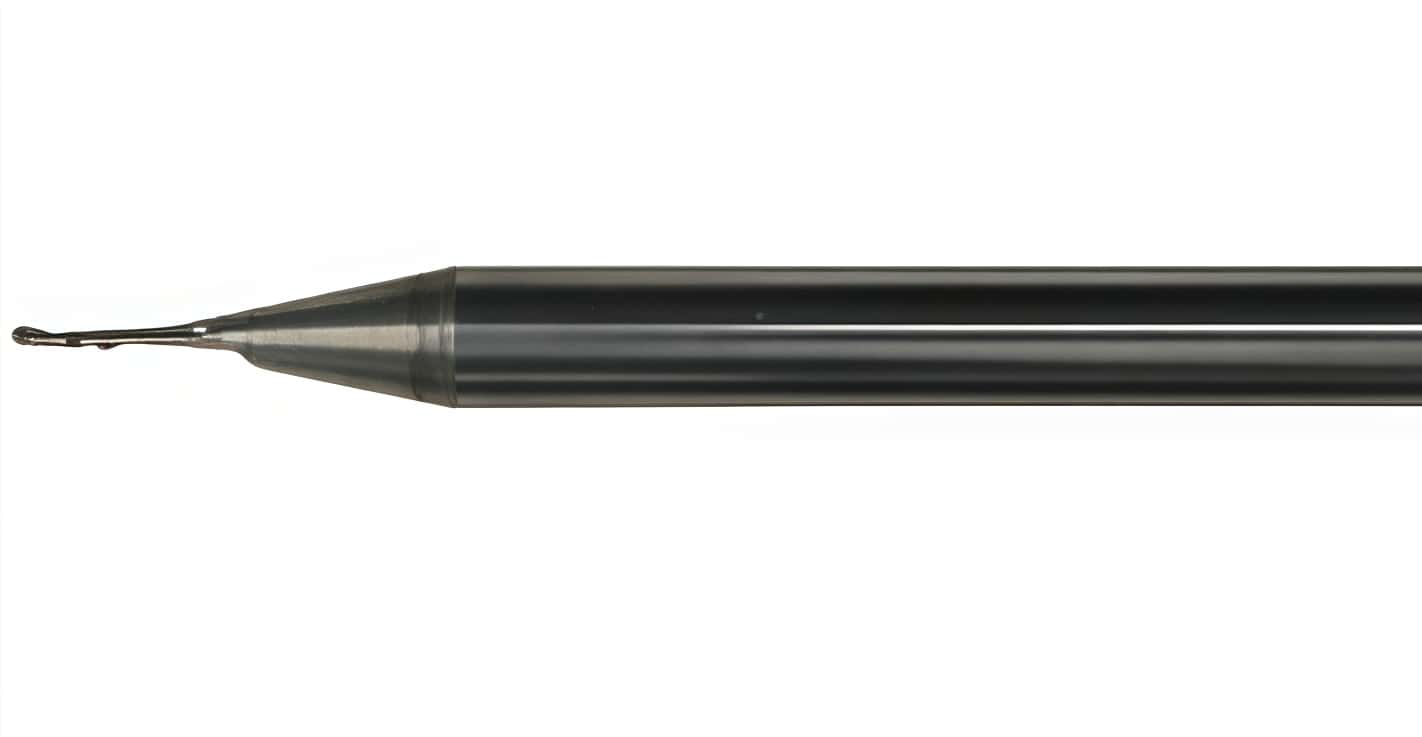

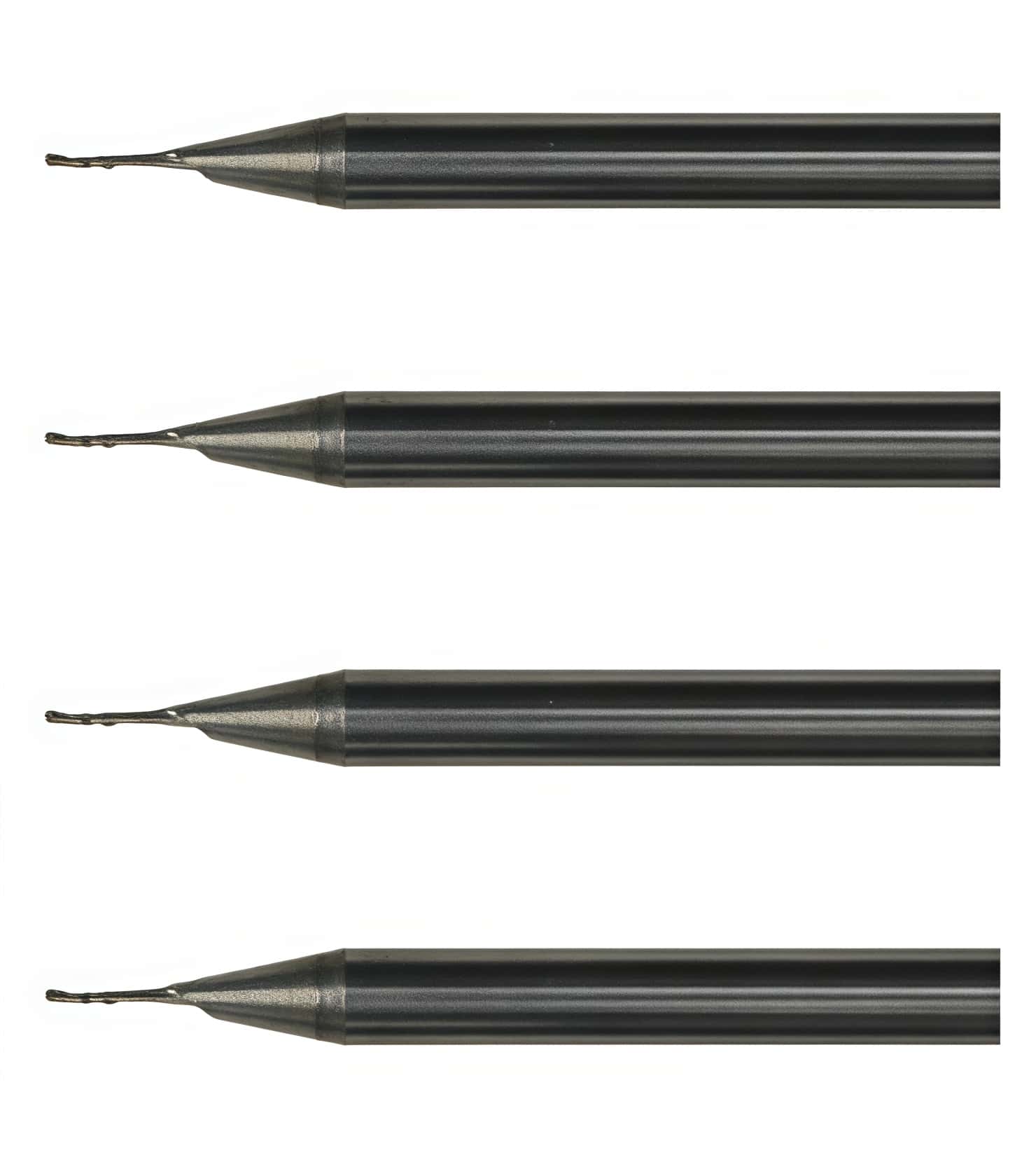

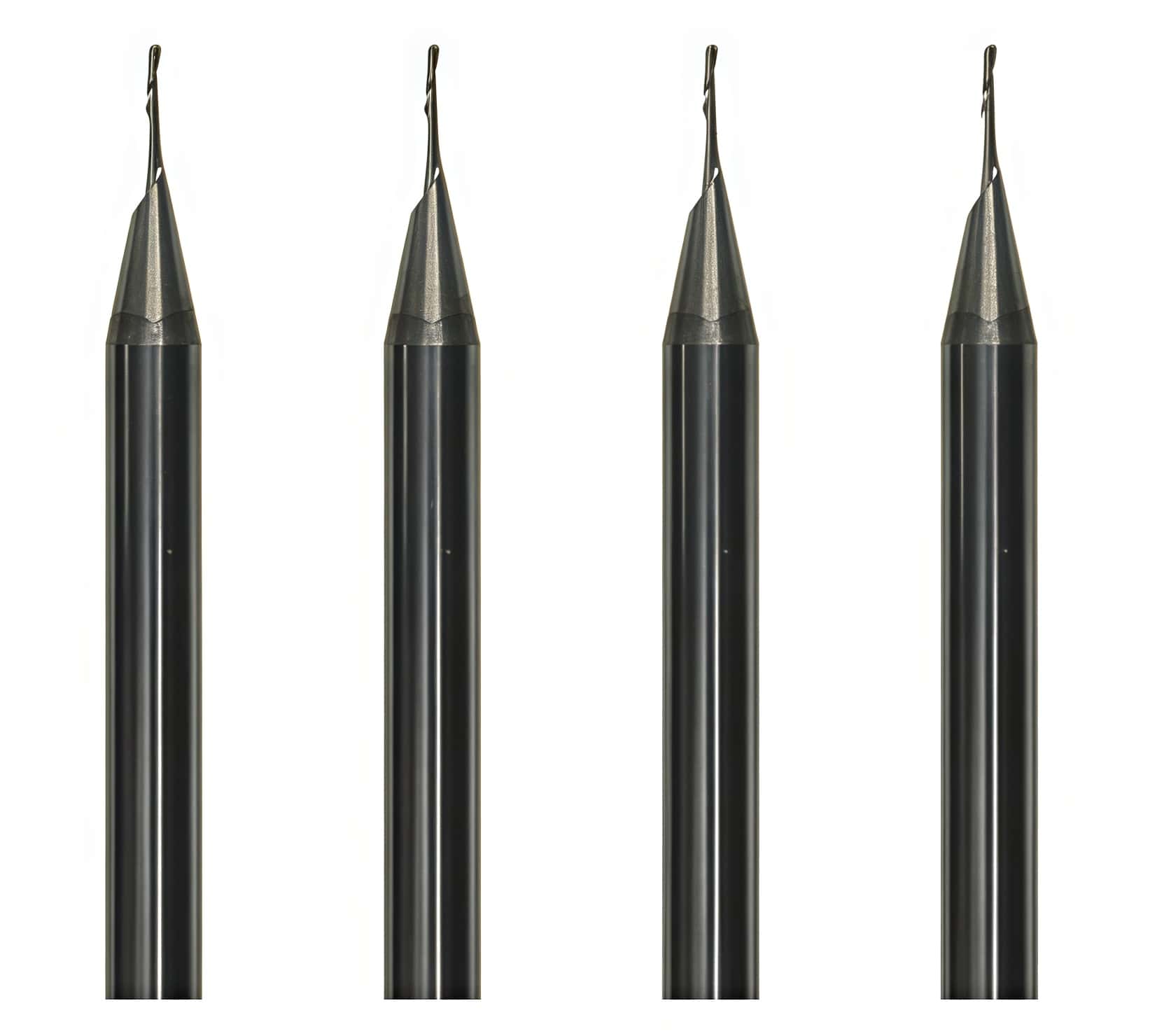

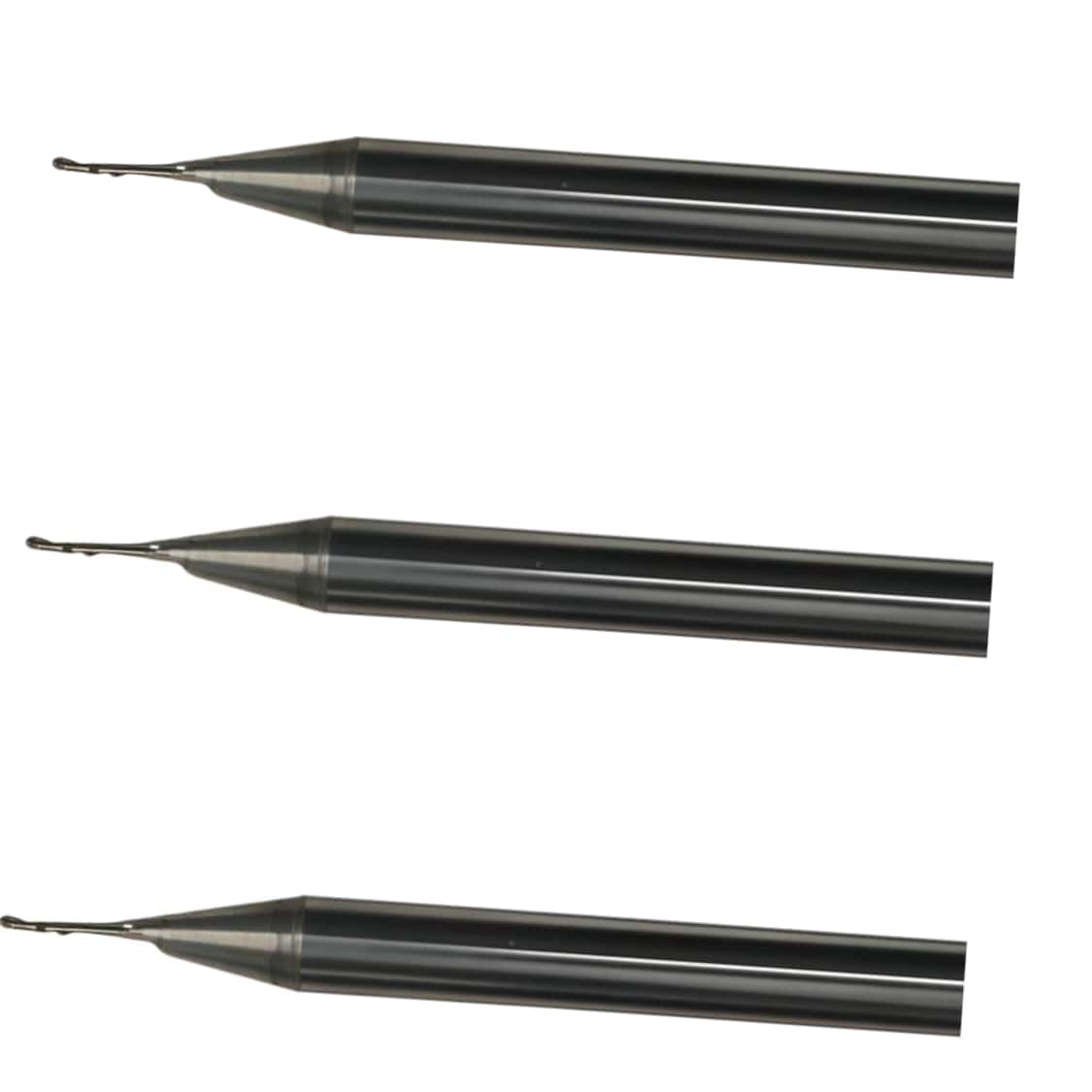

Zund R15 Router Bit (Item Number 3910715) is a specialized, solid carbide spiral milling bit engineered for micro-milling and high-precision detail work. Unlike the larger R13 and R14 variants, the R15 features an ultra-fine cutting diameter designed for intricate routing and engraving applications.

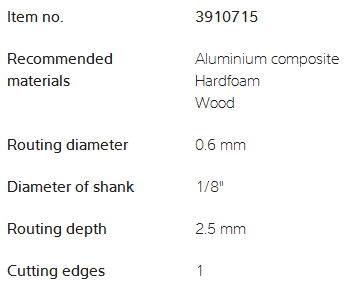

Core Technical Specifications

The R15 bit uses a thin, right-hand twist, single-flute configuration to safely eject debris while maintaining edge sharpness:

Routing Diameter (Cut Ø): 0.6 mm
Max Routing Depth: 2.5 mm
Shank Diameter: 1/8" (3.175 mm)
Total Length: 38 mm
Number of Cutting Edges: 1 Flute (Up-cut)
Maximum Rotation Speed: 80,000 RPM

Recommended Materials

Because of its small 0.6 mm cutting diameter, this bit is restricted to shallow, precision detailed work on the following substrates:

Aluminum Composites: Light engraving or engraving-through on thin ACM / Dibond panels.
Plastics & Synthetics: Highly accurate profiling on Acrylic (PMMA), Polycarbonate, and Expanded PVC (Forex).
Wood Products: Intricate detailed carvings on thin Medium-Density Fiberboard (MDF).

Machine & Tool Compatibility

The R15 can be sourced directly via the Shenzhen Oyea Store and runs on automated high-frequency spindle modules:

Compatible Spindles: Zund PN series modules (150W and 450W) as well as the Universal Routing Tool (URT) operating in standard or engraving modes.
Supported Platforms: Fully operational on Zund G3, S3, and D3 digital cutting tables.
