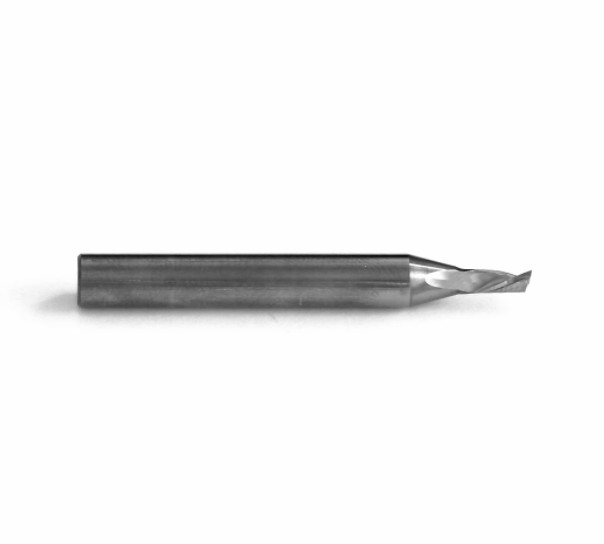

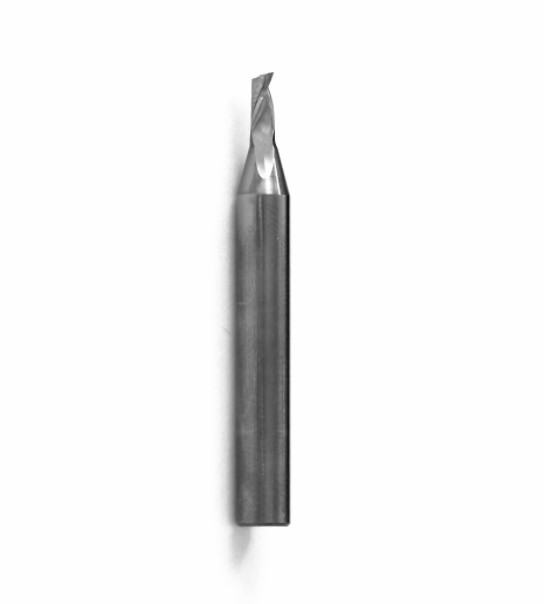

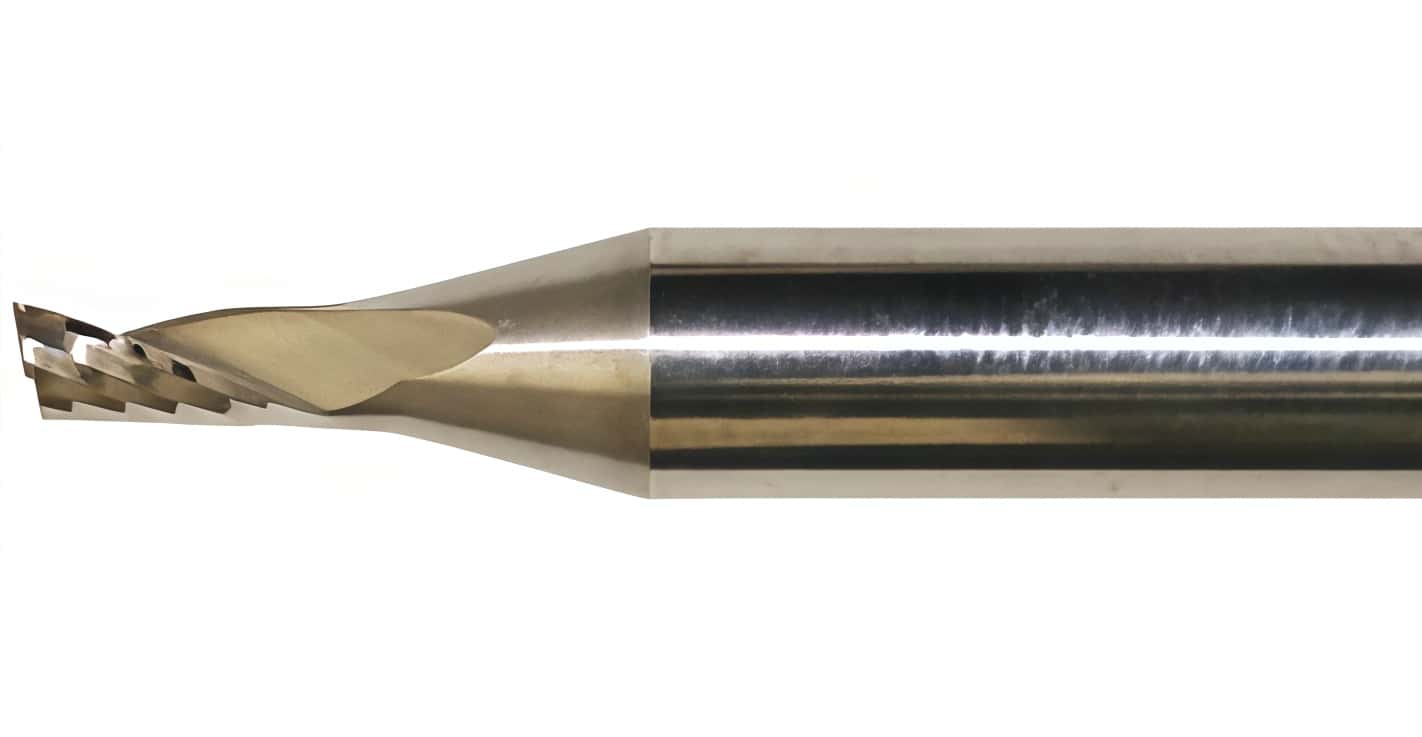

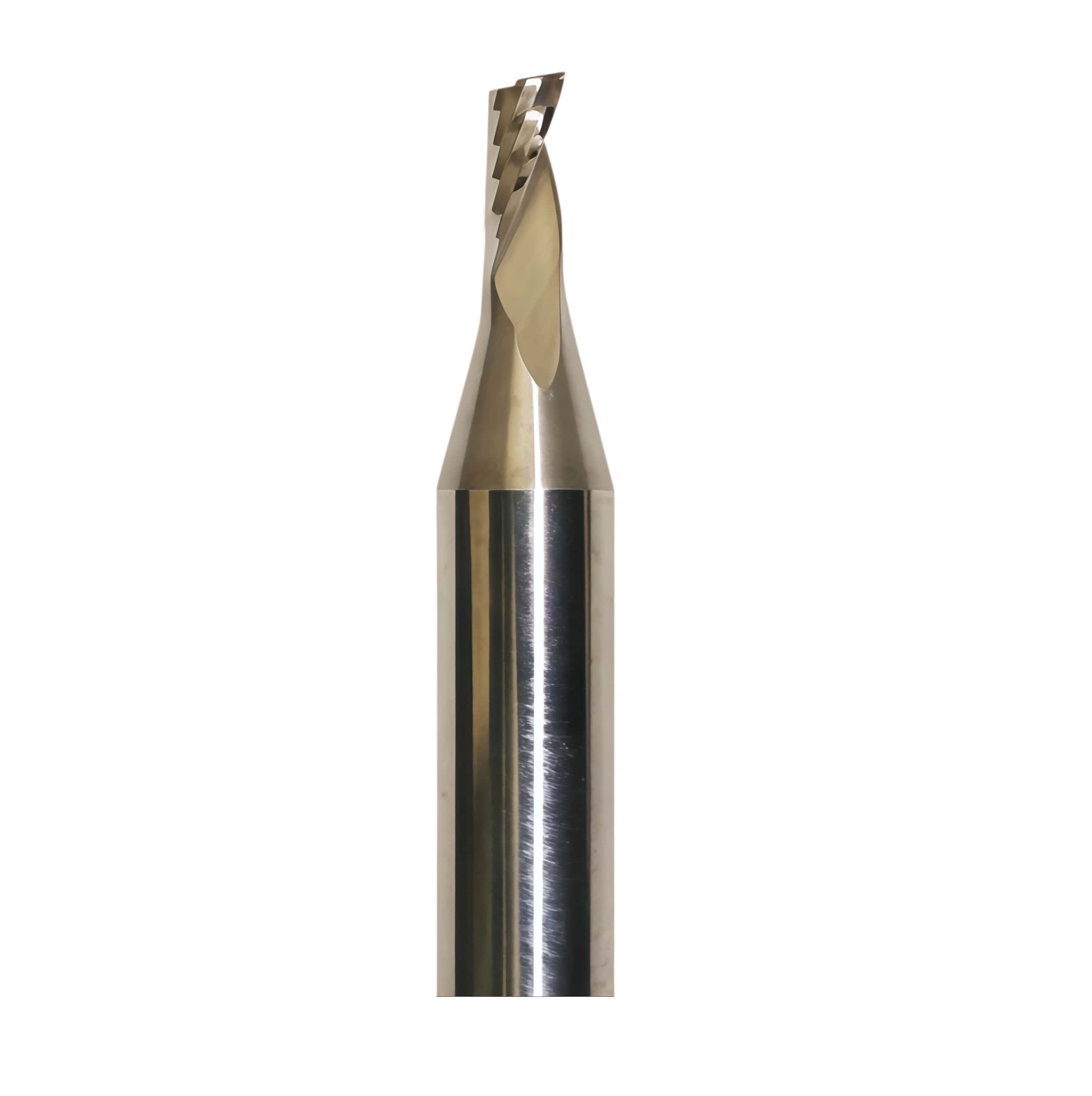

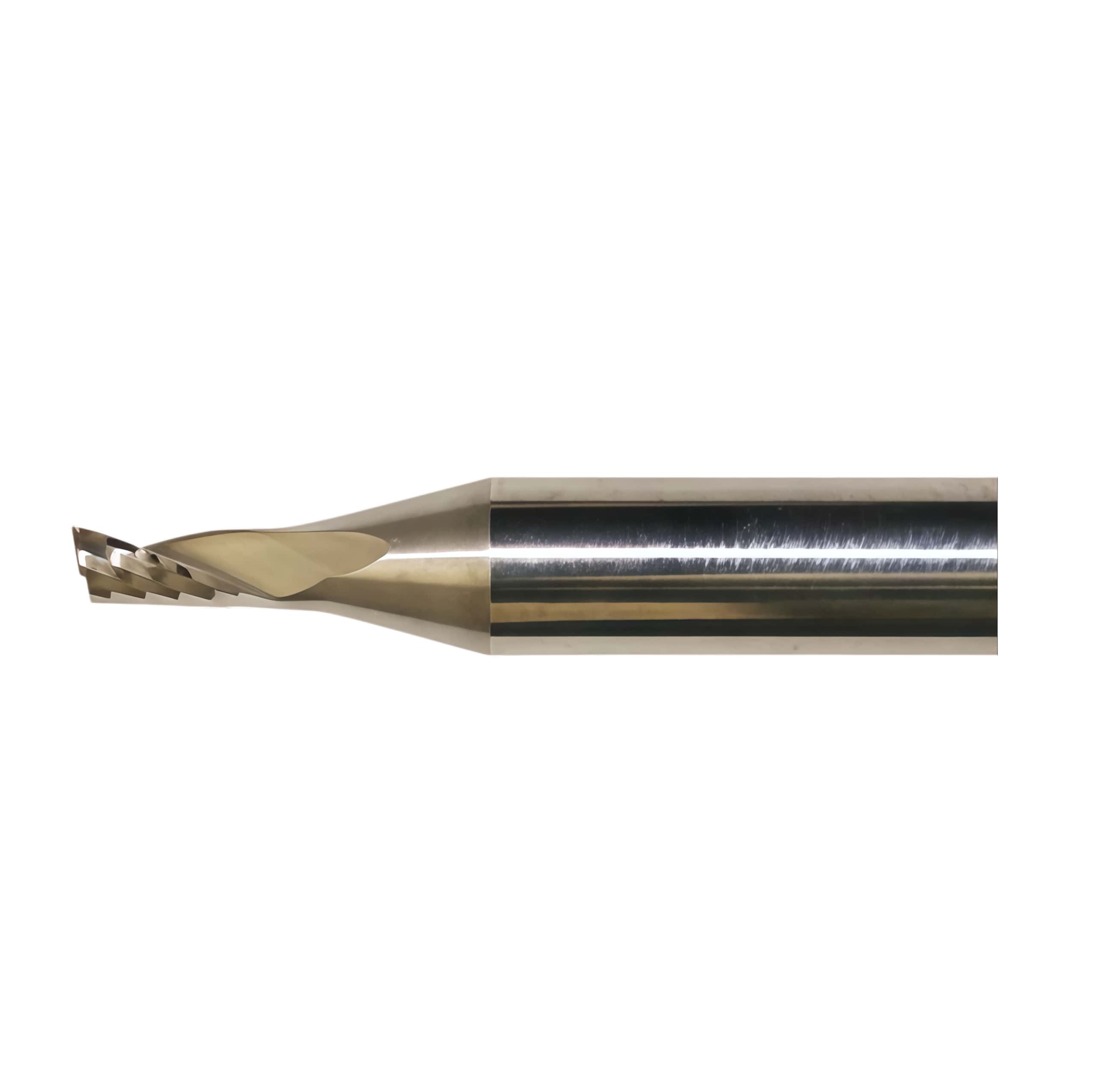

Milling router bits R108 with routing diameter 3mm and routing depth 6mm for acrylic, aluminum composite, Dibond materials

Coated milling routers R108 have a routing diameter of 10mm and maximum rotation speed of 4000rpm and are suitable for routing, milling, engraving, drilling, shaping a wide range of aluminum composite materials, e.g. Dibond, Alupanel, Gobond, Dilite. The R141 cutters can mill through both aluminum and polyethylene or mineral core layers.

The R108 router bits are designed for industrial applications such as the production of: indoor / outdoor signage and POS/POP displays, light boxes, traffic signs, information boards, exhibition design, architecture, architectural signage, cladding, shopfronts

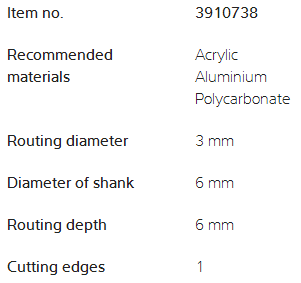

Recommended materials for processing: aluminum composite, aluminum, polyethylene foam, acrylic material

Milling diameter: 3mm

Max. milling depth: 6mm

Shank diameter: 6mm

Total length: 50mm

Max. rotation speed (1/min): 50000rpm

Application: for all milling tool heads that require a 6mm diameter shank, e.g. Zund Cutter + R45-s / RM-A / RM-A QC / RM-S
