Zund R206 Multipurpose Tungsten Carbide Milling & Router Bits 5209422-Made in China
Zund R206 Multipurpose Tungsten Carbide Milling and Router Bits 5209422, manufactured in China, are versatile tools commonly used across various applications. When considering a replacement, it’s important to evaluate user reviews to ensure quality and performance meet your needs. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

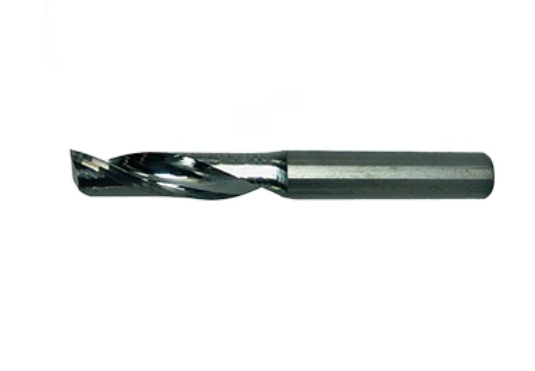

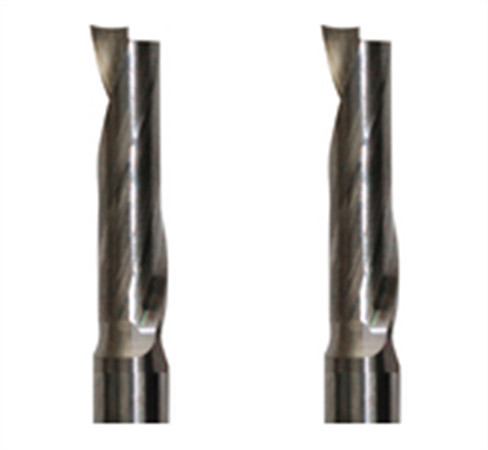

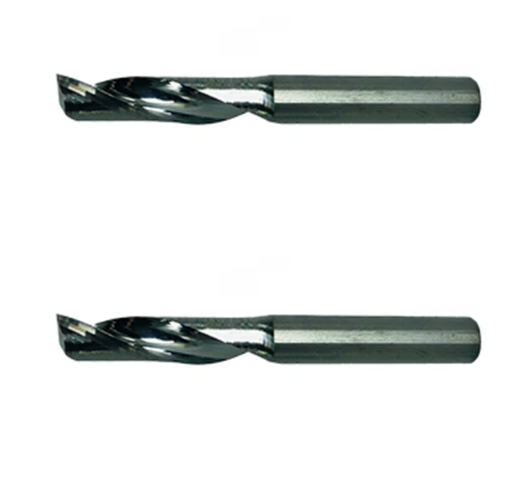

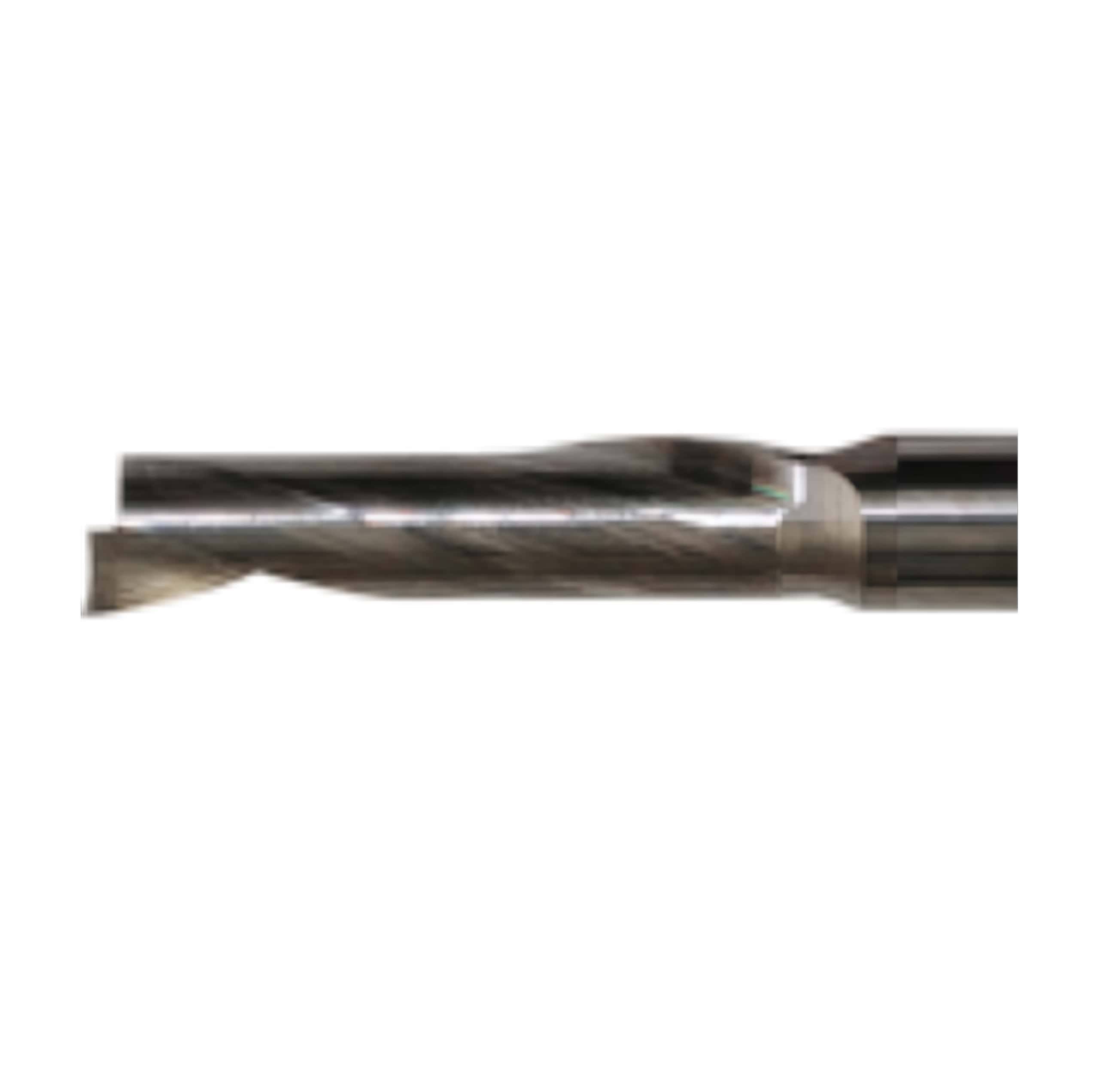

Zund Tungsten Carbide Milling & Router Bits R206(5209422)

Item no.
5209422
Routing Diameter
6
Diameter of Shank
6 mm
Routing Depth mm.
22
Cutting Edges
1
Max Rotation Speed
50000

Description:
Multipurpose bit perfect for hard & soft plastics and suited for a wide range of materials including acrylics, expanded PVC, metals, corrugated plastics and more.

Machine Type:
Zund G3 Series, Kongsberg XL/XN series, Kongsberg XP, AXYZ Routers, Multicam Routers, Various CNC Routers


Mechanical Performance Benefits
Because the cutting diameter matches the 6.0 mm shank, the R206 lacks the necked-down structural weakness of smaller bits. This uniform cross-section dampens spindle vibrations, yielding extremely clean sidewall finishes even when maxing out the 22.0 mm cutting depth. Its single, mirror-polished up-cut flute aggressively scoops chips upward, allowing high feed rates without heat tracking or material clogging.

Target Material Processing
The R206 is a universal production bit best suited for processing thick rigid substrates and non-ferrous metals:
  • Metals & Composites: Aluminum sheets, brass, copper, and Aluminum Composite Materials (ACM/Dibond).
  • Thick Plastics: Acrylic (PMMA), Polycarbonate, Expanded PVC, HDPE, and PETG.
  • Wood & Tooling Board: High-density MDF, multi-ply birch plywood, and thick polyurethane foam
