Zund r206 r207 r208 r209 Router Bits Specifications Size Use
Here are the detailed specifications, sizes, and typical uses for the Zünd router bits R206, R207, R208, and R209 based on the available information:

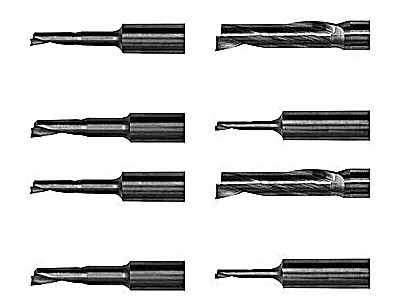

Zünd Router Bits Specifications and Uses
|
Model |
Routing Diameter |
Max Cutting Depth |
Shank Diameter |
Flute Type |
Max RPM |
Typical Materials |
Use Cases |
|
6.0 mm |
Routing Depth mm. |
6.0 mm |
Single O-Flute, Up-Cut |
50,000 |
Acrylic, Aluminum, Dibond, Forex, MDF, Plastics |
General purpose routing for medium-depth cuts in rigid materials |
|
|
2.0 mm (assumed based on numbering and typical sizes, exact specs not found) |
Max. routing depth |
6.0 mm (typical for Zund bits) |
Not specified |
|
Likely similar to R202, used for fine-detail routing |
Precision routing and engraving on plastics, wood, composites |
|
|
3.0 mm |
8.0 mm |
6.0 mm |
Single O-Flute, Up-Cut |
50,000 |
Aluminum Composite Material (ACM) such as Dibond, Alupanel, Gobond, Dilite |
Industrial routing of ACM panels for signage, architectural cladding, exhibition stands, digital printing displays |
|
|
4.0 mm |
Slightly larger routing diameter than R208, exact depth not specified but similar or slightly deeper than R208 |
6.0 mm |
Single O-Flute, Up-Cut |
50,000 |
Aluminum Composite Material (ACM) |
Similar to R208 but for slightly larger diameter routing in ACM |
Additional Details
· R206 is a 6 mm diameter router bit used for medium-depth routing in materials like acrylic, aluminum, MDF, and plastics. It is a single flute, up-cut bit suitable for general-purpose routing.
· R207 specifications are not explicitly detailed in the sources, but it likely fits the smaller diameter range (around 2 mm) and is used for precision routing similar to R202.
· R208 is specialized for aluminum composite materials (ACM) with a 3 mm diameter and 8 mm maximum routing depth. It is designed for industrial applications such as signage manufacturing and architectural cladding. It has a 6 mm shank diameter and can operate up to 50,000 RPM.
· R209 is similar to R208 but with a slightly larger routing diameter (around 4 mm). It is also used for ACM materials in industrial applications, providing a bit larger cut size].
Summary of Use
· R206: Medium-depth routing in plastics, MDF, acrylic, and aluminum.
· R207: Likely fine-detail and precision routing in plastics and wood (exact specs not found).
· R208: Routing aluminum composite materials with a 3 mm diameter and 8 mm depth, ideal for signage and cladding.
· R209: Similar to R208 but with a larger diameter for slightly bigger cuts in ACM.
These bits are designed for use with Zünd cutting systems and similar CNC routers requiring a 6 mm shank diameter and high-speed operation (up to 50,000 RPM). They feature single flute, up-cut designs for efficient chip removal and clean cuts in a variety of materials.
This overview should help you select the appropriate Zünd router bit based on diameter, cutting depth, and material application.
