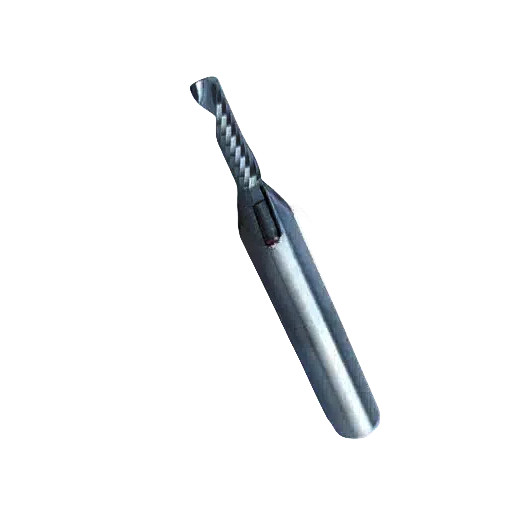

The listed items refer to high-precision, solid carbide CNC milling tools, highlighting the compatibility between Zund and Esko Kongsberg digital cutting tables. These specialized router bits feature a 6 mm shank diameter, a 3 mm cutting diameter, and an 11 mm cutting depth, engineered for high-speed operation up to 50,000 RPM.
Technical Specifications
The single-flute, up-cut geometry is optimized to efficiently clear chips upward, preventing material melting or welding during high-speed cutting.
max. cutting depth: 11 mm
shaft diameter: 6 mm
cutting edge diameter: 3 mm
number of flutes: 1
length: 50 mm
max. RPM: 50.000
special features: polished and balanced*
replacement for:
Zund R103 / 3910743
Zund R113 / 3910763
Esko BIT-MUS06-3011-50 / G42437905
Esko BIT-AUS06-3011-50 (i-8085) / G42437889
Cross-Reference Chart
Different manufacturers use specific identifiers for what are essentially equivalent tool dimensions, though they vary subtly by sharpness grade and target material.
|
Specification / Material Vibe |
Zund Part Number |
Esko Kongsberg Part Number |
OEM System Codes |
|
Acrylic / Plastics (Super Sharp) |
G42437889 / 42437889 |
||
|
Multi-Purpose / Harder Synthetics |
G42437905 |
A robust tungsten carbide tool designed for general routing duties, including composite panels, wood, MDF, and dense plastics.
It serves as a direct cross-replacement for Zund 3910763 (R113) and Esko G42437905. Compatible packages can be found through alternative tool fabricators like Shenzhen Oyea Machinery Co., Ltd.. Requires a standard 6mm collet for installation.
It serves as a direct cross-replacement for Zund 3910763 (R113) and Esko G42437905. Compatible packages can be found through alternative tool fabricators like Shenzhen Oyea Machinery Co., Ltd.. Requires a standard 6mm collet for installation.
