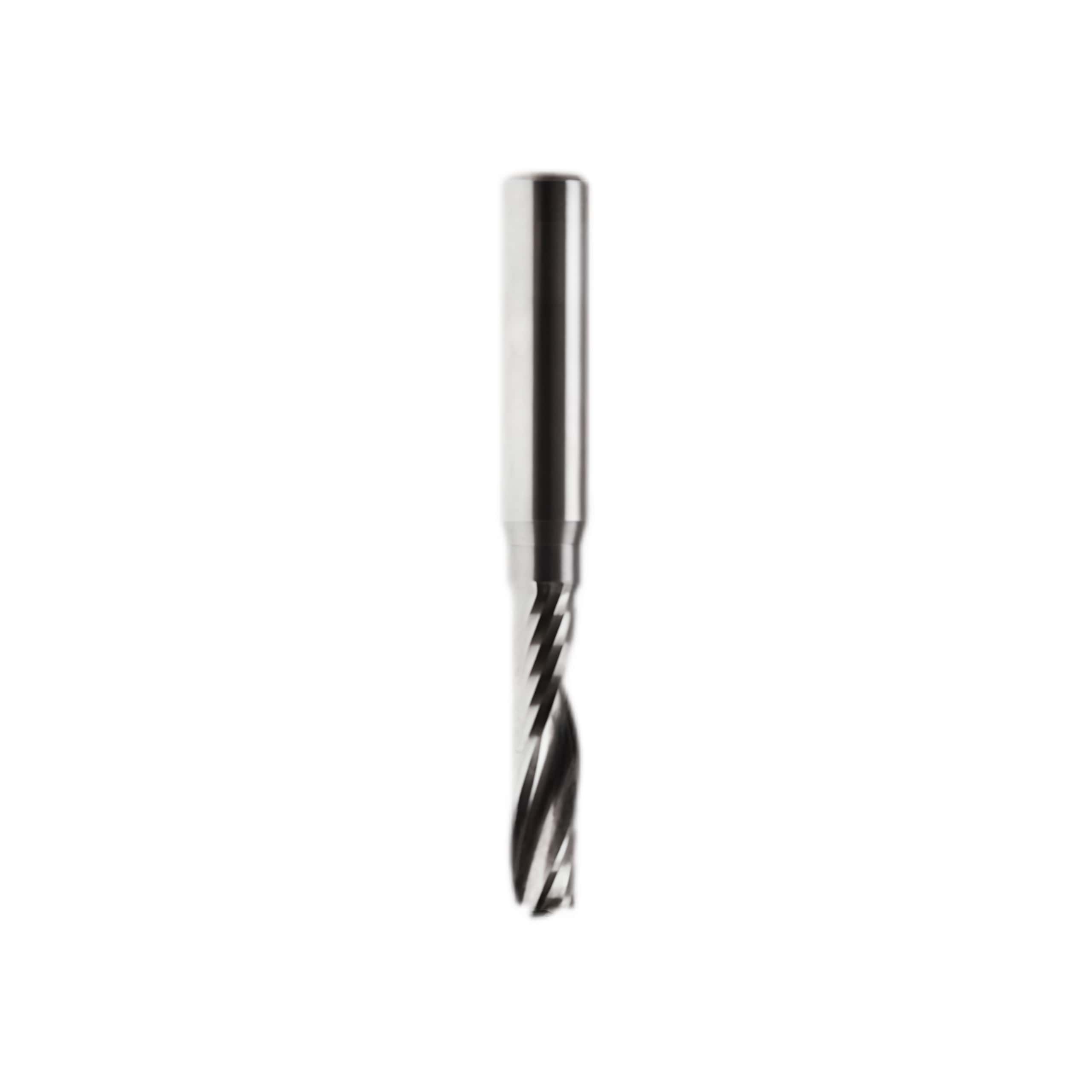

Esko Kongsberg BIT-MUS06-5020-52 (part number G42458802, also referenced as i-3880) is a solid tungsten carbide, multi-purpose up-cut single-flute router bit designed for Kongsberg CNC digital finishing and flatbed cutting platforms.

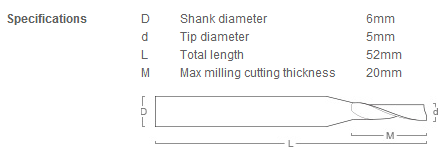

Technical Specifications

• Bit Type: Multi-Purpose Single-Flute Up-Cut (Tungsten Carbide / TC)

• Part Numbers: BIT-MUS06-5020-52 / G42458802 / i-3880

• Shank Diameter: 6.0 mm

• Milling Diameter: 5.0 mm

• Milling Depth (Cut Length): 20 mm

• Total Length: 52 mm

• Geometry: Single-flute (Z1), Up-cut spiral geometry to clear debris upward out of the kerf efficiently.

Applications & Suitable Materials

This multi-purpose up-cut bit is optimized for fast chip removal and smooth surface finishes on materials such as:

• Foam Board & Rigid PVC / Forex

• Acrylic / PMMA

• MDF & Wood Laminates

• Aluminum Composite Materials (ACM / ACP)

• Plastic & Polypropylene Boards
